Low-effort homelab server with Ubuntu Server on Intel NUC
Need. More. Server. Need. More. POWER!!!
But only a little bit, maybe just enough to run a Minecraft server, which refuses to start on my Raspberry Pi 4 because it has only a meagre 2 GB of RAM.
I had known about Intel NUC tiny PCs for a while, and how handy they can be to have a dedicated physical PC for experimentation. There was a very real possibility that I would have to set one up as a light gaming PC in the near future, so I thought cutting my teeth on a simpler server setup would be a good way to get acquainted with this hardware platform and its Linux support.
Hardware
Ubuntu's list of Recommended and Certified Hardware is quite short and includes only very old models, and searching the web for this model in relation to Linux or Ubuntu tends to yield mostly useless results (e.g. shop listings, or forum threads related to other models).
Not being at all sure this would be a good choice of platform, I kept this build low-cost by choosing the low-end on the CPU:
- Intel® NUC 11 Performance kit - NUC11PAHi3 ($285)
- VENGEANCE® Series 32GB RAM (2 x 16GB) DDR4 SODIMM ($120)
- SSD 970 EVO Plus NVMe® M.2 2 TB SSD ($180)
Update #1 (2022-10-12)
Encouraged by a sudden price fall (by 15% down to $300), and spurred by the recent failure of 6TB HDD RAID, I added a Crucial MX500 4TB 3D NAND SATA SSD to serve as an backup to some of my precious files in that cursed RAID.
Turns out, Crucial MX500 SSD are problematic.
Update #2 (2023-09-23)

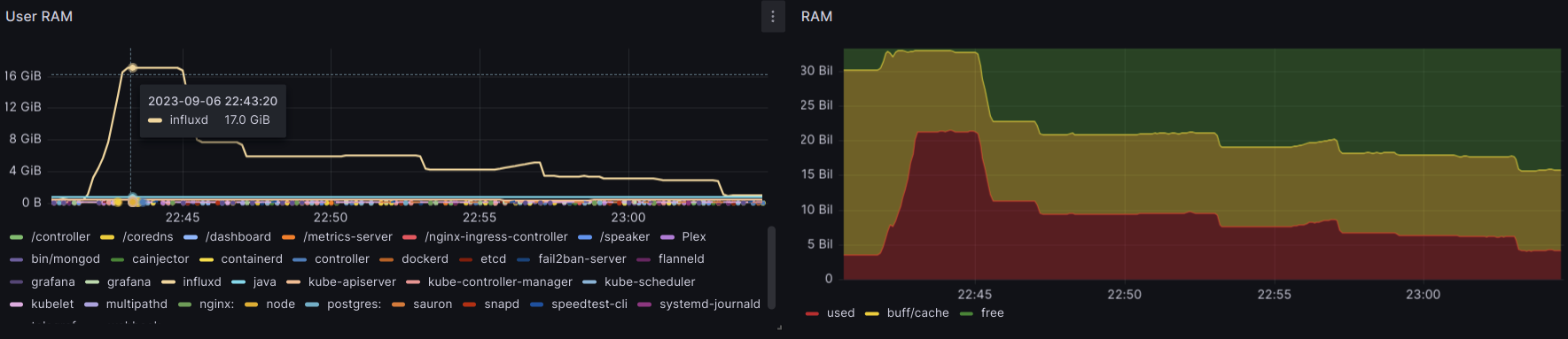

Often I wonder whether 32 GB of RAM was too much, and it probably was. I hardly ever see any process use more than 5 GB, the whole system hardly ever has more thn 10 GB used. On the other hand, maybe it is better to have enough RAM for those rare occasions when it's needed. Just once in the last 30 days, did one process (InfluxDB) got up to 17 GB of used RAM, most likely because I made an unreasonable request such as retrieving too many days' worth of data.
Ubuntu Desktop 22.04
Although the intended use for this mini PC is to serve as a server, this being my first experience with this hardware platform I tried first installing Ubuntu Desktop 22.04 to see what may be different on this hardware.
The most important difference between Intel NUC is that, starting precisely at this generation (11), NUC 11 Kits & Mini PCs no longer support Legacy BIOS Support. It seems even in the previous generation, this was already the case for Performance Kits (NUC10ixFN). This means Secure Boot is required, which posed a bit of a challenge for me since I had never had to set this up.
With that in mind, the installation itself was simple as it tends to be the case with Ubuntu:
- Boot from USB, with the option to Try or Install Ubuntu
- Select language (English) and then Install Ubuntu
- Select keyboard layout and update and other software to Install third-party software for graphics and Wifi hardware and additional media formats, on top of an otherwise Minimal installation.
- Configure Secure Boot (simply provide a password).
- Create a new partition table on
/dev/nvme0n1with 4 primary partitions: - 512 MB EFI System Partition mounted on
/boot/efi - 50,000 MB btrfs mounted on
/ - 50,000 MB btrfs without mount point (for future use)
- 1,899,886 MB (remainder) btrfs mounted on
/home - Select Install Now to confirm and create the new
partition table and install everything. Confirm location
(time zone), first non-root user name (
ponder) and computer name (lexicon). - Once it's done, select Restart
(remove install media and hit
Enter).
First boot & MOK management
The first time the system boots, after installing for the first time, the MOK management blue menu appears. This is the point where the user installs Ubuntu on a new system and the correct option to choose is Enroll MOK. I was midly confused, hadn't read the documentation carefully before hand, and didn't know which option to chose. After a few seconds of inactivity, the menu time out and the system boots.
Once the system has started,
# dmesg | egrep -i 'secure|mok|boot'
[ 0.000000] Command line: BOOT_IMAGE=/@/boot/vmlinuz-5.15.0-40-generic root=UUID=a61cf166-64e3-48ce-be02-07981ef82e33 ro rootflags=subvol=@ quiet splash vt.handoff=7
[ 0.000000] efi: ACPI=0x40cbe000 ACPI 2.0=0x40cbe014 TPMFinalLog=0x40cc8000 SMBIOS=0x41568000 SMBIOS 3.0=0x41567000 MEMATTR=0x34ac0298 ESRT=0x351e3d18 MOKvar=0x3111c000 RNG=0x4151df18 TPMEventLog=0x310f5018
[ 0.000000] secureboot: Secure boot enabled
[ 0.000000] Kernel is locked down from EFI Secure Boot mode; see man kernel_lockdown.7
[ 0.018245] secureboot: Secure boot enabled
[ 0.069027] smpboot: Allowing 4 CPUs, 0 hotplug CPUs
[ 0.069056] Booting paravirtualized kernel on bare hardware
[ 0.069204] Kernel command line: BOOT_IMAGE=/@/boot/vmlinuz-5.15.0-40-generic root=UUID=a61cf166-64e3-48ce-be02-07981ef82e33 ro rootflags=subvol=@ quiet splash vt.handoff=7
[ 0.069250] Unknown kernel command line parameters "splash BOOT_IMAGE=/@/boot/vmlinuz-5.15.0-40-generic", will be passed to user space.
[ 0.150970] smpboot: Estimated ratio of average max frequency by base frequency (times 1024): 1399
[ 0.150970] smpboot: CPU0: 11th Gen Intel(R) Core(TM) i3-1115G4 @ 3.00GHz (family: 0x6, model: 0x8c, stepping: 0x1)
[ 0.150970] x86: Booting SMP configuration:
[ 0.151228] smpboot: Max logical packages: 1
[ 0.151228] smpboot: Total of 4 processors activated (23961.60 BogoMIPS)
[ 0.659056] ACPI: \_SB_.PC00.LPCB.H_EC: Boot DSDT EC used to handle transactions
[ 1.003909] ACPI: \_SB_.PC00.LPCB.H_EC: Boot DSDT EC initialization complete
[ 1.003960] pci 0000:00:02.0: vgaarb: setting as boot VGA device
[ 1.292708] smpboot: Estimated ratio of average max frequency by base frequency (times 1024): 1399
[ 1.305119] efifb: showing boot graphics
[ 1.339073] Loaded X.509 cert 'Canonical Ltd. Secure Boot Signing: 61482aa2830d0ab2ad5af10b7250da9033ddcef0'
[ 1.341583] integrity: Loading X.509 certificate: UEFI:MokListRT (MOKvar table)
[ 1.403263] BOOT_IMAGE=/@/boot/vmlinuz-5.15.0-40-generic
[ 4.704413] systemd[1]: Condition check resulted in First Boot Complete being skipped.
[ 5.271931] Bluetooth: hci0: Bootloader revision 0.4 build 0 week 30 2018
[ 5.272963] Bluetooth: hci0: Secure boot is enabled
[ 7.059956] Bluetooth: hci0: Waiting for device to boot
[ 7.074922] Bluetooth: hci0: Device booted in 14646 usecs
Secure Boot is enabled and there is only one key enrolled:
# mokutil --sb-state
SecureBoot enabled
# mokutil --list-enrolled
[key 1]
SHA1 Fingerprint: 76:a0:92:06:58:00:bf:37:69:01:c3:72:cd:55:a9:0e:1f:de:d2:e0
Certificate:
Data:
Version: 3 (0x2)
Serial Number:
b9:41:24:a0:18:2c:92:67
Signature Algorithm: sha256WithRSAEncryption
Issuer: C=GB, ST=Isle of Man, L=Douglas, O=Canonical Ltd., CN=Canonical Ltd. Master Certificate Authority
Validity
Not Before: Apr 12 11:12:51 2012 GMT
Not After : Apr 11 11:12:51 2042 GMT
Subject: C=GB, ST=Isle of Man, L=Douglas, O=Canonical Ltd., CN=Canonical Ltd. Master Certificate Authority
Subject Public Key Info:
Public Key Algorithm: rsaEncryption
Public-Key: (2048 bit)
Modulus:
00:bf:5b:3a:16:74:ee:21:5d:ae:61:ed:9d:56:ac:
bd:de:de:72:f3:dd:7e:2d:4c:62:0f:ac:c0:6d:48:
08:11:cf:8d:8b:fb:61:1f:27:cc:11:6e:d9:55:3d:
39:54:eb:40:3b:b1:bb:e2:85:34:79:ca:f7:7b:bf:
ba:7a:c8:10:2d:19:7d:ad:59:cf:a6:d4:e9:4e:0f:
da:ae:52:ea:4c:9e:90:ce:c6:99:0d:4e:67:65:78:
5d:f9:d1:d5:38:4a:4a:7a:8f:93:9c:7f:1a:a3:85:
db:ce:fa:8b:f7:c2:a2:21:2d:9b:54:41:35:10:57:
13:8d:6c:bc:29:06:50:4a:7e:ea:99:a9:68:a7:3b:
c7:07:1b:32:9e:a0:19:87:0e:79:bb:68:99:2d:7e:
93:52:e5:f6:eb:c9:9b:f9:2b:ed:b8:68:49:bc:d9:
95:50:40:5b:c5:b2:71:aa:eb:5c:57:de:71:f9:40:
0a:dd:5b:ac:1e:84:2d:50:1a:52:d6:e1:f3:6b:6e:
90:64:4f:5b:b4:eb:20:e4:61:10:da:5a:f0:ea:e4:
42:d7:01:c4:fe:21:1f:d9:b9:c0:54:95:42:81:52:
72:1f:49:64:7a:c8:6c:24:f1:08:70:0b:4d:a5:a0:
32:d1:a0:1c:57:a8:4d:e3:af:a5:8e:05:05:3e:10:
43:a1
Exponent: 65537 (0x10001)
X509v3 extensions:
X509v3 Subject Key Identifier:
AD:91:99:0B:C2:2A:B1:F5:17:04:8C:23:B6:65:5A:26:8E:34:5A:63
X509v3 Authority Key Identifier:
AD:91:99:0B:C2:2A:B1:F5:17:04:8C:23:B6:65:5A:26:8E:34:5A:63
X509v3 Basic Constraints: critical
CA:TRUE
X509v3 Key Usage:
Digital Signature, Certificate Sign, CRL Sign
X509v3 CRL Distribution Points:
Full Name:
URI:http://www.canonical.com/secure-boot-master-ca.crl
Signature Algorithm: sha256WithRSAEncryption
Signature Value:
3f:7d:f6:76:a5:b3:83:b4:2b:7a:d0:6d:52:1a:03:83:c4:12:
a7:50:9c:47:92:cc:c0:94:77:82:d2:ae:57:b3:99:04:f5:32:
3a:c6:55:1d:07:db:12:a9:56:fa:d8:d4:76:20:eb:e4:c3:51:
db:9a:5c:9c:92:3f:18:73:da:94:6a:a1:99:38:8c:a4:88:6d:
c1:fc:39:71:d0:74:76:16:03:3e:56:23:35:d5:55:47:5b:1a:
1d:41:c2:d3:12:4c:dc:ff:ae:0a:92:9c:62:0a:17:01:9c:73:
e0:5e:b1:fd:bc:d6:b5:19:11:7a:7e:cd:3e:03:7e:66:db:5b:
a8:c9:39:48:51:ff:53:e1:9c:31:53:91:1b:3b:10:75:03:17:
ba:e6:81:02:80:94:70:4c:46:b7:94:b0:3d:15:cd:1f:8e:02:
e0:68:02:8f:fb:f9:47:1d:7d:a2:01:c6:07:51:c4:9a:cc:ed:
dd:cf:a3:5d:ed:92:bb:be:d1:fd:e6:ec:1f:33:51:73:04:be:
3c:72:b0:7d:08:f8:01:ff:98:7d:cb:9c:e0:69:39:77:25:47:
71:88:b1:8d:27:a5:2e:a8:f7:3f:5f:80:69:97:3e:a9:f4:99:
14:db:ce:03:0e:0b:66:c4:1c:6d:bd:b8:27:77:c1:42:94:bd:
fc:6a:0a:bc
As is tytpically the case, the system required installing a few updates. After doing this, rebooting was required again. After rebooting, MOK management was not offered. No drivers seem to be missing, so everything seems to be good.
For a moment I thought I'd need to
set up a new MOK password
(update-secureboot-policy --enroll-key) but didn't need to.
I still feel like I don't really understand,
and should read more about,
what exactly is MOK in Linux for?
Ubuntu Server 22.04
With the Secure Boot setup out of the way, it was soon time to install Ubuntu Server 22.04 as the final, permanent system to run this server.
The installation process is a bit different:
- Boot from USB, with the option to Try or Install Ubuntu
- Wait for the
cloud-initscripts to do finish (a few minutes). - Select language (English) and then Install Ubuntu
- Update to the new installer.
- Select keyboard layout.
- Select Type of install: Ubuntu Server (not minimized)
- Configure network interfaces:
- Setup
enp89s0 ethwith 192.168.0.121 - Leave
wlo1 wlannot connected - For Storage configuration select Custom storage layout
- Use partition 1 (512 MB) as EFI System Partition mounted on
/boot/efi - Use partition 2 (50,000 MB) btrfs without mount point (alrady used for Ubuntu Studio)
- Use partition 3 (50,000 MB) btrfs mounted on
/ - Use partition 4 (remainder) btrfs mounted on
/home(not formatting) - Select Install Now to confirm the partition selection.
- Confirm location (time zone), first non-root user name
(
ponder) and computer name (lexicon). - Under SSH Setup select
- Install OpenSSH server: Yes
- Import SSH identity: No
- Select Featured server snaps: none
- Once it's done, select Restart
(remove install media and hit
Enter).
At this point both Ubuntu desktop and server are installed. The newly installed grub only boots the server installation, which is fine because there is no need for the desktop anymore.
Tweak Bash prompt
Tweak Bash prompt for root to make user name
red,
host name
blue
and path
green;
with this in .bashrc:
if [ "$color_prompt" = yes ]; then
PS1='\[\e]0;\u@\h: \w\a\]${debian_chroot:+($debian_chroot)}\[\033[01;31m\]\u@\[\033[01;34m\]\h\[\033[00m\] \[\033[01;32m\]\w \$\[\033[00m\] '
else
PS1='${debian_chroot:+($debian_chroot)}\u@\h \w \$ '
fi
Other users' Bash prompt is left as default, which renders all
green. The idea is that root's prompt is visually different,
to remind me that with great power comes great responsibility.
Add local hosts to /etc/hosts
This being the latest system added to the network, its
/etc/hosts will contain all the other systems' LAN IPs:
# cat /etc/hosts
127.0.0.1 localhost
127.0.1.1 lexicon
# The following lines are desirable for IPv6 capable hosts
::1 ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
# Google (forced) Safe Search
# https://support.google.com/websearch/answer/186669
216.239.38.120 www.google.com #forcesafesearch
216.239.38.120 www.google.ch #forcesafesearch
# K8s tests.
192.168.6.1 k8s.example.com
192.168.6.1 webapp.k8s.example.com
# Ethernet
10.0.0.2 rapture-lan
10.0.0.3 computer-lan
10.0.0.4 pi-f1-lan
10.0.0.5 smart-computer-lan
10.0.0.6 lexicon-lan
192.168.0.2 rapture
192.168.0.3 computer
192.168.0.148 pi-f1
192.168.0.8 smart-computer-lan
# Wi-Fi
192.168.0.12 pi3a
192.168.0.41 pi-f1-w
192.168.0.101 pi-z1
192.168.0.95 smart-computer
192.168.0.95 smart-computer-wlan
192.168.0.143 lexicon-wlan
192.168.0.216 pi-z2
# UniFi APs
unify-ap-lr 192.168.0.143
unify-ap-lite 192.168.0.69
Enable NTP
I like to have all machines on the same clock, and for this there's nothing like good old NTP:
Setup SSH
Since this server would be reachable by SSH from outside the LAN, it is imperative that no password ever will work on it.
Instead, only a few trusted certificates will be able to log in,
i.e. those added to .ssh/authorized_keys for each user.
Add authorized keys to SSH authentication
In order to disable password authentication, first add a few
trusted keys to /root/.ssh/authorized_keys and (optionally)
a few [more / other] to /home/ponder/.ssh/authorized_keys
Disable SSH password authentication
# vi /etc/ssh/sshd_config
PasswordAuthentication no
PermitEmptyPasswords no
# systemctl restart ssh
# systemctl restart sshd
Note
The reason for doing this is obvious after looking at
/var/log/auth.log once the SSH port has been exposed externally
for a while. Before doing this, there were 100,240 failed attempts
to ssh in as root from 2,765 IPs.
Setup Fail2Ban
On top of disabling password authentication, the SSH server will be less busy is those pesky bad actors are blocked from reaching it's port. To do this, install fail2ban.
How to install fail2ban on Ubuntu Server 22.04: Jammy Jellyfish
explains this in more details; install with apt and setup:
Within seconds a few IPs are banned already:
# iptables -L
...
Chain f2b-sshd (1 references)
target prot opt source destination
REJECT all -- 45.118.145.178 anywhere reject-with icmp-port-unreachable
REJECT all -- 207.200.202.35.bc.googleusercontent.com anywhere reject-with icmp-port-unreachable
REJECT all -- 68.183.235.43 anywhere reject-with icmp-port-unreachable
REJECT all -- 138.68.72.245 anywhere reject-with icmp-port-unreachable
REJECT all -- 207.154.220.120 anywhere reject-with icmp-port-unreachable
RETURN all -- anywhere anywhere
I like to spice it up to make a little more trigger-happy:
Apply the changes by restarting the service:
Fail2ban can be setup for other services, see Gitea's guide to Fail2ban setup to block users after failed login attempts
Other resources for future consideration (GitHub repositories):
Multiple Static IPs on LAN
There are 2 physical Local Area Networks in this environment, a wire network connected directly to the router, and a wireless network with a UniFi AC Long-Range access point that bridges both networks.
This has the side effect that using IP addresses in the DHCP range (leased by the router) may lead to data flowing through the wireless network despite the hosts being physically connected through the wired network.
To avoid this, LAN interfaces on all systems (that have them) are assigned a second IP address on a different range, so the traffic between them can't jump over the wireless network.
During installation, network setup defaulted to DHCP on Ethernet and no wifi setup:
| /etc/netplan/00-installer-config.yaml | |
|---|---|
| /etc/netplan/00-installer-config-wifi.yaml | |
|---|---|
This lead to the system getting a leased IP in the 192.168.0.0/24 range and, most importantly, the relevant DNS servers:
# ip a | grep enp89s0
2: enp89s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
inet 192.168.0.121/24 metric 100 brd 192.168.0.255 scope global dynamic enp89s0
# resolvectl status
Global
Protocols: -LLMNR -mDNS -DNSOverTLS DNSSEC=no/unsupported
resolv.conf mode: stub
Link 2 (enp89s0)
Current Scopes: DNS
Protocols: +DefaultRoute +LLMNR -mDNS -DNSOverTLS DNSSEC=no/unsupported
Current DNS Server: 62.2.24.158
DNS Servers: 62.2.24.158 62.2.17.61
DNS Domain: v.cablecom.net
Link 3 (wlo1)
Current Scopes: none
Protocols: -DefaultRoute +LLMNR -mDNS -DNSOverTLS DNSSEC=no/unsupported
To setup both addresses as static, need to grab the DNS servers
and create a new netplan configuration in
/etc/netplan/00-installer-config.yaml
# netplan apply
# ip a | grep enp89s0
2: enp89s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
inet 10.0.0.6/24 brd 10.0.0.255 scope global enp89s0
inet 192.168.0.6/24 brd 192.168.0.255 scope global enp89s0
Weekly btrfs scrub
To keep BTRFS file systems healthy, it is recommended to run a weekly scrub to check everything for consistency. For this, I run the script from crontab every Saturday morning, early enough that it will be done by the time anyone wakes up.

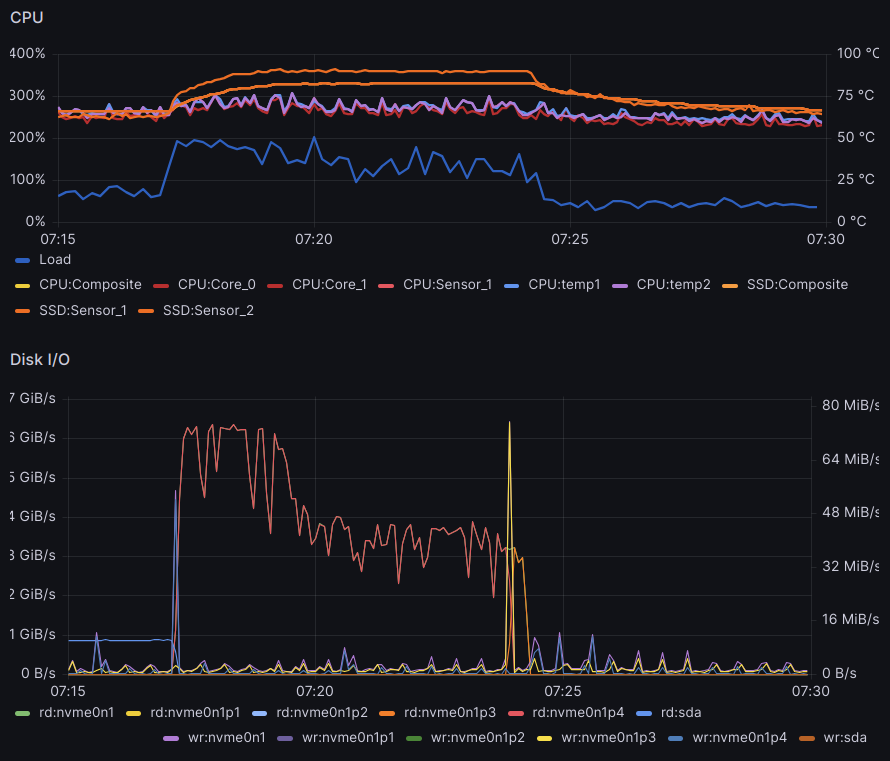

The whole process takes less than 10 minutes with a 2TB NVMe SSD:
Conclusion
I quite like this hardware!
Secure Boot was a little confusing and intimidating at first, now it's just a little confusing but at least not so scary.
With an Intel NUC Mini PC you get literally and Intel architecture (x84_64)
and familiar hardware without much in the way of platform-specific quirks.
It does come at a cost though, this system costed nearly $600 which is more than triple the cost of a modest Raspberry Pi 4 setup. On the other hand, Raspberry Pi computers are good up to a point but, past that point, an Intel NUC offers a really good power to size ratio, packing quite some compute power in a still quite small package.
Future Updates
Watch this space for links to future posts!
- 2022-10-12 Crucial MX500 SSD found problematic
- 2023-09-16 Migrating a Plex Media Server to Kubernetes
