The weirdest corrupted video on an NVidia card
This is the kind of thing that makes you think, this really only happens to me.
Back in June, when the availability and price of graphics card finally approached relatively normal values, I got myself an new ASUS GeForce TUF Gaming RTX 3070 Ti OC Edition (to replace the old ASUS GeForce GTX 1070 STRIX from 2017). It still was still nearly $800 but it was clearly never going to come down to $570 the old one costed back in August 2017.
Then, in September, the new card died. Somewhat surreptitiously...
What Happened
It started small, like oak trees.
At first there were just faint glitchy thin lines blinking across the screen. Searching for posts discussing this kind of video artifacts, came up empty.
When the problem started I was running Ubuntu Studio 20.04 with KDE Plasma. After a couple of weeks of trying a few tweaks (e.g. disable compositor) and seeing how nothing really helped, I decided to install Ubuntu Studio 22.04 and at first it looked perfect, but then the problem manifested again as soon as the first reboot with the NVidia driver.
The artifact would manifest mostly when the screen was locked, sometimes when it wasn’t, and affect only the top 10-15% of the screen, plus a fixed-size square area down-and-right of the mouse cursor. It got worse day after day, and soon the entire screen was affected, the corruption looked like large areas of the image would turn one color (blue, magenta, green, etc.) and the artifacts followed the content of the screen, so that the corrupted areas would align with the clouds, sky and water in landscape photos.
From there, the problem quickly evolved to the point where graphics
are corrupted as soon as the login manager started up, upon login the
very simple splash screen was corrupted, and then the whole desktop
environment was so badly corrupted it was barely possible to even see
where the mouse cursor was and the text in Konsole was unreadable.
At that point, going back the text-only terminal with Ctrl+Alt+F2
presented such badly corrupted output it was unreadable.
Regaining Control
The first suspect is usually the proprietary NVidia drivers, so the
first workaround, to be able to use the PC, was to switch to the
nouveau driver:
The last 2 commands didn’t actually do anything. After this, rebooting led to a perfectly usable system without any graphical glitches.
Ubuntu 22.04 had version 470 available for easy installation, and this version supports the RTX 3070 cards, so that was the next workaround. The trick to switch back to an older version is to hold / freeze them to that version:
# apt install nvidia-driver-470
# apt-mark hold nvidia-driver-470 libnvidia-cfg1-470 libnvidia-common-470 \
libnvidia-compute-470 libnvidia-compute-470:i386 libnvidia-decode-470 \
libnvidia-decode-470:i386 libnvidia-egl-wayland1 libnvidia-encode-470 \
libnvidia-encode-470:i386 libnvidia-extra-470 libnvidia-fbc1-470 \
libnvidia-fbc1-470:i386 libnvidia-gl-470 libnvidia-gl-470:i386 libnvidia-ifr1-470 \
libnvidia-ifr1-470:i386 libxnvctrl0 nvidia-compute-utils-470 nvidia-dkms-470 \
nvidia-kernel-common-470 nvidia-kernel-source-470 nvidia-prime nvidia-settings \
nvidia-utils-470 screen-resolution-extra xserver-xorg-video-nvidia-470
After this, rebooting led to straight back into the problem; corrupted video as soon as SDDM came up, and still corrupted after going to TTY.
Uninstall the NVidia drivers and rebooting solved the problem again. This time needed to uninstall all packages explicitly:
That was enough to go back to the nouveau driver. A few more packages had to be removed later:
# apt remove screen-resolution-extra nvidia-settings nvidia-prime \
libnvidia-egl-wayland1:amd64 libxnvctrl0:amd64
It became clear that switching back and forth between the Nvidia and nouveau drivers was going to be necessary more than a few times, so I create a couple of helper scripts I could run despite not being able to read the screen:
The lines to
disable the nouveau driver
are a precaution to keep the output from
nvidia-bug-report.sh
(part of nvidia-utils-515) from mentions the nouveau driver when
it is not in use.
Root Cause Analysis
With this easy-switch toolkit in hand, it was time to go on a Wild Hunt for the root cause of the problem by changing one thing at a time...
- Going back to Ubuntu 20.04 (still available in its old partition) and try with NVidia drivers 470, 510 and 515.
- Use the same screen on a laptop.
- Connect the screen directly to the PC.
- Try every DisplayPort cables at hand.
- Confirm all DisplayPort cables are rated DP 1.2 (rated 4k@60).
- Replaced DisplayPort 1.2 with HDMI 2.0 cable (rated 4k@60).
- Tried Pop!_OS live USB because it ships with the latest NVidia driver.
Normally the PC and laptop share the screen and keyboard via StarTech SV231DPDDUA2 DisplayPort KVM Switch rated 4K 60Hz. I took this KVM switch out of the equation early on, so most of the tests were on a direct PC-to-screen DP 1.2 connection.
Being quite confident that the problem was in the graphics card itself, but no idea how to go from here, I posted the problem in the NVidia forum: Extremely corrupted graphics only with NVidia driver 515 on RTX 3070 Ti.
Shortly after that, a friend suggested trying with Pop!_OS live USB because it ships with the latest NVidia driver. Having already removed everything else out of the way, including the OS, this last test also reproduced the problem:
Notice the glitch lines around the top-right corner and through the Select button, plus the fixed-size square area down-and-right from the mouse cursor. This area followed the cursor, as you can see in this video.
In the NVidia forum, a top contributor suggested to check for a general hardware fault using gpu-burn or cuda-gpumemtest.
None of these tools are directly available in Ubuntu 22.04 so first I had to install them.
gpu-burn
First I needed to reinstall the NVidia driver and CUDA libraries. To avoid corrupting the graphics or interfering with the test, I chose to disable SDDM before rebooting:
Installed gpu-burn from
wilicc/gpu-burn
and followed the instructions from
wili.cc/blog/gpu-burn.html;
using COMPUTE=8.6 for RTX 3070 Ti
(source):
Apparently, one does not simply make this.
Many headers are missing or not found:
g++ -O3 -Wno-unused-result -I/usr/local/cuda/include -c gpu_burn-drv.cpp
gpu_burn-drv.cpp:51:10: fatal error: cuda.h: No such file or directory
51 | #include <cuda.h>
| ^~~~~~~~
compilation terminated.
make: *** [Makefile:32: gpu_burn-drv.o] Error 1
Installing the nvidia-cuda-dev or nvidia-cuda-toolkit packages
was not an option because both wanted to remove the latest NVidia
driver (nvidia-driver-515) and replace it with older drivers.
Instead, found the missing headers and added -I flags to gcc:
# g++ -O3 -Wno-unused-result \
-I/usr/local/cuda/include \
-I/usr/src/linux-headers-5.15.0-47-lowlatency/include/linux \
-I/usr/src/linux-headers-5.15.0-47-lowlatency/include \
-I/usr/src/linux-headers-5.15.0-47-lowlatency/arch/x86/include/generated \
-I/usr/src/linux-lowlatency-headers-5.15.0-47/arch/x86/include \
-c gpu_burn-drv.cpp
Still not being enough, the build failed with yet another error:
gpu_burn-drv.cpp:52:10: fatal error: cublas_v2.h: No such file or directory
52 | #include "cublas_v2.h"
| ^~~~~~~~~~~~~
compilation terminated.
This one was trickier. There is was trace of cublas_v2.h anywhere,
installing the libcublas11 and libcublaslt11 packages did not help.
The only clue I found was in github.com/NVIDIA/apex/issues/957 to install a package directly, but it is not installable in Ubuntu 22.04 so I had to follow the instructions for Ubuntu 22.04 at developer.nvidia.com/cuda-downloads:
# wget -O /etc/apt/preferences.d/cuda-repository-pin-600 \
https://developer.download.nvidia.com/compute/cuda/repos/ubuntu2204/x86_64/cuda-ubuntu2204.pin
# wget https://developer.download.nvidia.com/compute/cuda/11.7.1/local_installers/cuda-repo-ubuntu2204-11-7-local_11.7.1-515.65.01-1_amd64.deb
# dpkg -i cuda-repo-ubuntu2204-11-7-local_11.7.1-515.65.01-1_amd64.deb
# cp /var/cuda-repo-ubuntu2204-11-7-local/cuda-*-keyring.gpg /usr/share/keyrings/
# apt-get update
# apt-get -y install cuda
Note
To undo this change later, remove
/etc/apt/preferences.d/cuda-repository-pin-600
and run apt update.
Finally, one can simply make and run gpu_burn:
# make COMPUTE=8.6
# ./gpu_burn 120
Burning for 120 seconds.
GPU 0: NVIDIA GeForce RTX 3070 Ti (UUID: GPU-0c349bdd-3426-f2d3-4b26-c0b4bf0aad2e)
Initialized device 0 with 7974 MB of memory (7451 MB available, using 6706 MB of it), using FLOATS
Results are 16777216 bytes each, thus performing 417 iterations
10.8% proc'd: 8757 (13280 Gflop/s) errors: 0 temps: 54 C
Summary at: Mon Sep 19 05:38:21 PM CEST 2022
21.7% proc'd: 18765 (13235 Gflop/s) errors: 0 temps: 59 C
Summary at: Mon Sep 19 05:38:34 PM CEST 2022
32.5% proc'd: 28773 (13186 Gflop/s) errors: 0 temps: 61 C
Summary at: Mon Sep 19 05:38:47 PM CEST 2022
43.3% proc'd: 38781 (13178 Gflop/s) errors: 0 temps: 64 C
Summary at: Mon Sep 19 05:39:00 PM CEST 2022
53.3% proc'd: 47955 (13135 Gflop/s) errors: 0 temps: 64 C
Summary at: Mon Sep 19 05:39:12 PM CEST 2022
64.2% proc'd: 57963 (13125 Gflop/s) errors: 0 temps: 66 C
Summary at: Mon Sep 19 05:39:25 PM CEST 2022
75.0% proc'd: 67971 (13144 Gflop/s) errors: 0 temps: 67 C
Summary at: Mon Sep 19 05:39:38 PM CEST 2022
85.8% proc'd: 77562 (13033 Gflop/s) errors: 0 temps: 67 C
Summary at: Mon Sep 19 05:39:51 PM CEST 2022
96.7% proc'd: 87570 (13038 Gflop/s) errors: 0 temps: 68 C
Summary at: Mon Sep 19 05:40:04 PM CEST 2022
100.0% proc'd: 91323 (13090 Gflop/s) errors: 0 temps: 68 C
Killing processes.. Freed memory for dev 0
Uninitted cublas
done
Tested 1 GPUs:
GPU 0: OK
Then run it again using doubles (see usage):
# ./gpu_burn -d 120
Burning for 120 seconds.
GPU 0: NVIDIA GeForce RTX 3070 Ti (UUID: GPU-0c349bdd-3426-f2d3-4b26-c0b4bf0aad2e)
Initialized device 0 with 7974 MB of memory (7451 MB available, using 6706 MB of it), using DOUBLES
Results are 33554432 bytes each, thus performing 207 iterations
10.8% proc'd: 207 (289 Gflop/s) errors: 0 temps: 48 C
Summary at: Mon Sep 19 05:41:43 PM CEST 2022
25.0% proc'd: 414 (312 Gflop/s) errors: 0 temps: 50 C
Summary at: Mon Sep 19 05:42:00 PM CEST 2022
37.5% proc'd: 621 (312 Gflop/s) errors: 0 temps: 51 C
Summary at: Mon Sep 19 05:42:15 PM CEST 2022
48.3% proc'd: 1035 (316 Gflop/s) errors: 0 temps: 52 C
Summary at: Mon Sep 19 05:42:28 PM CEST 2022
62.5% proc'd: 1242 (316 Gflop/s) errors: 0 temps: 53 C
Summary at: Mon Sep 19 05:42:45 PM CEST 2022
75.0% proc'd: 1449 (316 Gflop/s) errors: 0 temps: 53 C
Summary at: Mon Sep 19 05:43:00 PM CEST 2022
85.8% proc'd: 1863 (316 Gflop/s) errors: 0 temps: 54 C
Summary at: Mon Sep 19 05:43:13 PM CEST 2022
100.0% proc'd: 2070 (316 Gflop/s) errors: 0 temps: 54 C
Summary at: Mon Sep 19 05:43:30 PM CEST 2022
100.0% proc'd: 2070 (316 Gflop/s) errors: 0 temps: 54 C
Killing processes.. Freed memory for dev 0
Uninitted cublas
done
Tested 1 GPUs:
GPU 0: OK

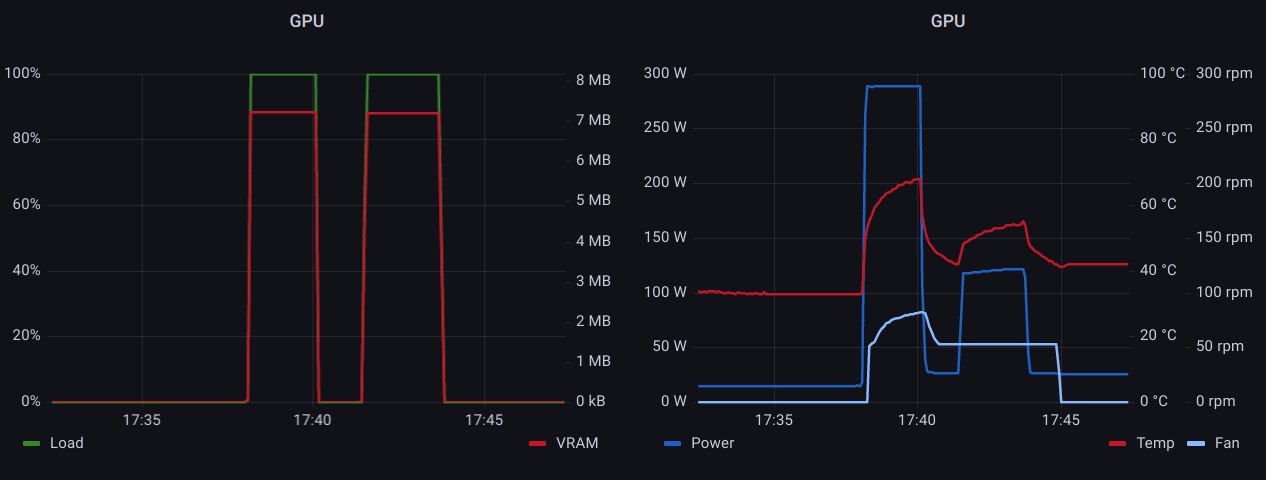

Both operations brought the GPU to 100% utilization and about 90% of VRAM usage, but the first run went harder on power and thermals:
Later I re-run gpu-burn for a longer time. The example in GitHub is
to run for 1 hour, the recommendation I got in the NVidia forum was
just 10 minutes, so to meet them in the middle I tried with 20 minutes:
# ./gpu_burn -d 1200
Burning for 1200 seconds.
GPU 0: NVIDIA GeForce RTX 3070 Ti (UUID: GPU-0c349bdd-3426-f2d3-4b26-c0b4bf0aad2e)
Initialized device 0 with 7974 MB of memory (7451 MB available, using 6706 MB of it), using DOUBLES
Results are 33554432 bytes each, thus performing 207 iterations
10.4% proc'd: 2070 (316 Gflop/s) errors: 0 temps: 53 C
Summary at: Mon Sep 19 10:32:55 PM CEST 2022
20.8% proc'd: 4554 (316 Gflop/s) errors: 0 temps: 56 C
Summary at: Mon Sep 19 10:34:59 PM CEST 2022
30.8% proc'd: 6624 (314 Gflop/s) errors: 0 temps: 57 C
Summary at: Mon Sep 19 10:37:00 PM CEST 2022
41.2% proc'd: 8901 (314 Gflop/s) errors: 0 temps: 56 C
Summary at: Mon Sep 19 10:39:05 PM CEST 2022
51.7% proc'd: 11178 (314 Gflop/s) errors: 0 temps: 56 C
Summary at: Mon Sep 19 10:41:10 PM CEST 2022
61.7% proc'd: 13455 (314 Gflop/s) errors: 0 temps: 56 C
Summary at: Mon Sep 19 10:43:10 PM CEST 2022
71.8% proc'd: 15525 (314 Gflop/s) errors: 0 temps: 56 C
Summary at: Mon Sep 19 10:45:11 PM CEST 2022
82.2% proc'd: 17802 (314 Gflop/s) errors: 0 temps: 56 C
Summary at: Mon Sep 19 10:47:16 PM CEST 2022
92.2% proc'd: 20079 (314 Gflop/s) errors: 0 temps: 56 C
Summary at: Mon Sep 19 10:49:16 PM CEST 2022
100.0% proc'd: 21735 (314 Gflop/s) errors: 0 temps: 56 C
Killing processes.. Freed memory for dev 0
Uninitted cublas
done
Tested 1 GPUs:
GPU 0: OK
cuda-gpumemtest
Installed cuda_memtest from
ComputationalRadiationPhysics/cuda_memtest
because the cuda-gpumemtest in
sourceforge.net/cudagpumemtest
was last updated in 2012.
# apt-get -y install cmake
# git clone \
https://github.com/ComputationalRadiationPhysics/cuda_memtest.git
# cd cuda_memtest/
# mkdir build
# cd build
# cmake \
-DCMAKE_CUDA_ARCHITECTURES=86 \
-DCMAKE_CUDA_COMPILER:PATH=/usr/local/cuda-11.7/bin/nvcc
# make
This actually worked on the first try 😁
# ./cuda_memtest --stress
[09/19/2022 17:58:29][rapture][0]:Running cuda memtest, version 1.2.3
[09/19/2022 17:58:29][rapture][0]:NVRM version: NVIDIA UNIX x86_64 Kernel Module 515.65.01 Wed Jul 20 14:00:58 UTC 2022
[09/19/2022 17:58:29][rapture][0]:num_gpus=1
[09/19/2022 17:58:29][rapture][0]:Device name=NVIDIA GeForce RTX 3070 Ti, global memory size=8361607168, serial=unknown (NVML runtime error)
[09/19/2022 17:58:30][rapture][0]:Attached to device 0 successfully.
[09/19/2022 17:58:30][rapture][0]:WARNING: driver reported at least 8192524288 bytes are free but largest possible allocation is 8191475712 bytes.
[09/19/2022 17:58:30][rapture][0]:Allocated 7812 MB
[09/19/2022 17:58:30][rapture][0]:Test10 [Memory stress test]
[09/19/2022 17:58:30][rapture][0]:Test10 with pattern=0x10a8a7b723cac6bc
[09/19/2022 17:58:45][rapture][0]:Test10 finished in 14.9 seconds
[09/19/2022 17:58:45][rapture][0]:Test10 [Memory stress test]
[09/19/2022 17:58:45][rapture][0]:Test10 with pattern=0x3a96c31549d494a5
[09/19/2022 17:58:59][rapture][0]:Test10 finished in 14.9 seconds

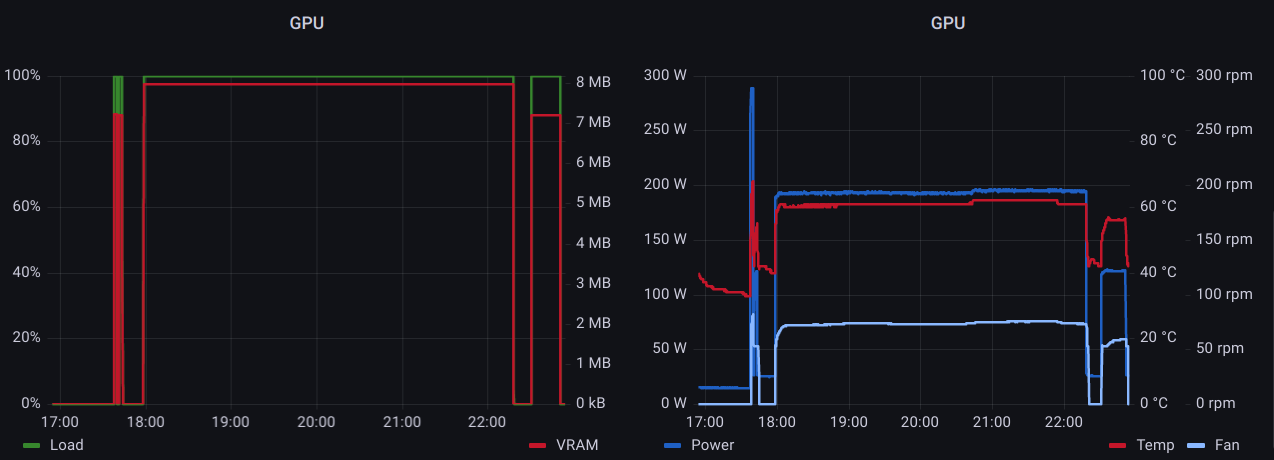

This test took much longer; after 4.5 hours it was still running and hadn’t found any errors.
Worse Than Ever
While the above results seemed to indicate the GPU was “OK”, sure
enough after reenabling SDDM (systemctl enable sddm) and rebooting,
the issue happened again. And this time, worse than ever.
Not only the corrupted graphics happened again, it was much worse. While previously it wouldn’t happen until Xorg started, now the graphics are corrupted as soon as Grub shows up, and the login screen that used to be barely corrupted is now extremely corrupted. These are just 2 consecutive frames from the video of SDDM (below):
Root Cause Confirmation
With the new card now entirely unusable, there was nothing left to do with it than to remove it and repackage it for RMA.
Installing the old card back and re-enabling the NVidia drivers was absolutely free of any troubles, offering further proof than nothing else was wrong.
Another issue that I had previously dismissed as unrelated suddenly seemed very much related. In the weeks leading up to this issue, I had noticed mildly broken graphics in Skyrim: sometimes textures would go missing and a character’s armor or face would be all shiny smooth blue. This issue also stopped when switching back to the old card.
It was all too easy to assume this was caused by bugs in the game (which is famous for), since I had also experienced the Black Blobs bug in Mass Effect caused by poor support of hardware much newer than the game.
Back To Normal
Fortunately, this happened within the warranty period of the new card (just a few months), so eventually I received a replacement card from the shop. The new card has been working quite well for a few days so far.
