Self-hosted accountancy with Firefly III

Keep track of expenses and stuff is hard, thankless work.

Over the years I've done it, with varying degrees of success, using a variety of solutions including my first ever LAMP project, right after learning PHP and MySQL, and once my bank's own built-in solutions until they unceremonously took it away with no notice.

After this last disappointment, I decided to go the self-hosted way taking inspiration from the list of Money, Budgeting & Management solutions by Awesome-Selfhosted. Based on comments in several forums, I decided to first try with Firefly III.

Deployment

Before deploying this applications, persistant storage needs to be prepared for the database and the application itself:

# mkdir -p /home/k8s/firefly-iii/mysql /home/k8s/firefly-iii/upload
# chown -R 33.33 /home/k8s/firefly-iii/mysql
# chown -R www-data.www-data /home/k8s/firefly-iii/upload
# ls -ln /home/k8s/firefly-iii
total 0
drwxr-xr-x 1 100 101 390 May 19 19:49 mysql
drwxrwxr-x 1  33  33   0 May 19 16:18 upload

Note

User and groupd IDs are enforced by the docker images. Enforcing different users seems to be too much of a headache.

Firefly III on Kubernetes. includes deployments for each component, of which I will be using the most basic ones:

• mysql.yaml for the database.
• firefly-iii.yaml for the web application.
• ingress-firefly-iii.yaml for the ingress.

While these are meant to be used with kustomize, I will keep it simpler by putting it all together in my own firefly-iii.yaml:

Kubernetes deployment: firefly-iii.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: firefly-iii
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: firefly-iii-pv-mysql
  namespace: firefly-iii
  labels:
    app: firefly-iii
spec:
  storageClassName: manual
  capacity:
    storage: 20Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/k8s/firefly-iii/mysql
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: firefly-iii-pvc-mysql
  namespace: firefly-iii
  labels:
    app: firefly-iii
spec:
  storageClassName: manual
  volumeName: firefly-iii-pv-mysql
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 20Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: firefly-iii-mysql
  namespace: firefly-iii
  labels:
    app: firefly-iii
spec:
  selector:
    matchLabels:
      app: firefly-iii
      tier: mysql
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: firefly-iii
        tier: mysql
    spec:
      containers:
      - image: yobasystems/alpine-mariadb:latest
        imagePullPolicy: Always
        name: mysql
        env:
        - name: MYSQL_ROOT_PASSWORD
          value: "**************************"
        ports:
        - containerPort: 3306
          name: mysql
        volumeMounts:
        - name: mysql-persistent-storage
          mountPath: /var/lib/mysql
      volumes:
      - name: mysql-persistent-storage
        persistentVolumeClaim:
          claimName: firefly-iii-pvc-mysql
---
apiVersion: v1
kind: Service
metadata:
  name: firefly-iii-mysql-svc
  namespace: firefly-iii
  labels:
    app: firefly-iii
spec:
  type: NodePort
  ports:
  - port: 3306
    nodePort: 30306
    targetPort: 3306
  selector:
    app: firefly-iii
    tier: mysql
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: firefly-iii-pv-upload
  namespace: firefly-iii
  labels:
    app: firefly-iii
spec:
  storageClassName: manual
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/k8s/firefly-iii/upload
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: firefly-iii-pvc-upload
  namespace: firefly-iii
  labels:
    app: firefly-iii
spec:
  storageClassName: manual
  volumeName: firefly-iii-pv-upload
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 10Gi
---
apiVersion: v1
kind: Service
metadata:
  name: firefly-iii-svc
  namespace: firefly-iii
  labels:
    app: firefly-iii
spec:
  type: NodePort
  ports:
  - port: 8080
    nodePort: 30080
    targetPort: 8080
  selector:
    app: firefly-iii
    tier: frontend
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: firefly-iii
  namespace: firefly-iii
  labels:
    app: firefly-iii
spec:
  selector:
    matchLabels:
      app: firefly-iii
      tier: frontend
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: firefly-iii
        tier: frontend
    spec:
      containers:
      - image: fireflyiii/core
        imagePullPolicy: Always
        name: firefly-iii
        env:
        - name: APP_ENV
          value: "local"
        - name: APP_KEY
          value: "********************************"
        - name: DB_HOST
          value: firefly-iii-mysql-svc
        - name: DB_CONNECTION
          value: mysql
        - name: DB_DATABASE
          value: "fireflyiii"
        - name: DB_USERNAME
          value: "root"
        - name: DB_PASSWORD
          value: "**************************"
        - name: TRUSTED_PROXIES
          value: "**"
        ports:
        - containerPort: 8080
          name: firefly-iii
        volumeMounts:
        - mountPath: "/var/www/html/storage/upload"
          name: firefly-iii-upload
      volumes:
        - name: firefly-iii-upload
          persistentVolumeClaim:
            claimName: firefly-iii-pvc-upload
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: firefly-iii-ingress
  namespace: firefly-iii
  annotations:
    acme.cert-manager.io/http01-edit-in-place: "true"
    cert-manager.io/issue-temporary-certificate: "true"
    cert-manager.io/cluster-issuer: letsencrypt-prod
    nginx.ingress.kubernetes.io/websocket-services: firefly-iii-svc
    nginx.ingress.kubernetes.io/proxy-buffer-size: "16k"
spec:
  ingressClassName: nginx
  rules:
  - host: ffi.ssl.uu.am
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: firefly-iii-svc
            port:
              number: 8080
  tls:
    - secretName: tls-secret
      hosts:
        - ffi.ssl.uu.am

Note

The APP_KEY value must have exactly 32 characters, as noted in #2193: Can't get started - hitting an "encryption key not specified error", also better explained in monicahq/monica #6449.

$ kubectl apply -f firefly-iii.yaml
namespace/firefly-iii created
persistentvolume/firefly-iii-pv-mysql created
persistentvolumeclaim/firefly-iii-pvc-mysql created
deployment.apps/firefly-iii-mysql created
service/firefly-iii-mysql-svc created
persistentvolume/firefly-iii-pv-upload created
persistentvolumeclaim/firefly-iii-pvc-upload created
service/firefly-iii-svc created
deployment.apps/firefly-iii created
ingress.networking.k8s.io/firefly-iii-ingress created

$ kubectl -n firefly-iii get all
NAME                                    READY   STATUS    RESTARTS   AGE
pod/cm-acme-http-solver-vfwlp           1/1     Running   0          16s
pod/firefly-iii-6c8dbdd45f-jqdsv        1/1     Running   0          16s
pod/firefly-iii-mysql-68f59d48f-chhbw   1/1     Running   0          16s

NAME                            TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
service/firefly-iii-mysql-svc   NodePort   10.97.148.234   <none>        3306:30306/TCP   16s
service/firefly-iii-svc         NodePort   10.99.161.143   <none>        8080:30080/TCP   16s

NAME                                READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/firefly-iii         1/1     1            1           16s
deployment.apps/firefly-iii-mysql   1/1     1            1           16s

NAME                                          DESIRED   CURRENT   READY   AGE
replicaset.apps/firefly-iii-6c8dbdd45f        1         1         1       16s
replicaset.apps/firefly-iii-mysql-68f59d48f   1         1         1       16s

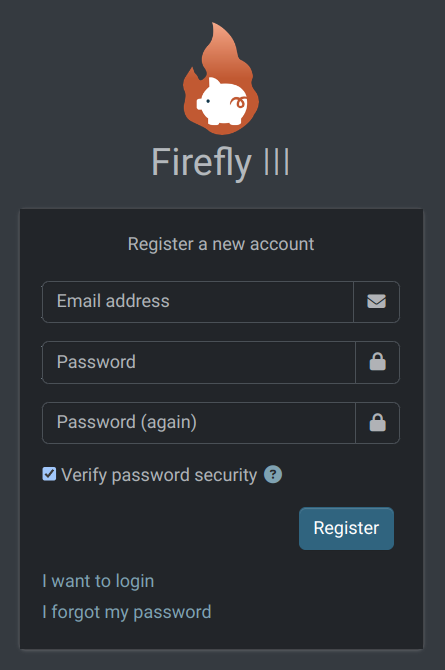

Once the service has started up, initialized the database and everything else, one can finally visit https://ffi.ssl.uu.am/ to create an account and get started:

Note

The cm-acme-http-solver is responsible for obtaining a valid certificated for this service; the HTTPS connection will be secure only after this pod has finished its job.

Note

The password must have at least 16 characters, which is more than Chrome will use when suggesting a strong password.

From this point on, RTFM will be probably the best way to go.
