Self-hosted inventory with Homebox

Homebox is the inventory and organization system built for the Home User which sounds exactly like what I want, to keep track of where things go.

Installation

Note: the original project from hay-kot was archived last month, so this post is based on the currently active fork at github.com/sysadminsmedia/homebox.

To deploy Homebox in Kubernetes, the setup is yet another fork of the Audiobookshelf deployment. A single phisical volume to store the application's databases is needed, while the books are read from /home/depot/books/:

# mkdir /home/k8s/homebox
# chown -R 65532:65532 /home/k8s/homebox/

This simple setup is based on Homebox's Docker-Dompose documentation:

Kubernetes deployment: homebox.yaml
homebox.yaml
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
apiVersion: v1
kind: Namespace
metadata:
  name: homebox
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: homebox-pv-data
  namespace: homebox
spec:
  storageClassName: manual
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/k8s/homebox
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: homebox-pvc-data
  namespace: homebox
spec:
  storageClassName: manual
  volumeName: homebox-pv-data
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: homebox
  name: homebox
  namespace: homebox
spec:
  replicas: 1
  revisionHistoryLimit: 0
  selector:
    matchLabels:
      app: homebox
  strategy:
    rollingUpdate:
      maxSurge: 0
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: homebox
    spec:
      containers:
        - image: ghcr.io/sysadminsmedia/homebox:latest-rootless
          imagePullPolicy: Always
          name: homebox
          env:
          - name: TZ
            value: "Europe/Madrid"
          ports:
          - containerPort: 7745
          resources: {}
          stdin: true
          tty: true
          volumeMounts:
          - mountPath: /data
            name: homebox-data
          securityContext:
            allowPrivilegeEscalation: false
            runAsUser: 65532
            runAsGroup: 65532
      restartPolicy: Always
      volumes:
      - name: homebox-data
        persistentVolumeClaim:
          claimName: homebox-pvc-data
---
kind: Service
apiVersion: v1
metadata:
  name: homebox-svc
  namespace: homebox
spec:
  type: NodePort
  ports:
  - port: 7745
    nodePort: 30745
    targetPort: 7745
  selector:
    app: homebox
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: homebox-ingress
  namespace: homebox
  annotations:
    acme.cert-manager.io/http01-edit-in-place: "true"
    cert-manager.io/issue-temporary-certificate: "true"
    cert-manager.io/cluster-issuer: letsencrypt-prod
    nginx.ingress.kubernetes.io/websocket-services: homebox-svc
spec:
  ingressClassName: nginx
  rules:
    - host: homebox.ssl.uu.am
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: homebox-svc
                port:
                  number: 7745
  tls:
    - secretName: tls-secret
      hosts:
        - homebox.ssl.uu.am

$ kubectl apply -f homebox.yaml
namespace/homebox created
persistentvolume/homebox-pv-data created
persistentvolumeclaim/homebox-pvc-data created
deployment.apps/homebox created
service/homebox-svc created
ingress.networking.k8s.io/homebox-ingress created

$ kubectl -n homebox get all
NAME                            READY   STATUS    RESTARTS   AGE
pod/cm-acme-http-solver-jk4cr   1/1     Running   0          31s
pod/homebox-7fb9d44d48-wxj6q    1/1     Running   0          29m

NAME                                TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
service/cm-acme-http-solver-2xqr8   NodePort   10.102.88.72    <none>        8089:32649/TCP   31s
service/homebox-svc                 NodePort   10.96.235.150   <none>        7745:30745/TCP   91m

NAME                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/homebox   1/1     1            1           91m

NAME                                 DESIRED   CURRENT   READY   AGE
replicaset.apps/homebox-7fb9d44d48   1         1         1       29m

Configuration

Homebox is available on lexicon:30745 locally, and at https://homebox.ssl.uu.am remotely. The initial login screen allows self-registering an account and beyon that there is not much more to explain.

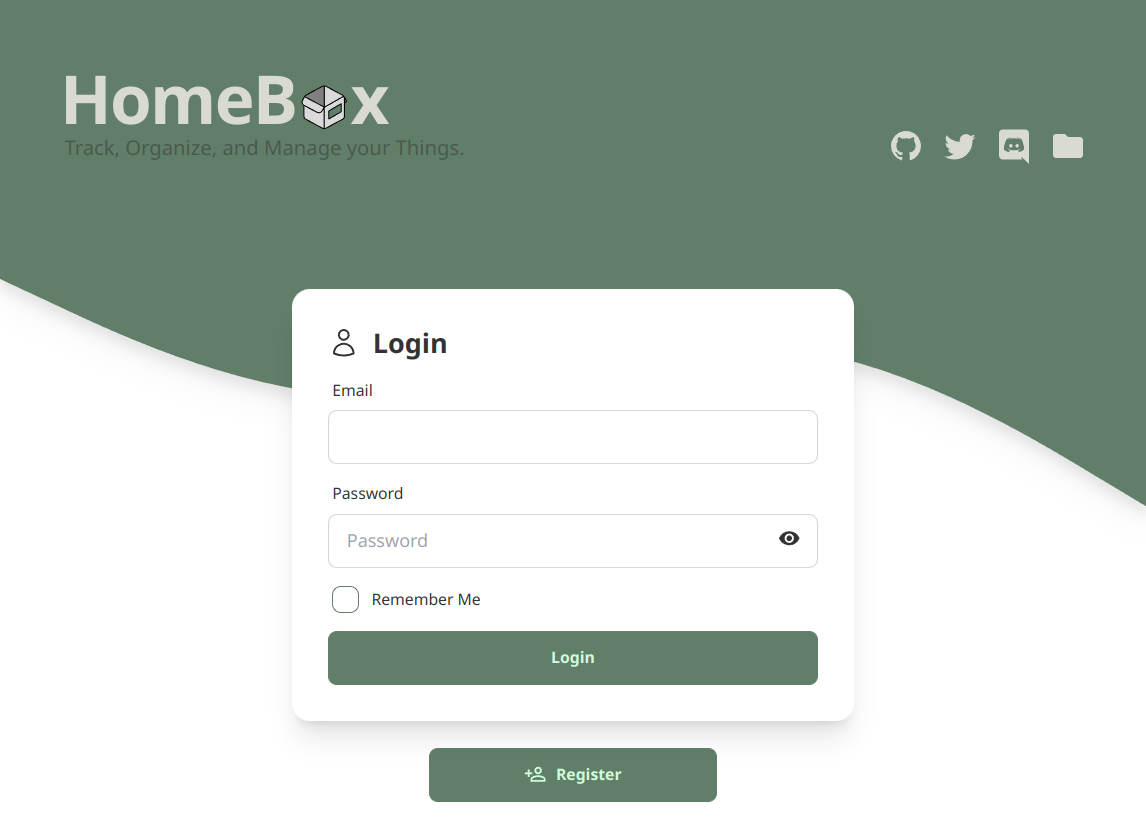

Homebox login
