Self-hosted photo albums with PhotoPrism®

PhotoPrism® is an AI-Powered Photos App for the Decentralized Web I heard some good comments about. I tried it on my other Kubernetes cluster and here are impressions so far.

Deployment

The following deployment is based on the PhotoPrism® Setup Using Docker Compose:

Kubernetes deployment: photoprism.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: photoprism
---
apiVersion: v1
kind: Secret
metadata:
  name: photoprism-secrets
  namespace: photoprism
stringData:
  PHOTOPRISM_ADMIN_PASSWORD: "************"
  PHOTOPRISM_DATABASE_DRIVER: "sqlite"
  PHOTOPRISM_DATABASE_DSN: /photoprism/storage/db.sqlite
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: photoprism-pv-originals
  namespace: photoprism
spec:
  storageClassName: manual
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/k8s/photoprism/originals
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: photoprism-pv-import
  namespace: photoprism
spec:
  storageClassName: manual
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/k8s/photoprism/import
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: photoprism-pv-storage
  namespace: photoprism
spec:
  storageClassName: manual
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/k8s/photoprism/storage
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: photoprism-pvc-originals
  namespace: photoprism
spec:
  storageClassName: manual
  volumeName: photoprism-pv-originals
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: photoprism-pvc-import
  namespace: photoprism
spec:
  storageClassName: manual
  volumeName: photoprism-pv-import
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: photoprism-pvc-storage
  namespace: photoprism
spec:
  storageClassName: manual
  volumeName: photoprism-pv-storage
  accessModes:
    - ReadWriteOnce
  volumeMode: Filesystem
  resources:
    requests:
      storage: 1Gi
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: photoprism
  namespace: photoprism
spec:
  selector:
    matchLabels:
      app: photoprism
  serviceName: photoprism
  replicas: 1
  template:
    metadata:
      labels:
        app: photoprism
    spec:
      containers:
      - name: photoprism
        image: photoprism/photoprism:latest
        env:
        - name: PHOTOPRISM_DEBUG
          value: "true"
        - name: PHOTOPRISM_DATABASE_DRIVER
          value: sqlite
        - name: PHOTOPRISM_HTTP_HOST
          value: 0.0.0.0
        - name: PHOTOPRISM_HTTP_PORT
          value: "2342"
        - name: PHOTOPRISM_GID
          value: "1000"
        - name: PHOTOPRISM_UID
          value: "1000"
        - name: PHOTOPRISM_ORIGINALS_LIMIT
          value: "20000"
        # Load database DSN & admin password from secret
        envFrom:
        - secretRef:
            name: photoprism-secrets
            optional: false
        ports:
        - containerPort: 2342
          name: http
        volumeMounts:
        - mountPath: /photoprism/originals
          name: photoprism-originals
        - mountPath: /photoprism/import
          name: photoprism-import
        - mountPath: /photoprism/storage
          name: photoprism-storage
        readinessProbe:
          httpGet:
            path: /api/v1/status
            port: http
        securityContext:
          allowPrivilegeEscalation: false
          runAsUser: 1000
          runAsGroup: 1000
      volumes:
      - name: photoprism-originals
        persistentVolumeClaim:
          claimName: photoprism-pvc-originals
      - name: photoprism-import
        persistentVolumeClaim:
          claimName: photoprism-pvc-import
      - name: photoprism-storage
        persistentVolumeClaim:
          claimName: photoprism-pvc-storage
---
apiVersion: v1
kind: Service
metadata:
  name: photoprism
  namespace: photoprism
spec:
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: http
  selector:
    app: photoprism
  type: LoadBalancer

In addition to the deployment, I create a .ppignore file at the top level directory of the photo collection, to leave out (for now) some of the largest parts of my photo collection, to save time on indexing, as well as several directories of no interest:

# Temporarily ignore the biggest directories.
People/Family
People/Weddings
Videos/Hobbies
Videos/Locations
Videos/People
# Permanently ignore a directories of no interest.
data
Krita
MyTracks
New
photos
old-photos-scripts
Rejects
scripts
Selections
Takeout
watermark
# Permanently ignore all raw/ folders.
raw
[raw]*
# Permanently ignore non-JPEG images.
*.xcf
*.nef
*.pp3
*.raf
*.raf.xmp

After starting the deployment with the usual kubectl apply -f photoprism.yaml the service is ready to use at:

$ kubectl -n photoprism get all
NAME               READY   STATUS    RESTARTS        AGE
pod/photoprism-0   1/1     Running   9 (4h14m ago)   12m

NAME                 TYPE           CLUSTER-IP       EXTERNAL-IP     PORT(S)        AGE
service/photoprism   LoadBalancer   10.108.135.112   192.168.0.220   80:31202/TCP   103m

NAME                          READY   AGE
statefulset.apps/photoprism   1/1     103m

To make my life a little easier, I add an entry to /etc/hosts so that I can directly visit http://photoprism.rapture.uu.am

# Kubernetes MetalLB
192.168.0.220   photoprism.rapture.uu.am

Performance

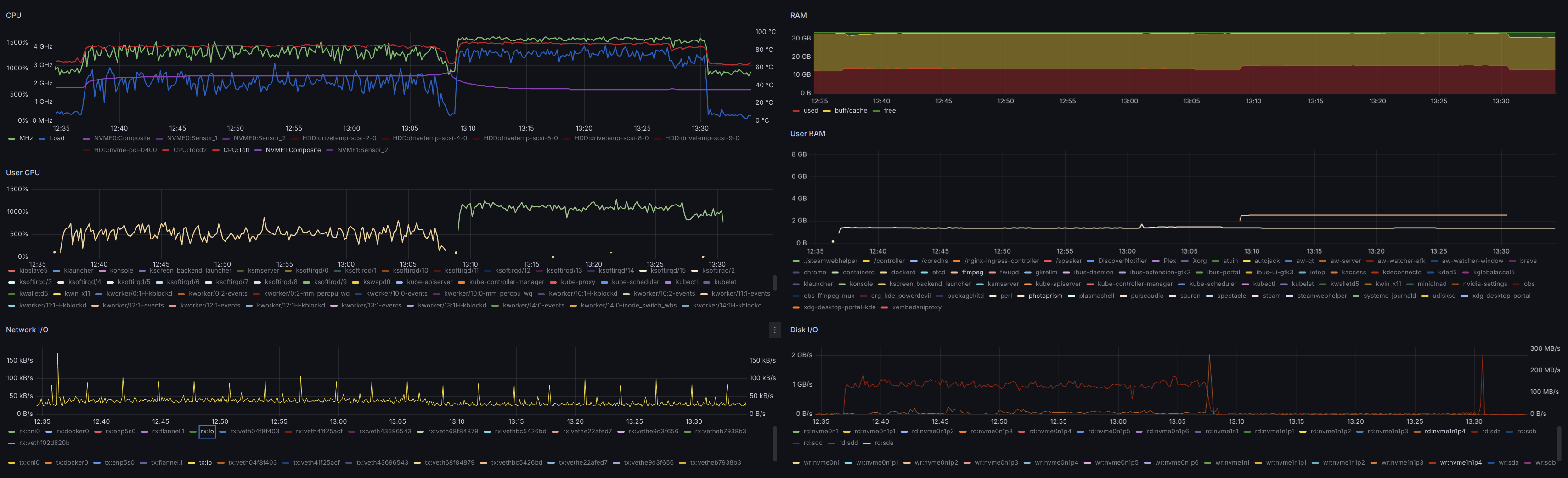

Before using the web application, PhotoPrism® needs some time to scan and index the images. In this case, it was a good half hour:

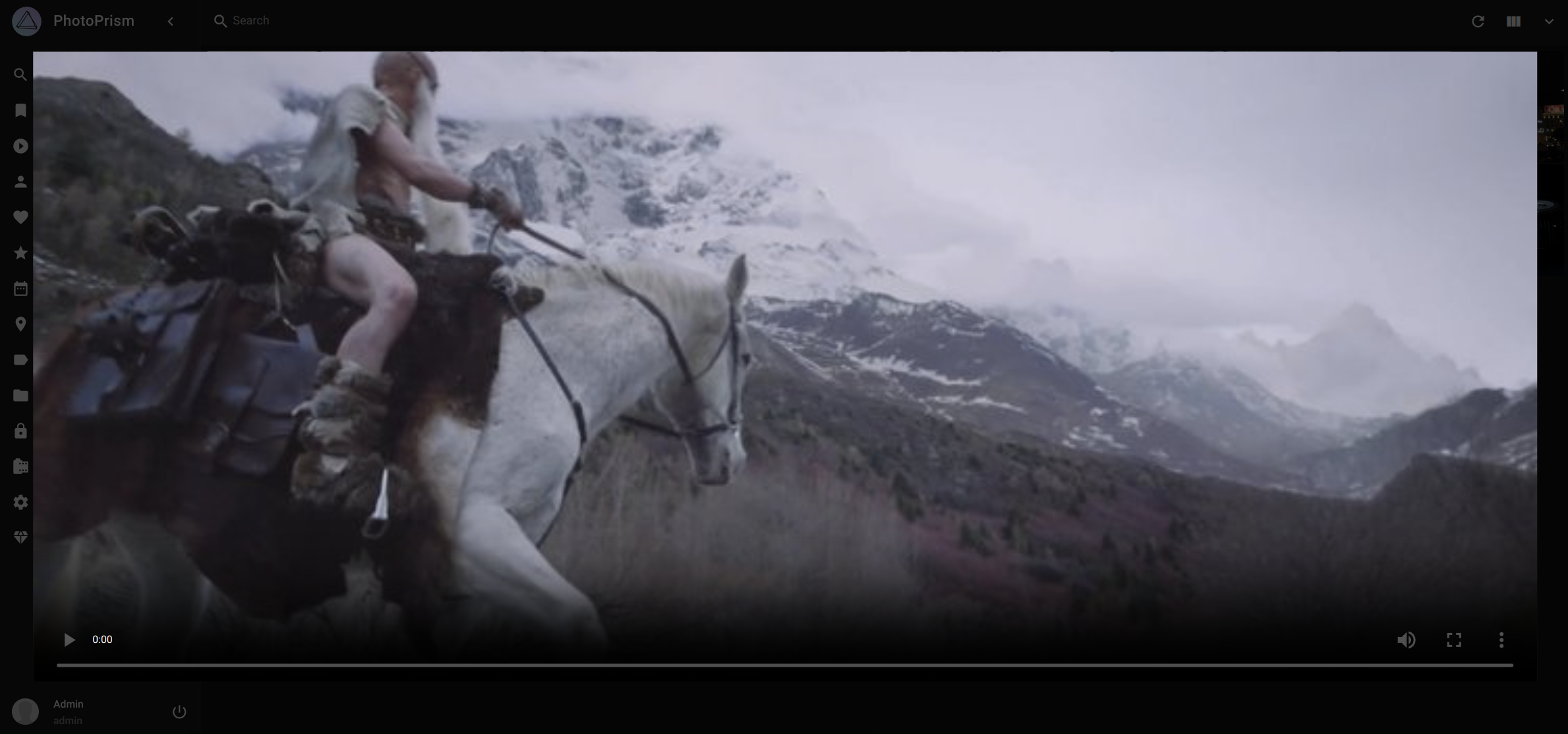

The second CPU-intensive task was a rather lengthy preprocessing of a movie. I tried to watch it simply because I was surprised to find that a few videos were indexed, but then was even more surprised how long it took to even start playing. PhotoPrism® spent a good 20 minutes running ffmpeg; in particular this command:

/usr/bin/ffmpeg \
  -i /photoprism/originals/Videos/Fan.Films/Troll.Bridge.2018/Troll.Bridge.2018.avi \
  -c:v libx264 \
  -map 0:v:0 \
  -map 0:a:0? \
  -c:a aac \
  -vf scale='if(gte(iw,ih), min(4096, iw), -2):if(gte(iw,ih), -2, min(4096, ih))',format=yuv420p \
  -max_muxing_queue_size 1024 \
  -crf 23 \
  -r 30 \
  -b:v 50M \
  -f mp4 \
  -movflags +faststart \
  -y /photoprism/storage/sidecar/Videos/Fan.Films/Troll.Bridge.2018/Troll.Bridge.2018.avi.avc

Eventually this lead to a 1.5G sidecar .avc file, for a video that was originally 5.9G. That was taking up nearly 10% of the 17G under /photoprism/storage and all the while all I cold see was

Big Problem

But the most surprising, and eventually frustrating of all, was that only a small portion of the overall photo library appears to have been indexed.

The library, that is the set of images not ignored by .ppignore, is made of 14,762 65,276 JPEG files in 2,599 directories (not including a large number of RAW files and a few stray videos).

The final scan was very incomplete, finding only 436 folders, 35 videos and 14,178 photos. Even after disabling the Quality filter only 14,762 images are found.

Going through the checklist in Missing Pictures the only relevant step seems to be checking .ppignore, nothing else seems to apply here and nothing at all explains why only 22.6% of images are found.

Even disabling all the options to Stack photos, and then forcing a full reindex.

More Problems

Additional (significant) issues:

1. Images cannot be found by their file name; despite the file name being stored in the EXIF DocumentName tag (0x010d).
2. Stacks includes 351 images (stacks) despite all my attempts at disabling that feature, purging and reindexing.
3. Images missing EXIF DateTimeOriginal (0x9003) get a Taken on date of January 1st in the current year.
4. Only 2 out of 1,854 images geotagged in Australia are recognized.
5. None of the 25 folder under /photoprism/originals/Travel/Australia show up under Folders.
6. All the folders show under Library > Originals but there is no easy to even re-index a single folder.

Other (not so minor) issues:

1. All 3 layouts use square thumbnails.
2. Some images without GPS tags are somehow geolocated in Canada.

Other (really minor) issues:

1. Monochrome includes a few images with quite a bit of color.
2. Panoramas are essentially any images with an aspect ratio beyond some threshold (e.g. 21:9), including small screenshots and cropped photos.
3. Scans includes just one photo, even though there are hundreds of scanned film photos.
