Home Assistant on Kubernetes on Raspberry Pi 5 (Alfred)
That old house with aging electrical wiring, where last winter we needed Continuous Monitoring for TP-Link Tapo devices to keep power consumption in check at all times, could do with a more versatile and capable setup, to at least partially automate the juggling involved in keeping power consumption within the contracted capacity.
Home Assistant should be a good way to scale this up, but what that old house needs in the first place is a 24x7 system, so here we go again to setup a brand new Raspberry Pi... enter Alfred, the new housekeeper.
Hardware
Although it may be overkill for the initial few purposes, the hardware chosen for this system is a rather generous setup to leave plenty of room for growth:
- Raspberry Pi 5 8GB
- Samsung 970 EVO Plus (2000 GB, M.2 2280)
- Argon ONE V3 M.2 NVME Raspberry Pi 5 Case
This Argon ONE case is a bit tricky to assemble, it pays to follow the instructions carefully and make sure the PCIe cable is connected the right way and fully connected.
How this NVMe enclosure shows up in dmesg.
[103602.068970] sd 10:0:0:0: [sdf] tag#11 uas_zap_pending 0 uas-tag 1 inflight: CMD
[103602.068975] sd 10:0:0:0: [sdf] tag#11 CDB: Test Unit Ready 00 00 00 00 00 00
[103602.069000] sd 10:0:0:0: [sdf] Test Unit Ready failed: Result: hostbyte=DID_NO_CONNECT driverbyte=DRIVER_OK
[103602.069013] sd 10:0:0:0: [sdf] Read Capacity(16) failed: Result: hostbyte=DID_ERROR driverbyte=DRIVER_OK
[103602.069015] sd 10:0:0:0: [sdf] Sense not available.
[103602.069022] sd 10:0:0:0: [sdf] Read Capacity(10) failed: Result: hostbyte=DID_ERROR driverbyte=DRIVER_OK
[103602.069024] sd 10:0:0:0: [sdf] Sense not available.
[103602.069029] sd 10:0:0:0: [sdf] 0 512-byte logical blocks: (0 B/0 B)
[103602.069032] sd 10:0:0:0: [sdf] 0-byte physical blocks
[103602.069035] sd 10:0:0:0: [sdf] Write Protect is off
[103602.069038] sd 10:0:0:0: [sdf] Mode Sense: 00 00 00 00
[103602.069042] sd 10:0:0:0: [sdf] Asking for cache data failed
[103602.069046] sd 10:0:0:0: [sdf] Assuming drive cache: write through
[103602.069049] sd 10:0:0:0: [sdf] Preferred minimum I/O size 4096 bytes not a multiple of physical block size (0 bytes)
[103602.069052] sd 10:0:0:0: [sdf] Optimal transfer size 33553920 bytes not a multiple of physical block size (0 bytes)
[103602.069483] sd 10:0:0:0: [sdf] Attached SCSI disk
[103603.389453] usb 4-1: new SuperSpeed USB device number 3 using xhci_hcd
[103603.402010] usb 4-1: New USB device found, idVendor=152d, idProduct=0583, bcdDevice=31.08
[103603.402017] usb 4-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[103603.402019] usb 4-1: Product: USB Storage Device
[103603.402021] usb 4-1: Manufacturer: JMicron
[103603.402023] usb 4-1: SerialNumber: DD564198838E3
[103603.403724] scsi host10: uas
[103603.404249] scsi 10:0:0:0: Direct-Access Samsung SSD 970 EVO 3108 PQ: 0 ANSI: 6
[103603.406054] sd 10:0:0:0: Attached scsi generic sg5 type 0
[103603.406383] sd 10:0:0:0: [sdf] 3907029168 512-byte logical blocks: (2.00 TB/1.82 TiB)
[103603.406386] sd 10:0:0:0: [sdf] 4096-byte physical blocks
[103603.406504] sd 10:0:0:0: [sdf] Write Protect is off
[103603.406507] sd 10:0:0:0: [sdf] Mode Sense: 5f 00 00 08
[103603.406703] sd 10:0:0:0: [sdf] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[103603.406706] sd 10:0:0:0: [sdf] Preferred minimum I/O size 4096 bytes
[103603.406708] sd 10:0:0:0: [sdf] Optimal transfer size 33553920 bytes not a multiple of preferred minimum block size (4096 bytes)
[103603.410179] sdf: sdf1 sdf2 sdf3 sdf4 sdf5 sdf6
[103603.410501] sd 10:0:0:0: [sdf] Attached SCSI disk
Install to NVMe SSD
To install Raspberry Pi Os directly on the NVMe drive, it goes first into an
ICY BOX IB-1817M-C31 USB 3.1 NVMe enclosure
to then use rpi-imager to install the latest 64-bit Raspberry Pi Os Lite on
it. This will replace original partitions with just two (bootfs, rootfs):
# parted /dev/sdf print
Model: Samsung SSD 970 EVO (scsi)
Disk /dev/sdf: 2000GB
Sector size (logical/physical): 512B/4096B
Partition Table: msdos
Disk Flags:
Number Start End Size Type File system Flags
1 4194kB 541MB 537MB primary fat32 lba
2 541MB 2756MB 2215MB primary ext4
GPT would be necessary only if the disk is larger than 2TB.
Booting Pi from NVME greater than 2TB (GPT as opposed to MBR) includes manual instructions to install Raspberry Pi OS on a 4TB NVME using a GPT table. If you image a disk which is larger than 2TB with the Raspberry Pi tools or images, your disk will be limited to 2TB because they use MBR (Master Boot Record) instead of GPT (GUID partition table).
System Configuration
PCIe Gen 3
NVMe SSD boot with the Raspberry Pi 5, at least with this Argon ONE case, turned out to
be easy. When using a HAT+-compliant NVMe adapter, there is no need to enable
the external PCIe port, it will be enabled automatically, but it is useful to
force PCIe Gen 3 speeds using these options in /boot/firmware/config.txt
WiFi (re)configuration
The system boots just fine on the first try. Somehow the WiFi connection was
not established, but it did work well after setting up by running
raspi-config and going through the menus.
$ ip a
$ ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host noprefixroute
valid_lft forever preferred_lft forever
2: eth0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc pfifo_fast state DOWN group default qlen 1000
link/ether 2c:cf:67:83:6f:3b brd ff:ff:ff:ff:ff:ff
3: wlan0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 2c:cf:67:83:6f:3c brd ff:ff:ff:ff:ff:ff
inet 192.168.0.124/24 brd 192.168.0.255 scope global dynamic noprefixroute wlan0
valid_lft 85830sec preferred_lft 85830sec
inet6 fe80::17df:d960:1aa4:36ff/64 scope link noprefixroute
valid_lft forever preferred_lft forever
About IP address conflicts with lexicon.
Initically the Raspberry Pi had the .122 IP address assigned to it, which
caused a conflict with the metallb configuration in the Kubernetes
cluster in lexicon, where this IP had been assigned to the ingress-nginx
service, so as soon as the Raspberry Pi was assigned that IP address,
all services behind Nginx became unreachable. The workaround was to
configure the UPC router to assign those IP addresses used by the
ingress-nginx service to made-up MAC addresses, so they won't be assigned
to physical devices.
Additional WiFi networks
How to add a second WiFi network to your Raspberry Pi (updated for OS Bookworm) explains how the wpa_supplicant.conf file is no longer used to configure Wi-Fi connections and, instead, the current Raspberry Pi OS (based on Bookworm) uses NetworkManager to manage network connections, including Wi-Fi.
There is a separate configuration file for each WiFi connection under
/etc/NetworkManager/system-connections, all it takes to configure additional
WiFi connections is to
- Copy a working file with a new name (e.g. the SSID name).
- Replace the SSID and password.
- Replace the
idwith a new unique value of choice. - Replace the
uuidwith a new unique value from runninguuid. - Set the permissions to
600
This can be done in advance of replacing WiFi access points, etc.
Retrospective on IP address assignment
Warning
When setting up a Kubernetes cluster to be relocated to a different LAN, make sure to assign a static IP address that will be available in the destination LAN. Otherwise, the cluster will become non-operational because the required certificates are signed for the initial IP address and are not trivial to replace without losing deployments and data.
Ask me how I know...
After relocating alfred to a its destination LAN a having a new IP address
assigned from the local DCHP server (ISP router), the kubelet service is no
longer accessible at the old (or new) IP address.
On the old IP address, nothing is listening:
$ kubectl get all -A
E0723 20:15:48.259515 23554 memcache.go:265] "Unhandled Error" err="couldn't get current server API group list: Get \"http://localhost:8080/api?timeout=32s\": dial tcp [::1]:8080: connect: connection refused"
E0723 20:15:48.261327 23554 memcache.go:265] "Unhandled Error" err="couldn't get current server API group list: Get \"http://localhost:8080/api?timeout=32s\": dial tcp [::1]:8080: connect: connection refused"
E0723 20:15:48.263000 23554 memcache.go:265] "Unhandled Error" err="couldn't get current server API group list: Get \"http://localhost:8080/api?timeout=32s\": dial tcp [::1]:8080: connect: connection refused"
E0723 20:15:48.264590 23554 memcache.go:265] "Unhandled Error" err="couldn't get current server API group list: Get \"http://localhost:8080/api?timeout=32s\": dial tcp [::1]:8080: connect: connection refused"
E0723 20:15:48.266104 23554 memcache.go:265] "Unhandled Error" err="couldn't get current server API group list: Get \"http://localhost:8080/api?timeout=32s\": dial tcp [::1]:8080: connect: connection refused"
The connection to the server localhost:8080 was refused - did you specify the right host or port?
The server is unable to connect to etcd on 192.168.0.124:6443
$ systemctl status kubelet.service
...
1323 pod_workers.go:1301] "Error syncing pod, skipping" err="failed to \"StartContainer\" for \"kube-apiserver\" with CrashLoopBackOff: \"back-off 5m0s restarting failed container=kube-apiserver pod=kube-apiserver-alfred_kube-system(b254715d65c91745b90>
1323 kubelet.go:3190] "No need to create a mirror pod, since failed to get node info from the cluster" err="node \"alfred\" not found" node="alfred"
1323 scope.go:117] "RemoveContainer" containerID="7a63e157dfff240e6122e2677a690bcfbc25828b9e70b15f3183c0b5bd37b5d4"
1323 pod_workers.go:1301] "Error syncing pod, skipping" err="failed to \"StartContainer\" for \"etcd\" with CrashLoopBackOff: \"back-off 5m0s restarting failed container=etcd pod=etcd-alfred_kube-system(bd8b1f1f7ec248fb91965a18bb2161c3)\"" pod="kube-sy>
1323 controller.go:145] "Failed to ensure lease exists, will retry" err="Get \"https://192.168.0.124:6443/apis/coordination.k8s.io/v1/namespaces/kube-node-lease/leases/alfred?timeout=10s\": dial tcp 192.168.0.124:6443: connect: no route to host" interv>
1323 kubelet_node_status.go:107] "Unable to register node with API server" err="Post \"https://192.168.0.124:6443/api/v1/nodes\": dial tcp 192.168.0.124:6443: connect: no route to host" node="alfred"
1323 event.go:368] "Unable to write event (may retry after sleeping)" err="Patch \"https://192.168.0.124:6443/api/v1/namespaces/default/events/alfred.1854f3b436893b1b\": dial tcp 192.168.0.124:6443: connect: no route to host" event="&Event{ObjectMeta:{>
1323 kubelet.go:3190] "No need to create a mirror pod, since failed to get node info from the cluster" err="node \"alfred\" not found" node="alfred"
Because the service is now listening on the new IP address:
$ netstat -na | grep 6443
tcp 0 1 192.168.0.50:54216 192.168.0.124:6443 SYN_SENT
$ ip a
...
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 2c:cf:67:83:6f:3b brd ff:ff:ff:ff:ff:ff
inet 192.168.0.50/24 brd 192.168.0.255 scope global dynamic noprefixroute eth0
valid_lft 602389sec preferred_lft 602389sec
inet6 fe80::5269:183f:fa1a:d1e5/64 scope link noprefixroute
valid_lft forever preferred_lft forever
The old IP address is promptly found in several files that would need to be updated:
But there are quite a few more files that would need to be updated (in multiple lines):
$ sudo grep -rin 124 /etc/kubernetes/*
/etc/kubernetes/controller-manager.conf:5: server: https://192.168.0.124:6443
/etc/kubernetes/manifests/etcd.yaml:5: kubeadm.kubernetes.io/etcd.advertise-client-urls: https://192.168.0.124:2379
/etc/kubernetes/manifests/etcd.yaml:16: - --advertise-client-urls=https://192.168.0.124:2379
/etc/kubernetes/manifests/etcd.yaml:22: - --initial-advertise-peer-urls=https://192.168.0.124:2380
/etc/kubernetes/manifests/etcd.yaml:23: - --initial-cluster=alfred=https://192.168.0.124:2380
/etc/kubernetes/manifests/etcd.yaml:25: - --listen-client-urls=https://127.0.0.1:2379,https://192.168.0.124:2379
/etc/kubernetes/manifests/etcd.yaml:27: - --listen-peer-urls=https://192.168.0.124:2380
/etc/kubernetes/manifests/kube-apiserver.yaml:5: kubeadm.kubernetes.io/kube-apiserver.advertise-address.endpoint: 192.168.0.124:6443
/etc/kubernetes/manifests/kube-apiserver.yaml:16: - --advertise-address=192.168.0.124
/etc/kubernetes/manifests/kube-apiserver.yaml:48: host: 192.168.0.124
/etc/kubernetes/manifests/kube-apiserver.yaml:59: host: 192.168.0.124
/etc/kubernetes/manifests/kube-apiserver.yaml:71: host: 192.168.0.124
/etc/kubernetes/scheduler.conf:5: server: https://192.168.0.124:6443
/etc/kubernetes/super-admin.conf:5: server: https://192.168.0.124:6443
It would be best if the kubelet service updated all these from a single,
centralized parameter. Based on https://stackoverflow.com/a/68391387,
although /etc/systemd/system/kubelet.service.d/10-kubeadm.conf does not exist,
this should be possible by setting KUBELET_EXTRA_ARGS=--node-ip 192.168.0.50
in /etc/default/kubelet (then reloading and restarting the service):
# systemctl daemon-reload
# systemctl restart kubelet.service
# systemctl status kubelet.service
142316 reflector.go:569] k8s.io/client-go/informers/factory.go:160: failed to list *v1.Node: Get "https://192.168.0.50:6443/api/v1/nodes?fieldSelector=metadata.name%3Dalfred&limit=500&resourceVersion=0": net/http: TLS handshake timeout
142316 reflector.go:166] "Unhandled Error" err="k8s.io/client-go/informers/factory.go:160: Failed to watch *v1.Node: failed to list *v1.Node: Get \"https://192.168.0.50:6443/api/v1/nodes?fieldSelector=metadata.name%3Dalfred&limit=500&resourceVersion=0\>
Now the issue is that the TLS handshake fails, because certificates were created
for the IP address 192.168.0.124 but not 192.168.0.50; this has been reported as
kudeamd issue #338: Changing master IP address
and the workaround is quite involved.
So the solution is, for now, to add 124 as a Static IP Address Using the Network Manager CLI.
However, 124 is in the middle of the router's DHCP pool and there is no option to assign IPs to MACs, so just in case add also .5 and perhaps later rebuild the cluster on that address.
Fix locales
The above looks like rpi-imager took my PC’s locale settings:
The solution is to use raspi-config to generate en_US.UTF-8 and set it as the system default.
$ sudo raspi-config
...
Generating locales (this might take a while)...
en_GB.UTF-8... done
en_US.UTF-8... done
Generation complete.
Disable swap
With 8 GB of RAM there should be no reason to need disk swap, never mind that it would be rather fast in this system.
$ free -h
total used free shared buff/cache available
Mem: 7.9Gi 205Mi 7.2Gi 5.1Mi 590Mi 7.7Gi
Swap: 511Mi 0B 511Mi
$ sudo dphys-swapfile swapoff
$ sudo dphys-swapfile uninstall
$ sudo systemctl disable dphys-swapfile
Synchronizing state of dphys-swapfile.service with SysV service script with /lib/systemd/systemd-sysv-install.
Executing: /lib/systemd/systemd-sysv-install disable dphys-swapfile
Removed "/etc/systemd/system/multi-user.target.wants/dphys-swapfile.service".
$ free -h
total used free shared buff/cache available
Mem: 7.9Gi 210Mi 7.2Gi 5.1Mi 591Mi 7.7Gi
Swap: 0B 0B 0
SSH Server
As a general good practices, even if this system won't have its SSH port open to
the Internet, add the relevant public keys to /home/pi/.ssh/authorized_keys
and disable password authentication by setting PasswordAuthentication no in
/etc/ssh/sshd_config.
Disable power save for WiFi
Raspberry Pi enables power save on WiFi by default:
[ 5.598286] brcmfmac: F1 signature read @0x18000000=0x15264345
[ 5.600446] brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43455-sdio for chip BCM4345/6
[ 5.600754] usbcore: registered new interface driver brcmfmac
[ 5.790052] brcmfmac: brcmf_c_process_txcap_blob: no txcap_blob available (err=-2)
[ 5.790325] brcmfmac: brcmf_c_preinit_dcmds: Firmware: BCM4345/6 wl0: Aug 29 2023 01:47:08 version 7.45.265 (28bca26 CY) FWID 01-b677b91b
[ 6.423812] brcmfmac: brcmf_cfg80211_set_power_mgmt: power save enabled
This can lead to losing connectivity in certain conditions, so disable power save of WiFi to avoid having to deal with such problems like Reconnect on WiFi drop.
Argon case scripts
The instructions in page 13 of the Argon ONE V3 NVMe case manual to install the scripts for FAN control seem simple enough:
However, these scripts were problematic for users with this hardware setup as of early 2024 and also in this case something didn't go well at first:
$ curl https://download.argon40.com/argon-eeprom.sh | bash
*************
Argon Setup
*************
Hit:1 http://archive.raspberrypi.com/debian bookworm InRelease
Hit:2 http://deb.debian.org/debian bookworm InRelease
Hit:3 http://deb.debian.org/debian-security bookworm-security InRelease
Get:4 http://deb.debian.org/debian bookworm-updates InRelease [55.4 kB]
Fetched 55.4 kB in 1s (101 kB/s)
Reading package lists... Done
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
Calculating upgrade... Done
0 upgraded, 0 newly installed, 0 to remove and 0 not upgraded.
*** UPDATE AVAILABLE ***
Run "sudo rpi-eeprom-update -a" to install this update now.
To configure the bootloader update policy run "sudo raspi-config"
BOOTLOADER: update available
CURRENT: Mon Sep 23 01:02:56 PM UTC 2024 (1727096576)
LATEST: Wed Feb 12 10:51:52 AM UTC 2025 (1739357512)
RELEASE: default (/usr/lib/firmware/raspberrypi/bootloader-2712/default)
Use raspi-config to change the release.
Updating bootloader EEPROM
image: /usr/lib/firmware/raspberrypi/bootloader-2712/default/pieeprom-2025-02-12.bin
config_src: blconfig device
config: /tmp/tmpgeb40cic/boot.conf
################################################################################
[all]
WAKE_ON_GPIO=0
PCIE_PROBE=1
BOOT_UART=1
POWER_OFF_ON_HALT=1
BOOT_ORDER=0xf416
################################################################################
*** To cancel this update run 'sudo rpi-eeprom-update -r' ***
ERROR: rpi-eeprom-update -d -i -f /tmp/tmpgeb40cic/pieeprom.upd timeout
This EEPROM update failure appears to have been discussed absolutely nowhere on the Internet (what does this timeout mean?), leading to extreme caution moving forward. The active EEPROM config now seems like a subset of the above:
Since this appears to be the recommendation from the above script output, lets cancel the pending update for now:
There are a couple of newer versions available, the last one being very recent:
$ sudo rpi-eeprom-update -l
/usr/lib/firmware/raspberrypi/bootloader-2712/default/pieeprom-2025-02-12.bin
$ ls -l /usr/lib/firmware/raspberrypi/bootloader-2712/default/
total 6248
-rw-r--r-- 1 root root 2097152 Feb 18 10:42 pieeprom-2024-11-12.bin
-rw-r--r-- 1 root root 2097152 Feb 18 10:42 pieeprom-2025-01-22.bin
-rw-r--r-- 1 root root 2097152 Feb 18 10:42 pieeprom-2025-02-12.bin
-rw-r--r-- 1 root root 102992 Feb 18 10:42 recovery.bin
Using raspi-config to update the bootloader
and set it to Latest (without resetting config) worked just fine.
After the required reboot, the argon-eeprom.sh script also run fine:
curl https://download.argon40.com/argon-eeprom.sh | bash
$ curl https://download.argon40.com/argon-eeprom.sh | bash
*************
Argon Setup
*************
Hit:1 http://deb.debian.org/debian bookworm InRelease
Hit:2 http://archive.raspberrypi.com/debian bookworm InRelease
Hit:3 http://deb.debian.org/debian-security bookworm-security InRelease
Hit:4 http://deb.debian.org/debian bookworm-updates InRelease
Reading package lists... Done
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
Calculating upgrade... Done
0 upgraded, 0 newly installed, 0 to remove and 0 not upgraded.
BOOTLOADER: up to date
CURRENT: Wed Feb 12 10:51:52 AM UTC 2025 (1739357512)
LATEST: Wed Feb 12 10:51:52 AM UTC 2025 (1739357512)
RELEASE: latest (/usr/lib/firmware/raspberrypi/bootloader-2712/latest)
Use raspi-config to change the release.
EEPROM settings up to date
Then after another required reboot, the argon1.sh script worked fine too:
curl https://download.argon40.com/argon1.sh | bash
$ curl https://download.argon40.com/argon1.sh | bash
*************
Argon Setup
*************
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
python3-libgpiod is already the newest version (1.6.3-1+b3).
0 upgraded, 0 newly installed, 0 to remove and 0 not upgraded.
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following additional packages will be installed:
i2c-tools libi2c0 read-edid
Suggested packages:
libi2c-dev
The following NEW packages will be installed:
i2c-tools libi2c0 python3-smbus read-edid
0 upgraded, 4 newly installed, 0 to remove and 0 not upgraded.
Need to get 116 kB of archives.
After this operation, 773 kB of additional disk space will be used.
Get:1 http://deb.debian.org/debian bookworm/main arm64 libi2c0 arm64 4.3-2+b3 [9,456 B]
Get:2 http://deb.debian.org/debian bookworm/main arm64 i2c-tools arm64 4.3-2+b3 [78.6 kB]
Get:3 http://deb.debian.org/debian bookworm/main arm64 python3-smbus arm64 4.3-2+b3 [11.8 kB]
Get:4 http://deb.debian.org/debian bookworm/main arm64 read-edid arm64 3.0.2-1.1 [16.1 kB]
Fetched 116 kB in 0s (487 kB/s)
Selecting previously unselected package libi2c0:arm64.
(Reading database ... 81258 files and directories currently installed.)
Preparing to unpack .../libi2c0_4.3-2+b3_arm64.deb ...
Unpacking libi2c0:arm64 (4.3-2+b3) ...
Selecting previously unselected package i2c-tools.
Preparing to unpack .../i2c-tools_4.3-2+b3_arm64.deb ...
Unpacking i2c-tools (4.3-2+b3) ...
Selecting previously unselected package python3-smbus:arm64.
Preparing to unpack .../python3-smbus_4.3-2+b3_arm64.deb ...
Unpacking python3-smbus:arm64 (4.3-2+b3) ...
Selecting previously unselected package read-edid.
Preparing to unpack .../read-edid_3.0.2-1.1_arm64.deb ...
Unpacking read-edid (3.0.2-1.1) ...
Setting up libi2c0:arm64 (4.3-2+b3) ...
Setting up read-edid (3.0.2-1.1) ...
Setting up i2c-tools (4.3-2+b3) ...
Setting up python3-smbus:arm64 (4.3-2+b3) ...
Processing triggers for man-db (2.11.2-2) ...
Processing triggers for libc-bin (2.36-9+rpt2+deb12u9) ...
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
i2c-tools is already the newest version (4.3-2+b3).
i2c-tools set to manually installed.
0 upgraded, 0 newly installed, 0 to remove and 0 not upgraded.
Created symlink /etc/systemd/system/multi-user.target.wants/argononed.service → /lib/systemd/system/argononed.service.
Hit:1 http://deb.debian.org/debian bookworm InRelease
Hit:2 http://deb.debian.org/debian-security bookworm-security InRelease
Hit:3 http://deb.debian.org/debian bookworm-updates InRelease
Hit:4 http://archive.raspberrypi.com/debian bookworm InRelease
Reading package lists... Done
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
Calculating upgrade... Done
0 upgraded, 0 newly installed, 0 to remove and 0 not upgraded.
BOOTLOADER: up to date
CURRENT: Wed Feb 12 10:51:52 AM UTC 2025 (1739357512)
LATEST: Wed Feb 12 10:51:52 AM UTC 2025 (1739357512)
RELEASE: latest (/usr/lib/firmware/raspberrypi/bootloader-2712/latest)
Use raspi-config to change the release.
Updating bootloader EEPROM
image: /usr/lib/firmware/raspberrypi/bootloader-2712/latest/pieeprom-2025-02-12.bin
config_src: blconfig device
config: /tmp/tmpsnnegdcc/boot.conf
################################################################################
[all]
PSU_MAX_CURRENT=5000
WAKE_ON_GPIO=0
PCIE_PROBE=1
BOOT_UART=1
POWER_OFF_ON_HALT=1
BOOT_ORDER=0xf416
################################################################################
*** To cancel this update run 'sudo rpi-eeprom-update -r' ***
*** CREATED UPDATE /tmp/tmpsnnegdcc/pieeprom.upd ***
CURRENT: Wed Feb 12 10:51:52 AM UTC 2025 (1739357512)
UPDATE: Wed Feb 12 10:51:52 AM UTC 2025 (1739357512)
BOOTFS: /boot/firmware
'/tmp/tmp.U1Yfb9oJp3' -> '/boot/firmware/pieeprom.upd'
UPDATING bootloader. This could take up to a minute. Please wait
*** Do not disconnect the power until the update is complete ***
If a problem occurs then the Raspberry Pi Imager may be used to create
a bootloader rescue SD card image which restores the default bootloader image.
flashrom -p linux_spi:dev=/dev/spidev10.0,spispeed=16000 -w /boot/firmware/pieeprom.upd
Verifying update
VERIFY: SUCCESS
UPDATE SUCCESSFUL
*********************
Setup Completed
*********************
Version 2502002
We acknowledge the valuable feedback of the following:
ghalfacree, NHHiker
Feel free to join the discussions at https://forum.argon40.com
Use 'argon-config' to configure device
And finally, after yet another reboot, the argon-config works:
sudo argon-config
$ sudo argon-config
--------------------------
Argon Configuration Tool
Version 2502002
--------------------------
Choose Option:
1. Configure Fan
2. Configure IR
3. Argon Industria UPS
4. Configure BLSTR DAC (v3/v5 only)
5. Configure Units
6. System Information
7. Uninstall
0. Exit
Enter Number (0-7):6
--------------------------
Argon System Information
--------------------------
1. Temperatures
2. CPU Utilization
3. Storage Capacity
4. RAM
5. IP Address
6. Fan Speed
0. Back
Enter Number (0-6):1
--------------------------
TEMPERATURE INFORMATION:
CPU: 40.2°C
--------------------------
1. Temperatures
2. CPU Utilization
3. Storage Capacity
4. RAM
5. IP Address
6. Fan Speed
0. Back
Enter Number (0-6):2
--------------------------
CPU USAGE INFORMATION:
cpu0: 0%
cpu1: 0%
cpu2: 0%
cpu3: 0%
--------------------------
1. Temperatures
2. CPU Utilization
3. Storage Capacity
4. RAM
5. IP Address
6. Fan Speed
0. Back
Enter Number (0-6):3
--------------------------
STORAGE INFORMATION:
nvme0n1 0% used of 2TB
--------------------------
1. Temperatures
2. CPU Utilization
3. Storage Capacity
4. RAM
5. IP Address
6. Fan Speed
0. Back
Enter Number (0-6):4
--------------------------
RAM INFORMATION:
97% of 8GB
--------------------------
1. Temperatures
2. CPU Utilization
3. Storage Capacity
4. RAM
5. IP Address
6. Fan Speed
0. Back
Enter Number (0-6):5
--------------------------
IP INFORMATION:
192.168.0.124
--------------------------
1. Temperatures
2. CPU Utilization
3. Storage Capacity
4. RAM
5. IP Address
6. Fan Speed
0. Back
Enter Number (0-6):6
--------------------------
TEMPERATURE INFORMATION:
CPU: 40.2°C
FAN CONFIGURATION INFORMATION:
65.0=100
60.0=55
55.0=30
FAN SPEED INFORMATION:
Fan Speed 0
--------------------------
1. Temperatures
2. CPU Utilization
3. Storage Capacity
4. RAM
5. IP Address
6. Fan Speed
0. Back
Enter Number (0-6):0
Choose Option:
1. Configure Fan
2. Configure IR
3. Argon Industria UPS
4. Configure BLSTR DAC (v3/v5 only)
5. Configure Units
6. System Information
7. Uninstall
0. Exit
Enter Number (0-7):0
Thank you.
Essential Software
Basic packages
Before moving forward, I like to install a few basics that make work easier, or on which subsequent packages depend:
$ sudo apt update
$ sudo apt full-upgrade -y
$ sudo apt install -y bc git iotop-c netcat-openbsd rename speedtest-cli \
sysstat vim python3-pip python3-influxdb python3-numpy python3-absl \
python3-unidecode
Continuous Monitoring
Continuous Monitoring on this system needs only the
conmon-st script to gather metrics,
since it will be reporting metrics to the
InfluxDB and Grafana on Kubernetes
already setup on lexicon.
After installing the service file,
it is also necessary to add User=pi in the [Service] section.
$ sudo systemctl enable conmon.service
$ sudo systemctl daemon-reload
$ sudo systemctl start conmon.service
$ sudo systemctl status conmon.service
Fail2Ban
Fail2Ban scans log files and bans IP addresses conducting too many failed login attempts. It is a rather basic protection mechanism, and this system is not intended to have its SSH port open to the Internet, but it is so easy to install and enable that there is no excuse not to.
The configuration in /etc/fail2ban/jail.conf can be spiced up to make a
little more trigger-happy:
# "bantime" is the number of seconds that a host is banned.
bantime = 12h
# A host is banned if it has generated "maxretry" during the last "findtime"
# seconds.
findtime = 90m
# "maxretry" is the number of failures before a host get banned.
maxretry = 3
# "bantime.increment" allows to use database for searching of previously banned ip's to increase a
# default ban time using special formula, default it is banTime * 1, 2, 4, 8, 16, 32...
bantime.increment = true
Then restart the service to pick the changes up:
Kubernetes
Raspberry Pi 5 - a Kubernetes cluster looks like installing Kubernetes on a Raspberry Pi is not any different than installing it on Ubuntu Server, so we can essentially combine the latest Single-node Kubernetes cluster on Ubuntu Studio desktop (rapture) with the original, more detailed Single-node Kubernetes cluster on Ubuntu Server (lexicon), which should mean mostly following kubernetes.io/docs along with the combined learnings from having done this already twice.
GitHub Repository
Kubernetes deployments for all servers are best kept in a revision controlled GitHub repo, already in use since the last cluster was setup. Generate a new SSH key, add it to the GitHub account as an Authentication Key and, instead of keeping separate directories for each Kubernetes version, which seems to have been unnecessary, simply create a directory per server and keep common files at the root:
$ git clone git@github.com:xxxx/kubernetes-deployments.git
$ cd kubernetes-deployments/
$ mkdir alfred
Install Kubernetes
The current stable release is now v1.32.2 which is already the 3rd patch in 1.32, so we use this version to Installing kubeadm, kubelet and kubectl from Debian packages:
$ curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.32/deb/Release.key \
| sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg
$ sudo chmod 644 /etc/apt/keyrings/kubernetes-apt-keyring.gpg
$ echo 'deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.32/deb/ /' \
| sudo tee /etc/apt/sources.list.d/kubernetes.list
$ sudo apt-get update
Note
The "/etc/apt/keyrings already existed and the required packages were
already installed: ca-certificates, curl, gnupg (and
apt-transport-https is a dummy package).
Once the APT repository is ready, install the packages:
sudo apt-get install -y kubelet kubeadm kubectl
$ sudo apt-get install -y kubelet kubeadm kubectl
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following additional packages will be installed:
conntrack cri-tools kubernetes-cni
The following NEW packages will be installed:
conntrack cri-tools kubeadm kubectl kubelet kubernetes-cni
0 upgraded, 6 newly installed, 0 to remove and 0 not upgraded.
Need to get 83.4 MB of archives.
After this operation, 330 MB of additional disk space will be used.
Fetched 83.4 MB in 9s (9,047 kB/s)
Selecting previously unselected package conntrack.
(Reading database ... 83134 files and directories currently installed.)
Preparing to unpack .../0-conntrack_1%3a1.4.7-1+b2_arm64.deb ...
Unpacking conntrack (1:1.4.7-1+b2) ...
Selecting previously unselected package cri-tools.
Preparing to unpack .../1-cri-tools_1.32.0-1.1_arm64.deb ...
Unpacking cri-tools (1.32.0-1.1) ...
Selecting previously unselected package kubeadm.
Preparing to unpack .../2-kubeadm_1.32.2-1.1_arm64.deb ...
Unpacking kubeadm (1.32.2-1.1) ...
Selecting previously unselected package kubectl.
Preparing to unpack .../3-kubectl_1.32.2-1.1_arm64.deb ...
Unpacking kubectl (1.32.2-1.1) ...
Selecting previously unselected package kubernetes-cni.
Preparing to unpack .../4-kubernetes-cni_1.6.0-1.1_arm64.deb ...
Unpacking kubernetes-cni (1.6.0-1.1) ...
Selecting previously unselected package kubelet.
Preparing to unpack .../5-kubelet_1.32.2-1.1_arm64.deb ...
Unpacking kubelet (1.32.2-1.1) ...
Setting up conntrack (1:1.4.7-1+b2) ...
Setting up kubectl (1.32.2-1.1) ...
Setting up cri-tools (1.32.0-1.1) ...
Setting up kubernetes-cni (1.6.0-1.1) ...
Setting up kubeadm (1.32.2-1.1) ...
Setting up kubelet (1.32.2-1.1) ...
Processing triggers for man-db (2.11.2-2) ...
And then, because updating Kubernetes is a rather involved process, hold them:
Enabling shell autocompletion
for kubectl is very easy, since bash-completion is already installed:
$ kubectl completion bash | sudo tee /etc/bash_completion.d/kubectl > /dev/null
$ sudo chmod a+r /etc/bash_completion.d/kubectl
Enable the kubelet service
This step is only really necessary later, before
bootstrapping the cluster with kubeadm,
but it can be done any time; the service will just be waiting:
Install container runtime
Networking setup
Enabling IPv4 packet forwarding appears to be the only required network setup for Kubernetes v1.32, and this is already enabled in Rasberry Pi OS:
Even so, better to have this enabled explicitly now than to later have Kubernetes cluster DNS issues.
However, this alone is not enough for the successful deployment of the Network plugin required after bootstraping the cluster.
Ommitting the additional steps to
let iptables see bridged traffic,
which seems to have been required only up to v1.29, would later result
in the kube-flannel
deployment failing to start up
(stuck in a crash loop):
$ sudo modprobe overlay
$ sudo modprobe br_netfilter
$ sudo tee /etc/modules-load.d/k8s.conf<<EOF
br_netfilter
overlay
EOF
$ sudo tee /etc/sysctl.d/k8s.conf<<EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF
$ sudo sysctl --system
Reboot the system to make sure that the changes are permanent:
$ sudo sysctl -a | egrep 'net.ipv4.ip_forward |net.bridge.bridge-nf-call-ip'
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
$ lsmod | egrep 'overlay|bridge'
bridge 294912 1 br_netfilter
stp 49152 1 bridge
llc 49152 2 bridge,stp
overlay 163840 11
ipv6 589824 58 bridge,br_netfilter
Install containerd
Installing a container runtime
comes next, with containerd being the runtime of choice.
Install using the apt repository:
$ sudo curl -fsSL https://download.docker.com/linux/debian/gpg \
-o /etc/apt/keyrings/docker.asc
$ sudo chmod a+r /etc/apt/keyrings/docker.asc
$ echo \
"deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/debian \
$(. /etc/os-release && echo "$VERSION_CODENAME") stable" | \
sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
$ sudo apt-get update
Once the APT repository is ready, install the packages:
sudo apt-get install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin
$ sudo apt-get install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following additional packages will be installed:
docker-ce-rootless-extras libltdl7 libslirp0 pigz slirp4netns
Suggested packages:
cgroupfs-mount | cgroup-lite
The following NEW packages will be installed:
containerd.io docker-buildx-plugin docker-ce docker-ce-cli docker-ce-rootless-extras
docker-compose-plugin libltdl7 libslirp0 pigz slirp4netns
0 upgraded, 10 newly installed, 0 to remove and 0 not upgraded.
Need to get 104 MB of archives.
After this operation, 405 MB of additional disk space will be used.
Fetched 104 MB in 9s (11.8 MB/)
Selecting previously unselected package pigz.
(Reading database ... 83193 files and directories currently installed.)
Preparing to unpack .../0-pigz_2.6-1_arm64.deb ...
Unpacking pigz (2.6-1) ...
Selecting previously unselected package containerd.io.
Preparing to unpack .../1-containerd.io_1.7.25-1_arm64.deb ...
Unpacking containerd.io (1.7.25-1) ...
Selecting previously unselected package docker-buildx-plugin.
Preparing to unpack .../2-docker-buildx-plugin_0.21.0-1~debian.12~bookworm_arm64.deb ...
Unpacking docker-buildx-plugin (0.21.0-1~debian.12~bookworm) ...
Selecting previously unselected package docker-ce-cli.
Preparing to unpack .../3-docker-ce-cli_5%3a28.0.0-1~debian.12~bookworm_arm64.deb ...
Unpacking docker-ce-cli (5:28.0.0-1~debian.12~bookworm) ...
Selecting previously unselected package docker-ce.
Preparing to unpack .../4-docker-ce_5%3a28.0.0-1~debian.12~bookworm_arm64.deb ...
Unpacking docker-ce (5:28.0.0-1~debian.12~bookworm) ...
Selecting previously unselected package docker-ce-rootless-extras.
Preparing to unpack .../5-docker-ce-rootless-extras_5%3a28.0.0-1~debian.12~bookworm_arm64.deb ...
Unpacking docker-ce-rootless-extras (5:28.0.0-1~debian.12~bookworm) ...
Selecting previously unselected package docker-compose-plugin.
Preparing to unpack .../6-docker-compose-plugin_2.33.0-1~debian.12~bookworm_arm64.deb ...
Unpacking docker-compose-plugin (2.33.0-1~debian.12~bookworm) ...
Selecting previously unselected package libltdl7:arm64.
Preparing to unpack .../7-libltdl7_2.4.7-7~deb12u1_arm64.deb ...
Unpacking libltdl7:arm64 (2.4.7-7~deb12u1) ...
Selecting previously unselected package libslirp0:arm64.
Preparing to unpack .../8-libslirp0_4.7.0-1_arm64.deb ...
Unpacking libslirp0:arm64 (4.7.0-1) ...
Selecting previously unselected package slirp4netns.
Preparing to unpack .../9-slirp4netns_1.2.0-1_arm64.deb ...
Unpacking slirp4netns (1.2.0-1) ...
Setting up docker-buildx-plugin (0.21.0-1~debian.12~bookworm) ...
Setting up containerd.io (1.7.25-1) ...
Created symlink /etc/systemd/system/multi-user.target.wants/containerd.service → /lib/systemd/system/containerd.service.
Setting up docker-compose-plugin (2.33.0-1~debian.12~bookworm) ...
Setting up libltdl7:arm64 (2.4.7-7~deb12u1) ...
Setting up docker-ce-cli (5:28.0.0-1~debian.12~bookworm) ...
Setting up libslirp0:arm64 (4.7.0-1) ...
Setting up pigz (2.6-1) ...
Setting up docker-ce-rootless-extras (5:28.0.0-1~debian.12~bookworm) ...
Setting up slirp4netns (1.2.0-1) ...
Setting up docker-ce (5:28.0.0-1~debian.12~bookworm) ...
Created symlink /etc/systemd/system/multi-user.target.wants/docker.service → /lib/systemd/system/docker.service.
Created symlink /etc/systemd/system/sockets.target.wants/docker.socket → /lib/systemd/system/docker.socket.
Processing triggers for man-db (2.11.2-2) ...
Processing triggers for libc-bin (2.36-9+rpt2+deb12u9) ...
In just a few moments docker is already running:
systemctl status docker
$ systemctl status docker
● docker.service - Docker Application Container Engine
Loaded: loaded (/lib/systemd/system/docker.service; enabled; preset: enabled)
Active: active (running) since Sat 2025-02-22 14:45:10 CET; 1min 58s ago
TriggeredBy: ● docker.socket
Docs: https://docs.docker.com
Main PID: 272049 (dockerd)
Tasks: 10
CPU: 179ms
CGroup: /system.slice/docker.service
└─272049 /usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
Feb 22 14:45:10 alfred dockerd[272049]: time="2025-02-22T14:45:10.298075305+01:00" level=info msg="Loading containers: start."
Feb 22 14:45:10 alfred dockerd[272049]: time="2025-02-22T14:45:10.482322273+01:00" level=info msg="Loading containers: done."
Feb 22 14:45:10 alfred dockerd[272049]: time="2025-02-22T14:45:10.493322483+01:00" level=warning msg="WARNING: No memory limit support"
Feb 22 14:45:10 alfred dockerd[272049]: time="2025-02-22T14:45:10.493351206+01:00" level=warning msg="WARNING: No swap limit support"
Feb 22 14:45:10 alfred dockerd[272049]: time="2025-02-22T14:45:10.493375243+01:00" level=info msg="Docker daemon" commit=af898ab containerd-snapshotter=false storage-driver=overlay2 version=28.0.0
Feb 22 14:45:10 alfred dockerd[272049]: time="2025-02-22T14:45:10.493479613+01:00" level=info msg="Initializing buildkit"
Feb 22 14:45:10 alfred dockerd[272049]: time="2025-02-22T14:45:10.538199044+01:00" level=info msg="Completed buildkit initialization"
Feb 22 14:45:10 alfred dockerd[272049]: time="2025-02-22T14:45:10.543738454+01:00" level=info msg="Daemon has completed initialization"
Feb 22 14:45:10 alfred systemd[1]: Started docker.service - Docker Application Container Engine.
Feb 22 14:45:10 alfred dockerd[272049]: time="2025-02-22T14:45:10.543810435+01:00" level=info msg="API listen on /run/docker.sock"
The server is indeed reachable and its version can be checked:
sudo docker version
$ sudo docker version
Client: Docker Engine - Community
Version: 28.0.0
API version: 1.48
Go version: go1.23.6
Git commit: f9ced58
Built: Wed Feb 19 22:10:37 2025
OS/Arch: linux/arm64
Context: default
Server: Docker Engine - Community
Engine:
Version: 28.0.0
API version: 1.48 (minimum version 1.24)
Go version: go1.23.6
Git commit: af898ab
Built: Wed Feb 19 22:10:37 2025
OS/Arch: linux/arm64
Experimental: false
containerd:
Version: 1.7.25
GitCommit: bcc810d6b9066471b0b6fa75f557a15a1cbf31bb
runc:
Version: 1.2.4
GitCommit: v1.2.4-0-g6c52b3f
docker-init:
Version: 0.19.0
GitCommit: de40ad0
And the basic hello-world example just works:
sudo docker run hello-world
$ sudo docker run hello-world
Unable to find image 'hello-world:latest' locally
latest: Pulling from library/hello-world
c9c5fd25a1bd: Pull complete
Digest: sha256:e0b569a5163a5e6be84e210a2587e7d447e08f87a0e90798363fa44a0464a1e8
Status: Downloaded newer image for hello-world:latest
Hello from Docker!
This message shows that your installation appears to be working correctly.
To generate this message, Docker took the following steps:
1. The Docker client contacted the Docker daemon.
2. The Docker daemon pulled the "hello-world" image from the Docker Hub.
(arm64v8)
3. The Docker daemon created a new container from that image which runs the
executable that produces the output you are currently reading.
4. The Docker daemon streamed that output to the Docker client, which sent it
to your terminal.
To try something more ambitious, you can run an Ubuntu container with:
$ docker run -it ubuntu bash
Share images, automate workflows, and more with a free Docker ID:
https://hub.docker.com/
For more examples and ideas, visit:
https://docs.docker.com/get-started/
Configure containerd for Kubernetes
The default configutation that comes with containerd, at least when
installed from the APT repository, needs two adjustments to work with
Kubernetes
- Enable the use of
systemdcgroup driver, because Debian 12 (bookworm) uses bothsystemdand cgroup v2. - Enable CRI integration, which is disabled in
/etc/containerd/config.toml, but is needed to usecontainerdwith Kubernetes.
The safest method to set these configurations is to do it based off of the default configuration:
$ containerd config default \
| sed 's/disabled_plugins.*/disabled_plugins = []/' \
| sed 's/SystemdCgroup = false/SystemdCgroup = true/' \
| sudo tee /etc/containerd/config.toml > /dev/null
$ sudo systemctl restart containerd
Note
There is no need to manually configure the cgroup driver for kubelet
because, already since v1.22, kubeadm defaults it to systemd.
Installing Raspberry Pi OS uses most of the disk for the root partition,
so there is plenty of space under /var (unlike in my PCs).
Bootstrap with kubeadm
Creating a cluster with kubeadm is the next big step towards creating the Kubernetes cluster.
Initialize control-plane
Having reviewed the requirements and installed all the components already, initialize the control-plane node with the following flags:
--cri-socket=unix:/run/containerd/containerd.sockto make sure Kubernetes uses the containerd runtime.--pod-network-cidr=10.244.0.0/16as required by flannel, which is the network plugin to be installed later.
sudo kubeadm init
$ sudo kubeadm init \
--cri-socket=unix:/run/containerd/containerd.sock \
--pod-network-cidr=10.244.0.0/16
[init] Using Kubernetes version: v1.32.2
[preflight] Running pre-flight checks
[WARNING SystemVerification]: missing optional cgroups: hugetlb
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action beforehand using 'kubeadm config images pull'
W0222 18:06:17.311306 23707 checks.go:846] detected that the sandbox image "registry.k8s.io/pause:3.8" of the container runtime is inconsistent with that used by kubeadm.It is recommended to use "registry.k8s.io/pause:3.10" as the CRI sandbox image.
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [alfred kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.0.1 192.168.0.124]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [alfred localhost] and IPs [192.168.0.124 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [alfred localhost] and IPs [192.168.0.124 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "super-admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests"
[kubelet-check] Waiting for a healthy kubelet at http://127.0.0.1:10248/healthz. This can take up to 4m0s
[kubelet-check] The kubelet is healthy after 1.500708247s
[api-check] Waiting for a healthy API server. This can take up to 4m0s
[api-check] The API server is healthy after 6.502008927s
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node alfred as control-plane by adding the labels: [node-role.kubernetes.io/control-plane node.kubernetes.io/exclude-from-external-load-balancers]
[mark-control-plane] Marking the node alfred as control-plane by adding the taints [node-role.kubernetes.io/control-plane:NoSchedule]
[bootstrap-token] Using token: wsa12a.382ftng8m2y3id9x
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Alternatively, if you are the root user, you can run:
export KUBECONFIG=/etc/kubernetes/admin.conf
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 192.168.0.124:6443 --token wsa12a.382ftng8m2y3id9x \
--discovery-token-ca-cert-hash sha256:33d013e353b67503bf547c210adc44fe52617626b6f310f801c87c1200269daf
Now kubelet is running and reporting pod startups:
systemctl status kubelet
$ systemctl status kubelet
● kubelet.service - kubelet: The Kubernetes Node Agent
Loaded: loaded (/lib/systemd/system/kubelet.service; enabled; preset: enabled)
Drop-In: /usr/lib/systemd/system/kubelet.service.d
└─10-kubeadm.conf
Active: active (running) since Sat 2025-02-22 18:07:07 CET; 59s ago
Docs: https://kubernetes.io/docs/
Main PID: 26454 (kubelet)
Tasks: 13 (limit: 9586)
Memory: 33.7M
CPU: 1.841s
CGroup: /system.slice/kubelet.service
└─26454 /usr/bin/kubelet --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.conf --kubeconfig=/etc/kubernetes/kubelet.conf --config=/var/lib/kubelet/config.yaml --container-runtime-endpoint=unix:/run/containerd/containerd.sock --pod-infra-container-image=registry.k8s.io/pause:3.10
Feb 22 18:07:08 alfred kubelet[26454]: I0222 18:07:08.449253 26454 pod_startup_latency_tracker.go:104] "Observed pod startup duration" pod="kube-system/kube-apiserver-alfred" podStartSLOduration=1.449228049 podStartE2EDuration="1.449228049s" podCreationTimestamp="2025-02-22 18:07:07 +0100 CET" firstStartedPulling="0001-01-01 00:00:00 +0000 UTC" lastFinishedPulling="0001-01->
Feb 22 18:07:08 alfred kubelet[26454]: I0222 18:07:08.465459 26454 pod_startup_latency_tracker.go:104] "Observed pod startup duration" pod="kube-system/kube-controller-manager-alfred" podStartSLOduration=1.4654371689999999 podStartE2EDuration="1.465437169s" podCreationTimestamp="2025-02-22 18:07:07 +0100 CET" firstStartedPulling="0001-01-01 00:00:00 +0000 UTC" lastFinishedP>
Feb 22 18:07:08 alfred kubelet[26454]: I0222 18:07:08.477805 26454 pod_startup_latency_tracker.go:104] "Observed pod startup duration" pod="kube-system/kube-scheduler-alfred" podStartSLOduration=1.47777902 podStartE2EDuration="1.47777902s" podCreationTimestamp="2025-02-22 18:07:07 +0100 CET" firstStartedPulling="0001-01-01 00:00:00 +0000 UTC" lastFinishedPulling="0001-01-01>
Feb 22 18:07:11 alfred kubelet[26454]: I0222 18:07:11.830256 26454 kuberuntime_manager.go:1702] "Updating runtime config through cri with podcidr" CIDR="10.244.0.0/24"
Feb 22 18:07:11 alfred kubelet[26454]: I0222 18:07:11.831026 26454 kubelet_network.go:61] "Updating Pod CIDR" originalPodCIDR="" newPodCIDR="10.244.0.0/24"
Feb 22 18:07:12 alfred kubelet[26454]: I0222 18:07:12.664117 26454 reconciler_common.go:251] "operationExecutor.VerifyControllerAttachedVolume started for volume \"kube-proxy\" (UniqueName: \"kubernetes.io/configmap/d82bc4b9-39fd-4616-9d9d-919b5dbf12f8-kube-proxy\") pod \"kube-proxy-m9rb6\" (UID: \"d82bc4b9-39fd-4616-9d9d-919b5dbf12f8\") " pod="kube-system/kube-proxy-m9rb6"
Feb 22 18:07:12 alfred kubelet[26454]: I0222 18:07:12.664164 26454 reconciler_common.go:251] "operationExecutor.VerifyControllerAttachedVolume started for volume \"xtables-lock\" (UniqueName: \"kubernetes.io/host-path/d82bc4b9-39fd-4616-9d9d-919b5dbf12f8-xtables-lock\") pod \"kube-proxy-m9rb6\" (UID: \"d82bc4b9-39fd-4616-9d9d-919b5dbf12f8\") " pod="kube-system/kube-proxy-m9>
Feb 22 18:07:12 alfred kubelet[26454]: I0222 18:07:12.664191 26454 reconciler_common.go:251] "operationExecutor.VerifyControllerAttachedVolume started for volume \"lib-modules\" (UniqueName: \"kubernetes.io/host-path/d82bc4b9-39fd-4616-9d9d-919b5dbf12f8-lib-modules\") pod \"kube-proxy-m9rb6\" (UID: \"d82bc4b9-39fd-4616-9d9d-919b5dbf12f8\") " pod="kube-system/kube-proxy-m9rb>
Feb 22 18:07:12 alfred kubelet[26454]: I0222 18:07:12.664222 26454 reconciler_common.go:251] "operationExecutor.VerifyControllerAttachedVolume started for volume \"kube-api-access-kvm6p\" (UniqueName: \"kubernetes.io/projected/d82bc4b9-39fd-4616-9d9d-919b5dbf12f8-kube-api-access-kvm6p\") pod \"kube-proxy-m9rb6\" (UID: \"d82bc4b9-39fd-4616-9d9d-919b5dbf12f8\") " pod="kube-sy>
Feb 22 18:07:13 alfred kubelet[26454]: I0222 18:07:13.955329 26454 pod_startup_latency_tracker.go:104] "Observed pod startup duration" pod="kube-system/kube-proxy-m9rb6" podStartSLOduration=1.955298193 podStartE2EDuration="1.955298193s" podCreationTimestamp="2025-02-22 18:07:12 +0100 CET" firstStartedPulling="0001-01-01 00:00:00 +0000 UTC" lastFinishedPulling="0001-01-01 00>
We can see all the containers already running:
sudo crictl ps -a
$ sudo crictl ps -a
WARN[0000] Config "/etc/crictl.yaml" does not exist, trying next: "/usr/bin/crictl.yaml"
CONTAINER IMAGE CREATED STATE NAME ATTEMPT POD ID POD NAMESPACE
96bfa773295db e5aac5df76d9b 3 minutes ago Running kube-proxy 0 913830cf3993f kube-proxy-m9rb6 kube-system
a6b39c9d1cb7b 3c9285acfd2ff 3 minutes ago Running kube-controller-manager 0 a79090d0033d6 kube-controller-manager-alfred kube-system
daabcca3c5ff7 6417e1437b6d9 3 minutes ago Running kube-apiserver 0 eb82d6f92e0a6 kube-apiserver-alfred kube-system
a3265cea76a4e 82dfa03f692fb 3 minutes ago Running kube-scheduler 0 358bbf99544f9 kube-scheduler-alfred kube-system
58c64ed06ad12 7fc9d4aa817aa 3 minutes ago Running etcd 0 a176e6da07c76 etcd-alfred kube-system
The cluster is configured correctly to use registry.k8s.io/pause:3.10:
$ grep container-runtime /var/lib/kubelet/kubeadm-flags.env
KUBELET_KUBEADM_ARGS="--container-runtime-endpoint=unix:/run/containerd/containerd.sock --pod-infra-container-image=registry.k8s.io/pause:3.10"
Troubleshooting Bootstrap
The first attempt failed for a few reasons:
sudo kubeadm init
$ sudo kubeadm init \
--cri-socket=unix:/run/containerd/containerd.sock \
--pod-network-cidr=10.244.0.0/16
[init] Using Kubernetes version: v1.32.2
[preflight] Running pre-flight checks
W0222 16:05:57.929808 443810 checks.go:1077] [preflight] WARNING: Couldn't create the interface used for talking to the container runtime: failed to create new CRI runtime service: validate service connection: validate CRI v1 runtime API for endpoint "unix:/run/containerd/containerd.sock": rpc error: code = Unimplemented desc = unknown service runtime.v1.RuntimeService
[preflight] The system verification failed. Printing the output from the verification:
KERNEL_VERSION: 6.6.74+rpt-rpi-2712
CONFIG_NAMESPACES: enabled
CONFIG_NET_NS: enabled
CONFIG_PID_NS: enabled
CONFIG_IPC_NS: enabled
CONFIG_UTS_NS: enabled
CONFIG_CGROUPS: enabled
CONFIG_CGROUP_BPF: enabled
CONFIG_CGROUP_CPUACCT: enabled
CONFIG_CGROUP_DEVICE: enabled
CONFIG_CGROUP_FREEZER: enabled
CONFIG_CGROUP_PIDS: enabled
CONFIG_CGROUP_SCHED: enabled
CONFIG_CPUSETS: enabled
CONFIG_MEMCG: enabled
CONFIG_INET: enabled
CONFIG_EXT4_FS: enabled
CONFIG_PROC_FS: enabled
CONFIG_NETFILTER_XT_TARGET_REDIRECT: enabled (as module)
CONFIG_NETFILTER_XT_MATCH_COMMENT: enabled (as module)
CONFIG_FAIR_GROUP_SCHED: enabled
CONFIG_OVERLAY_FS: enabled (as module)
CONFIG_AUFS_FS: not set - Required for aufs.
CONFIG_BLK_DEV_DM: enabled (as module)
CONFIG_CFS_BANDWIDTH: enabled
CONFIG_CGROUP_HUGETLB: not set - Required for hugetlb cgroup.
CONFIG_SECCOMP: enabled
CONFIG_SECCOMP_FILTER: enabled
OS: Linux
CGROUPS_CPU: enabled
CGROUPS_CPUSET: enabled
CGROUPS_DEVICES: enabled
CGROUPS_FREEZER: enabled
CGROUPS_MEMORY: missing
CGROUPS_PIDS: enabled
CGROUPS_HUGETLB: missing
CGROUPS_IO: enabled
[WARNING SystemVerification]: missing optional cgroups: hugetlb
error execution phase preflight: [preflight] Some fatal errors occurred:
[ERROR SystemVerification]: missing required cgroups: memory
[preflight] If you know what you are doing, you can make a check non-fatal with `--ignore-preflight-errors=...`
To see the stack trace of this error execute with --v=5 or higher
There are 2 warnings and 1 error, although at least one of the warnings looks like it may be a fatal error preventing the creation of the cluster:
- WARNING: Couldn't create the interface used for talking to the
container runtime: failed to create new CRI runtime service: validate
service connection: validate CRI v1 runtime API for endpoint
"unix:/run/containerd/containerd.sock": rpc error:code = Unimplemented desc = unknown service runtime.v1.RuntimeService- Solution:
sudo systemctl restart containerd - Explanation: this was a subtle mistake; after replacing the
configuration in
/etc/containerd/config.tomlthe service was not restarted, because the command wassudo systemctl start containerd(startinstead ofrestart) which had no effect because the service was already running. Later, this was suspected based on the notes taken along the way (i.e. this article's draft) and confirmed by the last modified time in the config file being 1 hour later than the start time given bysudo status containerd.
- Solution:
- WARNING: missing optional cgroups: hugetlb
- This appears safe to ignore, since HugeTLB Pages is neither supported by the kernel nor necessary for this system.
- ERROR: missing required cgroups: memory
- Raspberry Pi OS bug #5933
causes this; the memory cgroup in the kernel command line:
This is not caused by the command line parameters defined in[ 0.000000] Kernel command line: ... cgroup_disable=memory ... [ 0.000000] cgroup: Disabling memory control group subsystem/boot/firmware/cmdline.txt(documented in Kernel command line (cmdline.txt)):console=serial0,115200 console=tty1 root=PARTUUID=7c5a31a3-02 rootfstype=ext4 fsck.repair=yes rootwait cfg80211.ieee80211_regdom=CH - Solution: add the required cgroups
(
cgroup_enable=cpuset cgroup_memory=1 cgroup_enable=memory) to the command line parameters defined in/boot/firmware/cmdline.txt:After rebooting,$ sudo sed -i \ 's/^/cgroup_enable=cpuset cgroup_memory=1 cgroup_enable=memory/ ' \ /boot/firmware/cmdline.txt/proc/cmdlineshows bothcgroup_disable=memoryand the added parameters, but the memory cgroup is now enabled:The[ 0.000000] Kernel command line: ... cgroup_disable=memory ... cgroup_enable=cpuset cgroup_memory=1 cgroup_enable=memory ... [ 0.000000] cgroup: Disabling memory control group subsystem [ 0.000000] cgroup: Enabling cpuset control group subsystem [ 0.000000] cgroup: Enabling memory control group subsystemcgroup_memory=1parameter is unknown to the kernel and passed on to/init.
- Raspberry Pi OS bug #5933
causes this; the memory cgroup in the kernel command line:
Setup kubectl access
To run kubectl as the non-root user (pi), copy the Kubernetes config file
under the ~/.kube directory and set the right permissions to it:
$ mkdir $HOME/.kube
$ sudo cp -f /etc/kubernetes/admin.conf $HOME/.kube/config
$ sudo chown $(id -u):$(id -g) $HOME/.kube/config
$ ls -l $HOME/.kube/config
-rw------- 1 pi pi 5653 Feb 22 18:20 /home/pi/.kube/config
$ kubectl cluster-info
Kubernetes control plane is running at https://192.168.0.124:6443
CoreDNS is running at https://192.168.0.124:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.
Network plugin
Installing a Pod network add-on is the next required step and, once again, in lack of other suggestions, deploying flannel manually like in previous clusters seems the way to go:
$ wget \
https://github.com/flannel-io/flannel/releases/latest/download/kube-flannel.yml
$ kubectl apply -f kube-flannel.yml
namespace/kube-flannel created
serviceaccount/flannel created
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
configmap/kube-flannel-cfg created
daemonset.apps/kube-flannel-ds created
Troubleshooting Flannel
Unlike in previous cluster setups, the kube-flannel-ds deployment fails
and the pod stays in a CrashLoopBackOff cycle:
$ kubectl get pods -n kube-flannel
NAME READY STATUS RESTARTS AGE
kube-flannel-ds-l6446 0/1 CrashLoopBackOff 10 (85s ago) 27m
$ kubectl get all -n kube-flannel
NAME READY STATUS RESTARTS AGE
pod/kube-flannel-ds-l6446 0/1 Error 5 (88s ago) 3m18s
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
daemonset.apps/kube-flannel-ds 1 1 0 1 0 <none> 3m18s
Inspecting the logs of this pod, in particular the error regarding
br_netfilter suggests that the networking setup
previously required by containerd was now, if not required by containerd,
at least required by Flannel:
$ kubectl logs -n kube-flannel \
$(kubectl get pods -n kube-flannel | grep kube-flannel | cut -f1 -d' ')
Defaulted container "kube-flannel" out of: kube-flannel, install-cni-plugin (init), install-cni (init)
I0222 18:58:21.486712 1 main.go:211] CLI flags config: {etcdEndpoints:http://127.0.0.1:4001,http://127.0.0.1:2379 etcdPrefix:/coreos.com/network etcdKeyfile: etcdCertfile: etcdCAFile: etcdUsername: etcdPassword: version:false kubeSubnetMgr:true kubeApiUrl: kubeAnnotationPrefix:flannel.alpha.coreos.com kubeConfigFile: iface:[] ifaceRegex:[] ipMasq:true ifaceCanReach: subnetFile:/run/flannel/subnet.env publicIP: publicIPv6: subnetLeaseRenewMargin:60 healthzIP:0.0.0.0 healthzPort:0 iptablesResyncSeconds:5 iptablesForwardRules:true netConfPath:/etc/kube-flannel/net-conf.json setNodeNetworkUnavailable:true}
W0222 18:58:21.486829 1 client_config.go:618] Neither --kubeconfig nor --master was specified. Using the inClusterConfig. This might not work.
I0222 18:58:21.501277 1 kube.go:139] Waiting 10m0s for node controller to sync
I0222 18:58:21.501371 1 kube.go:469] Starting kube subnet manager
I0222 18:58:22.502220 1 kube.go:146] Node controller sync successful
I0222 18:58:22.502244 1 main.go:231] Created subnet manager: Kubernetes Subnet Manager - alfred
I0222 18:58:22.502249 1 main.go:234] Installing signal handlers
I0222 18:58:22.502404 1 main.go:468] Found network config - Backend type: vxlan
E0222 18:58:22.502451 1 main.go:268] Failed to check br_netfilter: stat /proc/sys/net/bridge/bridge-nf-call-iptables: no such file or directory
Having initially omitted the steps to
let iptables see bridged traffic,
these were performed after this failure and, afer restarting the daemonset
(ds), proved to be the missing ingredient for success:
$ kubectl rollout restart ds kube-flannel-ds -n kube-flannel
daemonset.apps/kube-flannel-ds restarted
$ kubectl get all -n kube-flannel
NAME READY STATUS RESTARTS AGE
pod/kube-flannel-ds-gq6b4 1/1 Running 0 4s
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
daemonset.apps/kube-flannel-ds 1 1 1 1 1 <none> 43m
$ kubectl logs -n kube-flannel \
$(kubectl get pods -n kube-flannel | grep kube-flannel | cut -f1 -d' ')
Defaulted container "kube-flannel" out of: kube-flannel, install-cni-plugin (init), install-cni (init)
I0222 19:10:27.963740 1 main.go:211] CLI flags config: {etcdEndpoints:http://127.0.0.1:4001,http://127.0.0.1:2379 etcdPrefix:/coreos.com/network etcdKeyfile: etcdCertfile: etcdCAFile: etcdUsername: etcdPassword: version:false kubeSubnetMgr:true kubeApiUrl: kubeAnnotationPrefix:flannel.alpha.coreos.com kubeConfigFile: iface:[] ifaceRegex:[] ipMasq:true ifaceCanReach: subnetFile:/run/flannel/subnet.env publicIP: publicIPv6: subnetLeaseRenewMargin:60 healthzIP:0.0.0.0 healthzPort:0 iptablesResyncSeconds:5 iptablesForwardRules:true netConfPath:/etc/kube-flannel/net-conf.json setNodeNetworkUnavailable:true}
W0222 19:10:27.963882 1 client_config.go:618] Neither --kubeconfig nor --master was specified. Using the inClusterConfig. This might not work.
I0222 19:10:27.981819 1 kube.go:139] Waiting 10m0s for node controller to sync
I0222 19:10:27.981886 1 kube.go:469] Starting kube subnet manager
I0222 19:10:27.985297 1 kube.go:490] Creating the node lease for IPv4. This is the n.Spec.PodCIDRs: [10.244.0.0/24]
I0222 19:10:28.981965 1 kube.go:146] Node controller sync successful
I0222 19:10:28.981987 1 main.go:231] Created subnet manager: Kubernetes Subnet Manager - alfred
I0222 19:10:28.981992 1 main.go:234] Installing signal handlers
I0222 19:10:28.982155 1 main.go:468] Found network config - Backend type: vxlan
I0222 19:10:28.984567 1 kube.go:669] List of node(alfred) annotations: map[string]string{"flannel.alpha.coreos.com/backend-data":"{\"VNI\":1,\"VtepMAC\":\"8a:31:5f:70:6e:3f\"}", "flannel.alpha.coreos.com/backend-type":"vxlan", "flannel.alpha.coreos.com/kube-subnet-manager":"true", "flannel.alpha.coreos.com/public-ip":"192.168.0.124", "kubeadm.alpha.kubernetes.io/cri-socket":"unix:/run/containerd/containerd.sock", "node.alpha.kubernetes.io/ttl":"0", "volumes.kubernetes.io/controller-managed-attach-detach":"true"}
I0222 19:10:28.984614 1 match.go:211] Determining IP address of default interface
I0222 19:10:28.984933 1 match.go:264] Using interface with name wlan0 and address 192.168.0.124
I0222 19:10:28.984953 1 match.go:286] Defaulting external address to interface address (192.168.0.124)
I0222 19:10:28.985003 1 vxlan.go:141] VXLAN config: VNI=1 Port=0 GBP=false Learning=false DirectRouting=false
I0222 19:10:28.987228 1 kube.go:636] List of node(alfred) annotations: map[string]string{"flannel.alpha.coreos.com/backend-data":"{\"VNI\":1,\"VtepMAC\":\"8a:31:5f:70:6e:3f\"}", "flannel.alpha.coreos.com/backend-type":"vxlan", "flannel.alpha.coreos.com/kube-subnet-manager":"true", "flannel.alpha.coreos.com/public-ip":"192.168.0.124", "kubeadm.alpha.kubernetes.io/cri-socket":"unix:/run/containerd/containerd.sock", "node.alpha.kubernetes.io/ttl":"0", "volumes.kubernetes.io/controller-managed-attach-detach":"true"}
I0222 19:10:28.987278 1 vxlan.go:155] Interface flannel.1 mac address set to: 8a:31:5f:70:6e:3f
I0222 19:10:28.987762 1 iptables.go:51] Starting flannel in iptables mode...
W0222 19:10:28.987895 1 main.go:557] no subnet found for key: FLANNEL_IPV6_NETWORK in file: /run/flannel/subnet.env
W0222 19:10:28.987918 1 main.go:557] no subnet found for key: FLANNEL_IPV6_SUBNET in file: /run/flannel/subnet.env
I0222 19:10:28.987925 1 iptables.go:125] Setting up masking rules
I0222 19:10:28.993678 1 iptables.go:226] Changing default FORWARD chain policy to ACCEPT
I0222 19:10:28.995928 1 main.go:412] Wrote subnet file to /run/flannel/subnet.env
I0222 19:10:28.995946 1 main.go:416] Running backend.
I0222 19:10:28.996090 1 vxlan_network.go:65] watching for new subnet leases
I0222 19:10:29.005453 1 iptables.go:372] bootstrap done
I0222 19:10:29.009834 1 main.go:437] Waiting for all goroutines to exit
I0222 19:10:29.014751 1 iptables.go:372] bootstrap done
Enable single-node cluster
Control plane node isolation
is required for a single-node cluster, because otherwise a cluster
will not schedule Pods on the control plane nodes for security reasons.
This is reflected in the Taints found in the node details:
$ kubectl get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
alfred Ready control-plane 161m v1.32.2 192.168.0.124 <none> Debian GNU/Linux 12 (bookworm) 6.6.74+rpt-rpi-2712 containerd://1.7.25
$ kubectl describe node alfred
Name: alfred
Roles: control-plane
Labels: beta.kubernetes.io/arch=arm64
beta.kubernetes.io/os=linux
kubernetes.io/arch=arm64
kubernetes.io/hostname=alfred
kubernetes.io/os=linux
node-role.kubernetes.io/control-plane=
node.kubernetes.io/exclude-from-external-load-balancers=
Annotations: flannel.alpha.coreos.com/backend-data: {"VNI":1,"VtepMAC":"8a:31:5f:70:6e:3f"}
flannel.alpha.coreos.com/backend-type: vxlan
flannel.alpha.coreos.com/kube-subnet-manager: true
flannel.alpha.coreos.com/public-ip: 192.168.0.124
kubeadm.alpha.kubernetes.io/cri-socket: unix:/run/containerd/containerd.sock
node.alpha.kubernetes.io/ttl: 0
volumes.kubernetes.io/controller-managed-attach-detach: true
CreationTimestamp: Sat, 22 Feb 2025 18:07:04 +0100
Taints: node-role.kubernetes.io/control-plane:NoSchedule
Unschedulable: false
Lease:
HolderIdentity: alfred
AcquireTime: <unset>
RenewTime: Sat, 22 Feb 2025 20:50:44 +0100
Remove this taint to allow other pods to be scheduled:
$ kubectl taint nodes --all node-role.kubernetes.io/control-plane-
node/alfred untainted
$ kubectl describe node alfred | grep -i taint
Taints: <none>
Test pod scheduling
$ kubectl apply -f https://k8s.io/examples/pods/commands.yaml
pod/command-demo created
$ kubectl get all
NAME READY STATUS RESTARTS AGE
pod/command-demo 0/1 ContainerCreating 0 7s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 172m
$ kubectl get all
NAME READY STATUS RESTARTS AGE
pod/command-demo 0/1 Completed 0 14s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 172m
$ kubectl events pods
LAST SEEN TYPE REASON OBJECT MESSAGE
...
12m Normal Starting Node/alfred
12m Normal RegisteredNode Node/alfred Node alfred event: Registered Node alfred in Controller
19s Normal Pulling Pod/command-demo Pulling image "debian"
19s Normal Scheduled Pod/command-demo Successfully assigned default/command-demo to alfred
8s Normal Pulled Pod/command-demo Successfully pulled image "debian" in 11.231s (11.231s including waiting). Image size: 48316582 bytes.
8s Normal Created Pod/command-demo Created container: command-demo-container
7s Normal Started Pod/command-demo Started container command-demo-container
With the cluster now ready to run pods and services, move on to installing more components that will be used by the actual services: MetalLB Load Balancer, Kubernets Dashboard, Ingress Controller, HTTPS certificates with Let’s Encrypt, including automatically renovated monthly.
LocalPath PV provisioner for simple persistent storage in local file systems may be setup later, but experience with previous clusters so far has proven this unnecessary.
MetalLB Load Balancer
A Load Balancer is going to be necessary for the
Dashboard and other services, to expose individual
services via open ports on the server (NodePort) or virtual IP addresses.
Installation By Manifest
is as simple as applying the provided manifest:
$ wget \
https://raw.githubusercontent.com/metallb/metallb/v0.14.9/config/manifests/metallb-native.yaml
$ kubectl apply -f metallb/metallb-native.yaml
namespace/metallb-system created
customresourcedefinition.apiextensions.k8s.io/bfdprofiles.metallb.io created
customresourcedefinition.apiextensions.k8s.io/bgpadvertisements.metallb.io created
customresourcedefinition.apiextensions.k8s.io/bgppeers.metallb.io created
customresourcedefinition.apiextensions.k8s.io/communities.metallb.io created
customresourcedefinition.apiextensions.k8s.io/ipaddresspools.metallb.io created
customresourcedefinition.apiextensions.k8s.io/l2advertisements.metallb.io created
customresourcedefinition.apiextensions.k8s.io/servicel2statuses.metallb.io created
serviceaccount/controller created
serviceaccount/speaker created
role.rbac.authorization.k8s.io/controller created
role.rbac.authorization.k8s.io/pod-lister created
clusterrole.rbac.authorization.k8s.io/metallb-system:controller created
clusterrole.rbac.authorization.k8s.io/metallb-system:speaker created
rolebinding.rbac.authorization.k8s.io/controller created
rolebinding.rbac.authorization.k8s.io/pod-lister created
clusterrolebinding.rbac.authorization.k8s.io/metallb-system:controller created
clusterrolebinding.rbac.authorization.k8s.io/metallb-system:speaker created
configmap/metallb-excludel2 created
secret/metallb-webhook-cert created
service/metallb-webhook-service created
deployment.apps/controller created
daemonset.apps/speaker created
validatingwebhookconfiguration.admissionregistration.k8s.io/metallb-webhook-configuration created
Soon enough the deployment should have the controller and speaker running:
$ kubectl get all -n metallb-system
NAME READY STATUS RESTARTS AGE
pod/controller-bb5f47665-hgctc 1/1 Running 0 3m47s
pod/speaker-974wc 1/1 Running 0 3m47s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/metallb-webhook-service ClusterIP 10.97.34.85 <none> 443/TCP 3m47s
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
daemonset.apps/speaker 1 1 1 1 1 kubernetes.io/os=linux 3m47s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/controller 1/1 1 1 3m47s
NAME DESIRED CURRENT READY AGE
replicaset.apps/controller-bb5f47665 1 1 1 3m47s
MetalLB remains idle until configured, which is done by deploying resources
into its namespace (metallb-system). In this PC, a small range of IP
addresses is advertised via
Layer 2 Configuration,
which does not not require the IPs to be bound to the network interfaces:
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
name: production
namespace: metallb-system
spec:
addresses:
- 192.168.0.151-192.168.0.160
---
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
name: l2-advert
namespace: metallb-system
The range is based on the local DHCP server configuration and which IPs are currently in use; this range has just not been leased so far. The reason to use IPs from the leased range is that the router only allows adding port forwarding rules for those. This range is intentionally on the same network range and subnet as the DHCP server so that no routing is needed to reach MetalLB IPs.
$ kubectl apply -f ipaddress-pool-alfred.yaml
ipaddresspool.metallb.io/production created
l2advertisement.metallb.io/l2-advert created
$ kubectl get ipaddresspool.metallb.io -n metallb-system
NAME AUTO ASSIGN AVOID BUGGY IPS ADDRESSES
production true false ["192.168.0.151-192.168.0.160"]
$ kubectl get l2advertisement.metallb.io -n metallb-system
NAME IPADDRESSPOOLS IPADDRESSPOOL SELECTORS INTERFACES
l2-advert
$ kubectl describe ipaddresspool.metallb.io production -n metallb-system
Name: production
Namespace: metallb-system
Labels: <none>
Annotations: <none>
API Version: metallb.io/v1beta1
Kind: IPAddressPool
Metadata:
Creation Timestamp: 2025-02-22T21:45:44Z
Generation: 1
Resource Version: 22690
UID: ca4ffb14-4063-4a63-8ab4-75995db0347c
Spec:
Addresses:
192.168.0.151-192.168.0.160
Auto Assign: true
Avoid Buggy I Ps: false
Events: <none>
Kubernetes Dashboard
As of v1.29, Kubernetes Dashboard supports only Helm-based installation, which at this point means we have to Install helm from APT:
$ curl https://baltocdn.com/helm/signing.asc \
| sudo gpg --dearmor -o /etc/apt/keyrings/helm.gpg
$ echo "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/helm.gpg] https://baltocdn.com/helm/stable/debian/ all main" \
| sudo tee /etc/apt/sources.list.d/helm-stable-debian.list
$ sudo apt-get update
$ sudo apt-get install -y helm
Then install the Helm repository for the Kubernetes dashboard:
$ helm repo add \
kubernetes-dashboard \
https://kubernetes.github.io/dashboard/
"kubernetes-dashboard" has been added to your repositories
And install the Kubernetes dashboard (without any customization):
$ helm upgrade \
--install kubernetes-dashboard \
kubernetes-dashboard/kubernetes-dashboard \
--create-namespace \
--namespace kubernetes-dashboard
Release "kubernetes-dashboard" does not exist. Installing it now.
NAME: kubernetes-dashboard
LAST DEPLOYED: Sun Feb 23 17:08:33 2025
NAMESPACE: kubernetes-dashboard
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
*************************************************************************************************
*** PLEASE BE PATIENT: Kubernetes Dashboard may need a few minutes to get up and become ready ***
*************************************************************************************************
Congratulations! You have just installed Kubernetes Dashboard in your cluster.
To access Dashboard run:
kubectl -n kubernetes-dashboard port-forward svc/kubernetes-dashboard-kong-proxy 8443:443
NOTE: In case port-forward command does not work, make sure that kong service name is correct.
Check the services in Kubernetes Dashboard namespace using:
kubectl -n kubernetes-dashboard get svc
Dashboard will be available at:
https://localhost:8443
$ kubectl get all -n kubernetes-dashboard
NAME READY STATUS RESTARTS AGE
pod/kubernetes-dashboard-api-5b7599777f-ltvmn 1/1 Running 0 17m
pod/kubernetes-dashboard-auth-9c9bf4947-gzvbw 1/1 Running 0 17m
pod/kubernetes-dashboard-kong-79867c9c48-9mx5z 1/1 Running 0 17m
pod/kubernetes-dashboard-metrics-scraper-55cc88cbcb-k7t4k 1/1 Running 0 17m
pod/kubernetes-dashboard-web-8f95766b5-z7cj7 1/1 Running 0 17m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes-dashboard-api ClusterIP 10.111.251.2 <none> 8000/TCP 17m
service/kubernetes-dashboard-auth ClusterIP 10.96.196.222 <none> 8000/TCP 17m
service/kubernetes-dashboard-kong-proxy ClusterIP 10.100.147.211 <none> 443/TCP 17m
service/kubernetes-dashboard-metrics-scraper ClusterIP 10.106.137.217 <none> 8000/TCP 17m
service/kubernetes-dashboard-web ClusterIP 10.106.239.53 <none> 8000/TCP 17m
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/kubernetes-dashboard-api 1/1 1 1 17m
deployment.apps/kubernetes-dashboard-auth 1/1 1 1 17m
deployment.apps/kubernetes-dashboard-kong 1/1 1 1 17m
deployment.apps/kubernetes-dashboard-metrics-scraper 1/1 1 1 17m
deployment.apps/kubernetes-dashboard-web 1/1 1 1 17m
NAME DESIRED CURRENT READY AGE
replicaset.apps/kubernetes-dashboard-api-5b7599777f 1 1 1 17m
replicaset.apps/kubernetes-dashboard-auth-9c9bf4947 1 1 1 17m
replicaset.apps/kubernetes-dashboard-kong-79867c9c48 1 1 1 17m
replicaset.apps/kubernetes-dashboard-metrics-scraper-55cc88cbcb 1 1 1 17m
replicaset.apps/kubernetes-dashboard-web-8f95766b5 1 1 1 17m
The dashboard is now behind the kubernetes-dashboard-kong-proxy service,
and the suggested port forward can be used to map port 8443 to it:
$ kubectl -n kubernetes-dashboard port-forward \
svc/kubernetes-dashboard-kong-proxy 8443:443 \
--address 0.0.0.0
Forwarding from 0.0.0.0:8443 -> 8443
^C
The dasboard is then available at https://alfred:8443/:

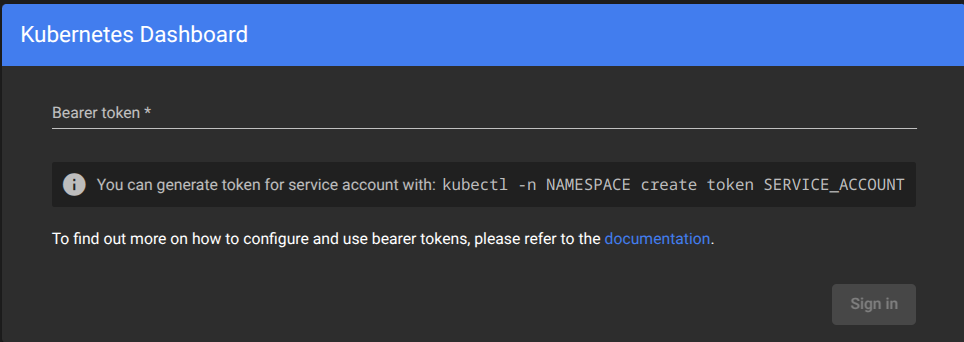

Accessing the Dashboard UI requires creating a sample user; the setup in the tutorial creates an example admin user with all privileges, good enough for now:
apiVersion: v1
kind: ServiceAccount
metadata:
name: admin-user
namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
namespace: kubernetes-dashboard
name: admin-user
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: admin-user
namespace: kubernetes-dashboard
---
apiVersion: v1
kind: Secret
metadata:
name: admin-user
namespace: kubernetes-dashboard
annotations:
kubernetes.io/service-account.name: "admin-user"
type: kubernetes.io/service-account-token
$ kubectl apply -f dashboard/admin-sa-rbac.yaml
serviceaccount/admin-user created
clusterrolebinding.rbac.authorization.k8s.io/admin-user created
secret/admin-user created
$ kubectl -n kubernetes-dashboard create token admin-user
eyJhbGciOiJSUzI1NiIsImtpZCI6IkFEVlNfMlN2SVJUbEpvMGNVeGRjako1LTlXakxFdXRzQy1kZjJIdHpCVUEifQ.eyJhdWQiOlsiaHR0cHM6Ly9rdWJlcm5ldGVzLmRlZmF1bHQuc3ZjLmNsdXN0ZXIubG9jYWwiXSwiZXhwIjoxNzQwMzM5OTgwLCJpYXQiOjE3NDAzMzYzODAsImlzcyI6Imh0dHBzOi8va3ViZXJuZXRlcy5kZWZhdWx0LnN2Yy5jbHVzdGVyLmxvY2FsIiwianRpIjoiMGMyODJkZjMtNjcwOC00N2NjLTk1NzItMTFmYzRkOGU3ZDEzIiwia3ViZXJuZXRlcy5pbyI6eyJuYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsInNlcnZpY2VhY2NvdW50Ijp7Im5hbWUiOiJhZG1pbi11c2VyIiwidWlkIjoiNjJiMmY5NzMtMWQ2MC00NzQ2LTk2ZTYtNmZiNDJhMGE1NmUzIn19LCJuYmYiOjE3NDAzMzYzODAsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDprdWJlcm5ldGVzLWRhc2hib2FyZDphZG1pbi11c2VyIn0.AgvTqQ3-cEuAQyKgaV0NYApq4cMjEd8rf4taOjwBDwtwBAeqIcGrv5nHv4RMTOK3CyxjBHevBOsOzZ_ycskngQ6aiq5lgrhGNzO8bKKMhFbZqvcO6soQfccNQFqCVcP01oBa6Ue7vx1YctWe1L5YJB201oQt8Fhvee72Xy5cyZ9BONKTp7lJTL48EXgGj6mSgwaHPKF6xfmYWgG8V3WXabN_MExVEEVrQMI0rJeS08iJ6S0yQAGi2VU4qpJ4m-1dwkoUtbqYmtNJnj8itP5tmuIdIYRJusg8ptoGHSBtV538U_QXEO4dLDTGgcWT1Y3wIwDvVaP969yJtXh5KaAdVg
Troubleshooting Dashboard
Without the --address 0.0.0.0 flag it will only accept connections from
localhost and no other clients. This flag is necessary because this forward
is the way to access the proxy over HTTPS
and this is necessary for the access token to work:
This issue makes impossible to access the dashboard bypassing the proxy, which
could have been another way to access the dashboard from remote clients, using
kubectl proxy
with the following flags:
$ kubectl proxy \
--address='0.0.0.0' \
--disable-filter=true \
--port=8001
W0223 19:09:06.922315 850945 proxy.go:177] Request filter disabled, your proxy is vulnerable to XSRF attacks, please be cautious
Starting to serve on [::]:8001
The dashboard is thus available on a really long URL, via its API: http://alfred:8001/api/v1/namespaces/kubernetes-dashboard/services/https:kubernetes-dashboard-kong-proxy:443/proxy/#/login but, due to the issues above, the token won't work:
$ kubectl logs -n kubernetes-dashboard \
$(kubectl get pods -n kubernetes-dashboard | grep kubernetes-dashboard-web | cut -f1 -d' ') -f
...
E0223 18:46:31.743145 1 handler.go:33] "Could not get user" err="MSG_LOGIN_UNAUTHORIZED_ERROR"
Custom Helm Values
To customize the Kubernetes dashboard installation, use
helm chart values
to enable the ingress and set services as LoadBalancer so they get each a
dedicated virtual IP address:
app:
ingress:
enabled: true
hosts:
- alfred
- alfred-kong
web:
service:
type: LoadBalancer
kong:
ingressController:
enabled: true
proxy:
type: LoadBalancer
Update the dashboard with the custom values:
$ helm upgrade \
kubernetes-dashboard \
kubernetes-dashboard/kubernetes-dashboard \
--create-namespace \
--namespace kubernetes-dashboard \
--values=dashboard/values.yaml
Release "kubernetes-dashboard" has been upgraded. Happy Helming!
NAME: kubernetes-dashboard
LAST DEPLOYED: Sun Feb 23 17:59:31 2025
NAMESPACE: kubernetes-dashboard
STATUS: deployed
REVISION: 5
TEST SUITE: None
NOTES:
*************************************************************************************************
*** PLEASE BE PATIENT: Kubernetes Dashboard may need a few minutes to get up and become ready ***
*************************************************************************************************
Congratulations! You have just installed Kubernetes Dashboard in your cluster.
To access Dashboard run:
kubectl -n kubernetes-dashboard port-forward svc/kubernetes-dashboard-kong-proxy 8443:443
NOTE: In case port-forward command does not work, make sure that kong service name is correct.
Check the services in Kubernetes Dashboard namespace using:
kubectl -n kubernetes-dashboard get svc
Dashboard will be available at:
https://localhost:8443
Looks like you are deploying Kubernetes Dashboard on a custom domain(s).
Please make sure that the ingress configuration is valid.
Dashboard should be accessible on your configured domain(s) soon:
- https://alfred
The web UI is available on http://192.168.0.151:8000/ but only from the local
host (e.g. via curl), it still refuses connections from other clients.
On the contrary, https://alfred/ does not accept connections even locally,
because it is only running as ClusterIP so it is only reachable on
https://10.100.147.211/
$ kubectl get svc -n kubernetes-dashboard
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes-dashboard-api ClusterIP 10.111.251.2 <none> 8000/TCP 72m
kubernetes-dashboard-auth ClusterIP 10.96.196.222 <none> 8000/TCP 72m
kubernetes-dashboard-kong-metrics ClusterIP 10.99.128.207 <none> 10255/TCP,10254/TCP 30s
kubernetes-dashboard-kong-proxy LoadBalancer 10.100.147.211 192.168.0.152 443:32353/TCP 72m
kubernetes-dashboard-kong-validation-webhook ClusterIP 10.104.184.144 <none> 443/TCP 30s
kubernetes-dashboard-metrics-scraper ClusterIP 10.106.137.217 <none> 8000/TCP 72m
kubernetes-dashboard-web LoadBalancer 10.106.239.53 192.168.0.151 8000:31544/TCP 72m
However, both services refurse connections from clients other than localhost,
which makes the use of LoadBalancer rather pointless.
Alternatives considered
For a brief moment, considered falling back to the old deployment-based recommended.yaml used in previous clusters, but this may not work since kubernetes-dashboard-7.10.3 is the first version compaible with Kubernetes v1.32.
Other resources briefly considered were:
- Kubernetes Dashboard: Tutorial, Best Practices & Alternatives
- Using Kong to access Kubernetes services, using a Gateway resource with no cloud provided LoadBalancer
- Setting trusted_ips in Kong.
Ingress Controller
An Nginx Ingress Controller will be used to redirect HTTPS requests to
different services depending on the Host header, while all those requests
will be hitting the same IP address.
The current Nginx Installation Guide essentially suggests two methods to install Nginx:
- The Helm chart.
- The default v1.12 deployment based on the Helm chart.
- A
NodePortdeployment for bare metal clusters.
Supported Versions table indicates Nginx v1.12 is the first version compaible with Kubernetes v1.32 and, most conviniently, the updated version is nearly the only difference between the default deployment based on the Helm template and the deployment used in previous clusters.
$ helm repo add \
ingress-nginx \
https://kubernetes.github.io/ingress-nginx
"ingress-nginx" has been added to your repositories
$ helm upgrade \
--install ingress-nginx \
ingress-nginx/ingress-nginx \
--create-namespace \
--namespace ingress-nginx
Release "ingress-nginx" does not exist. Installing it now.
NAME: ingress-nginx
LAST DEPLOYED: Sun Feb 23 21:26:13 2025
NAMESPACE: ingress-nginx
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
The ingress-nginx controller has been installed.
It may take a few minutes for the load balancer IP to be available.
You can watch the status by running 'kubectl get service --namespace ingress-nginx ingress-nginx-controller --output wide --watch'
An example Ingress that makes use of the controller:
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: example
namespace: foo
spec:
ingressClassName: nginx
rules:
- host: www.example.com
http:
paths:
- pathType: Prefix
backend:
service:
name: exampleService
port:
number: 80
path: /
# This section is only required if TLS is to be enabled for the Ingress
tls:
- hosts:
- www.example.com
secretName: example-tls
If TLS is enabled for the Ingress, a Secret containing the certificate and key must also be provided:
apiVersion: v1
kind: Secret
metadata:
name: example-tls
namespace: foo
data:
tls.crt: <base64 encoded cert>
tls.key: <base64 encoded key>
type: kubernetes.io/tls
The first virtual IP address is assigned to the ingress-nginx-controller
service and there is NGinx happily returning 404 Not found:
$ kubectl get svc -n ingress-nginx
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
ingress-nginx-controller LoadBalancer 10.111.164.62 192.168.0.151 80:31235/TCP,443:32391/TCP 70s
ingress-nginx-controller-admission ClusterIP 10.100.225.28 <none> 443/TCP 70s
$ curl -k https://192.168.0.151/
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx</center>
</body>
</html>
Troubleshooting Ingress
This is still not available from other hosts, connections to the LoadBalancer
IP address times out or is refused, on both ports.
This Stack Overflow answer suggests
the reason is likely to be that the pod itself is not accepting connections
from external hosts, but the Helm chart seems to default to accepting them:
$ helm upgrade \
--install ingress-nginx \
ingress-nginx/ingress-nginx \
--create-namespace \
--namespace ingress-nginx \
--dry-run --debug
...
service:
annotations: {}
appProtocol: true
clusterIP: ""
enableHttp: true
enableHttps: true
enabled: true
external:
enabled: true
type: LoadBalancer
Lets try uninstalling the Helm chart and installing instead the deployment for bare metal clusters:
$ helm uninstall ingress-nginx \
--namespace ingress-nginx
release "ingress-nginx" uninstalled
$ kubectl get all -n ingress-nginx
NAME READY STATUS RESTARTS AGE
pod/ingress-nginx-controller-cd9d6bbd7-c4cbp 1/1 Terminating 1 (167m ago) 5d20h
$ kubectl delete namespace ingress-nginx
namespace "ingress-nginx" deleted
$ wget -O nginx-baremetal.yaml \
https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.12.0/deploy/static/provider/baremetal/deploy.yaml
$ kubectl apply -f nginx-baremetal.yaml
namespace/ingress-nginx created
serviceaccount/ingress-nginx created
serviceaccount/ingress-nginx-admission created
role.rbac.authorization.k8s.io/ingress-nginx created
role.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrole.rbac.authorization.k8s.io/ingress-nginx created
clusterrole.rbac.authorization.k8s.io/ingress-nginx-admission created
rolebinding.rbac.authorization.k8s.io/ingress-nginx created
rolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx created
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx-admission created
configmap/ingress-nginx-controller created
service/ingress-nginx-controller created
service/ingress-nginx-controller-admission created
deployment.apps/ingress-nginx-controller created
job.batch/ingress-nginx-admission-create created
job.batch/ingress-nginx-admission-patch created
ingressclass.networking.k8s.io/nginx created
validatingwebhookconfiguration.admissionregistration.k8s.io/ingress-nginx-admission created
$ kubectl get all -n ingress-nginx
NAME READY STATUS RESTARTS AGE
pod/ingress-nginx-admission-create-55p4r 0/1 Completed 0 37s
pod/ingress-nginx-admission-patch-fhhgq 0/1 Completed 1 37s
pod/ingress-nginx-controller-6d59d95796-5lggl 1/1 Running 0 37s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/ingress-nginx-controller NodePort 10.110.176.19 <none> 80:31438/TCP,443:32035/TCP 37s
service/ingress-nginx-controller-admission ClusterIP 10.103.89.225 <none> 443/TCP 37s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/ingress-nginx-controller 1/1 1 1 37s
NAME DESIRED CURRENT READY AGE
replicaset.apps/ingress-nginx-controller-6d59d95796 1 1 1 37s
NAME STATUS COMPLETIONS DURATION AGE
job.batch/ingress-nginx-admission-create Complete 1/1 3s 37s
job.batch/ingress-nginx-admission-patch Complete 1/1 4s 37s
Finally, at least those NodePort are reachable from other hosts:
$ curl http://192.168.0.124:31438/
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx</center>
</body>
</html>
$ curl -k https://192.168.0.124:32035/
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx</center>
</body>
</html>
But still, switching the ingress-nginx-controller services back to
LoadBalancer makes the service unreachable; even when connecting to the
Ethernet network, in case the problem would be related to
which NIC Flannel is using,
but neither the cable nor adding --iface=wlan0 to the args for flanneld
in kube-flannel.yml made any difference.
Morever, the assigned LoadBalancer IP address does not respond to ping and
there is no ARP resolution for it after trying:
$ ping 192.168.0.151 -c 1
PING 192.168.0.151 (192.168.0.151) 56(84) bytes of data.
From 192.168.0.2 icmp_seq=1 Destination Host Unreachable
--- 192.168.0.151 ping statistics ---
1 packets transmitted, 0 received, +1 errors, 100% packet loss, time 0ms
$ ping 192.168.0.121 -c 1
PING 192.168.0.121 (192.168.0.121) 56(84) bytes of data.
64 bytes from 192.168.0.121: icmp_seq=1 ttl=64 time=0.183 ms
--- 192.168.0.121 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.183/0.183/0.183/0.000 ms
$ ping 192.168.0.124 -c 1
PING 192.168.0.124 (192.168.0.124) 56(84) bytes of data.
64 bytes from 192.168.0.124: icmp_seq=1 ttl=64 time=92.9 ms
--- 192.168.0.124 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 92.896/92.896/92.896/0.000 ms
$ nc -v 192.168.0.151 80
nc: connect to 192.168.0.151 port 80 (tcp) failed: No route to host
$ nc -v 192.168.0.151 443
nc: connect to 192.168.0.151 port 443 (tcp) failed: No route to host
$ arp -a
? (192.168.0.121) at 2c:cf:67:83:6f:3b [ether] on enp5s0
alfred (192.168.0.124) at 2c:cf:67:83:6f:3c [ether] on enp5s0
? (192.168.0.151) at <incomplete> on enp5s0
The LoadbalancerIP or the External SVC IP will never be pingable
suggest this last test may have been futile, but either way neither ping nor
nc nor tcptraceroute nor mtr can connect to HTTP/S ports on that IP.
Fix MetalLB Speaker
The problem turned out to be that MetalLB is not advertising my service from my control-plane nodes or from my single node cluster and the solutions are to either remove the node label, or make MetalLB circumvent it.
This label is present by default in control panel nodes, so it is found here now:
$ kubectl describe node alfred | grep exclude
node.kubernetes.io/exclude-from-external-load-balancers=
While this label is in effect, MetalLB virtual IPs are not found even by arping:
# arping 192.168.0.124
ARPING 192.168.0.124
60 bytes from 2c:cf:67:83:6f:3b (192.168.0.124): index=0 time=161.545 usec
60 bytes from 2c:cf:67:83:6f:3c (192.168.0.124): index=1 time=176.240 msec
60 bytes from 2c:cf:67:83:6f:3c (192.168.0.124): index=2 time=177.685 msec
60 bytes from 2c:cf:67:83:6f:3b (192.168.0.124): index=3 time=153.981 usec
^C
--- 192.168.0.124 statistics ---
2 packets transmitted, 4 packets received, 0% unanswered (2 extra)
rtt min/avg/max/std-dev = 0.154/88.560/177.685/88.404 ms
# arping 192.168.0.151
ARPING 192.168.0.151
Timeout
Timeout
^C
--- 192.168.0.151 statistics ---
3 packets transmitted, 0 packets received, 100% unanswered (0 extra)
IP address .124 is the node's (non-virtual) address, .154 is a LoalBalancder
virtual address issued by MetalLB.
Remove node label node.kubernetes.io/exclude-from-external-load-balancers
The recommended solution is to make sure your nodes are not labeled with the
node.kubernetes.io/exclude-from-external-load-balancers
label. This means removing the label (setting the label explicitly to false
is not enough):
$ kubectl label nodes alfred \
node.kubernetes.io/exclude-from-external-load-balancers-
node/alfred unlabeled
Make MetalLB circumvent the node label
An alternative method is provided in the troubleshooting guide as well: one way to
circumvent the issue is to provide the speakers with the --ignore-exclude-lb.
In this case, the flag can be added under the args for the Speaker's DaemonSet in
the manifest:
After applying either of the above changes, and reverting the
Ingress Controller service to the LoadBalancer type,
NGinx is finally reachable from other hosts:
# arping 192.168.0.151
ARPING 192.168.0.151
60 bytes from 2c:cf:67:83:6f:3b (192.168.0.151): index=0 time=224.584 usec
60 bytes from 2c:cf:67:83:6f:3b (192.168.0.151): index=1 time=216.128 usec
^C
--- 192.168.0.151 statistics ---
2 packets transmitted, 2 packets received, 0% unanswered (0 extra)
rtt min/avg/max/std-dev = 0.216/0.220/0.225/0.004 ms
$ curl 2>/dev/null \
-H "Host: kubernetes-alfred.very-very-dark-gray.top" \
-k https://192.168.0.151/ | head
<!--
Copyright 2017 The Kubernetes Authors.
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
As a nice bonus, NGinx still replies to the old NodePort port 32035.
kubectl apply -f metallb/metallb-native.yaml
$ kubectl apply -f metallb/metallb-native.yaml
namespace/metallb-system unchanged
customresourcedefinition.apiextensions.k8s.io/bfdprofiles.metallb.io unchanged
customresourcedefinition.apiextensions.k8s.io/bgpadvertisements.metallb.io unchanged
customresourcedefinition.apiextensions.k8s.io/bgppeers.metallb.io configured
customresourcedefinition.apiextensions.k8s.io/communities.metallb.io unchanged
customresourcedefinition.apiextensions.k8s.io/ipaddresspools.metallb.io unchanged
customresourcedefinition.apiextensions.k8s.io/l2advertisements.metallb.io unchanged
customresourcedefinition.apiextensions.k8s.io/servicel2statuses.metallb.io unchanged
serviceaccount/controller unchanged
serviceaccount/speaker unchanged
role.rbac.authorization.k8s.io/controller unchanged
role.rbac.authorization.k8s.io/pod-lister unchanged
clusterrole.rbac.authorization.k8s.io/metallb-system:controller unchanged
clusterrole.rbac.authorization.k8s.io/metallb-system:speaker unchanged
rolebinding.rbac.authorization.k8s.io/controller unchanged
rolebinding.rbac.authorization.k8s.io/pod-lister unchanged
clusterrolebinding.rbac.authorization.k8s.io/metallb-system:controller unchanged
clusterrolebinding.rbac.authorization.k8s.io/metallb-system:speaker unchanged
configmap/metallb-excludel2 unchanged
secret/metallb-webhook-cert unchanged
service/metallb-webhook-service unchanged
deployment.apps/controller unchanged
daemonset.apps/speaker configured
validatingwebhookconfiguration.admissionregistration.k8s.io/metallb-webhook-configuration configured
Allow snippet directives
To enable the use of snippets annotations in the next section, it is necessary to override
allow-snippet-annotations
which is set to false by default to mitigate known vulnerability
CVE-2021-25742.
This vulnerability only applies in clusters where multiple users have Kubernetes
namespace administrator privileges, which is not the case here.
To enable this in the
deployment for bare metal clusters,
replace the data: null in line 323 with the following 3-line section:
| nginx-baremetal.yaml | |
|---|---|
Re-applying will only configure the configmap and webhook validation rules:
$ kubectl apply -f nginx-baremetal.yaml
namespace/ingress-nginx unchanged
serviceaccount/ingress-nginx unchanged
serviceaccount/ingress-nginx-admission unchanged
role.rbac.authorization.k8s.io/ingress-nginx unchanged
role.rbac.authorization.k8s.io/ingress-nginx-admission unchanged
clusterrole.rbac.authorization.k8s.io/ingress-nginx unchanged
clusterrole.rbac.authorization.k8s.io/ingress-nginx-admission unchanged
rolebinding.rbac.authorization.k8s.io/ingress-nginx unchanged
rolebinding.rbac.authorization.k8s.io/ingress-nginx-admission unchanged
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx unchanged
clusterrolebinding.rbac.authorization.k8s.io/ingress-nginx-admission unchanged
configmap/ingress-nginx-controller configured
service/ingress-nginx-controller unchanged
service/ingress-nginx-controller-admission unchanged
deployment.apps/ingress-nginx-controller configured
job.batch/ingress-nginx-admission-create unchanged
job.batch/ingress-nginx-admission-patch unchanged
ingressclass.networking.k8s.io/nginx unchanged
validatingwebhookconfiguration.admissionregistration.k8s.io/ingress-nginx-admission configured
Exactly why enable allow-snippet-annotations and raise the annotations-risk-level?
Without enabling allow-snippet-annotations, deploying the Ingress in the next
section fails because the configuration-snippet used to hide server headers makes
the deployment fail:
$ kubectl apply -f dashboard/nginx-ingress.yaml
{"metadata":{"annotations":{"cert-manager.io/issuer":"letsencrypt-staging","kubectl.kubernetes.io/last-applied-configuration":"{\"apiVersion\":\"networking.k8s.io/v1\",\"kind\":\"Ingress\",\"metadata\":{\"annotations\":{\"cert-manager.io/issuer\":\"letsencrypt-staging\",\"nginx.ingress.kubernetes.io/auth-tls-verify-client\":\"false\",\"nginx.ingress.kubernetes.io/backend-protocol\":\"HTTPS\",\"nginx.ingress.kubernetes.io/configuration-snippet\":\"more_set_headers \\\"server: hide\\\";\\n\",\"nginx.ingress.kubernetes.io/whitelist-source-range\":\"10.244.0.0/16\"},\"name\":\"kubernetes-dashboard-ingress\",\"namespace\":\"kubernetes-dashboard\"},\"spec\":{\"ingressClassName\":\"nginx\",\"rules\":[{\"host\":\"k8s.alfred.uu.am\",\"http\":{\"paths\":[{\"backend\":{\"service\":{\"name\":\"kubernetes-dashboard-kong-proxy\",\"port\":{\"number\":443}}},\"path\":\"/\",\"pathType\":\"Prefix\"}]}}],\"tls\":[{\"hosts\":[\"k8s.alfred.uu.am\"],\"secretName\":\"tls-secret\"}]}}\n","nginx.ingress.kubernetes.io/configuration-snippet":"more_set_headers \"server: hide\";\n"}},"spec":{"tls":[{"hosts":["k8s.alfred.uu.am"],"secretName":"tls-secret"}]}}
to:
Resource: "networking.k8s.io/v1, Resource=ingresses", GroupVersionKind: "networking.k8s.io/v1, Kind=Ingress"
Name: "kubernetes-dashboard-ingress", Namespace: "kubernetes-dashboard"
for: "dashboard/nginx-ingress.yaml": error when patching "dashboard/nginx-ingress.yaml": admission webhook "validate.nginx.ingress.kubernetes.io" denied the request: nginx.ingress.kubernetes.io/configuration-snippet annotation cannot be used. Snippet directives are disabled by the Ingress administrator
The Snippet directives are disabled by the Ingress administrator and the end of
the error message is the hint that allow-snippet-annotations needs to be enabled.
Without raisig the annotations-risk-level to Critical, the deployment fails
because, since controller 1.12, the annotation used to hide server headers
(nginx.ingress.kubernetes.io/configuration-snippet) is rated Critical.
Kubernetes Dashboard Ingress
With both Ngnix and the Kubernetes dashboard up and running, it is now possible to make
the dashboard more conveniently accessible via Nginx. This Ingress is a slightly more
complete one based on the example above:
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: kubernetes-dashboard-ingress
namespace: kubernetes-dashboard
annotations:
nginx.ingress.kubernetes.io/backend-protocol: HTTPS
nginx.ingress.kubernetes.io/auth-tls-verify-client: "false"
nginx.ingress.kubernetes.io/whitelist-source-range: 10.244.0.0/16
nginx.ingress.kubernetes.io/configuration-snippet: |
more_set_headers "server: hide";
spec:
ingressClassName: nginx
rules:
- host: k8s.alfred
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: kubernetes-dashboard-kong-proxy
port:
number: 443
This will point to the kubernetes-dashboard-kong-proxy which is the one listening on
standard HTTPS port 443. This is the one targeted by the kubectl port-forward command
above, which then exposes it on the node's port 8443.
$ kubectl apply -f dashboard/nginx-ingress.yaml
ingress.networking.k8s.io/kubernetes-dashboard-ingress created
A very quick way to test that the new Ingress is working correctly, add the Host header
to the above curl command:
$ curl 2>/dev/null \
-H "Host: k8s.alfred" \
-k https://192.168.0.151/ \
| head
<!--
Copyright 2017 The Kubernetes Authors.
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Once this works in the local network, it can be made accessible externally by forwarding
a port (443 if available, any other one otherwise) to the Nginx LoadBalancer IP (or NodePort on the node's local IP address; this should work just as well as if Nginx
had a LoadBalancer IP address). It is also necessary to update (or clone) the ingress
rule to set host to the FQDN that points to the router's exterenal IP address, e.g.
k8s.alfred.uu.am.
More Flannel Troubleshooting
It looks like no LoadBalancer or NodePort is reachable from other hosts and
it looks like it may be a consequence of having initially omitted the steps to
let iptables see bridged traffic,
thus leading to Flannel problems. Comparing the
output from iptables with that in lexicon, many rules with source and
destination br-***** are missing:
root@lexicon ~ # iptables -nvL
root@lexicon ~ # iptables -nvL
Chain FORWARD (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
530K 34M KUBE-PROXY-FIREWALL all -- * * 0.0.0.0/0 0.0.0.0/0 ctstate NEW /* kubernetes load balancer firewall */
2528K 4151M KUBE-FORWARD all -- * * 0.0.0.0/0 0.0.0.0/0 /* kubernetes forwarding rules */
468K 31M KUBE-SERVICES all -- * * 0.0.0.0/0 0.0.0.0/0 ctstate NEW /* kubernetes service portals */
468K 31M KUBE-EXTERNAL-SERVICES all -- * * 0.0.0.0/0 0.0.0.0/0 ctstate NEW /* kubernetes externally-visible service portals */
468K 31M DOCKER-USER all -- * * 0.0.0.0/0 0.0.0.0/0
33 16623 ACCEPT all -- * * 0.0.0.0/0 0.0.0.0/0 match-set docker-ext-bridges-v4 dst ctstate RELATED,ESTABLISHED
468K 31M DOCKER-ISOLATION-STAGE-1 all -- * * 0.0.0.0/0 0.0.0.0/0
26 1560 DOCKER all -- * * 0.0.0.0/0 0.0.0.0/0 match-set docker-ext-bridges-v4 dst
0 0 ACCEPT all -- wg0 * 0.0.0.0/0 0.0.0.0/0
0 0 ACCEPT all -- br-1352dfaa6e69 * 0.0.0.0/0 0.0.0.0/0
139 10023 ACCEPT all -- br-26c076fa82f8 * 0.0.0.0/0 0.0.0.0/0
0 0 ACCEPT all -- br-f461a8ffa6e0 * 0.0.0.0/0 0.0.0.0/0
0 0 ACCEPT all -- br-f9783559f0e8 * 0.0.0.0/0 0.0.0.0/0
0 0 ACCEPT all -- docker0 * 0.0.0.0/0 0.0.0.0/0
468K 31M FLANNEL-FWD all -- * * 0.0.0.0/0 0.0.0.0/0 /* flanneld forward */
Chain DOCKER (1 references)
pkts bytes target prot opt in out source destination
0 0 ACCEPT tcp -- !br-26c076fa82f8 br-26c076fa82f8 0.0.0.0/0 172.19.0.4 tcp dpt:3000
0 0 ACCEPT tcp -- !br-26c076fa82f8 br-26c076fa82f8 0.0.0.0/0 172.19.0.3 tcp dpt:8086
0 0 ACCEPT tcp -- !br-26c076fa82f8 br-26c076fa82f8 0.0.0.0/0 172.19.0.2 tcp dpt:8125
0 0 DROP all -- !br-1352dfaa6e69 br-1352dfaa6e69 0.0.0.0/0 0.0.0.0/0
24 1440 DROP all -- !br-26c076fa82f8 br-26c076fa82f8 0.0.0.0/0 0.0.0.0/0
0 0 DROP all -- !br-f461a8ffa6e0 br-f461a8ffa6e0 0.0.0.0/0 0.0.0.0/0
0 0 DROP all -- !br-f9783559f0e8 br-f9783559f0e8 0.0.0.0/0 0.0.0.0/0
0 0 DROP all -- !docker0 docker0 0.0.0.0/0 0.0.0.0/0
Chain DOCKER-ISOLATION-STAGE-1 (1 references)
pkts bytes target prot opt in out source destination
0 0 DOCKER-ISOLATION-STAGE-2 all -- br-1352dfaa6e69 !br-1352dfaa6e69 0.0.0.0/0 0.0.0.0/0
137 9903 DOCKER-ISOLATION-STAGE-2 all -- br-26c076fa82f8 !br-26c076fa82f8 0.0.0.0/0 0.0.0.0/0
0 0 DOCKER-ISOLATION-STAGE-2 all -- br-f461a8ffa6e0 !br-f461a8ffa6e0 0.0.0.0/0 0.0.0.0/0
0 0 DOCKER-ISOLATION-STAGE-2 all -- br-f9783559f0e8 !br-f9783559f0e8 0.0.0.0/0 0.0.0.0/0
0 0 DOCKER-ISOLATION-STAGE-2 all -- docker0 !docker0 0.0.0.0/0 0.0.0.0/0
Chain DOCKER-ISOLATION-STAGE-2 (5 references)
pkts bytes target prot opt in out source destination
0 0 DROP all -- * docker0 0.0.0.0/0 0.0.0.0/0
0 0 DROP all -- * br-f9783559f0e8 0.0.0.0/0 0.0.0.0/0
0 0 DROP all -- * br-f461a8ffa6e0 0.0.0.0/0 0.0.0.0/0
0 0 DROP all -- * br-26c076fa82f8 0.0.0.0/0 0.0.0.0/0
0 0 DROP all -- * br-1352dfaa6e69 0.0.0.0/0 0.0.0.0/0
Chain DOCKER-USER (1 references)
pkts bytes target prot opt in out source destination
468K 31M RETURN all -- * * 0.0.0.0/0 0.0.0.0/0
Chain FLANNEL-FWD (1 references)
pkts bytes target prot opt in out source destination
468K 31M ACCEPT all -- * * 10.244.0.0/16 0.0.0.0/0 /* flanneld forward */
16 960 ACCEPT all -- * * 0.0.0.0/0 10.244.0.0/16 /* flanneld forward */
Chain KUBE-FIREWALL (2 references)
pkts bytes target prot opt in out source destination
0 0 DROP all -- * * !127.0.0.0/8 127.0.0.0/8 /* block incoming localnet connections */ ! ctstate RELATED,ESTABLISHED,DNAT
Chain KUBE-FORWARD (1 references)
pkts bytes target prot opt in out source destination
0 0 DROP all -- * * 0.0.0.0/0 0.0.0.0/0 ctstate INVALID nfacct-name ct_state_invalid_dropped_pkts
3206 189K ACCEPT all -- * * 0.0.0.0/0 0.0.0.0/0 /* kubernetes forwarding rules */
448K 1979M ACCEPT all -- * * 0.0.0.0/0 0.0.0.0/0 /* kubernetes forwarding conntrack rule */ ctstate RELATED,ESTABLISHED
root@lexicon ~ # iptables --list-rules
root@lexicon ~ # iptables --list-rules
-P INPUT ACCEPT
-P FORWARD ACCEPT
-P OUTPUT ACCEPT
-N DOCKER
-N DOCKER-ISOLATION-STAGE-1
-N DOCKER-ISOLATION-STAGE-2
-N DOCKER-USER
-N FLANNEL-FWD
-N KUBE-EXTERNAL-SERVICES
-N KUBE-FIREWALL
-N KUBE-FORWARD
-N KUBE-KUBELET-CANARY
-N KUBE-NODEPORTS
-N KUBE-PROXY-CANARY
-N KUBE-PROXY-FIREWALL
-N KUBE-SERVICES
-A INPUT -m conntrack --ctstate NEW -m comment --comment "kubernetes load balancer firewall" -j KUBE-PROXY-FIREWALL
-A INPUT -m comment --comment "kubernetes health check service ports" -j KUBE-NODEPORTS
-A INPUT -m conntrack --ctstate NEW -m comment --comment "kubernetes externally-visible service portals" -j KUBE-EXTERNAL-SERVICES
-A INPUT -j KUBE-FIREWALL
-A FORWARD -m conntrack --ctstate NEW -m comment --comment "kubernetes load balancer firewall" -j KUBE-PROXY-FIREWALL
-A FORWARD -m comment --comment "kubernetes forwarding rules" -j KUBE-FORWARD
-A FORWARD -m conntrack --ctstate NEW -m comment --comment "kubernetes service portals" -j KUBE-SERVICES
-A FORWARD -m conntrack --ctstate NEW -m comment --comment "kubernetes externally-visible service portals" -j KUBE-EXTERNAL-SERVICES
-A FORWARD -j DOCKER-USER
-A FORWARD -m set --match-set docker-ext-bridges-v4 dst -m conntrack --ctstate RELATED,ESTABLISHED -j ACCEPT
-A FORWARD -j DOCKER-ISOLATION-STAGE-1
-A FORWARD -m set --match-set docker-ext-bridges-v4 dst -j DOCKER
-A FORWARD -i wg0 -j ACCEPT
-A FORWARD -i br-1352dfaa6e69 -j ACCEPT
-A FORWARD -i br-26c076fa82f8 -j ACCEPT
-A FORWARD -i br-f461a8ffa6e0 -j ACCEPT
-A FORWARD -i br-f9783559f0e8 -j ACCEPT
-A FORWARD -i docker0 -j ACCEPT
-A FORWARD -m comment --comment "flanneld forward" -j FLANNEL-FWD
-A OUTPUT -m conntrack --ctstate NEW -m comment --comment "kubernetes load balancer firewall" -j KUBE-PROXY-FIREWALL
-A OUTPUT -m conntrack --ctstate NEW -m comment --comment "kubernetes service portals" -j KUBE-SERVICES
-A OUTPUT -j KUBE-FIREWALL
-A DOCKER -d 172.19.0.4/32 ! -i br-26c076fa82f8 -o br-26c076fa82f8 -p tcp -m tcp --dport 3000 -j ACCEPT
-A DOCKER -d 172.19.0.3/32 ! -i br-26c076fa82f8 -o br-26c076fa82f8 -p tcp -m tcp --dport 8086 -j ACCEPT
-A DOCKER -d 172.19.0.2/32 ! -i br-26c076fa82f8 -o br-26c076fa82f8 -p tcp -m tcp --dport 8125 -j ACCEPT
-A DOCKER ! -i br-1352dfaa6e69 -o br-1352dfaa6e69 -j DROP
-A DOCKER ! -i br-26c076fa82f8 -o br-26c076fa82f8 -j DROP
-A DOCKER ! -i br-f461a8ffa6e0 -o br-f461a8ffa6e0 -j DROP
-A DOCKER ! -i br-f9783559f0e8 -o br-f9783559f0e8 -j DROP
-A DOCKER ! -i docker0 -o docker0 -j DROP
-A DOCKER-ISOLATION-STAGE-1 -i br-1352dfaa6e69 ! -o br-1352dfaa6e69 -j DOCKER-ISOLATION-STAGE-2
-A DOCKER-ISOLATION-STAGE-1 -i br-26c076fa82f8 ! -o br-26c076fa82f8 -j DOCKER-ISOLATION-STAGE-2
-A DOCKER-ISOLATION-STAGE-1 -i br-f461a8ffa6e0 ! -o br-f461a8ffa6e0 -j DOCKER-ISOLATION-STAGE-2
-A DOCKER-ISOLATION-STAGE-1 -i br-f9783559f0e8 ! -o br-f9783559f0e8 -j DOCKER-ISOLATION-STAGE-2
-A DOCKER-ISOLATION-STAGE-1 -i docker0 ! -o docker0 -j DOCKER-ISOLATION-STAGE-2
-A DOCKER-ISOLATION-STAGE-2 -o docker0 -j DROP
-A DOCKER-ISOLATION-STAGE-2 -o br-f9783559f0e8 -j DROP
-A DOCKER-ISOLATION-STAGE-2 -o br-f461a8ffa6e0 -j DROP
-A DOCKER-ISOLATION-STAGE-2 -o br-26c076fa82f8 -j DROP
-A DOCKER-ISOLATION-STAGE-2 -o br-1352dfaa6e69 -j DROP
-A DOCKER-USER -j RETURN
-A FLANNEL-FWD -s 10.244.0.0/16 -m comment --comment "flanneld forward" -j ACCEPT
-A FLANNEL-FWD -d 10.244.0.0/16 -m comment --comment "flanneld forward" -j ACCEPT
-A KUBE-FIREWALL ! -s 127.0.0.0/8 -d 127.0.0.0/8 -m comment --comment "block incoming localnet connections" -m conntrack ! --ctstate RELATED,ESTABLISHED,DNAT -j DROP
-A KUBE-FORWARD -m conntrack --ctstate INVALID -m nfacct --nfacct-name ct_state_invalid_dropped_pkts -j DROP
-A KUBE-FORWARD -m comment --comment "kubernetes forwarding rules" -j ACCEPT
-A KUBE-FORWARD -m comment --comment "kubernetes forwarding conntrack rule" -m conntrack --ctstate RELATED,ESTABLISHED -j ACCEPT
pi@alfred:~ $ sudo iptables -nvL
pi@alfred:~ $ sudo iptables -nvL
Chain FORWARD (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
904 68334 KUBE-PROXY-FIREWALL 0 -- * * 0.0.0.0/0 0.0.0.0/0 ctstate NEW /* kubernetes load balancer firewall */
7786 25M KUBE-FORWARD 0 -- * * 0.0.0.0/0 0.0.0.0/0 /* kubernetes forwarding rules */
904 68334 KUBE-SERVICES 0 -- * * 0.0.0.0/0 0.0.0.0/0 ctstate NEW /* kubernetes service portals */
904 68334 KUBE-EXTERNAL-SERVICES 0 -- * * 0.0.0.0/0 0.0.0.0/0 ctstate NEW /* kubernetes externally-visible service portals */
904 68334 DOCKER-USER 0 -- * * 0.0.0.0/0 0.0.0.0/0
0 0 ACCEPT 0 -- * * 0.0.0.0/0 0.0.0.0/0 match-set docker-ext-bridges-v4 dst ctstate RELATED,ESTABLISHED
904 68334 DOCKER-ISOLATION-STAGE-1 0 -- * * 0.0.0.0/0 0.0.0.0/0
0 0 DOCKER 0 -- * * 0.0.0.0/0 0.0.0.0/0 match-set docker-ext-bridges-v4 dst
0 0 ACCEPT 0 -- docker0 * 0.0.0.0/0 0.0.0.0/0
0 0 FLANNEL-FWD 0 -- * * 0.0.0.0/0 0.0.0.0/0 /* flanneld forward */
Chain DOCKER (1 references)
pkts bytes target prot opt in out source destination
0 0 DROP 0 -- !docker0 docker0 0.0.0.0/0 0.0.0.0/0
Chain DOCKER-ISOLATION-STAGE-1 (1 references)
pkts bytes target prot opt in out source destination
0 0 DOCKER-ISOLATION-STAGE-2 0 -- docker0 !docker0 0.0.0.0/0 0.0.0.0/0
Chain DOCKER-ISOLATION-STAGE-2 (1 references)
pkts bytes target prot opt in out source destination
0 0 DROP 0 -- * docker0 0.0.0.0/0 0.0.0.0/0
Chain FLANNEL-FWD (1 references)
pkts bytes target prot opt in out source destination
0 0 ACCEPT 0 -- * * 10.244.0.0/16 0.0.0.0/0 /* flanneld forward */
0 0 ACCEPT 0 -- * * 0.0.0.0/0 10.244.0.0/16 /* flanneld forward */
Chain KUBE-EXTERNAL-SERVICES (2 references)
pkts bytes target prot opt in out source destination
Chain KUBE-FIREWALL (2 references)
pkts bytes target prot opt in out source destination
0 0 DROP 0 -- * * !127.0.0.0/8 127.0.0.0/8 /* block incoming localnet connections */ ! ctstate RELATED,ESTABLISHED,DNAT
Chain KUBE-FORWARD (1 references)
pkts bytes target prot opt in out source destination
0 0 DROP 0 -- * * 0.0.0.0/0 0.0.0.0/0 ctstate INVALID nfacct-name ct_state_invalid_dropped_pkts
0 0 ACCEPT 0 -- * * 0.0.0.0/0 0.0.0.0/0 /* kubernetes forwarding rules */ mark match 0x4000/0x4000
0 0 ACCEPT 0 -- * * 0.0.0.0/0 0.0.0.0/0 /* kubernetes forwarding conntrack rule */ ctstate RELATED,ESTABLISHED
pi@alfred:~ $ sudo iptables --list-rules
pi@alfred:~ $ sudo iptables --list-rules
-P INPUT ACCEPT
-P FORWARD ACCEPT
-P OUTPUT ACCEPT
-N DOCKER
-N DOCKER-ISOLATION-STAGE-1
-N DOCKER-ISOLATION-STAGE-2
-N DOCKER-USER
-N FLANNEL-FWD
-N KUBE-EXTERNAL-SERVICES
-N KUBE-FIREWALL
-N KUBE-FORWARD
-N KUBE-KUBELET-CANARY
-N KUBE-NODEPORTS
-N KUBE-PROXY-CANARY
-N KUBE-PROXY-FIREWALL
-N KUBE-SERVICES
-A INPUT -m conntrack --ctstate NEW -m comment --comment "kubernetes load balancer firewall" -j KUBE-PROXY-FIREWALL
-A INPUT -m comment --comment "kubernetes health check service ports" -j KUBE-NODEPORTS
-A INPUT -m conntrack --ctstate NEW -m comment --comment "kubernetes externally-visible service portals" -j KUBE-EXTERNAL-SERVICES
-A INPUT -j KUBE-FIREWALL
-A FORWARD -m conntrack --ctstate NEW -m comment --comment "kubernetes load balancer firewall" -j KUBE-PROXY-FIREWALL
-A FORWARD -m comment --comment "kubernetes forwarding rules" -j KUBE-FORWARD
-A FORWARD -m conntrack --ctstate NEW -m comment --comment "kubernetes service portals" -j KUBE-SERVICES
-A FORWARD -m conntrack --ctstate NEW -m comment --comment "kubernetes externally-visible service portals" -j KUBE-EXTERNAL-SERVICES
-A FORWARD -j DOCKER-USER
-A FORWARD -m set --match-set docker-ext-bridges-v4 dst -m conntrack --ctstate RELATED,ESTABLISHED -j ACCEPT
-A FORWARD -j DOCKER-ISOLATION-STAGE-1
-A FORWARD -m set --match-set docker-ext-bridges-v4 dst -j DOCKER
-A FORWARD -i docker0 -j ACCEPT
-A FORWARD -m comment --comment "flanneld forward" -j FLANNEL-FWD
-A OUTPUT -m conntrack --ctstate NEW -m comment --comment "kubernetes load balancer firewall" -j KUBE-PROXY-FIREWALL
-A OUTPUT -m conntrack --ctstate NEW -m comment --comment "kubernetes service portals" -j KUBE-SERVICES
-A OUTPUT -j KUBE-FIREWALL
-A DOCKER ! -i docker0 -o docker0 -j DROP
-A DOCKER-ISOLATION-STAGE-1 -i docker0 ! -o docker0 -j DOCKER-ISOLATION-STAGE-2
-A DOCKER-ISOLATION-STAGE-2 -o docker0 -j DROP
-A DOCKER-USER -j RETURN
-A FLANNEL-FWD -s 10.244.0.0/16 -m comment --comment "flanneld forward" -j ACCEPT
-A FLANNEL-FWD -d 10.244.0.0/16 -m comment --comment "flanneld forward" -j ACCEPT
-A KUBE-FIREWALL ! -s 127.0.0.0/8 -d 127.0.0.0/8 -m comment --comment "block incoming localnet connections" -m conntrack ! --ctstate RELATED,ESTABLISHED,DNAT -j DROP
-A KUBE-FORWARD -m conntrack --ctstate INVALID -m nfacct --nfacct-name ct_state_invalid_dropped_pkts -j DROP
-A KUBE-FORWARD -m comment --comment "kubernetes forwarding rules" -m mark --mark 0x4000/0x4000 -j ACCEPT
-A KUBE-FORWARD -m comment --comment "kubernetes forwarding conntrack rule" -m conntrack --ctstate RELATED,ESTABLISHED -j ACCEPT
Removing those DROP rules did not help:
sudo iptables -D KUBE-FIREWALL 1sudo iptables -D KUBE-FORWARD 1
HTTPS certificates
The Kubernetes dashboard uses a self-signed certificate, and so does Nginx by default, which works in so far as encrypting traffic, but provides no guarantee that the traffic is coming from the actual servers and is just very annoying when browsers complain every time accessing the service. It is now time to get properly signed HTTPS certificates. This is the way.
Install cert-manager
cert-manager is the native Kubernetes certificate management controller of choice to issue certificates from Let's Encrypt to secure NGINX-ingress.
Having already installed Helm (3.17), deployed the NGINX
Ingress Controller, assigned alfred.uu.am to the
router's external IP address, and deployed the
Kubernetes dashboard service, the system is ready for
Step 5 - Deploy cert-manager,
installing with Helm:
$ helm repo add jetstack https://charts.jetstack.io --force-update
"jetstack" has been added to your repositories
$ helm install \
cert-manager jetstack/cert-manager \
--namespace cert-manager \
--create-namespace \
--version v1.17.0 \
--set crds.enabled=true
NAME: cert-manager
LAST DEPLOYED: Sun Mar 23 17:19:57 2025
NAMESPACE: cert-manager
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
cert-manager v1.17.0 has been deployed successfully!
In order to begin issuing certificates, you will need to set up a ClusterIssuer
or Issuer resource (for example, by creating a 'letsencrypt-staging' issuer).
More information on the different types of issuers and how to configure them
can be found in our documentation:
https://cert-manager.io/docs/configuration/
For information on how to configure cert-manager to automatically provision
Certificates for Ingress resources, take a look at the `ingress-shim`
documentation:
https://cert-manager.io/docs/usage/ingress/
The helm install command takes several seconds to come back with the above output,
at which point the pods and services are all up and running:
$ kubectl get all -n cert-manager
NAME READY STATUS RESTARTS AGE
pod/cert-manager-665948465f-2574k 1/1 Running 0 73s
pod/cert-manager-cainjector-7c8f7984fb-6phv2 1/1 Running 0 73s
pod/cert-manager-webhook-7594bcdb99-w4tr9 1/1 Running 0 73s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/cert-manager ClusterIP 10.109.245.11 <none> 9402/TCP 73s
service/cert-manager-cainjector ClusterIP 10.104.227.129 <none> 9402/TCP 73s
service/cert-manager-webhook ClusterIP 10.104.66.87 <none> 443/TCP,9402/TCP 73s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/cert-manager 1/1 1 1 73s
deployment.apps/cert-manager-cainjector 1/1 1 1 73s
deployment.apps/cert-manager-webhook 1/1 1 1 73s
NAME DESIRED CURRENT READY AGE
replicaset.apps/cert-manager-665948465f 1 1 1 73s
replicaset.apps/cert-manager-cainjector-7c8f7984fb 1 1 1 73s
replicaset.apps/cert-manager-webhook-7594bcdb99 1 1 1 73s
Test cert-manager
Verify the installation by creating a simple self-signed certificate:
Test certificate: test-resources.yaml
apiVersion: v1
kind: Namespace
metadata:
name: cert-manager-test
---
apiVersion: cert-manager.io/v1
kind: Issuer
metadata:
name: test-selfsigned
namespace: cert-manager-test
spec:
selfSigned: {}
---
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
name: selfsigned-cert
namespace: cert-manager-test
spec:
dnsNames:
- example.com
secretName: selfsigned-cert-tls
issuerRef:
name: test-selfsigned
Deploying this succeeds withing seconds, after which it can be cleaned up:
kubectl apply -f test-resources.yaml
$ kubectl apply -f test-resources.yaml
namespace/cert-manager-test created
issuer.cert-manager.io/test-selfsigned created
certificate.cert-manager.io/selfsigned-cert created
$ kubectl describe certificate -n cert-manager-test
Name: selfsigned-cert
Namespace: cert-manager-test
Labels: <none>
Annotations: <none>
API Version: cert-manager.io/v1
Kind: Certificate
Metadata:
Creation Timestamp: 2025-03-23T16:32:58Z
Generation: 1
Resource Version: 2931074
UID: f0646ae2-8344-45a0-a453-f46ba16400b6
Spec:
Dns Names:
example.com
Issuer Ref:
Name: test-selfsigned
Secret Name: selfsigned-cert-tls
Status:
Conditions:
Last Transition Time: 2025-03-23T16:32:59Z
Message: Certificate is up to date and has not expired
Observed Generation: 1
Reason: Ready
Status: True
Type: Ready
Not After: 2025-06-21T16:32:59Z
Not Before: 2025-03-23T16:32:59Z
Renewal Time: 2025-05-22T16:32:59Z
Revision: 1
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Issuing 6s cert-manager-certificates-trigger Issuing certificate as Secret does not exist
Normal Generated 5s cert-manager-certificates-key-manager Stored new private key in temporary Secret resource "selfsigned-cert-g9cv2"
Normal Requested 5s cert-manager-certificates-request-manager Created new CertificateRequest resource "selfsigned-cert-1"
Normal Issuing 5s cert-manager-certificates-issuing The certificate has been successfully issued
$ kubectl delete -f test-resources.yaml
namespace "cert-manager-test" deleted
issuer.cert-manager.io "test-selfsigned" deleted
certificate.cert-manager.io "selfsigned-cert" deleted
Configure Let's Encrypt
Step 6 - Configure a Let's Encrypt Issuer
shows how to create an Issuer, but in this system with multiple services running in
different namespaces, a ClusterIssuer is needed instead:
apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
name: letsencrypt-prod
spec:
acme:
server: https://acme-v02.api.letsencrypt.org/directory
email: stibbons@uu.am
privateKeySecretRef:
name: letsencrypt-prod
solvers:
- http01:
ingress:
class: nginx
$ kubectl create -f cert-manager-issuer.yaml
clusterissuer.cert-manager.io/letsencrypt-prod created
$ kubectl describe clusterissuer.cert-manager.io/letsencrypt-prod
Name: letsencrypt-prod
Namespace:
Labels: <none>
Annotations: <none>
API Version: cert-manager.io/v1
Kind: ClusterIssuer
Metadata:
Creation Timestamp: 2025-03-23T19:11:39Z
Generation: 1
Resource Version: 2945998
UID: f75d8154-b858-4c3b-ae70-c1cb632f7d7c
Spec:
Acme:
Email: stibbons@uu.am
Private Key Secret Ref:
Name: letsencrypt-prod
Server: https://acme-v02.api.letsencrypt.org/directory
Solvers:
http01:
Ingress:
Class: nginx
Status:
Acme:
Last Private Key Hash: M7S/jp7wvlxuzt4QTkelCzWNe5SqfhFZpqfAcNSOZL0=
Last Registered Email: stibbons@uu.am
Uri: https://acme-v02.api.letsencrypt.org/acme/acct/2298686296
Conditions:
Last Transition Time: 2025-03-23T19:11:40Z
Message: The ACME account was registered with the ACME server
Observed Generation: 1
Reason: ACMEAccountRegistered
Status: True
Type: Ready
Events: <none>
Secure Kubernetes Dashboard Ingress
Step 7 - Deploy a TLS Ingress Resource
is the last step left to actually make pratical use of all the above. Based on the
provided example, apply the equivalent changes to dashboard/nginx-ingress.yaml,
using cert-manager.io/cluster-issuer instead of cert-manager.io/issuer and adding the
tls section with just the relevant FQDN under hosts:
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: kubernetes-dashboard-ingress
namespace: kubernetes-dashboard
annotations:
cert-manager.io/cluster-issuer: letsencrypt-prod
nginx.ingress.kubernetes.io/backend-protocol: HTTPS
nginx.ingress.kubernetes.io/auth-tls-verify-client: "false"
nginx.ingress.kubernetes.io/whitelist-source-range: 10.244.0.0/16
nginx.ingress.kubernetes.io/configuration-snippet: |
more_set_headers "server: hide";
spec:
ingressClassName: nginx
rules:
- host: k8s.alfred.uu.am
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: kubernetes-dashboard-kong-proxy
port:
number: 443
tls:
- secretName: tls-secret
hosts:
- k8s.alfred.uu.am
Re-apply this deployment to trigger the request for a certificate signed by Let's Encrypt:
$ kubectl apply -f dashboard/nginx-ingress.yaml
ingress.networking.k8s.io/kubernetes-dashboard-ingress configured
Now there will be a pending order and challenge for a new certificate, so it is
time to forward the router's external port 80 to the NodePort of the ACME solver:
$ kubectl get svc -A | grep acme
kubernetes-dashboard cm-acme-http-solver-b9ckt NodePort 10.96.223.114 <none> 8089:31453/TCP 13s
The pod behind the service is listening and the logs can be monitored in real time:
$ kubectl -n kubernetes-dashboard logs \
$(kubectl get pods -n kubernetes-dashboard | grep acme | cut -f1 -d' ') -f
I0323 20:44:32.293925 1 solver.go:52] "starting listener" logger="cert-manager.acmesolver" expected_domain="k8s.alfred.uu.am" expected_token="Ib9C-k31rDjp2A5SH7jmELo4F0VNBvOfWzXg6Mu6YWc" expected_key="Ib9C-k31rDjp2A5SH7jmELo4F0VNBvOfWzXg6Mu6YWc.AiIi2mdeMBlCng6As7epqFyP8bmjSGQqxIdEbnstHEo" listen_port=8089

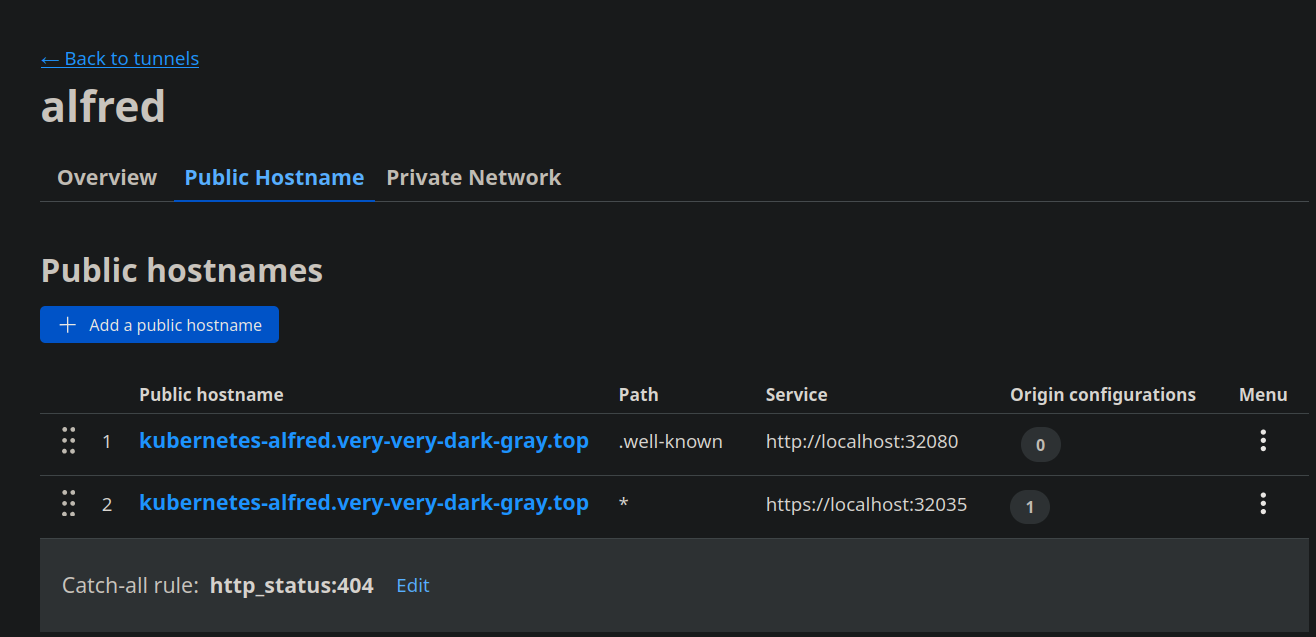

Now, instead of forwarding directly to the NodePort of this ACME resolver, it is more convinient to update the router's forwarding rules only once, to forward port the
external port 80 to the node's port 32080, and then patch the ACME resolve
service to
change the service's NodePort.
The patch command is directed at the specific ACME resolver service in each namespace:
$ kubectl -n kubernetes-dashboard patch \
service cm-acme-http-solver-b9ckt \
-p '{"spec":{"ports": [{"port": 8089, "nodePort": 32080}]}}'
service/cm-acme-http-solver-b9ckt patched
$ kubectl get svc -A | grep acme
kubernetes-dashboard cm-acme-http-solver-b9ckt NodePort 10.96.223.114 <none> 8089:32080/TCP 5m24s
Once the service is patched, the external connection reaches the resolver pod and the renewal is completed very shortly, which then deletes the pod and service. At that point, the command above to monitor the pod's logs will terminate when the pods finishes:
I0323 20:49:58.055831 1 solver.go:104] "comparing token" logger="cert-manager.acmesolver" host="k8s.alfred.uu.am" path="/.well-known/acme-challenge/Ib9C-k31rDjp2A5SH7jmELo4F0VNBvOfWzXg6Mu6YWc" base_path="/.well-known/acme-challenge" token="Ib9C-k31rDjp2A5SH7jmELo4F0VNBvOfWzXg6Mu6YWc" headers={"Accept":["*/*"],"Accept-Encoding":["gzip"],"Connection":["close"],"User-Agent":["Mozilla/5.0 (compatible; Let's Encrypt validation server; +https://www.letsencrypt.org)"]} expected_token="Ib9C-k31rDjp2A5SH7jmELo4F0VNBvOfWzXg6Mu6YWc"
I0323 20:49:58.055843 1 solver.go:112] "got successful challenge request, writing key" logger="cert-manager.acmesolver" host="k8s.alfred.uu.am" path="/.well-known/acme-challenge/Ib9C-k31rDjp2A5SH7jmELo4F0VNBvOfWzXg6Mu6YWc" base_path="/.well-known/acme-challenge" token="Ib9C-k31rDjp2A5SH7jmELo4F0VNBvOfWzXg6Mu6YWc" headers={"Accept":["*/*"],"Accept-Encoding":["gzip"],"Connection":["close"],"User-Agent":["Mozilla/5.0 (compatible; Let's Encrypt validation server; +https://www.letsencrypt.org)"]}
E0323 20:49:59.002384 1 main.go:42] "error executing command" err="http: Server closed" logger="cert-manager"
From now on, accessing the Kubernetes dashboard at https://k8s.alfred.uu.am/ will no longer result in browsers complaining about the connection not being secure.
Automatic renovation
The above technique to patch each ACME resolver service can be extended to automatically
patch each service when it is found running:
#!/bin/bash
#
# Patch the nodePort of running cert-manager renewal challenge, to listen
# on port 32080 which is the one the router is forwarding port 80 to.
# Check if there is a LetsEncrypt challenge resolver (acme) running.
export KUBECONFIG=/etc/kubernetes/admin.conf
namespace=$(kubectl get svc -A | grep acme | awk '{print $1}' | head -1)
service=$(kubectl get svc -A | grep acme | awk '{print $2}' | head -1)
# Patch the service to listen on port 32080 (set up in router).
if [ -n "${namespace}" ] && [ -n "${service}" ]; then
kubectl -n "${namespace}" patch service "${service}" -p '{"spec":{"ports": [{"port": 8089, "nodePort":32080}]}}'
fi
Install this script in a convenient location and setup crontab to run it hourly:
Cloudflare Tunnel
Although during the installation process this system was behind a router that supported port forwarding, so that ports 80 and 443 could be made available externally, the final destination may not provide this facility. To cope with an enviromeent without port forwarding capabilities, and/or a static IPv4 address, or possibly even CGNAT in the future, a Cloudflare tunnel will be used.
Install cloudflared
Install the latest cloudflared using the instructions provided for
Any Debian Based Distribution:
# curl -fsSL https://pkg.cloudflare.com/cloudflare-main.gpg \
| tee /usr/share/keyrings/cloudflare-main.gpg >/dev/null
# echo 'deb [signed-by=/usr/share/keyrings/cloudflare-main.gpg] https://pkg.cloudflare.com/cloudflared any main' \
| tee /etc/apt/sources.list.d/cloudflared.list
# install cloudflared
sudo apt-get update && sudo apt-get install cloudflared
Create a tunnel
Cloudflare requires adding a site before creating a tunnel.
Before creating a tunnel, Cloudflare requires adding a site, which in turn requires updating DNS settins in a domain, as well as on Cloudflare, all of which can take hours to take effect.
very-very-dark-gray.top is an example cheap domain.
very-very-dark-gray.top is an example cheap domain, probably not great
for public or customer-facing applications, but should be fine for purely
self-hosted personal applications.
Create a tunnel
named alfred using cloudflared as the connector. Cloudflare will provide the
commands to run, including installating the connector (already done) and connecting
the tunnel:
$ sudo cloudflared service install eyJhIjoiMD...
2025-03-29T10:07:08Z INF Using Systemd
2025-03-29T10:07:10Z INF Linux service for cloudflared installed successfully
The token in the command is much longer that Cloudflare shows.
A few seconds after running the commmand, the Cloudflare console will show the tunnel as Connected; otherwise something is blocking it.
Public hostnames
Once the tunnel is working, access to the
Kubernetes dashboard ingress can be enabled
by adding a public hostname to make localhost:32035 (the NodePort of Nginx,
using HTTPS), or the LoadBalancer IP, available behind
https://kubernetes-alfred.very-very-dark-gray.top/.
Make sure to enable No TLS Verify under Additional application settings > TLS because Nginx will not be using the certificate from Let's Encrypt.
Before Cloudflare can reach the Kubernetes dashboard through that URL,
an additional host rule must be added to the
Kubernetes Dashboard Ingress, so that
Nginx knows to route requests with that Host value to the right service.
Otherwise, Nginx will not find anything matching that URL:
$ curl 2>/dev/null \
-H "Host: kubernetes-alfred.very-very-dark-gray.top" \
-k https://192.168.0.151/ \
| head
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx</center>
</body>
</html>
$ curl 2>/dev/null \
-H "Host: kubernetes-alfred.very-very-dark-gray.top" \
-k https://192.168.0.124:32035/ \
| head
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx</center>
</body>
</html>
A rule for host: kubernetes-alfred.very-very-dark-gray.top must be added:
| dashboard/nginx-ingress.yaml | |
|---|---|
After applying this change, the kubernetes-dashboard-kong-proxy service is
available behind kubernetes-alfred.very-very-dark-gray.top:
$ kubectl apply -f dashboard/nginx-ingress.yaml
ingress.networking.k8s.io/kubernetes-dashboard-ingress created
$ curl 2>/dev/null \
-H "Host: kubernetes-alfred.very-very-dark-gray.top" \
-k https://192.168.0.151/ \
| head
<!--
Copyright 2017 The Kubernetes Authors.
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
https://kubernetes-alfred.very-very-dark-gray.top/ will now lead to the Kubernetes dashboard, through its own HTTPS tunnel, provided all the configurations have been applied correctly.
$ curl 2>/dev/null \
-k https://kubernetes-alfred.very-very-dark-gray.top/ \
| head
<!--
Copyright 2017 The Kubernetes Authors.
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Troubleshooting public hostnames
Do not try using multi-level domains.
If the same hostname is added as kubernetes.alfred.very-very-dark-gray.top
that's a 2nd-level domain and connections will fail, e.g. in Firefox with
SSL_ERROR_NO_CYPHER_OVERLAP (and curl is also unable to connect)
The reason for this to fail is that the Cloudflare Universal SSL certificates only cover apex domain and one level of subdomain; see Multi-level subdomains.
Don't forget to enable No TLS Verify.
If No TLS Verify is not enabled, the 502 Bad Gateway page will
continue to show, because Cloudflare won't accept connecting to Nginx with
the default self-signed certificate. This can be checked by
viewing cloudflared logs
in the CLI to get detailed error messages:
$ cloudflared tail 3923ef0b-986b-43cd-9066-d48035a77f89
2025-03-29T17:50:56Z ERR Cannot determine default origin certificate path. No file cert.pem in [~/.cloudflared ~/.cloudflare-warp ~/cloudflare-warp /etc/cloudflared /usr/local/etc/cloudflared]. You need to specify the origin certificate path by specifying the origincert option in the configuration file, or set TUNNEL_ORIGIN_CERT environment variable originCertPath=
2025-03-29T17:50:56Z ERR unable to construct management request URL error="unable to acquire management token for requested tunnel id: Error locating origin cert: client didn't specify origincert path"
Here is the error message in a more readable format:
Cannot determine default origin certificate path.
No file cert.pem in[~/.cloudflared ~/.cloudflare-warp ~/cloudflare-warp/etc/cloudflared /usr/local/etc/cloudflared].
You need to specify the origin certificate path by specifying theorigincertoption in the configuration file, or setTUNNEL_ORIGIN_CERTenvironment variableoriginCertPath=
2025-03-29T17:50:56Z ERR unable to construct management request URLerror="unable to acquire management token for requested tunnel id:Error locating origin cert: client didn't specify origincert path"
HTTP Host Header must match the hostname exactly.
Overriding HTTP Settings > HTTP Host Header in the tunnel should not
be necessary; by default it will send the correct Host header. Otherwise,
if the override header is not exactly the same as the tunnel's hostname,
e.g. kubernetes.alfred.very-very-dark-gray.top instead of
kubernetes-alfred.very-very-dark-gray.top, requests will not match
any rules in Nginx and recieve a 404 Not Found response:
$ curl 2>/dev/null \
-k https://kubernetes-alfred.very-very-dark-gray.top/ \
| head
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx</center>
</body>
</html>
To confirm the problem is in Nginx and not in the cloudflared connector,
temporarily run the port-forward to make the
Kubernetes Dashboard
accessible directly without going through Nginx:
$ kubectl -n kubernetes-dashboard port-forward \
svc/kubernetes-dashboard-kong-proxy 8443:443 \
--address 0.0.0.0
Forwarding from 0.0.0.0:8443 -> 8443
^C
Edit the kubernetes-alfred.very-very-dark-gray.top tunnel to point to
https://localhost:8443 and the dashboard becomes immediately available.
To debug the problem in Nginx, increase logging level to the maximum
(debug):
| nginx-baremetal.yaml | |
|---|---|
After applying this change, the logs of the ingress-nginx-controller
will included lots of details and will stream fast; be ready to
grep for the relevant hostname to find the log entries for the request:
kubectl logs -n ingress-nginx \
$(kubectl get pods -n ingress-nginx | grep ingress-nginx-controller | cut -f1 -d' ') -f
...
"GET / HTTP/1.1
Host: kubernetes.alfred.very-very-dark-gray.top
X-Request-ID: 3a67e281e598abf5d21dda0679f0be59
X-Real-IP: 10.244.0.1
X-Forwarded-For: 10.244.0.1
X-Forwarded-Host: kubernetes.alfred.very-very-dark-gray.top
X-Forwarded-Port: 443
X-Forwarded-Proto: https
X-Forwarded-Scheme: https
X-Scheme: https
X-Original-Forwarded-For: 217.162.57.64
User-Agent: curl/8.5.0
Accept: */*
Accept-Encoding: gzip, br
Cdn-Loop: cloudflare; loops=1
Cf-Connecting-Ip: 217.162.57.64
Cf-Ipcountry: CH
Cf-Ray: 92815e1e1c1a039c-ZRH
Cf-Visitor: {"scheme":"https"}
Cf-Warp-Tag-Id: 3923ef0b-986b-43cd-9066-d48035a77f89
...
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 event timer del: 22: 689556672
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 generic phase: 0
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 rewrite phase: 1
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 http script value: "internal"
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 http script set $proxy_upstream_name
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 test location: "/"
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 using configuration "/"
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 http cl:-1 max:1048576
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 rewrite phase: 3
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 http finalize request: 404, "/?" a:1, c:1
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 http special response: 404, "/?"
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 http set discard body
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 lua header filter for user lua code, uri "/"
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 lua capture header filter, uri "/"
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 headers more header filter, uri "/"
2025/03/29 18:18:03 [debug] 1392#1392: *8405048 HTTP/1.1 404 Not Found
Let's Encrypt via tunnel
To use Let's Encrypt certificates behind a Cloudflare tunnel, an additional
Public hostname must be added to the tunnel, to route requests for paths under
/.well-known/ to port 32080 over plain HTTP. Combined with the patching of
ACME solvers from Automatic renovation, this makes solvers
for HTTP01 challenges reachable, so certificates can be issued and renewed.
The Public hostname to route requests under /.well-known/ must be the
first one (these can be dragged to rearrange their order):
To avoid hitting Let's Encrypt rate limits, use a different secret name for each host:
| dashboard/nginx-ingress.yaml | |
|---|---|
After applying this update to the ingress, the sequence of events to Secure Kubernetes Dashboard Ingress is repeated, with a few extra steps involving the Cloudflare tunnel:
- A new solver starts, listening on a
NodePort; this can be found in the list of services: - The logs indicate the solver is listening:
$ kubectl -n kubernetes-dashboard logs \ $(kubectl get pods -n kubernetes-dashboard | grep acme | cut -f1 -d' ') -f I0330 12:04:55.423524 1 solver.go:52] "starting listener" logger="cert-manager.acmesolver" expected_domain="kubernetes-alfred.very-very-dark-gray.top" expected_token="aqO1GODyRAWRg4nnh6keja5mdYVSJg0zcA01eL0CHtI" expected_key="aqO1GODyRAWRg4nnh6keja5mdYVSJg0zcA01eL0CHtI.AiIi2mdeMBlCng6As7epqFyP8bmjSGQqxIdEbnstHEo" listen_port=8089 - Streaming logs for the Cloudflare tunnel connector shows Request failed about
once a minute, with the URL for the challenge
(
/.well-known/acme-challenge/aqO1GODyRAWRg4nnh6keja5mdYVSJg0zcA01eL0CHtI). Error details show it cannot connect to port 32080:"dial tcp [::1]:32080: connect: connection refused". - After
cert-renewal-port-fwd.shruns and patches the solver, it's listening on port 32080: - Streaming logs for the tunnel connector now shows OK for subsequent requests.
- The solver receives the requests and finishes successfully.
At this point it is no longer necessary to have No TLS Verify enable under
Additional application settings > TLS because Nginx is now using a certificate
signed by Let's Encrypt. However, if No TLS Verify is to be disabled, then it
is necessary to set Origin Server Name (kubernetes-alfred.very-very-dark-gray.top)
to the FQDN so that Cloudflare accepts the certificate.
Tailscale
Set up Tailscale,
which involved mostly setting this up on the Tailscale admin console,
and several changes in alfred:
- Install
tailscaleand connect to a new tailnet when creating the first one. - Install the Tailscale Kubernetes operator
and add a Tailscale
Ingressto the Kubernetes Dashboard Ingress. - As a test, enabled Public access through Funnel
to check how services can be made accessible from outside the tailnet.
- Not really necessary for the Kubernetes Dashboard, because SSH access is necessary to obtain a token and Tailnet Funnel does not offer anything like Cloudflare Access that could possibly take over authentication.
InfluxDB and Grafana
With all the above in place, this system is now ready to run InfluxDB and Grafana to collect metrics from Continuous Monitoring, Home Assistant and any other systems in its final location.
Taking the combined deployment in octavo for
InfluxDB and Grafana
as the starting point, the deployment for alfred changes only a few details:
- Remove the
influxdb-ingress(will not be receiving metrics remotely). - Set a different FQDN for the
grafana-ingressto access Grafana remotely. - Add
grafana-ingress-tailscalefor access through Tailscale.
Combined deployment for InfluxDB and Grafana
apiVersion: v1
kind: Namespace
metadata:
name: monitoring
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: influxdb-pv
labels:
type: local
namespace: monitoring
spec:
storageClassName: manual
capacity:
storage: 30Gi
accessModes:
- ReadWriteOnce
hostPath:
path: /home/k8s/influxdb
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: influxdb-pv-claim
namespace: monitoring
spec:
storageClassName: manual
volumeName: influxdb-pv
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 30Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
namespace: monitoring
labels:
app: influxdb
name: influxdb
spec:
replicas: 1
selector:
matchLabels:
app: influxdb
template:
metadata:
labels:
app: influxdb
spec:
hostname: influxdb
containers:
- image: docker.io/influxdb:1.11.8
env:
- name: "INFLUXDB_HTTP_AUTH_ENABLED"
value: "true"
name: influxdb
volumeMounts:
- mountPath: /var/lib/influxdb
name: influxdb-data
securityContext:
runAsUser: 114
runAsGroup: 114
volumes:
- name: influxdb-data
persistentVolumeClaim:
claimName: influxdb-pv-claim
---
apiVersion: v1
kind: Service
metadata:
labels:
app: influxdb
name: influxdb-svc
namespace: monitoring
spec:
ports:
- port: 18086
protocol: TCP
targetPort: 8086
nodePort: 30086
selector:
app: influxdb
type: NodePort
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: grafana-pv
labels:
type: local
namespace: monitoring
spec:
storageClassName: manual
capacity:
storage: 3Gi
accessModes:
- ReadWriteOnce
hostPath:
path: /home/k8s/grafana
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: grafana-pv-claim
namespace: monitoring
spec:
storageClassName: manual
volumeName: grafana-pv
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 3Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
namespace: monitoring
labels:
app: grafana
name: grafana
spec:
replicas: 1
selector:
matchLabels:
app: grafana
template:
metadata:
labels:
app: grafana
spec:
containers:
- image: docker.io/grafana/grafana:11.6.1
env:
- name: HOSTNAME
valueFrom:
fieldRef:
fieldPath: spec.nodeName
- name: "GF_AUTH_ANONYMOUS_ENABLED"
value: "true"
- name: "GF_SECURITY_ADMIN_USER"
value: "admin"
- name: "GF_SECURITY_ADMIN_PASSWORD"
value: "__________________________"
name: grafana
volumeMounts:
- name: grafana-data
mountPath: /var/lib/grafana
securityContext:
runAsUser: 115
runAsGroup: 115
fsGroup: 115
volumes:
- name: grafana-data
persistentVolumeClaim:
claimName: grafana-pv-claim
---
apiVersion: v1
kind: Service
metadata:
labels:
app: grafana
name: grafana-svc
namespace: monitoring
spec:
ports:
- port: 13000
protocol: TCP
targetPort: 3000
nodePort: 30300
selector:
app: grafana
type: NodePort
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: grafana-ingress
namespace: monitoring
annotations:
acme.cert-manager.io/http01-edit-in-place: "true"
cert-manager.io/issue-temporary-certificate: "true"
cert-manager.io/cluster-issuer: letsencrypt-prod
spec:
ingressClassName: nginx
rules:
- host: grafana-alfred.very-very-dark-gray.top
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: grafana-svc
port:
number: 3000
tls:
- secretName: tls-secret-grafana
hosts:
- grafana-alfred.very-very-dark-gray.top
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: grafana-ingress-tailscale
namespace: monitoring
spec:
ingressClassName: tailscale
defaultBackend:
service:
name: grafana-svc
port:
number: 3000
tls:
- hosts:
- grafana-alfred
Before deploying the above, dedicated users and home directories must be created for
influxdb and grafana:
$ sudo groupadd influxdb -g 114
$ sudo groupadd grafana -g 115
$ sudo useradd influxdb -u 114 -g 114 -s /usr/sbin/nologin
$ sudo useradd grafana -u 115 -g 115 -s /usr/sbin/nologin
$ sudo mkdir /home/k8s/influxdb /home/k8s/grafana
$ sudo chown -R influxdb:influxdb /home/k8s/influxdb
$ sudo chown -R grafana:grafana /home/k8s/grafana
$ sudo ls -hal /home/k8s/influxdb /home/k8s/grafana
/home/k8s/grafana:
total 8.0K
drwxr-xr-x 2 grafana grafana 4.0K May 2 23:54 .
drwxr-xr-x 5 root root 4.0K May 2 23:54 ..
/home/k8s/influxdb:
total 8.0K
drwxr-xr-x 2 influxdb influxdb 4.0K May 2 23:54 .
drwxr-xr-x 5 root root 4.0K May 2 23:54 ..
The apply the new deployment to start InfluxDB and Grafana:
$ kubectl apply -f alfred/monitoring.yaml
namespace/monitoring created
persistentvolume/influxdb-pv created
persistentvolumeclaim/influxdb-pv-claim created
deployment.apps/influxdb created
service/influxdb-svc created
persistentvolume/grafana-pv created
persistentvolumeclaim/grafana-pv-claim created
deployment.apps/grafana created
service/grafana-svc created
ingress.networking.k8s.io/grafana-ingress created
ingress.networking.k8s.io/grafana-ingress-tailscale created
$ kubectl get all -n monitoring
NAME READY STATUS RESTARTS AGE
pod/cm-acme-http-solver-4kh85 1/1 Running 0 18s
pod/grafana-895c94879-j5dnr 1/1 Running 0 22s
pod/influxdb-5974bf664f-zwwrx 1/1 Running 0 23s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/cm-acme-http-solver-p4cxg NodePort 10.109.30.68 <none> 8089:32080/TCP 18s
service/grafana-svc NodePort 10.111.30.81 <none> 13000:30300/TCP 22s
service/influxdb-svc NodePort 10.104.23.44 <none> 18086:30086/TCP 23s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/grafana 1/1 1 1 22s
deployment.apps/influxdb 1/1 1 1 23s
NAME DESIRED CURRENT READY AGE
replicaset.apps/grafana-895c94879 1 1 1 22s
replicaset.apps/influxdb-5974bf664f 1 1 1 23s
$ kubectl get ingress -n monitoring
NAME CLASS HOSTS ADDRESS PORTS AGE
grafana-ingress nginx grafana-alfred.very-very-dark-gray.top 192.168.0.124 80, 443 41h
grafana-ingress-tailscale tailscale * grafana-alfred.royal-penny.ts.net 80, 443 3m33s
After a couple of minutes both services are running fine and Grafana is available at https://grafana-alfred.royal-penny.ts.net and https://grafana-alfred.very-very-dark-gray.top but it will be empty because before anything and report to InfluxDB, it must be initialized.
Secure InfluxDB
Secure InfluxDB
by first creating an admin user with a password:
$ influx -host localhost -port 30086
Connected to http://localhost:30086 version v1.11.8
InfluxDB shell version: 1.6.7~rc0
> CREATE USER admin WITH PASSWORD '**********' WITH ALL PRIVILEGES
After that, re-login with the password and create databases monitoring (for
Continuous Monitoring) and home_assistant (for
Home Assistant).
$ influx -host localhost -port 30086 -username admin -password '**********'
Connected to http://localhost:30086 version v1.11.8
InfluxDB shell version: 1.6.7~rc0
> CREATE DATABASE monitoring
> USE monitoring
Using database monitoring
> CREATE RETENTION POLICY "90_days" ON "monitoring" DURATION 30d REPLICATION 1
> ALTER RETENTION POLICY "90_days" on "monitoring" DURATION 30d REPLICATION 1 DEFAULT
> CREATE DATABASE home_assistant
> USE home_assistant
Using database home_assistant
> CREATE RETENTION POLICY "800_days" ON "home_assistant" DURATION 30d REPLICATION 1
> ALTER RETENTION POLICY "800_days" on "home_assistant" DURATION 30d REPLICATION 1 DEFAULT
> CREATE USER conmon WITH password ''
> GRANT ALL PRIVILEGES ON "monitoring" TO "conmon"
InfluxDB Authentication
is enabled by the INFLUXDB_HTTP_AUTH_ENABLED setting in the above deployment.
The user conmon with an empty password, granted read and write access to the
monitoring database, is created to allow the conmon script to report to both
this system (without authentication) and remotely to octavo (with authentication).
The conmon user can then be used to both report metrics from the conmon script
and read metrics from Grafana.
#!/bin/bash
#
# Export system monitoring metrics to influxdb.
# InfluxDB target.
# HTTP works only with a 'conmon' user with empty password.
DBNAME=monitoring
TARGET_HTTP='http://localhost:30086'
TARGET_HTTPS='https://influxdb.very-very-dark-gray.top:443'
Grafana Dashboards
With the databases in place and conmon reporting metrics to the local InfluxDB,
create Data sources for the above databases using the relevant credentails
(or just use admin for all of them). Once Data Sources are successfully setup,
the relevant dashboards can now be exported from Grafana in octavo using the
Export as JSON functionality from each existing dashboard, with the option to
Export the dashboard to use in another instance enabled.

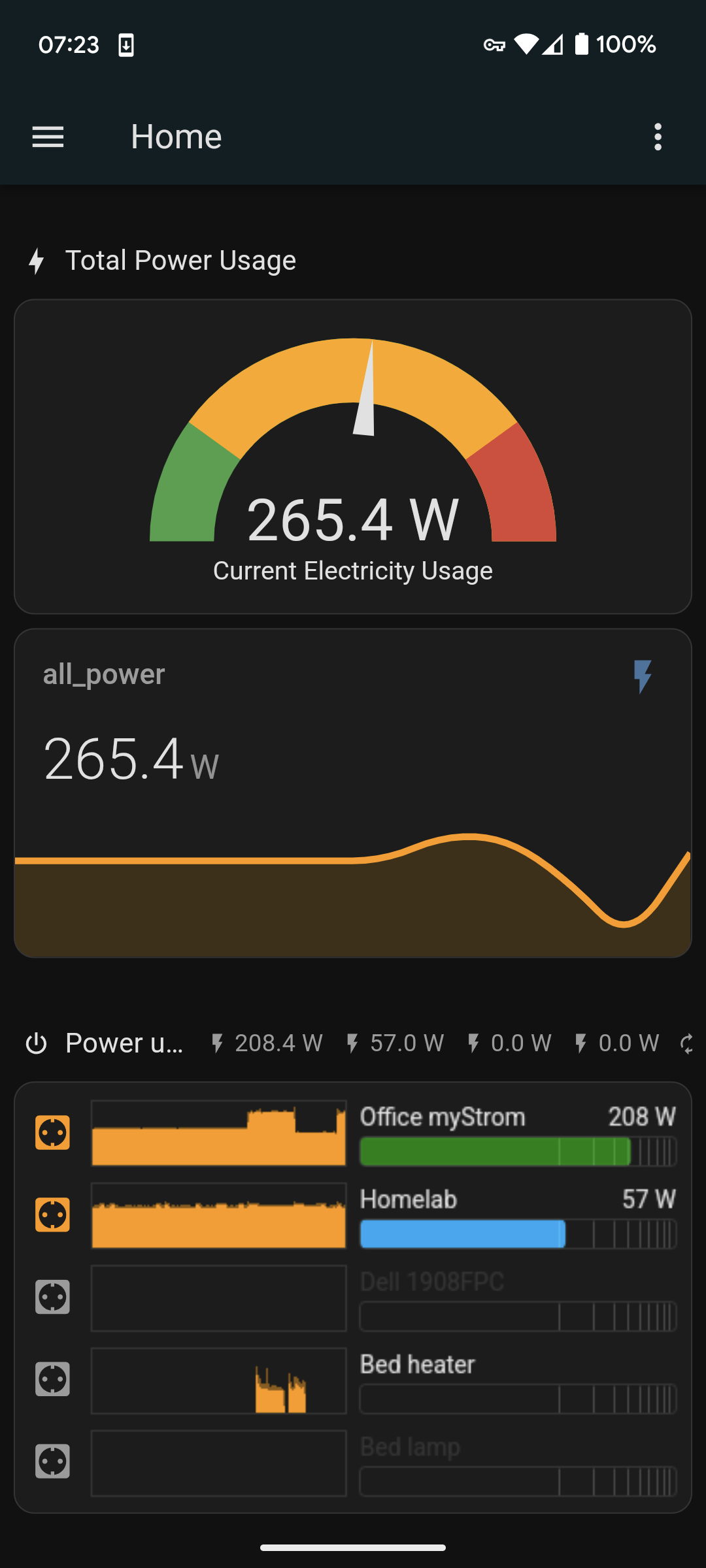

Home Assistant
To install Home Assistant in Kubernetes,
abalage/home-assistant-k8s
offers a very good starting point, including the use of kustomize which
will be useful to have the same base deployment in two systems with
minimal differences.
Additional tweaks are needed to make discovery work, based off the docker-compose:
services:
homeassistant:
container_name: homeassistant
image: "ghcr.io/home-assistant/home-assistant:stable"
volumes:
- /PATH_TO_YOUR_CONFIG:/config
- /etc/localtime:/etc/localtime:ro
- /run/dbus:/run/dbus:ro
restart: unless-stopped
privileged: true
network_mode: host
Base deployment
In addition to privileged: true and network_mode: host
it is also necessary to add certain capabilities
to make network discover work. It is not yet clear whether this will be
actually necessary for the currently available devices, mostly just
TP-Link Tapo devices.
Further adjustments include adding a hard-coded namespace and adding two
different Ingress; one for use with Tailscale and the other
one for use with Cloudflare Tunnel.
configmap.yamlincludes a minimalconfiguration.yamlneeded to allow requests through the reverse proxy.persistent-volume.yamlprovides a simple physical volume (and claim) to store files in a local directory.deployment.yamldefines how the Home Assistant pod runs and updates.service.yamldefines how the pod's port 8123 is exposed, to be used by...ingress.yamlwhich maps specific hostnames (FQDN) to the pod's port 8123.kustomization.yamlpresents all the above to be kustomized for each server.
Caveat on reverse proxies
The initial configuration created by Home Assistant includes mostly empty files,
which does not allow request coming through reverse proxies. Services are running,
but Cloudflare and Tailscale are getting nothing but 400: Bad Request:
$ curl 2>/dev/null \
-H "Host: home-assistant-alfred.very-very-dark-gray.top" \
-k https://192.168.0.151/
400: Bad Request
$ curl -I -k https://home-assistant-alfred.royal-penny.ts.net/
HTTP/2 400
content-type: text/plain; charset=utf-8
date: Sun, 20 Apr 2025 19:42:46 GMT
server: Python/3.13 aiohttp/3.11.16
content-length: 16
Inspecting the logs from the home-assistant pod shows this is in fact an issue in
Home Assistant itself:
$ kubectl logs -n home-assistant \
$(kubectl get pods -n home-assistant | grep home-assistant | cut -f1 -d' ') -f
s6-rc: info: service legacy-services successfully started
2025-04-20 21:42:26.465 ERROR (MainThread) [homeassistant.components.http.forwarded] A request from a reverse proxy was received from 10.244.0.105, but your HTTP integration is not set-up for reverse proxies
This warning became an error in 2021.7
and the solution is to add the following into Home Assistant's configuration.yaml
to allow the reverse proxy
(allowing the entire Kubernetes IP range):
http:
use_x_forwarded_for: true
trusted_proxies:
- 10.244.0.0/16
Changes to files in /home/k8s/home-assistant will persist through pod and node
restarts because this config directory is mounted to a persistent volume. However,
such changes to config files will not be effective without restarting the pod or node.
A ConfigMap can be used to achieve a more permanent solution for the above, which is
why it is included below. Such a ConfigMap is found in the manifests presented in
Running your Home Assistant on Kubernetes — Part II,
but these are problematic because (apparently) the use of ! in the ConfigMap
leads to Home Assistant failing to parse the config and going into recovery mode.
Base deployment manifests
Warning
Sometimes the use of !include in the ConfigMap or else Home Assistant will
fail to parse it, go into recovery mode and start without allowing requests
coming in through the reverse proxy. The following ConfigMap omits such
lines to address the Caveat on reverse proxies.
base/configmap.yaml
base/persistent-volume.yaml
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: home-assistant-pv-config
spec:
storageClassName: manual
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
hostPath:
path: /home/k8s/home-assistant
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: home-assistant-config-root
spec:
storageClassName: manual
volumeName: home-assistant-pv-config
accessModes:
- ReadWriteOnce
volumeMode: Filesystem
resources:
requests:
storage: 1Gi
base/deployment.yaml
apiVersion: v1
kind: Namespace
metadata:
name: home-assistant
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: home-assistant
name: home-assistant
spec:
revisionHistoryLimit: 3
replicas: 1
strategy:
type: Recreate
selector:
matchLabels:
app: home-assistant
template:
metadata:
labels:
app: home-assistant
spec:
# securityContext:
# fsGroup: 33
# fsGroupChangePolicy: "OnRootMismatch"
containers:
- name: home-assistant-app
image: "ghcr.io/home-assistant/home-assistant:stable"
imagePullPolicy: Always
securityContext:
capabilities:
add:
- NET_ADMIN
- NET_RAW
- NET_BROADCAST
privileged: true
envFrom:
- configMapRef:
name: home-assistant-config
ports:
- name: http
containerPort: 8123
protocol: TCP
resources: {}
livenessProbe:
tcpSocket:
port: 8123
initialDelaySeconds: 0
failureThreshold: 3
timeoutSeconds: 1
periodSeconds: 10
readinessProbe:
tcpSocket:
port: 8123
initialDelaySeconds: 0
failureThreshold: 3
timeoutSeconds: 1
periodSeconds: 10
startupProbe:
tcpSocket:
port: 8123
initialDelaySeconds: 0
failureThreshold: 30
timeoutSeconds: 1
periodSeconds: 5
volumeMounts:
- name: ha-config-root
mountPath: /config
- name: configmap-file
mountPath: /config/configuration.yaml
subPath: configuration.yaml
restartPolicy: Always
hostNetwork: true
volumes:
- name: ha-config-root
persistentVolumeClaim:
claimName: home-assistant-config-root
- name: configmap-file
configMap:
name: home-assistant-configmap
base/service.yaml
base/ingress.yaml
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: home-assistant-nginx
annotations:
cert-manager.io/cluster-issuer: letsencrypt-prod
spec:
ingressClassName: nginx
rules:
- host: REPLACEME # FQDN for Cloudflare Tunnel or port-forwarded
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: home-assistant-svc
port:
name: "http"
tls:
- hosts:
- REPLACEME # FQDN for Cloudflare Tunnel or port-forwarded
secretName: tls-secret
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: home-assistant-tailscale
spec:
ingressClassName: tailscale
defaultBackend:
service:
name: home-assistant-svc
port:
name: "http"
tls:
- hosts:
- REPLACEME # Hostname-only for Tailscale [Funnel]
base/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
namespace: home-assistant
resources:
- configmap.yaml
- deployment.yaml
- ingress.yaml
- persistent-volume.yaml
- service.yaml
configMapGenerator:
- name: home-assistant-config
literals:
- TZ="UTC"
labels:
- includeSelectors: true
pairs:
app.kubernetes.io/name: home-assistant
app: home-assistant
Kustomized deployment
For each server to start this deployment on, create a kustomization.yaml
file under a directory named after the server and adjust the relevant
values:
- Set
TZunderconfigMapGeneratorto the correct time zone. - Set
/spec/rules/0/hostand/spec/tls/0/hosts/0for theIngressnamedhome-assistant-nginxto the FQDN from Cloudflare. - Set
/spec/rules/0/hostand/spec/tls/0/hosts/0for theIngressnamedhome-assistant-tailscaleto the Machine name from Tailscale (just the hostname, not the FQDN).
There are two different checks to make before applying this deployment:
-
Run
kubectl kustomize alfredto inspect that the generated deployment manifest does replace the correct values. -
Run
kubectl apply -k alfred --dry-run=clientto verify thatkubectlfinds on errors in the generated manifest.
Prepare remote access
Before applying the deployment, Cloudflare Tunnel and Access should be setup so that the Let's Encrypt certificate can be obtained and the Home Assistant frontend is easily accessible while at the same time well secured.
Cloudflare
Since Cloudflare Tunnel is already working, go in to
Zero Trust and go to Networks > Tunnels,
find the relevant connector (alfred) and
add a public hostname named home-assistant-alfred to point
https://home-assistant-alfred.very-very-dark-gray.top/ to the appropriate targets
as seen in Let's Encrypt via tunnel:
- Requests for files under
.well-knownmust go tohttp://localhost:32080so that HTTPS certificates can be issued. - Requests for everything else (
*) must to to theLoadBalancerIP of Nginx over HTTPS (https://192.168.0.151) with the TLS > Origin Server Name configured ashome-assistant-alfred.very-very-dark-gray.top- TLS > No TLS Verify should not be necessary, unless there are issues obtaining Let's Encrypt certificates.
Restrict access to this public hostname by creating an Access application in
Cloudflare Access,
so that only trusted users can actually access
https://home-assistant-alfred.very-very-dark-gray.top/
(with a bypass policy for files under .well-known).
If all the above has been correctly setup, requests for files under .well-known
will receive error code: 502 because the Ingress is not deployed yet, and requests
for any other files should receive a redirect to cloudflareaccess.com.
Tailscale
No preparation is necessary for Tailscale if the server already has the
Tailscale Kubernetes operator
installed. However, Tailscale DNS typically take a day or two to propagate after the
deployment is applied and the home-assistant-alfred machine is created.
Deployment Start
$ sudo mkdir /home/k8s/home-assistant/
$ sudo ls -lah /home/k8s/home-assistant/
total 8.0K
drwxr-xr-x 2 root root 4.0K Apr 20 22:44 .
drwxr-xr-x 3 root root 4.0K Apr 20 22:44 ..
$ kubectl apply -k alfred
namespace/home-assistant created
configmap/home-assistant-config-79257h2772 created
configmap/home-assistant-configmap created
service/home-assistant-svc created
persistentvolume/home-assistant-pv-config created
persistentvolumeclaim/home-assistant-config-root created
deployment.apps/home-assistant created
ingress.networking.k8s.io/home-assistant-nginx created
ingress.networking.k8s.io/home-assistant-tailscale created
$ kubectl get all -n home-assistant
NAME READY STATUS RESTARTS AGE
pod/home-assistant-74fc8db56f-ws6j4 1/1 Running 0 2m21s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/home-assistant-svc ClusterIP 10.99.217.239 <none> 8123/TCP 2m21s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/home-assistant 1/1 1 1 2m21s
NAME DESIRED CURRENT READY AGE
replicaset.apps/home-assistant-74fc8db56f 1 1 1 2m21s
$ kubectl get ingress -n home-assistant
NAME CLASS HOSTS ADDRESS PORTS AGE
home-assistant-nginx nginx home-assistant-alfred.very-very-dark-gray.top 192.168.0.121 80, 443 2m26s
home-assistant-tailscale tailscale * home-assistant-alfred.royal-penny.ts.net 80, 443 2m26s
$ sudo ls -lah /home/k8s/home-assistant
total 808K
drwxr-xr-x 6 root root 4.0K Apr 20 23:24 .
drwxr-xr-x 3 root root 4.0K Apr 20 23:22 ..
drwxr-xr-x 4 root root 4.0K Apr 20 23:24 blueprints
drwxr-xr-x 2 root root 4.0K Apr 20 23:24 .cloud
-rw-r--r-- 1 root root 0 Apr 20 23:23 configuration.yaml
-rw-r--r-- 1 root root 8 Apr 20 23:24 .HA_VERSION
-rw-r--r-- 1 root root 0 Apr 20 23:24 home-assistant.log
-rw-r--r-- 1 root root 0 Apr 20 23:24 home-assistant.log.1
-rw-r--r-- 1 root root 0 Apr 20 23:24 home-assistant.log.fault
-rw-r--r-- 1 root root 4.0K Apr 20 23:24 home-assistant_v2.db
-rw-r--r-- 1 root root 32K Apr 20 23:40 home-assistant_v2.db-shm
-rw-r--r-- 1 root root 741K Apr 20 23:40 home-assistant_v2.db-wal
drwxr-xr-x 2 root root 4.0K Apr 20 23:39 .storage
drwxr-xr-x 2 root root 4.0K Apr 20 23:24 tts
$ kubectl get svc -A | grep acme
home-assistant cm-acme-http-solver-7qb57 NodePort 10.103.172.33 <none> 8089:32447/TCP 0s
After less than a minute, the ACME solver is patched to listen on port 32080,
and after just about another minute the solver is gone. At that point Home Assistant
is available at both https://home-assistant-alfred.royal-penny.ts.net/ and
https://home-assistant-alfred.very-very-dark-gray.top/; ready to start the
onboarding process.
Although it should not be necessary, it is possible to restore now the original
configuration.yaml file, with the additional lines to allow traffic through
reverse proxies (under http):
# Loads default set of integrations. Do not remove.
default_config:
# Load frontend themes from the themes folder
frontend:
themes: !include_dir_merge_named themes
automation: !include automations.yaml
script: !include scripts.yaml
scene: !include scenes.yaml
http:
use_x_forwarded_for: true
trusted_proxies:
- 10.244.0.0/16
Deployment in lexicon
To test the portability of this deployment, applied it to lexicon and it
seemed to work, except for an error that shows in the logs every 30 seconds:
2025-04-21 11:14:49.560 ERROR (MainThread) [async_upnp_client.ssdp] Received error: [Errno 126] Required key not available, transport: <_SelectorDatagramTransport fd=40 read=polling write=<idle, bufsize=0>>, socket: <asyncio.TransportSocket fd=40, family=2, type=2, proto=0, laddr=('0.0.0.0', 55239)>
2025-04-21 11:15:19.561 ERROR (MainThread) [async_upnp_client.ssdp] Received error: [Errno 126] Required key not available, transport: <_SelectorDatagramTransport fd=40 read=polling write=<idle, bufsize=0>>, socket: <asyncio.TransportSocket fd=40, family=2, type=2, proto=0, laddr=('0.0.0.0', 55239)>
2025-04-21 11:15:49.561 ERROR (MainThread) [async_upnp_client.ssdp] Received error: [Errno 126] Required key not available, transport: <_SelectorDatagramTransport fd=40 read=polling write=<idle, bufsize=0>>, socket: <asyncio.TransportSocket fd=40, family=2, type=2, proto=0, laddr=('0.0.0.0', 55239)>
2025-04-21 11:16:19.562 ERROR (MainThread) [async_upnp_client.ssdp] Received error: [Errno 126] Required key not available, transport: <_SelectorDatagramTransport fd=40 read=polling write=<idle, bufsize=0>>, socket: <asyncio.TransportSocket fd=40, family=2, type=2, proto=0, laddr=('0.0.0.0', 55239)>
There are multiple threads with pretty much exactly the same error lines in the Home Assistant Community, but all of them die out with a solution other than restart Home Assistant or unplug and replug the network cable:
- 2023-01-08: Network Crashing
- 2021-11-04: HA Blue loosing connection - Network unreachable
- 2024-01-09: HA crashed with no obvious reason
- 2024-05-28: [async_upnp_client.ssdp] Received error: [Errno 101] Network unreachable
- 2025-02-07: Network failed without reason
This workaround by /u/TristanDJr (2023-01-28)
seems to embrace the unfixable nature of the issue by constantly checking for loss
of network connectivity and resetting the WiFi interface when trigged. However, these
errors persisted after rebooting the server at least twice, over several hours. And yet,
despite all those errors, Home Assistant seems to be working very well, as it was able
to automatically discover several devices in the network.
Bluetooth failed setup
The one warning Home Assistant was showing after onboarding was related to the Bluetooth controller:
Intel Corporate None (DC:21:48:43:B7:C2)
No devices or entities
Failed setup, will retry: hci0 (DC:21:48:43:B7:C2): hci0 (DC:21:48:43:B7:C2): DBus service not found; make sure the DBus socket is available: [Errno 2] No such file or directory
Making the DBus socket available in the container
by mounting /run/dbus helped a bit:
$ kubectl apply -k lexicon
namespace/home-assistant unchanged
configmap/home-assistant-config-59kccc4bcd unchanged
configmap/home-assistant-configmap unchanged
service/home-assistant-svc unchanged
persistentvolume/home-assistant-pv-config unchanged
persistentvolumeclaim/home-assistant-config-root unchanged
deployment.apps/home-assistant configured
ingress.networking.k8s.io/home-assistant-nginx unchanged
ingress.networking.k8s.io/home-assistant-tailscale unchanged
After reloading the integration, the error was different:
Failed setup, will retry: hci0 (DC:21:48:43:B7:C2): hci0 (DC:21:48:43:B7:C2): Failed to start Bluetooth: [org.freedesktop.DBus.Error.ServiceUnknown] The name org.bluez was not provided by any .service files; Try power cycling the Bluetooth hardware.
This suggests all 3 steps in the Home Assistant documentation are required, including Switching from dbus-daemon to dbus-broker and Installing BlueZ.
After this, without reloading the Bluetooth integration, it was instantely fixed and ready to use.
The same 3 steps were then to alfred so that Bluetooth setup works well when the
onboarding is done.
Protect critical plugs
A few smart plugs must never be powered off, at least not accidentally. To prevent that from happening, these can be hidden (not disabled) so they don't show in dashboards. They remain available under Settings > Devices & services, where they can still be powered off if necessary.
Home Assistant Community Store
Several of the following improvements require installing components from the HACS (Home Assistant Community Store).
This involves running the installation script from inside the pod:
$ kubectl get pods -n home-assistant
NAME READY STATUS RESTARTS AGE
home-assistant-686974fbcb-rqv9t 1/1 Running 1 (17h ago) 26h
$ kubectl exec --stdin --tty home-assistant-686974fbcb-rqv9t -n home-assistant -- /bin/bash
Once inside the pods, confirm that wget and unzip are available, then run:
lexicon:/config# wget -O install-hacs.sh https://get.hacs.xyz
Connecting to get.hacs.xyz (172.67.68.101:443)
Connecting to raw.githubusercontent.com (185.199.109.133:443)
saving to 'install-hacs.sh'
install-hacs.sh 100% |**************************************************************| 4990 0:00:00 ETA
'install-hacs.sh' saved
lexicon:/config# bash install-hacs.sh
INFO: Trying to find the correct directory...
INFO: Found Home Assistant configuration directory at '/config'
INFO: Creating custom_components directory...
INFO: Changing to the custom_components directory...
INFO: Downloading HACS
Connecting to github.com (140.82.121.4:443)
Connecting to github.com (140.82.121.4:443)
Connecting to objects.githubusercontent.com (185.199.110.133:443)
saving to 'hacs.zip'
hacs.zip 100% |**************************************************************| 18.1M 0:00:00 ETA
'hacs.zip' saved
INFO: Creating HACS directory...
INFO: Unpacking HACS...
INFO: Verifying versions
INFO: Current version is 2025.4.3, minimum version is 2024.4.1
INFO: Removing HACS zip file...
INFO: Installation complete.
INFO: Remember to restart Home Assistant before you configure it
lexicon:/config#
exit
One installed, restart Home Assistant using the power button icon at the top-right under Settings > Hardware.
How to add cards
Hello World Card explains the basics of installing and using custom cards.
To add a Resource go to Settings > Dashboards and pick Resources from the 3-dot menu in the top-right corner.
Real-time power monitoring
There is no built-in dashboard for real-time power usage, which is precisely what I need to re-implement Continuous Monitoring for TP-Link Tapo devices.
There are multiple solutions to evaluate, all of which seem to require varying degrees of crafting:
- A dashboard and used a bunch of mushrooms in concert with the sections layout with a graph of the last hour of usage.
- ha-tdv-bar shows individual power usage, but not total.
- Mini Graph Card supports showing better charts, but it does not support showing stacked graphs or making the title show the total sum of all values.
- Bubble Card is a minimalist card collection for Home Assistant with a nice pop-up touch.
- Mushroom is a collection of cards for Home Assistant Dashboard UI.
- HA COMPONENT KIT to create seamless, highly customizable interfaces for Home Assistant dashboards.
- Understand templates to elevate your game.
ha-tdv-bar
The ha-tdv-bar cards makes it very easy to show the individual power usage of multiple devices in a single card, but offers no easy way to show the total power usage across them all.
Mini Graph Card
Lovelace Mini Graph Card supports showing better charts, where power usage can be in a single graph of multiple ones, but it does not support showing stacked graphs or making the title show the total sum of all values.
Multiple cards combined
Dashboard real-time power meter with device-level detail combines Config Template Card, Custom Card Mod (Add css styles to any lovelace card), Bar Card to create a nice power consumption meter. It also leverages Virtual Energy Meters with PowerCalc to create virtual sensors to monitor estimated power usage from devices that have a constant power usage.
Real Time Device Power Meter for Home Assistant
explains pretty well how to make this, including the creation of virtual sensors to
account for power usage from devices without actual sensors. This involves creating a
few YAML files directly in the Home Assistant /config directory (and then restarting
Home Assistant to pick them up).
Create the directory /home/k8s/home-assistant/templates/sensors/ to store the
virtual sensors and update configuration.yaml to load files from it:
default_config:
# Load frontend themes from the themes folder
frontend:
themes: !include_dir_merge_named themes
automation: !include automations.yaml
script: !include scripts.yaml
scene: !include scenes.yaml
http:
use_x_forwarded_for: true
trusted_proxies:
- 10.244.0.0/16
template:
- sensor: !include_dir_merge_list templates/sensors/
Then create a virtual sensor all_power with the aggregate sum of all power sensors:
- name: all_power
unique_id: all_power
unit_of_measurement: W
device_class: power
state_class: measurement
state: >-
{{
states('sensor.mystrom_device_power')|float(0)
+ states('sensor.homelab_current_consumption')|float(0)
+ states('sensor.dell_1908fpc_current_consumption')|float(0)
+ states('sensor.bed_heater_current_consumption')|float(0)
+ states('sensor.bedlamp_current_consumption')|float(0)
}}
At this point it is necessary to restart Home Assistant, or at least reload YAML files.
Note
Home Assistant may fail to reload YAML files or restart due to references in
configuration.yaml to non-existant files; this can be easily solved by creating
those files: touch automations.yaml scripts.yaml scenes.yaml.
Once YAML files are reloaded, a new virtual sensor all_power should be available
to create cards with it, e.g. a gauge:
type: gauge
min: 0
entity: sensor.all_power
name: Current Electricity Usage
max: 500
needle: true
severity:
green: 0
yellow: 100
red: 400
unit: W
Entity is currently unavailable: sensor.all_power
Sometimes the new entity becomes unavailable. This appears to go away after a few seconds, or a full Home Assistant restart, without leaving any clue in the logs.
Combined with the previous cards (ha-tdv-bar and Mini Graph Card) this all comes together to offer a useful overview:
A better bar card
For a better bar card, install the Custom Card Mod manually and then add this card to the dashboard:
Custom template card for individual power usage sensors.
type: 'custom:config-template-card'
variables:
- entity: sensor.mystrom_device_power
name: Office
- entity: sensor.homelab_current_consumption
name: Homelab
- entity: sensor.dell_1908fpc_current_consumption
name: Dell 1908FPc
- entity: sensor.bed_heater_current_consumption
name: Bed heater
- entity: sensor.tv_smart_plug_power
name: TV
- entity: sensor.bedlamp_current_consumption
name: Bed lamp
entities:
# Note: this list of entities may seem redundant, but is necessary to inform
# config-template-card which entities to watch for updates.
- sensor.mystrom_device_power
- sensor.homelab_current_consumption
- sensor.dell_1908fpc_current_consumption
- sensor.bed_heater_current_consumption
- sensor.bedlamp_current_consumption
element:
type: 'custom:bar-card'
entities: |-
${ vars.filter(v => {
let ent = states[v.entity];
if(ent === undefined || ent.state === undefined) {
console.warn(`Power meter: Entity ${v.entity} not found`);
}
else if(ent.state === 'unknown') {
console.warn(`Power meter: Entity ${v.entity} state is unknown`);
}
else if(isNaN(ent.state)) {
console.warn(`Power meter: Entity ${v.entity} state is not a number`);
}
else return Number(ent.state) > 5;
}).sort((v1,v2) => states[v2.entity].state - states[v1.entity].state)}
direction: right
entity_row: true
min: 0
max: ${ Math.max(...vars.map(v => states[v.entity]).filter(e => !!e).map(e => e.state).filter(n => !isNaN(n))) }
height: 20px
stack: vertical
decimal: 0
icon: 'mdi:flash'
positions:
icon: off
indicator: outside
name: inside
value: inside
severity:
- color: '#a1a1a18a'
from: 0
to: 2
- color: '#3ea8328a'
from: 2
to: 10
- color: '#85a8328a'
from: 10
to: 50
- color: '#a8a4328a'
from: 50
to: 200
- color: '#a887328a'
from: 200
to: 500
- color: '#a867328a'
from: 500
to: 1000
- color: '#a846328a'
from: 1000
to: 3000
- color: '#a832328a'
from: 3000
to: 10000
style: |-
#states > * {
margin: 1px;
}
bar-card-name,
bar-card-value {
font-size: 0.9rem;
color: #ffffffaa;
font-weight: bold;
}
bar-card-value {
font-weight: bolder;
}
bar-card-indicator {
margin-top: 4px;
transform: scaleY(-1);
}
Todo
Find out why this doesn't work at all. It doesn't even show anything when editing the dashboard and can't even be edited afterwards, it can only be deleted.
InfluxDB
The influxdb integration makes it possible to transfer all state changes to an external InfluxDB database. This could be used to transfer all data to the InfluxDB use for Continuous Monitoring and use a similar Grafana dashboard for Continuous Monitoring for TP-Link Tapo devices.
To get started, add influxdb: to the main configuration.yaml and restart
Home Assistant, then find the InfluxDB will be available under
Settings > Devices & services. This integration cannot be configured from the UI;
instead create a new InfluxDB database home_assistant using the InfluxDB CLI,
with a retention policy of 800 days (well over 2 years):
$ influx -host localhost -port 30086 -username admin -password ''
password:
Connected to http://localhost:30086 version 1.8.10
InfluxDB shell version: 1.6
> CREATE DATABASE home_assistant
> CREATE RETENTION POLICY "800_days" ON "home_assistant" DURATION 800d REPLICATION 1
> ALTER RETENTION POLICY "800_days" on "home_assistant" DURATION 800d REPLICATION 1 DEFAULT
To start sending metrics to InfluxDB, create a configuration based on the
full configuration for 1.xx installations, without
rules to exclude or include specific entities; no need to add
filters
(by default all entities are sent to InfluxDB):
influxdb:
host: 192.168.0.6
port: 30086
database: home_assistant
username: admin
password: MY_PASSWORD
max_retries: 3
default_measurement: state
tags:
instance: prod
source: hass
component_config_glob:
sensor.*humidity*:
override_measurement: humidity
sensor.*temperature*:
override_measurement: temperature
The component_config_glob is a workaround found in forum thread
InfluxDB to store data in intervals
to replace the default measurement names, set as the unit of each entity,
(for example °C for temperature entities), with more sensible names. This is
particularly useful for those measurements with % as their unit, since that
unit is used for measurements of very different kinds such as humidity, battery level,
cpu load and storage capacity used.
Note
If the InfluxDB is reached over HTTPS the above config need to have
ssl: true and, depending on whether SSL certificates are valid or not,
also verify_ssl: true (or false).
After restarting Home Assistant metrics start flowing into new measurements into the new InfluxDB database. These can be used to create dashboards in Grafana, after adding the new database as a new InfluxDB data source.
The InfluxDB sensor allows using values from a InfluxDB database to populate a sensor state. This can be used to present statistics as Home Assistant sensors, if used with the influxdb history integration. It can also be used with an external data source. All this sound very
interesting for potential future expansions!
Persist configuration in ConfigMap
For months after deploying the above monitoring, it was observed that Home
Assistant would regularly lose the configuration and revert to its default,
leading to both the sensor.all_power entity not being available (indefinitely)
and InfluxDB no longer receiving any metrics (also indefinitely). For a long time,
The only workaround found was to revert configuration.yaml to the default,
restart Home Assistant from the web admin UI (not rebooting the node, not
restarting the deployment), then restore the configuration and restart again.
After much thinking about it (and not finding anyone anywhere ever having had the
same problem), it occurred to me that what was happening is that somehow Home
Assistant was reloading the default configuration from the ConfigMap, so the
solution was to add the configuration to that in alfred/kustomization.yaml:
Audiobookshelf
Audiobookshelf running on octavo is
probably the first service I'd miss if it becomes unavailable or unusable, and since
alfred has a roomy 2000 GB NVMe SSD, it can serve as a backup for the main
service. This does not have to be a complete copy of
Audiobookshelf on octavo
but it does need to be kept in sync with it; and this sync must be pausable and
reversable in the event of the main service becoming the secondary service for
an extended period of time.
To test the syncing strategy, Audiobookshelf on alfred will start entirely empty:
$ sudo groupadd audiobookshelf -g 117
$ sudo useradd audiobookshelf -u 117 -g 117 -s /usr/sbin/nologin
$ sudo mkdir /home/k8s/audiobookshelf
$ sudo chown -R audiobookshelf:audiobookshelf /home/k8s/audiobookshelf
$ sudo ls -hal /home/k8s/audiobookshelf
total 8.0K
drwxr-xr-x 2 audiobookshelf audiobookshelf 4.0K May 4 18:25 .
drwxr-xr-x 6 root root 4.0K May 4 18:25 ..
$ sudo mkdir /home/depot
$ sudo chown pi:pi /home/depot
$ mkdir -p /home/depot/audio/Audiobooks /home/depot/audio/Podcasts
$ ls -hal /home/depot/audio/
total 16K
drwxr-xr-x 4 pi pi 4.0K May 4 18:32 .
drwxr-xr-x 3 pi pi 4.0K May 4 18:32 ..
drwxr-xr-x 2 pi pi 4.0K May 4 18:32 Audiobooks
drwxr-xr-x 2 pi pi 4.0K May 4 18:32 Podcasts
Taking the deployment of
Audiobookshelf in octavo
as the starting point, the deployment for alfred changes only a few details:
- Change the mounting points for audio files to
/home/depot/audioin the local filesystem, because the NAS will be too far away from the final destination. - Remove the
audiobookshelf-ingressbecause this system will likely not be directly reachable from outside its network on destination, and Cloudflare Tunnel is not suitable for streaming audio. - Add
audiobookshelf-ingress-tailscalefor access through Tailscale.- Add the
nginx.ingress.kubernetes.io/websocket-servicesannotation which is required by Audiobookshelf.
- Add the
Audiobookshelf deployment on alfred
apiVersion: v1
kind: Namespace
metadata:
name: audiobookshelf
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: audiobookshelf-pv-config
namespace: audiobookshelf
spec:
storageClassName: manual
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
hostPath:
path: /home/k8s/audiobookshelf/config
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: audiobookshelf-pv-metadata
namespace: audiobookshelf
spec:
storageClassName: manual
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
hostPath:
path: /home/k8s/audiobookshelf/metadata
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: audiobookshelf-pv-audiobooks
namespace: audiobookshelf
spec:
storageClassName: manual
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
hostPath:
path: /home/depot/audio/Audiobooks
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: audiobookshelf-pv-podcasts
namespace: audiobookshelf
spec:
storageClassName: manual
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
hostPath:
path: /home/depot/audio/Podcasts
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: audiobookshelf-pv-depot-podcasts
namespace: audiobookshelf
spec:
storageClassName: manual
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
hostPath:
path: /home/depot/audio/Podcasts
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: audiobookshelf-pvc-config
namespace: audiobookshelf
spec:
storageClassName: manual
volumeName: audiobookshelf-pv-config
accessModes:
- ReadWriteOnce
volumeMode: Filesystem
resources:
requests:
storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: audiobookshelf-pvc-metadata
namespace: audiobookshelf
spec:
storageClassName: manual
volumeName: audiobookshelf-pv-metadata
accessModes:
- ReadWriteOnce
volumeMode: Filesystem
resources:
requests:
storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: audiobookshelf-pvc-audiobooks
namespace: audiobookshelf
spec:
storageClassName: manual
volumeName: audiobookshelf-pv-audiobooks
accessModes:
- ReadWriteOnce
volumeMode: Filesystem
resources:
requests:
storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: audiobookshelf-pvc-podcasts
namespace: audiobookshelf
spec:
storageClassName: manual
volumeName: audiobookshelf-pv-podcasts
accessModes:
- ReadWriteOnce
volumeMode: Filesystem
resources:
requests:
storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: audiobookshelf-pvc-depot-podcasts
namespace: audiobookshelf
spec:
storageClassName: manual
volumeName: audiobookshelf-pv-depot-podcasts
accessModes:
- ReadWriteOnce
volumeMode: Filesystem
resources:
requests:
storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: audiobookshelf
name: audiobookshelf
namespace: audiobookshelf
spec:
replicas: 1
revisionHistoryLimit: 0
selector:
matchLabels:
app: audiobookshelf
strategy:
rollingUpdate:
maxSurge: 0
maxUnavailable: 1
type: RollingUpdate
template:
metadata:
labels:
app: audiobookshelf
spec:
containers:
- image: ghcr.io/advplyr/audiobookshelf:latest
imagePullPolicy: Always
name: audiobookshelf
env:
- name: PORT
value: "13378"
ports:
- containerPort: 13378
resources: {}
stdin: true
tty: true
volumeMounts:
- mountPath: /config
name: audiobookshelf-config
- mountPath: /metadata
name: audiobookshelf-metadata
- mountPath: /audiobooks
name: audiobookshelf-audiobooks
- mountPath: /podcasts
name: audiobookshelf-podcasts
securityContext:
allowPrivilegeEscalation: false
runAsUser: 117
runAsGroup: 117
restartPolicy: Always
volumes:
- name: audiobookshelf-config
persistentVolumeClaim:
claimName: audiobookshelf-pvc-config
- name: audiobookshelf-metadata
persistentVolumeClaim:
claimName: audiobookshelf-pvc-metadata
- name: audiobookshelf-audiobooks
persistentVolumeClaim:
claimName: audiobookshelf-pvc-audiobooks
- name: audiobookshelf-podcasts
persistentVolumeClaim:
claimName: audiobookshelf-pvc-depot-podcasts
---
kind: Service
apiVersion: v1
metadata:
name: audiobookshelf-svc
namespace: audiobookshelf
spec:
type: NodePort
ports:
- port: 13388
nodePort: 31378
targetPort: 13378
selector:
app: audiobookshelf
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: audiobookshelf-ingress-tailscale
namespace: audiobookshelf
annotations:
nginx.ingress.kubernetes.io/websocket-services: audiobookshelf-svc
spec:
ingressClassName: tailscale
defaultBackend:
service:
name: audiobookshelf-svc
port:
number: 13378
tls:
- hosts:
- audiobookshelf-alfred
The apply the new deployment to start InfluxDB and Grafana:
$ kubectl apply -f alfred/audiobookshelf.yaml
namespace/audiobookshelf created
persistentvolume/audiobookshelf-pv-config created
persistentvolume/audiobookshelf-pv-metadata created
persistentvolume/audiobookshelf-pv-audiobooks created
persistentvolume/audiobookshelf-pv-podcasts created
persistentvolume/audiobookshelf-pv-depot-podcasts created
persistentvolumeclaim/audiobookshelf-pvc-config created
persistentvolumeclaim/audiobookshelf-pvc-metadata created
persistentvolumeclaim/audiobookshelf-pvc-audiobooks created
persistentvolumeclaim/audiobookshelf-pvc-podcasts created
persistentvolumeclaim/audiobookshelf-pvc-depot-podcasts created
deployment.apps/audiobookshelf created
service/audiobookshelf-svc created
ingress.networking.k8s.io/audiobookshelf-ingress-tailscale created
$ kubectl get all -n audiobookshelf
NAME READY STATUS RESTARTS AGE
pod/audiobookshelf-b49c49757-74rv5 1/1 Running 0 46s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/audiobookshelf-svc NodePort 10.108.207.194 <none> 13388:31378/TCP 46s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/audiobookshelf 1/1 1 1 46s
NAME DESIRED CURRENT READY AGE
replicaset.apps/audiobookshelf-b49c49757 1 1 1 46s
$ kubectl get ingress -n audiobookshelf
NAME CLASS HOSTS ADDRESS PORTS AGE
audiobookshelf-ingress-tailscale tailscale * audiobookshelf-alfred.royal-penny.ts.net 80, 443 52s
After nearly a minute the service is running, but the web UI is not yet available because somehow the process is having access denied to its own files:
$ klogs audiobookshelf audiobookshelf
[2025-05-04 17:10:17.354] FATAL: [Server] Unhandled rejection: [Error: EACCES: permission denied, mkdir '/metadata/logs'] {
errno: -13,
code: 'EACCES',
syscall: 'mkdir',
path: '/metadata/logs'
}
promise: Promise {
<rejected> [Error: EACCES: permission denied, mkdir '/metadata/logs'] {
errno: -13,
code: 'EACCES',
syscall: 'mkdir',
path: '/metadata/logs'
}
}
This error repeats at a very high rate and the directory is indeed empty,
because somehow the directories have been claimed by root and need to be
re-claimed by audiobookshelf:
$ sudo ls -lad /home/k8s/audiobookshelf/*
drwxr-xr-x 6 root root 4096 May 4 19:11 /home/k8s/audiobookshelf/config
drwxr-xr-x 2 root root 4096 May 4 19:11 /home/k8s/audiobookshelf/metadata
$ sudo chown -R audiobookshelf:audiobookshelf /home/k8s/audiobookshelf/
$ sudo ls -lad /home/k8s/audiobookshelf/*
drwxr-xr-x 3 audiobookshelf audiobookshelf 4096 May 4 19:11 /home/k8s/audiobookshelf/config
drwxr-xr-x 6 audiobookshelf audiobookshelf 4096 May 4 19:11 /home/k8s/audiobookshelf/metadata
After some more time, because Tailscale DNS need time to propagate, it becomes
available at https://audiobookshelf-alfred.royal-penny.ts.net, but it will be
empty because it has not yet been synced with octavo.
Audiobookshelf sync scripts
To keep alfred in sync with octavo, the trick is to copy /home/k8s/audiobookshelf
over while the service is not running; so long as the config/absdatabase.sqlite
database is copied over, Audiobookshelf on alfred will mirror exactly the status
in octavo.
Sync script: Audiobookshelf and audio from octavo
#!/bin/bash
#
# Sync specific directories from /home/nas (NAS) to /home/depot (NVMe).
# Audiobooks: active (authors).
for d in Andy.Weir Carl.Sagan Douglas.Adams James.S.A.Corey Terry.Pratchett; do
rsync -ua \
root@octavo.royal-penny.ts.net:/home/nas/public/audio/Audiobooks/$d \
/home/depot/audio/Audiobooks
done
# Podcasts: active.
for d in Linux.Matters Making.It Nextlander; do
rsync -ua \
root@octavo.royal-penny.ts.net:/home/depot/audio/Podcasts/$d \
/home/depot/audio/Podcasts/
done
# Audiobookshelf: stop, sync, start.
kubectl scale -n audiobookshelf deployment audiobookshelf --replicas=0
sleep 20
sudo rsync -ua --del \
root@octavo.royal-penny.ts.net:/home/k8s/audiobookshelf/* \
/home/k8s/audiobookshelf/
kubectl scale -n audiobookshelf deployment audiobookshelf --replicas=1
Running this hourly should provide a good mirror.
Navidrome
Navidrome would be missed too, should it
become unavailable. Following the same method as above, taking the deployment of
Navidrome in octavo
as the starting point, the deployment for alfred changes about the same details
as with Audiobookshelf:
- Change the mounting points for audio files to
/home/depot/audioin the local filesystem, because the NAS will be too far away from the final destination. - Remove the
navidrome-ingressbecause this system will likely not be directly reachable from outside its network on destination, and Cloudflare Tunnel is not suitable for streaming. - Add
navidrome-ingress-tailscalefor access through Tailscale. - Modify the
ND_BASEURLvariable to reflect the expected FQND from Tailscale.
Navidrome deployment on alfred
apiVersion: v1
kind: Namespace
metadata:
name: navidrome
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: navidrome-pv-data
namespace: navidrome
spec:
storageClassName: manual
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
hostPath:
path: /home/k8s/navidrome
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: navidrome-pv-music
namespace: navidrome
spec:
storageClassName: manual
capacity:
storage: 100Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
hostPath:
path: /home/depot/audio/Music
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: navidrome-pvc-data
namespace: navidrome
spec:
storageClassName: manual
volumeName: navidrome-pv-data
accessModes:
- ReadWriteOnce
volumeMode: Filesystem
resources:
requests:
storage: 1Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: navidrome-pvc-music
namespace: navidrome
spec:
storageClassName: manual
volumeName: navidrome-pv-music
accessModes:
- ReadWriteOnce
volumeMode: Filesystem
resources:
requests:
storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: navidrome
name: navidrome
namespace: navidrome
spec:
replicas: 1
revisionHistoryLimit: 0
selector:
matchLabels:
app: navidrome
strategy:
rollingUpdate:
maxSurge: 0
maxUnavailable: 1
type: RollingUpdate
template:
metadata:
labels:
app: navidrome
spec:
containers:
- image: deluan/navidrome:latest
imagePullPolicy: Always
name: navidrome
env:
- name: ND_BASEURL
value: "https://navidrome-alfred.royal-penny.ts.net/"
- name: ND_LOGLEVEL
value: "info"
- name: ND_SCANSCHEDULE
value: "1h"
- name: ND_SESSIONTIMEOUT
value: "24h"
ports:
- containerPort: 4533
resources: {}
stdin: true
tty: true
volumeMounts:
- mountPath: /data
name: navidrome-data
- mountPath: /music
name: navidrome-music
securityContext:
allowPrivilegeEscalation: false
runAsUser: 116
runAsGroup: 116
restartPolicy: Always
volumes:
- name: navidrome-data
persistentVolumeClaim:
claimName: navidrome-pvc-data
- name: navidrome-music
persistentVolumeClaim:
claimName: navidrome-pvc-music
---
kind: Service
apiVersion: v1
metadata:
name: navidrome-svc
namespace: navidrome
spec:
type: NodePort
ports:
- port: 4533
nodePort: 30533
targetPort: 4533
selector:
app: navidrome
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: navidrome-ingress-tailscale
namespace: navidrome
spec:
ingressClassName: tailscale
defaultBackend:
service:
name: navidrome-svc
port:
number: 4533
tls:
- hosts:
- navidrome-alfred
Before deploying Navidrome, it makes sense to also import its /data directory
from octavo, at least once if not on a regular sync:
$ sudo groupadd navidrome -g 116
$ sudo useradd navidrome -u 116 -g 116 -s /usr/sbin/nologin
$ sudo rsync -ua root@octavo.royal-penny.ts.net:/home/k8s/navidrome /home/k8s/
$ sudo chown -R navidrome:navidrome /home/k8s/navidrome
$ sudo ls -hal /home/k8s/navidrome
total 32M
drwxr-xr-x 3 navidrome navidrome 4.0K Apr 30 00:27 .
drwxr-xr-x 7 root root 4.0K May 4 22:37 ..
drwxr-xr-x 5 navidrome navidrome 4.0K Dec 23 06:09 cache
-rw-r--r-- 1 navidrome navidrome 32M Apr 30 00:25 navidrome.db
-rw-r--r-- 1 navidrome navidrome 32K May 3 23:14 navidrome.db-shm
-rw-r--r-- 1 navidrome navidrome 165K May 3 23:14 navidrome.db-wal
Then apply the deployment and allow time for Tailscale DNS to propagate.
$ kubectl apply -f alfred/navidrome.yaml
namespace/navidrome created
persistentvolume/navidrome-pv-data created
persistentvolume/navidrome-pv-music created
persistentvolumeclaim/navidrome-pvc-data created
persistentvolumeclaim/navidrome-pvc-music created
deployment.apps/navidrome created
service/navidrome-svc created
ingress.networking.k8s.io/navidrome-ingress-tailscale created
$ kubectl get all -n navidrome
NAME READY STATUS RESTARTS AGE
pod/navidrome-6f6bf7d87c-qrtz2 1/1 Running 0 25s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/navidrome-svc NodePort 10.104.114.45 <none> 4533:30533/TCP 25s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/navidrome 1/1 1 1 25s
NAME DESIRED CURRENT READY AGE
replicaset.apps/navidrome-6f6bf7d87c 1 1 1 25s
$ kubectl get ingress -n navidrome
NAME CLASS HOSTS ADDRESS PORTS AGE
navidrome-ingress-tailscale tailscale * navidrome-alfred.royal-penny.ts.net 80, 443 30s
Eventually the service is available at https://navidrome-alfred.royal-penny.ts.net
and everything works just fine. Otherwise, consider removing the contents of
/home/k8s/navidrome to let Navidrome initialize itself anew.
Conclusion
One does not simply... anything!
All this started with a fairly simple goal: run Home Assistant on a Raspberry Pi 5. Adding Kubernetes to the mix certainly adds complexity, but at the same time enables future expansion by easily adding more services later.
The choice of hardware turned out to be the least problematic part of this project, although the Raspberry Pi OS can be attributed the issues leading to troubleshooting the Kubernetes bootstrap. Installing Kubernetes v1.32.2 may be responsible for most of the other issues and complications encountered, such as Flannel troubles, trouble with the Kubernetes dashboard, MetalLB speaker, Ingress directives and possibly even more toubles with Flannel. And then Home Assistant itself had to present its own issues with reverse proxies.
On the plus side, this project has been a good test run to learn about Cloudflare Tunnel (and Cloudflare Access), Tailscale and Kustomize, all of which will be reused to setup remote access and services in the new Kubernetes homelab server with Ubuntu Server 24.04 (octavo).
