Synology DS423+ for the homelab (luggage)

SPAAAAACE!!! I like Space.

Despite all my efforts, hard drives keep filling up. Producing videos definitely does not help keeping drives from filling up and these days it's rather hard not to produce videos even accidentally. Besides that, having a single large storage unit allows making all the backups to a single place, at least once. Important data is already replicated in multiple disks and/or machines, having an additional large storage allows replacing one of those copies and thus alleviating disk pressure.

Hardware

The machine of choice has been a Synology DiskStation DS423+ with, for now, just 3x 12TB WD Red Plus Internal NAS HDD 3.5" in a RAID 5 configuration, which provides ~20 TB of usable space. This is about tripple the amount of space needed right now, but those disks were on offer and, according to WD's product brief they should be mostly quiet.

Memory expansion

Performance of this NAS may be improved by adding third-party memory like the CT4G4SFS8266, although based on the community database from the Synology RAM Megathread it may be problematic, a better option reportedly being M471A5244CB0-CTD although this one seems harder to find. For now, this seems unnecessary.

Hardware transcoding

Hardware transcoding should be possible with Jellyfin on Docker as well as with Plex Media Server. Then again, this will likely not be necessary, since there is a much more capable server to run these services on.

Future of hard-drive compatiblity

As reported by Tom's Hardware just two days ago:

Quote

Synology's new Plus Series NAS systems, designed for small and medium enterprises and advanced home users, can no longer use non-Synology or non-certified hard drives and get the full feature set of their device. Instead, Synology customers will have to use the company's self-branded hard drives. While you can still use non-supported drives for storage, Hardwareluxx [machine translated] reports that you’ll lose several critical functions, including estimated hard drive health reports, volume-wide deduplication, lifespan analyses, and automatic firmware updates. The company also restricts storage pools and provides limited or zero support for third-party drives.

This sounds pretty bad, but the situation is not so dire just yet, as reported by NAS Compares:

Quote

There will be no changes for Plus models released up to and including 2024 (excluding the XS Plus series and rack models). Furthermore, migrating hard drives from existing Synology NAS to a new Plus model will continue to be possible without restrictions. The use of compatible and unlisted hard drives will be subject to certain restrictions in the future, such as pool creation and support for issues and failures caused by the use of incompatible storage media. Volume-wide deduplication, lifespan analysis, and automatic hard drive firmware updates will only be available for Synology hard drives in the future. Tight integration of Synology NAS systems and hard drives reduces compatibility issues and increases system reliability and performance. At the same time, firmware updates and security patches can be deployed more efficiently, ensuring a high level of data security and more efficient support for Synology customers.

It would seems building a NAS setup right now is just about the best time, as it would soon become no longer possible or supported, but by the time the current disks start failing it should be possible to replace them with the same brand of disks (not creating new volumes) and it should still be possible to even migrate them to a new NAS.

However, given the increasing degree of vendor lock-in going on with Synology, the next NAS may well be a custom-built FreeNAS or, possibly better, openmediavault, which might as well run on the Kubernetes servers in the meantime.

Basic Setup

Find the IP address assigned to the NAS and add it in /etc/hosts with a fun name, then open its port 5000 over plain HTTP, e.g. https://luggage:5001/

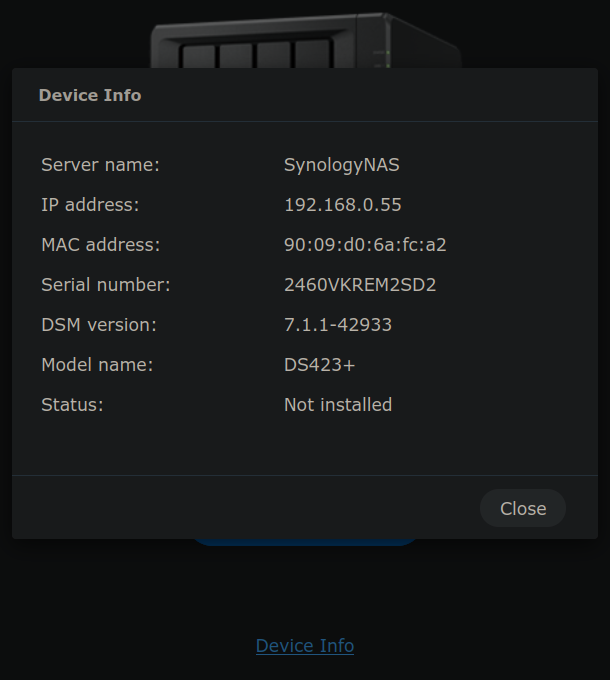

After checking Device Info, the first (apparently not optional) step is to upgrade the DSM software to the latest version, which as of now is Version: 7.2.2-72806 Update 3 from 2025-02-04. The update process takes up to 10 minutes to complete, in fact it finished in less than 5.

Setup an admin account with a non-obvious admin name and a very long and strong passwword, then select the option to be notified about DSM updates, to retain control over which updates are installed and when.

Skip the options to create a Synology Account and install Synology apps, these can be revisited later. Skip also all the options to enable 2FA and MFA for now; this NAS will not be exposed externally.

Storage Pool and Volume

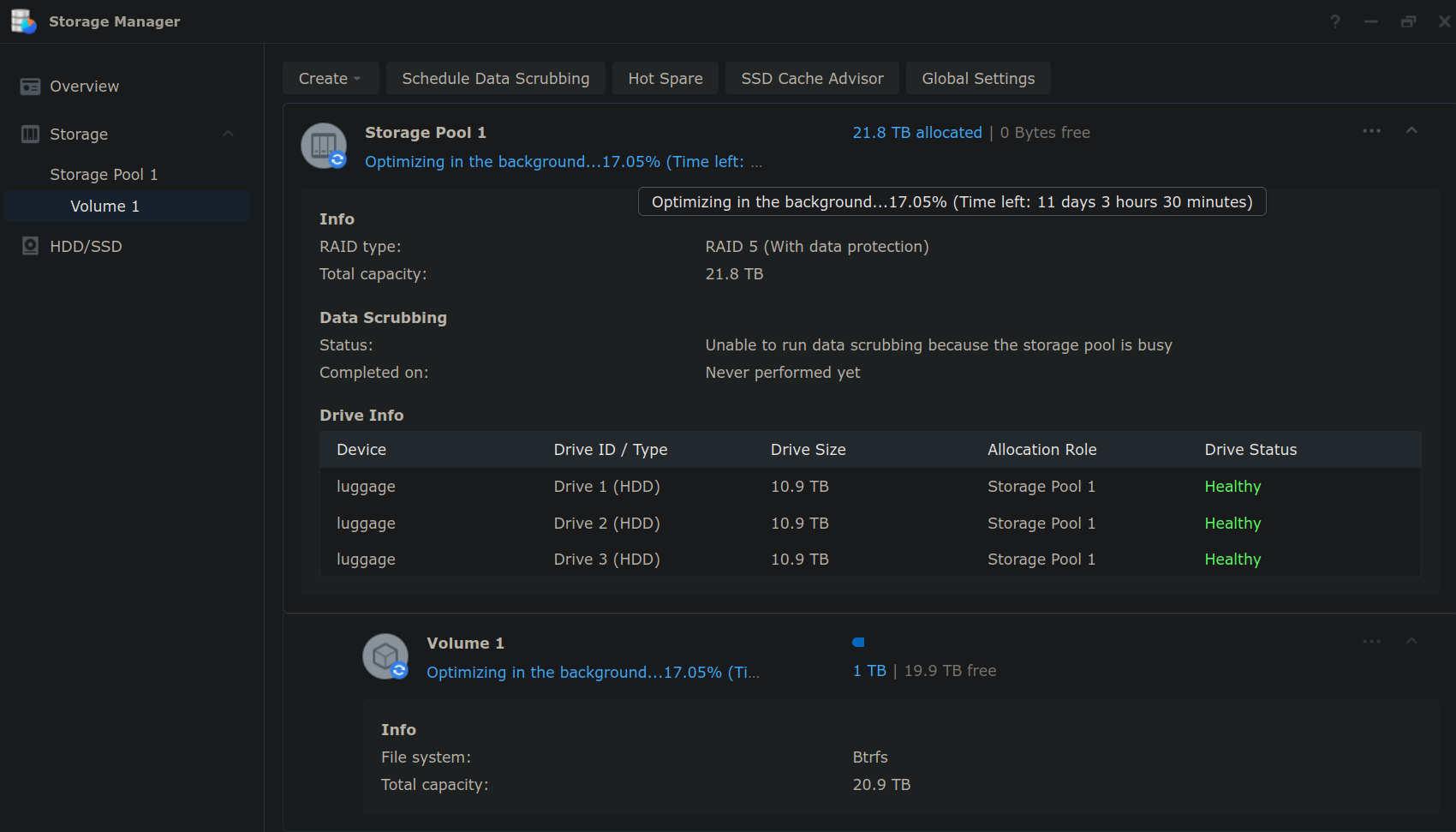

Create a RAID 5 volume with the 3 disks available; they show up with only 10.9TB of usage capacity, so the volume would have 21.8TB of capacity. Set the volume capacity to the Max value (22331 GB) and formated as Btrfs.

Leave the volume unencrypted, there is no need here to compromise performance, but above all this should allow recovering data by moving these disks to another NAS or even a PC, as it was the case years ago with the previous Synology NAS that died with 4x 1TB disks in it (about 15 years ago).

The volume is now healthy, with a background job Optimizing in the background that initially estimates about 21 hours but then updates it's ETA to 11 days once the volume has about 1 TB in it.

Advanced Setup

File Services

SMB Service is enabled by default. Although this may be useful, there are no plans to use it. At the very least, one should change the workgroup name. The services that would be more useful in this homelab environment would be NFS and Rsync.

NFS

Enable NFS service under File Services in the Control Panel. Then, add NFS permissions to actually allow access, to either specific IPs or all (*), to mount NFS volumes. Install nfs-common and mount the shared folder (e.g. NetBackup) rather than the entire volume (which has no NFS permissions):

$ sudo apt install nfs-common

$ sudo mount -t nfs luggage:/volume1/ /mnt/
mount.nfs: access denied by server while mounting luggage:/volume1/

$ sudo mount -t nfs luggage:/volume1/NetBackup /mnt/
$ sudo ls /mnt/ -lah
total 4.0K
drwxr-xr-x 1 root   root    22 Apr 18 17:05 .
drwxr-xr-x 1 root   root   132 Apr 18 16:13 ..

To mount the NAS after each restart, add a line in /etc/fstab with the default options:

luggage:/volume1/NetBackup /home/nas nfs defaults 0 0

Create the mount point and mount it to check access is granted:

# mkdir /home/nas
# mount /home/nas
# df -h | grep nas
luggage:/volume1/NetBackup   21T  1.3T   20T   6% /home/nas

When mounting for the first time, dmesg should NFS v4.1 could be used:

[37905.532214] FS-Cache: Loaded
[37905.544295] RPC: Registered named UNIX socket transport module.
[37905.544298] RPC: Registered udp transport module.
[37905.544299] RPC: Registered tcp transport module.
[37905.544299] RPC: Registered tcp NFSv4.1 backchannel transport module.
[37905.562189] FS-Cache: Netfs 'nfs' registered for caching
[37937.422623] NFS: Registering the id_resolver key type
[37937.422635] Key type id_resolver registered
[37937.422636] Key type id_legacy registered

Rsync

Enable Rsync as an alternative service, to incrementally upload files without mounting entire NFS volumes (shared folders).

Create a separate user account with a long password without special characters (!, $, etc.), so it can be used with sshpass without the shell misinterpreting the password.

Then enable the Rsync service, change the port and enable this accounts. Do not apply a speed limit.

Install sshpass and store the password in ~/.ssh/nas-secret (and chmod 600 it), this way rsync can connect without a password promt. Files can be transfered only to/from a shared folder (e.g. NetBackup) rather than the entire volume:

$ SECRET=$(cat ~/.ssh/nas-secret)
$ rsync -ahv --rsh="sshpass -p $SECRET ssh -p 2222" Music luggage:/volume1/NetBackup/
Could not chdir to home directory /var/services/homes/ponder: No such file or directory

Remote access

Cloudflare Tunnel

Cloudflare Tunnels in Alfred proved to be a good solution for making web sites externally available but still protected behind SSO with Zero Trust Web Access. Instead of installing and running cloudflared in the NAS (which should be possible), simply create a tunnel using the connector already running in the new Kubernetes homelab server (octavo).

Directly create a public hostname for this tunnel, to point https://luggage.very-very-dark-gray.top/ to the HTTPS endpoint on port 5001 using the static IP address. Make sure to enable the TLS option No TLS Verify, so the tunnel can be used without HTTPS certificates, because setting that up in the NAS isn't necessary.

Then setup Cloudflare Access by adding a new application for the new public hostname, protected by a single identity provider (e.g. Google account). While not strictly necessary, this means only a few trusted users can even reach the login page of the NAS, after passing the identity check through Cloudflare, before having a chance to try to log in.

Setup SSH

To SSH into a Synology NAS go to Terminal & SNMP under the Control Panel and Enable SSH service. Once enabled, login is available only to users in the admin group:

$ ssh -l rincewind luggage
The authenticity of host 'luggage (192.168.0.55)' can't be established.
ED25519 key fingerprint is SHA256:atWMDkF65MUI0hieTZdRChhwEVclgIaYaL491X2gGyc.
This host key is known by the following other names/addresses:
    ~/.ssh/known_hosts:140: [hashed name]
    ~/.ssh/known_hosts:141: [hashed name]
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added 'luggage' (ED25519) to the list of known hosts.
rincewind@luggage's password:

Using terminal commands to modify system configs, execute external binary
files, add files, or install unauthorized third-party apps may lead to system
damages or unexpected behavior, or cause data loss. Make sure you are aware of
the consequences of each command and proceed at your own risk.

Warning: Data should only be stored in shared folders. Data stored elsewhere
may be deleted when the system is updated/restarted.

Could not chdir to home directory /var/services/homes/rincewind: No such file or directory

This user has sudo access, which of course comes with warnings:

rincewind@luggage:/$ sudo ls -l /volume1/

We trust you have received the usual lecture from the local System
Administrator. It usually boils down to these three things:

    #1) Respect the privacy of others.
    #2) Think before you type.
    #3) With great power comes great responsibility.

Password:
total 0
drwxr-xr-x  1 root       root       120 Apr 18 10:42 @database
drwxrwxrwx+ 1 root       root        56 Apr 18 10:57 @eaDir
d---------+ 1 root       root        22 Apr 18 12:48 NetBackup
drwxr-xr-x  1 root       root        88 Apr 18 10:42 @S2S
drwxr-xr-x  1 SynoFinder SynoFinder  26 Apr 18 10:42 @SynoFinder-etc-volume
drwxr-xr-x  1 SynoFinder SynoFinder  84 Apr 18 10:42 @SynoFinder-log
drwxrwxrwt  1 root       root        40 Apr 18 10:57 @tmp
drwxr-xr-x  1 root       root        94 Apr 18 10:42 @userpreference

The warning seen above from rsync about home directory /var/services/homes/ponder not existing is due to /var/services/homes being a symlink to a non-existing file:

rincewind@luggage:/$ ls -l /var/services/homes
lrwxrwxrwx 1 root root 24 Apr 18 10:20 /var/services/homes -> /volume1/@fake_home_link

It might be possibly to change this, but the more intersting use of SSH access is to run commands as root. To do this more efficiently (without having to enter a very long password twice), it is actually possible to add SSH public keys for root:

rincewind@luggage:/$ echo 'ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQDJC+vAO4ee18xVgXIp1l4upf0UJeigD1nd4uruntVcFNfgrYo3UK0QsybYvQ+G+88Yr8GQ+oIdRUe8hz5CVMBxhf5QwQ/wdnJS+gcLNGvTqK/fq80aarRkmY+MP8XCEogVjUdTiSNY/cl7Ox7tqCLITacav94JKaMMM4oKf6pLe9rayg5wM8ycW0k0aurA2GIjCJm6eRDRhhjoiOFrBtg7hinMAfCz3Gv9UyMIhPopba2YkG4ojG9S19f8bF6kGEH7QC8C2CADatfc53lm3a+rQxbI/z5OvtYyqlJnei7DrpS0WmQF/R6jdqmVYcUIQM7gknF8YleJyhglE3FUSCA7 ponder@rapture' \
  | sudo tee -a /root/.ssh/authorized_keys

Once the key is in place, ponder can just SSH in:

[ponder@rapture ~]$ ssh root@luggage

Using terminal commands to modify system configs, execute external binary
files, add files, or install unauthorized third-party apps may lead to system
damages or unexpected behavior, or cause data loss. Make sure you are aware of
the consequences of each command and proceed at your own risk.

Warning: Data should only be stored in shared folders. Data stored elsewhere
may be deleted when the system is updated/restarted.

root@luggage:~#

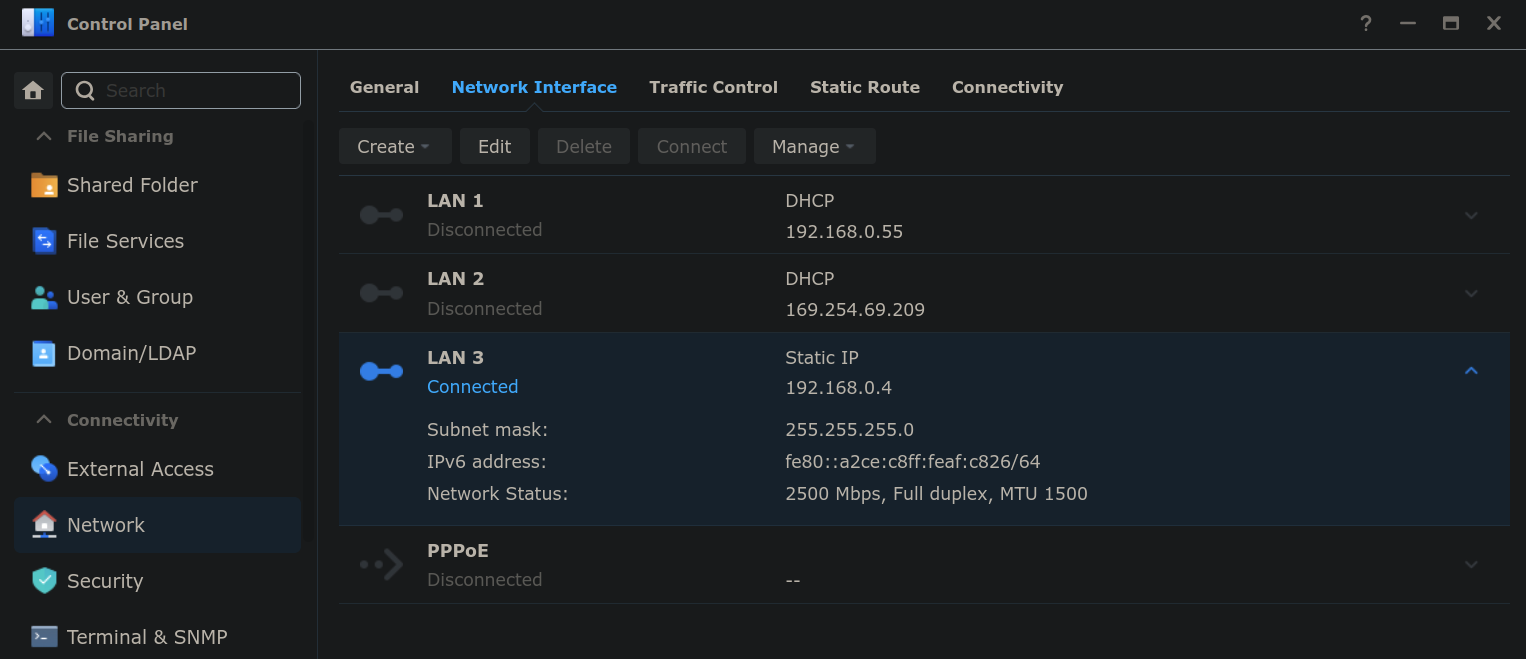

Setup 2.5G NIC

Follow these instructions, which require SSH access, download the latest 7.2 release for geminilake from the releases page and install via the Synology Package Center.

The trick is to Manual Install the drivers twice, running these commands via SSH between the first (failed) attempt and the second (which then succeeds):

root@luggage:~# install -m 4755 -o root -D /var/packages/r8152/target/r8152/spk_su /opt/sbin/spk_su
root@luggage:~# chmod a+rx /opt /opt/sbin

Rebooting the NAS was not possible because the recently created volume is still in the process of being optimized, but in any case the new RTL8152/RTL8153 driver is already running so we can already setup a static IP address on the new NIC under Network Interfaces in the Control panel, then switch the network cable to the new card (and update the PC's /etc/hosts to the static IP, if different), and after a few seconds the new card shows as Connected with a glorious 2500 Mbps:

Warning

Even if the driver starts automatically when installing it, it is still necessary to enable it so that it starts again after rebooting the NAS:

# synosystemctl enable pkgctl-r8152
# synosystemctl start pkgctl-r8152

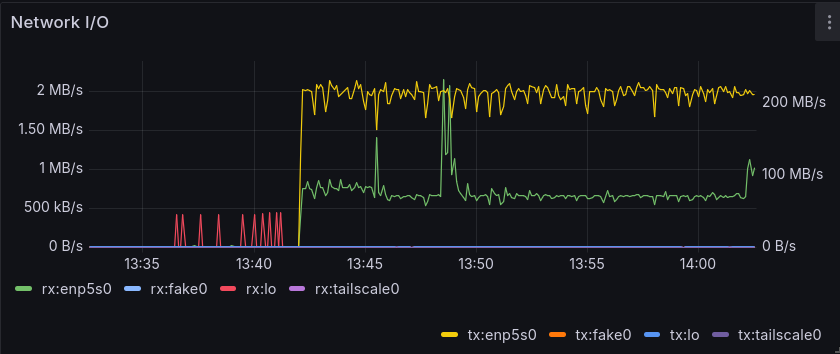

Copying the 400GB collection of Audiobooks over NFS gets the 2.5Gbps NICs to work it out!

Conclusion

The installation was easy enough, even setting up the 2.5Gbps NIC was not too painful. The worst part of this whole affair was dealing with NFS permissions not working properly at all for the first few hours.

While it is possibly to run many other applications in containers, having at least one server with much more CPU (and GPU) and RAM available already makes this point moot; better to run services in the server/s and let the NAS just be the NAS.

Appendix: WTF NFS Permissions

NFS was problematic for the first few hours, specially around permissions. It seemed there was no way to have the correct level of access to the NFS share for all users:

• root user able to create and write files, and set ownership and permissions.
• Other users (ponder and pi) able to at least read files.
• Ideally, all users able to create and write files, and set ownership and permissions.

This all eventually started working correctly, after a few hours of trying every value of Squash from two separate systems.

By default, the filesystem is owned by root by default, but directories can be created owned by other users:

$ sudo ls /mnt/ -lah
total 4.0K
drwxrwxrwx  1 root   root     24 Apr 18 11:44 .
drwxr-xr-x 24 root   root   4.0K Nov  4 00:04 ..
drwxrwxrwx  1 ponder ponder    0 Apr 18 11:44 ponder

$ sudo ls /mnt/ -lahn
total 4.0K
drwxrwxrwx  1    0    0   24 Apr 18 11:44 .
drwxr-xr-x 24    0    0 4.0K Nov  4 00:04 ..
drwxrwxrwx  1 1000 1000    0 Apr 18 11:44 ponder

However, any users other than root cannot even see what is in the mounted volume, even if files show as owned by them:

$ ls -l /home/nas
ls: cannot open directory '/home/nas': Permission denied
$ ls -ld /home/nas
drwxrwxrwx 1 root root 22 Apr 18 16:16 /home/nas

# ls -l /home/nas/
total 0
drwxr-xr-x 1 ponder ponder  5902 Apr  2 19:58 Music

For ponder and other users to actually have access to NFS mounted shares, one can allow access to all users, by setting the Squash option (for each client host) to one of the following values:

• No mapping:
  • Only root has access (read and write).
  • File ownership and permissions are visible on existing files.
  • File ownership and permissions can be set on new files.
• Map root to admin:
  • Only root has access.
  • File ownership and permissions are visible on existing files.
  • File ownership and permissions cannot be set on new files.
• Map root to guest:
  • Nobody (not even root) gets read access!
• Map all users to admin:
  • All users get read access.
  • File ownership and permissions are visible on existing files.
  • Nobody (not even root) gets write access!
• Map all users to guest:
  • Nobody (not even root) gets read access!

In short:

• No mapping is the only option that allows write access; for root only.
• Map all users to admin: is the only option that allows access to all users; read only.

The following sections include more detailed testing.

No mapping

This is the default option. As seen above:

• only root has access,
• root can set file ownership and permissons,
• nobody else can see anything.

However, at least once, this option did actually allow non-root users to write new files and create directories, and even kept file ownership and permissions!

Map root to admin

This does not grant access to any users other than root and it prevent root from setting file ownership or permissions:

# chown 1000 /home/nas/audio/test/
chown: changing ownership of '/home/nas/audio/test/': Operation not permitted

Map root to guest

This prevents even root from seeing anything inside the shared folder:

# ls -l /home/nas/audio
ls: cannot access '/home/nas/audio': Permission denied

Map all users to admin

This enable all users to read and write files in the shared folder, but permissions are set based on the admin user in the NAS (UID 1024):

$ ls -l /home/nas/
total 0
drwxr-xr-x 1 ponder ponder  5902 Apr  2 19:58 Music

$ mkdir /home/nas/test
$ ls -l /home/nas/
total 0
drwxr-xr-x 1 ponder ponder  5902 Apr  2 19:58 Music
drwxrwxrwx 1   1024 users      0 Apr 18 16:35 test

This also prevents even root from setting permissions on files and directories, just as with Map root to admin.

This doesn't prevent users from copying files into the NAS, but it does make it impossible to make a proper backup preserving file permissions and ownership:

$ rsync -uva Music /mnt/ponder/
sending incremental file list
rsync: [generator] failed to set permissions on "/mnt/ponder/.": Operation not permitted (1)
./
...

$ sudo cp -av Music/ /mnt/ponder/
cp: failed to preserve ownership for '/mnt/ponder/Music/60.Christmas.Carols.for.Kids/01 Frosty the Snowman.mp3': Operation not permitted
...

Changing ownership of files seems to be out of the question, at least when allowing access to all users. Going back to No mapping only allows root to write files with, albeit the correct permissions, but the setting is enforced per host so there is no way to have a separate NAS user can be used for read-only access.

Map all users to guest

Just as useless as Map root to guest.
