Replacing Ingress-NGINX with Pomerium

The community Ingress-NGINX controller is scheduled for retirement in March 2026, so the time comes near to replace it with either a compatible Ingress-NGINX controller or migrate to the new Gateway API. Given the relatively short migration timeline, the former promises the least friction and complexity for self-hosted, single-node clusters.

The clusters (octavo and alfred) are currently running Kubernetes version 1.32 which is will be the next one up to go End Of Life in Feb 28, 2026. Updating the cluster to Kubernetes version 1.34 would first require updating Ingress-NGINX to version 1.14 according to its Supported Versions table.

Instead, it is possible to replace Ingress-NGINX entirely with Pomerium, which serves as a direct, secure-by-default alternative that combines standard reverse proxy functionality with integrated Zero Trust identity verification.

Installation

Helm installation of Pomerium is no longer recommended for new deployments, instead use Manifests based deployment (using Kustomize) which ensures the most current Zero Trust architecture is used. This natively handles WebSockets and media streaming without the limitations found in standard NGINX setups.

Prerequisites

Besides Kubernetes v1.19.0 or higher, Pomerium Prerequisites recomends a domain space and TLS certificates. Since the cluster is already running cert-manager v1.17.2 and every subdomain of very-very-dark-gray.top is already pointing to the public IP address, it is not necessary and generally discouraged to use mkcert to create locally trusted certificates.

Deploy ingress-controller

The official documentation recommends to install Install Pomerium by deploying the (Kustomize-based) manifests directly from their GitHub repository:

$ kubectl apply -k github.com/pomerium/ingress-controller/config/default\?ref=v0.31.0

To later make modifications to the deployment (add Pebble storage for persistance) the repository can be cloned locally and pinned to the latest state release:

$ cd ~/src
$ git clone https://github.com/pomerium/ingress-controller.git
$ cd ingress-controller/
$ git checkout v0.31.3

Deploy Pomerium using its default configuration to start with:

$ cd config/default/
$ kubectl apply -k .
# Warning: 'commonLabels' is deprecated. Please use 'labels' instead. Run 'kustomize edit fix' to update your Kustomization automatically.
namespace/pomerium created
customresourcedefinition.apiextensions.k8s.io/policyfilters.gateway.pomerium.io created
customresourcedefinition.apiextensions.k8s.io/pomerium.ingress.pomerium.io created
serviceaccount/pomerium-controller created
serviceaccount/pomerium-gen-secrets created
clusterrole.rbac.authorization.k8s.io/pomerium-controller created
clusterrole.rbac.authorization.k8s.io/pomerium-gen-secrets created
clusterrolebinding.rbac.authorization.k8s.io/pomerium-controller created
clusterrolebinding.rbac.authorization.k8s.io/pomerium-gen-secrets created
service/pomerium-metrics created
service/pomerium-proxy created
deployment.apps/pomerium created
job.batch/pomerium-gen-secrets created
ingressclass.networking.k8s.io/pomerium created

Pomerium pod is running but not yet ready; it appears to be unhealthy:

$ kubectl get pods -n pomerium
NAME                         READY   STATUS      RESTARTS   AGE
pomerium-75d45cf7f8-c9tlx    0/1     Running     0          4m28s
pomerium-gen-secrets-8sx7m   0/1     Completed   0          4m28s

$ kubectl describe pod pomerium-75d45cf7f8-c9tlx -n pomerium | tail

Events:
  Type     Reason     Age                  From               Message
  ----     ------     ----                 ----               -------
  Normal   Scheduled  4m2s                 default-scheduler  Successfully assigned pomerium/pomerium-75d45cf7f8-c9tlx to octavo
  Normal   Pulling    4m2s                 kubelet            Pulling image "pomerium/ingress-controller:v0.31.3"
  Normal   Pulled     3m57s                kubelet            Successfully pulled image "pomerium/ingress-controller:v0.31.3" in 5.39s (5.39s including waiting). Image size: 101804642 bytes.
  Normal   Created    3m57s                kubelet            Created container: pomerium
  Normal   Started    3m57s                kubelet            Started container pomerium
  Warning  Unhealthy  2s (x16 over 3m47s)  kubelet            Startup probe failed: Get "http://10.244.0.167:28080/startupz": dial tcp 10.244.0.167:28080: connect: connection refused

This connection refused on port 28080 during the startup probe indicates the Pomerium Ingress Controller is waiting for its mandatory global configuration before it starts its health check listeners. The Pomerium Ingress Controller is designed to fail its health probes until it has a valid Pomerium CRD applied, which is not ready yet.

Until then, the controller is running in a loop waiting for the global settings that define its Identity Provider and internal secrets.

Pebble Storage

System requirements for Pomerium include PostgreSQL 11 or higher, but this is not necessary for a single-node cluster. Instead, a self-healing file-based databroker that embeds Pebble (the storage engine behind CockroachDB) can be used to provide persistence across restarts without the complexity of managing a full PostgreSQL instance.

Using a Manifest-based deployment, the standard Deployment can be modified into a StatefulSet to attach a PersistentVolume to the Pomerium Databroker. As has been done for previous deployments, the PersistentVolume will be using a hostPath pointing to a local directory owned by the user pomerium runs as (65532 as revealed by ps aux | grep -i pomerium).

Create the local directory with the appropriate permissions:

# mkdir -p /home/k8s/pomerium/data
# chown -R 65532:65532 /home/k8s/pomerium/
# chmod -R 750 /home/k8s/pomerium/
# ls -laR /home/k8s/pomerium/
/home/k8s/pomerium:
total 0
drwxr-x--- 1 65532 root    8 Dec 18 23:06 .
drwxr-xr-x 1 root  root  478 Dec 18 23:06 ..
drwxr-x--- 1 65532 65532   0 Dec 18 23:06 data

/home/k8s/pomerium/data:
total 0
drwxr-x--- 1 65532 65532 0 Dec 18 23:06 .
drwxr-x--- 1 65532 root  8 Dec 18 23:06 ..

Create the Local Storage manifests and kustomization.yaml in a new pomerium-overlay directory and patch the Deployment to mount the volume:

pomerium-overlay/pomerium-storage.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: pomerium-pv-data
spec:
  storageClassName: manual
  capacity:
    storage: 2Gi
  accessModes:
    - ReadWriteOnce
  persistentVolumeReclaimPolicy: Retain
  hostPath:
    path: /home/k8s/pomerium/data
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: pomerium-pvc-data
  namespace: pomerium
spec:
  storageClassName: manual
  volumeName: pomerium-pv-data
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi

pomerium-overlay/kustomization.yaml

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

resources:
  - ../../../ingress-controller/config/default
  - pomerium-storage.yaml

patches:
  - target:
      kind: Deployment
      name: pomerium
    patch: |-
      - op: add
        path: /spec/template/spec/containers/0/volumeMounts/-
        value:
          name: pomerium-data
          mountPath: /data
      - op: add
        path: /spec/template/spec/volumes/-
        value:
          name: pomerium-data
          persistentVolumeClaim:
            claimName: pomerium-pvc-data
      - op: replace
        path: /spec/strategy
        value:
          type: Recreate  # Terminates old pods before starting new ones
      - op: add
        path: /spec/template/spec/containers/0/lifecycle
        value:
          preStop:
            exec:
              # Gives the process 5 seconds to flush Pebble logs and release locks
              command: ["/bin/sh", "-c", "sleep 5"]

To avoid file lock conflicts in the Pebble database across pods, lines 25-27 set the Recreate strategy so that the running pod are shut down before starting a new one. Otherwise, Kubernetes defaults to a RollingUpdate strategy which starts a new pod before the old one is terminated, leading to a deadlock situation where the old pod still has the lock on the database, which keeps the new pod stuck as ContainersNotReady.

Lines 29-34 force graceful shutdown to let the old pod flush Pebble logs and release locks.

There are two different checks to make before applying this deployment:

1. Run kubectl kustomize pomerium-overlay to inspect that the generated deployment manifest does replace the correct values.

   Tip

   This step is particularly useful to confirm the right amount of ../ has been added in front of ingress-controller/config/default depending on where files are.

2. Run kubectl apply -k pomerium-overlay --dry-run=client to verify that kubectl finds no errors in the generated manifest.

Once the above manifests are confirmed valid, patch the deployment with it:

$ kubectl apply -k pomerium-overlay
namespace/pomerium unchanged
customresourcedefinition.apiextensions.k8s.io/policyfilters.gateway.pomerium.io unchanged
customresourcedefinition.apiextensions.k8s.io/pomerium.ingress.pomerium.io unchanged
serviceaccount/pomerium-controller unchanged
serviceaccount/pomerium-gen-secrets unchanged
clusterrole.rbac.authorization.k8s.io/pomerium-controller unchanged
clusterrole.rbac.authorization.k8s.io/pomerium-gen-secrets unchanged
clusterrolebinding.rbac.authorization.k8s.io/pomerium-controller unchanged
clusterrolebinding.rbac.authorization.k8s.io/pomerium-gen-secrets unchanged
service/pomerium-metrics unchanged
service/pomerium-proxy unchanged
persistentvolume/pomerium-pv-data created
persistentvolumeclaim/pomerium-pvc-data created
deployment.apps/pomerium configured
job.batch/pomerium-gen-secrets unchanged
ingressclass.networking.k8s.io/pomerium unchanged

Global Pomerium Settings

Pomerium CRD

Define the global settings in pomerium-settings.yaml, with spec.storage.file.path pointing to storage defined above (/data/databroker) and spec.authenticate.url pointing to the cluster's real domain to use the self-hosted identity-aware proxy, instead of the domain https://authenticate.pomerium.app which is the endpoint for Pomerium Zero (their SaaS control plane):

pomerium-settings.yaml

apiVersion: ingress.pomerium.io/v1
kind: Pomerium
metadata:
  name: global
  namespace: pomerium
spec:
  secrets: pomerium/bootstrap
  authenticate:
    url: https://authenticate.very-very-dark-gray.top:8443
  storage:
    file:
      path: /data/databroker

Using a non-standard port like 8443 mostly works, if port 443 is taken.

Applying the settings does not restart the pomerium pods, but it is now READY:

$ kubectl apply -f pomerium-settings.yaml
pomerium.ingress.pomerium.io/global created

$ kubectl get pods -n pomerium
NAME                         READY   STATUS      RESTARTS      AGE
pomerium-58bdd56668-6p5q5    1/1     Running     2 (16m ago)   36m
pomerium-gen-secrets-8sx7m   0/1     Completed   0             163m

The Pomerium Proxy service is now running in the cluster:

$ kubectl describe pomerium
Name:         global
Namespace:
Labels:       <none>
Annotations:  <none>
API Version:  ingress.pomerium.io/v1
Kind:         Pomerium
Metadata:
  Creation Timestamp:  2025-12-18T23:53:05Z
  Generation:          1
  Resource Version:    51753377
  UID:                 288ab14d-3cdc-490c-9650-cd09a463a72b
Spec:
  Authenticate:
    URL:    https://authenticate.very-very-dark-gray.top
  Secrets:  pomerium/bootstrap
  Storage:
    File:
      Path:  /data/databroker
Status:
  Settings Status:
    Observed At:          2025-12-18T23:53:06Z
    Observed Generation:  1
    Reconciled:           true
Events:
  Type     Reason      Age   From                                     Message
  ----     ------      ----  ----                                     -------
  Normal   Updated     17s   bootstrap pod/pomerium-58bdd56668-6p5q5  config updated

The connection refused on port 28080 errors are still present in the Events section, but they are now only old entries, and no more errors have been produced in the last 6 minutes:

$ kubectl describe pod pomerium-58bdd56668-6p5q5 -n pomerium | tail

Events:
  Type     Reason     Age                  From               Message
  ----     ------     ----                 ----               -------
  Normal   Scheduled  31m                  default-scheduler  Successfully assigned pomerium/pomerium-58bdd56668-6p5q5 to octavo
  Normal   Pulled     11m (x3 over 43m)    kubelet            Container image "pomerium/ingress-controller:v0.31.3" already present on machine
  Normal   Created    11m (x3 over 43m)    kubelet            Created container: pomerium
  Normal   Started    11m (x3 over 43m)    kubelet            Started container pomerium
  Normal   Killing    11m (x2 over 33m)    kubelet            Container pomerium failed startup probe, will be restarted
  Warning  Unhealthy   6m (x102 over 43m)  kubelet            Startup probe failed: Get "http://10.244.0.169:28080/startupz": dial tcp 10.244.0.169:28080: connect: connection refused

Certifiate for the auth endpoint

Without a dedicated certificate for the authenticate.very-very-dark-gray.top domain, users will see a security error when redirected here from other subdomains, because Pomerium’s Authenticate service is a separate internal "virtual route" that requires its own certificate to be explicitly defined in your global settings.

Generate a separate certificate for the authenticate domain and link it to the Pomerium global configuration CRD. First, create the certificate from auth-certificate.yaml

auth-certificate.yaml

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: pomerium-auth-cert
  namespace: pomerium
spec:
  secretName: pomerium-auth-tls
  issuerRef:
    name: letsencrypt-prod
    kind: ClusterIssuer
  commonName: authenticate.very-very-dark-gray.top
  dnsNames:
    - authenticate.very-very-dark-gray.top

Apply this manifest to crete the certificate:

$ kubectl apply -f auth-certificate.yaml

Wait for it to show READY: True via kubectl get certificate -n pomerium and then link the Certificate to Pomerium Settings by updating the Pomerium CRD to reference it:

pomerium-settings.yaml

apiVersion: ingress.pomerium.io/v1
kind: Pomerium
metadata:
  name: global
  namespace: pomerium
spec:
  secrets: pomerium/bootstrap
  authenticate:
    url: https://authenticate.very-very-dark-gray.top:8443
  certificates:
    - pomerium/pomerium-auth-tls
  storage:
    file:
      path: /data/databroker

And apply the updated settings:

kubectl apply -f pomerium-settings.yaml
pomerium.ingress.pomerium.io/global configured

Identity Provider (IdP)

Before configuring the Ingress, store credentials for the chosen provider. In this case, start with Google to authenticate @gmail.com users, create an OAuth 2.0 Client ID for Web Server Applications, obtain the client ID and secret from and store them in google-idp-secret.yaml:

google-idp-secret.yaml

apiVersion: v1
kind: Secret
metadata:
  name: idp-secret
  namespace: pomerium
type: Opaque
stringData:
  client_id: "your-google-client-id.apps.googleusercontent.com"
  client_secret: "GOCSPX-your-google-client-secret"

Note

In the Google Cloud Console, the OAuth consent screen should be set to External (Google Auth Platform > Audience) when using standard @gmail.com accounts. While the app status is Testing there is a 7-day token expiration and a 100-user limit. To increase or remove those limits, Publish app in the Console, although this is only necessary when requesting sensitive scopes beyond name, email address, and user profile.

Configure Pomerium to recognize Google as the provider and set a generous 30-day expiration for sessions:

pomerium-settings.yaml

apiVersion: ingress.pomerium.io/v1
kind: Pomerium
metadata:
  name: global
  namespace: pomerium
spec:
  cookie:
    expire: 720h
  secrets: pomerium/bootstrap
  authenticate:
    url: https://authenticate.very-very-dark-gray.top:8443
  certificates:
    - pomerium/pomerium-auth-tls
  identityProvider:
    provider: google
    secret: pomerium/idp-secret
  storage:
    file:
      path: /data/databroker

Apply the above in this order, so the secret is available for Pomerium:

$ kubectl apply -f google-idp-secret.yaml
secret/idp-secret created

$ kubectl apply -f pomerium-settings.yaml
pomerium.ingress.pomerium.io/global configured

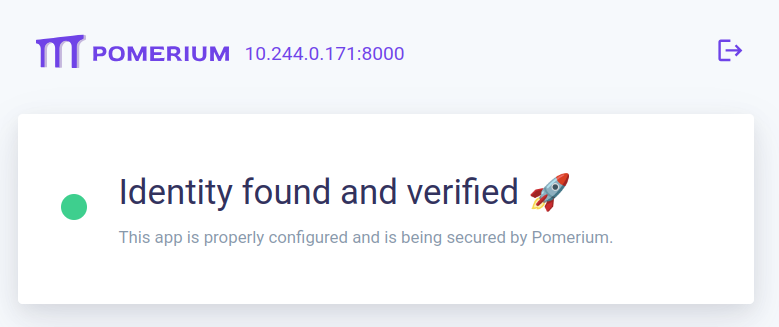

Test with Verify

To verify that the authentication and authorization flow works, use Pomerium's Test Service with an initial policy to allow only uses with @gmail.com addresses:

verify-service.yaml

apiVersion: v1
kind: Service
metadata:
  namespace: pomerium
  name: verify
  labels:
    app: verify
    service: verify
spec:
  ports:
    - port: 8000
      targetPort: 8000
      name: http
  selector:
    app: pomerium-verify
---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: pomerium
  name: verify
spec:
  replicas: 1
  selector:
    matchLabels:
      app: pomerium-verify
  template:
    metadata:
      labels:
        app: pomerium-verify
    spec:
      containers:
        - image: docker.io/pomerium/verify
          imagePullPolicy: IfNotPresent
          name: httpbin
          ports:
            - containerPort: 8000
              protocol: TCP
              name: http
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  namespace: pomerium
  name: verify
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
    ingress.pomerium.io/pass_identity_headers: true
    ingress.pomerium.io/policy: |
      - allow:
          or:
            - email:
                ends_with: "@gmail.com"
spec:
  ingressClassName: pomerium
  rules:
    - host: 'verify.very-very-dark-gray.top'
      http:
        paths:
          - pathType: Prefix
            path: /
            backend:
              service:
                name: verify
                port:
                  number: 8000
  tls:
    - secretName: tls-secret-verify
      hosts:
        - verify.very-very-dark-gray.top

Note

The ingress.pomerium.io/allowed_domains annotation and domain-based policies like 'domain: is: gmail.com' fail with @gmail.com users because Pomerium's domain check looks for an OIDC claim called hd (Hosted Domain) and @gmail.com accounts do not have an hd claim, this is only present for Google Workspace/Enterprise accounts.

Apply this manifest to start the verify service:

$ kubectl apply -f verify-service.yaml
service/verify created
deployment.apps/verify created
ingress.networking.k8s.io/verify created

Visiting https://verify.very-very-dark-gray.top:8443 now redirects to the Google login page, which redirects back to the application after the user logs in and agrees to disclose their identity to the application. When the user is authenticated with an email address that ends with @gmail.com the application grants access, although it shows an Identity verification failed due to other issues:

about Identity verification failed error page.

When accessing Pomerium through a non-standard HTTPS port (e.g. 8443), this page shows an "Identity verification failed" error:

This is because the app is unable to fetch the JWKS file due to the application assuming it must be reachable on the standard HTTPS port 443. The file is available on port 8443 and this can be verified using wget from inside the verify pod:

$ kubectl exec -it deployment/verify -n pomerium -- wget -qO- \
  https://authenticate.very-very-dark-gray.top:8443/.well-known/pomerium/jwks.json
wget: note: TLS certificate validation not implemented
{"keys":[{"use":"sig","kty":"EC","kid":"...","crv":"P-256","alg":"ES256","x":"...","y":"..."}]

If the user is denied access, e.g. logged in with an email address on a different domain, then the result is a clear 403 Forbidden page:

Additional Settings

To replace the existing Nginx-based Ingress for currently running applications, additional settings are necessary for specific purposes.

Access Control for Users

To restrict access to a concrete list of users by their email address, replace the above allow with a list of 'email: is: user@gmail.com' conditions under the or condition:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: audiobookshelf-ingress
  namespace: audiobookshelf
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
    ingress.pomerium.io/pass_identity_headers: true
    ingress.pomerium.io/policy: |
      - allow:
          or:
            - email:
                is: "alice@gmail.com"
            - email:
                is: "bob@gmail.com"

Warning

The YAML parser will fail when multiple operator ending with a colon (:) are put on a single line (email: is: "bob@gmail.com"). The correct syntax is to either put each operator ending with a colon (:) on its own line (as seen above), or to wrap the entire condition in single quotes ('email: is: "bob@gmail.com"').

API access

Each service that exposes an API, authenticated or not, needs an additional allow policy to allow traffic directed to the API, so that it bypasses Pomerium authentication and relies instead on the API's own authentication. This policy should match only requests to the APIs used by applications other than web frontends, to keep Web frontends protected by Pomerium while allowing traffic to the APIs from mobile apps, etc.

Finding the required path prefixes for each service is best done by consulting their API reference. In cases where that turns out to be not enough, Pomerium logs can be filtered for specific lines to find URL paths for those requests that are not allowed:

#!/bin/bash
# Extrat URL paths for requests going through Pomerium

pod=$(kubectl get pods -n pomerium | grep "^pomerium-.*Running" | awk '{print $1}')
echo $pod

kubectl get ingress -A | awk 'NR > 1 {print $1, $2, $3, $4}' | \
while IFS=$' ' read -r namespace name class host; do
  if [[ "$class" != "pomerium" ]]; then continue; fi
  echo  "requests to ${host} via ${name}: "
  kubectl logs "${pod}" -n pomerium \
  | grep "authority.*${host}" \
  | grep -v '"response-code":200' \
  | grep -oE '"path":"[^"]+"' \
  | cut -f4 -d'"' \
  | grep -oE '^/[^/]+' \
  | sort -u
done

Audiobookshelf

The Audiobookshelf API reference turned out not so convenient to find all the URL paths needed for the Audiobookshelf Android app, the above method of filtering Pomerium logs was needed to find the following prefixes:

metadata:
  annotations:
    ...
    ingress.pomerium.io/policy: |
      - allow:
          or:
            - http_path:
                starts_with: "/api"
            - http_path:
                starts_with: "/auth/refresh"
            - http_path:
                starts_with: "/audiobookshelf/socket.io"
            - http_path:
                starts_with: "/hls"
            - http_path:
                starts_with: "/login"
            - http_path:
                starts_with: "/public"
            - http_path:
                starts_with: "/socket.io"
            - http_path:
                starts_with: "/status"
      - allow:
          or:
            - email:

Firefly III

Firefly III includes a REST-based JSON API all under a single /v1 prefix (full reference at https://api-docs.firefly-iii.org/). The application itself is not actually in use, but that single prefix is all that would be necessary to allow if it was to be used, e.g. from a Home Assistant integration.

Grafana

Grafana HTTP API reference suggests the entire API is under /api, including authentication.

InfluxDB

InfluxDB Authentication being enabled for all exposed endpoints, similar rules are added to bypass Pomerium authentication for the relevant API paths. There is no policy to allow human users because this API is not meant to be accessed directly by users from browsers.

All the legacy InfluxDB 1.x HTTP endpoints are under the following prefixes:

metadata:
  annotations:
    ...
    ingress.pomerium.io/policy: |
      - allow:
          or:
            - http_path:
                starts_with: "/debug"
            - http_path:
                starts_with: "/ping"
            - http_path:
                starts_with: "/query"
            - http_path:
                starts_with: "/write"

Komga

The Komga eBook library exposes several API endpoints to make books accessible to eReaders and these all need to be allowed without enforcing the Gmail-based authentication:

metadata:
  annotations:
    ...
    ingress.pomerium.io/policy: |
      - allow:
          or:
            - http_path:
                starts_with: "/api"
            - http_path:
                starts_with: "/kobo"
            - http_path:
                starts_with: "/opds"
            - http_path:
                starts_with: "//sse"
      - allow:
          or:
            - email:

Home Assistant

Home Assistant hosts a WebSocket API at /api/websocket and a RESTful API at /api, which needs to be allowed for the Home Assistant mobile app. In addition to that, Home Assistant Authentication API also needs to be allowed for the Home Assistant mobile app to be able to directly authenticate against the service.

metadata:
  annotations:
    ...
    ingress.pomerium.io/policy: |
      - allow:
          or:
            - http_path:
                starts_with: "/api"
            - http_path:
                starts_with: "/auth"
      - allow:
          or:
            - email:

Jellyfin

To keep the Web UI locked by Pomerium while allowing traffic from mobile apps in, allow API paths to bypass authentication; the Jellyfin API uses a few path prefixes:

Jellyfin API reference can be downloaded from https://api.jellyfin.org/ as a JSON file and API path prefixes can be extracted from the keys in its paths[] object. This way, the full list of request path prefixes can be extracted easily:

#!/bin/bash
# Extrat request path prefixes from the Jellyfin API reference.
json=$1

jq -r '.paths | keys[]' ${json} \
| grep -oE '^/[^/]+' \
| sort -u \
| while read dir; do
cat << ___EOF___
                - http_path:
                    starts_with: "${dir}"
___EOF___
done

The list of prefixes may need to be updated when the API changes.

metadata:
  annotations:
    ...
    ingress.pomerium.io/policy: |
      - allow:
          or:
            - http_path:
                starts_with: "/api"
            - http_path:
                starts_with: "/Users/Public"
            - http_path:
                starts_with: "/System/Info/Public"
      - allow:
          or:
            - email:

Navidrome

To keep Navidrome Web UI behind Pomerium while allowing traffic from mobile apps (e.g. my favorite one, Ultrasonic), allow Subsonic API requests to bypass authentication; this requires a single path prefix:

metadata:
  annotations:
    ...
    ingress.pomerium.io/policy: |
      - allow:
          or:
            - http_path:
                starts_with: "/rest/"
      - allow:
          or:
            - email:

HTTPS backends

Some applications provide only an HTTPS endpoint and come with self-signed certificates, forcing reverse proxies to use that protocoal and skip TLS certificate validation. For these, Pomerium has policies equivalents to those NGinx provides for the same purpose:

metadata:
  annotations:
    ingress.pomerium.io/policy: |
      ...
    ingress.pomerium.io/secure_upstream: true # Support HTTPS backend
    ingress.pomerium.io/tls_skip_verify: true # Skip verification of backend certs

Previously, these services used equivalent Nginx annotations to the same effect:

metadata:
  annotations:
    ingress.pomerium.io/policy: |
      ...
    nginx.ingress.kubernetes.io/backend-protocol: HTTPS
    nginx.ingress.kubernetes.io/auth-tls-verify-client: "false"

Streaming

Applications that transfer large files, such as audio/video streaming or file-sharing applications, will require (or largely benefit from) higher CPU and Memory limits than the default. The following should be enough for 4K video and multiple concurrent streams; this can be added to the kustomization.yaml file used above to configure Pebble storage:

pomerium-overlay/kustomization.yaml

  - target:
      kind: Deployment
      name: pomerium
    patch: |-
      - op: replace
        path: /spec/template/spec/containers/0/resources
        value:
          requests:
            cpu: "500m"
            memory: "512Mi"
          limits:
            cpu: "1000m"
            memory: "1Gi"

WebSockets

For the best experience with audio and video streaming applications, Ingress for streaming services should have the timeout disabled and explicitly allow "upgrades" like WebSockets:

metadata:
  annotations:
    ingress.pomerium.io/policy: |
      ...
    # Keeps the "pipe" open even during quiet parts of a stream.
    ingress.pomerium.io/idle_timeout: 0s
    # Prevents long-running streams (like a 2-hour movie) from timing out.
    ingress.pomerium.io/timeout: 0s
    # Allow requests to be upgraded to WebSockets
    ingress.pomerium.io/allow_websockets: true

While NGINX handles WebSocket upgrades somewhat permissively, Pomerium (Envoy) is stricter regarding the Connection and Upgrade headers, especially when multiple proxies or non-standard ports are involved. Pomerium requires an explicit setting to allow Upgrades (like WebSockets) for specific routes; this is handled via the allow_websockets annotation.

Enabling WebSockets is a recommended best practice for most modern media and streaming applications, and even some non-media applications, including:

• Audiobookshelf uses WebSockets to for almost all of its "live" functionality.
• Jellyfin uses WebSockets extensively for several core features.
• Headless Steam and other gaming streaming protocols that handle low-latency video and input (Steam Remote Play, Moonlight/Sunshine, etc.) typically use WebSockets or specialized protocols to exchange encryption keys and handle input (mouse/keyboard) before the heavy UDP video stream begins.
• Home Assistant entire dashboard UI relies on a single persistent WebSocket.
• Navidrome and the Subsonic API are strictly HTTP-based and do not use WebSockets, but enabling this future-proofs against potential future real-time extensions.

Convert Ngnix Ingress to Pomerium

Copy the current Ingress and make the following changes:

• Change the ingressClassName to pomerium.

• Change the name so that both can temporarily coexist in the same namespace.

• Remove all (see note below) annotations except cert-manager.io/cluster-issuer.

• Add ingress.pomerium.io/pass_identity_headers: true to the annotations for services that will be restricted and accessed by human users.

• Add ingress.pomerium.io/preserve_host_header: true to the annotations so that Pomerium does not rewrite the Host header. This is required by certain applications (e.g. Grafana) because their backend checks request headers to enforce the same-origin policy.

  Many applications that rely on WebSockets will also need this, because they will reject the WebSocket handshake if the Origin sent by the browser does not match the Host header seen by the server.

  The UniFi Network application also requires this annotation, without it the login page fails with a generic error message asking to simply "try again later".

• Add annotations for applications that rely on HTTPS backends, streaming or WebSockets.

• Add one of

  • ingress.pomerium.io/policy to the annotations for services that require access controls for human users or API access.

  • ingress.pomerium.io/allow_public_unauthenticated_access: true to the annotations for services do not require access to be controlled by Pomerium.

    Warning

    Use with caution, e.g. only with Cloudflare Tunnels, as it enables unrestricted Public Access.

Why remove all annotations other than cert-manager.io/cluster-issuer?

The following annotations not under nginx.ingress.* are unnecessary for Pomerium:

• acme.cert-manager.io/http01-edit-in-place: true is an NGINX-specific legacy annotation that forces cert-manager to add the ACME challenge path directly to the existing Ingress instead of creating a temporary challenge ingress. Pomerium does not need this because the Pomerium Ingress Controller is designed to watch for the temporary Ingresses created by cert-manager during the HTTP-01 challenge and automatically merges those challenge paths into its routing table. Unlike early versions of NGINX, Pomerium's underlying Envoy engine can handle dynamic routing updates (adding the /.well-known/acme-challenge/ path) without reloading or needing to edit the Ingress in place.

• cert-manager.io/issue-temporary-certificate: true tells cert-manager to issue a Fake Let's Encrypt or self-signed certificate immediately, so that the Ingress has something to serve while waiting for the real Let's Encrypt certificate. Pomerium does not need this because it has a built-in Fallback CA to serve its own certificate (the "Pomerium PSK CA") when a referenced TLS secret is missing or not yet ready. Once a new TLS secret is ready, Pomerium uses Envoy's SDS (Secret Discovery Service) to hot-swap certificates; as soon as cert-manager finishes the challenge and populates the secret, Pomerium detects the update and swaps the internal certificate for the real Let's Encrypt certificate without dropping active connections or requiring a temporary placeholder.

• ingress.kubernetes.io/force-ssl-redirect: true is unnecessary with Pomerium because it automatically enforces HTTPS for all managed routes.

The following annotations under nginx.ingress.* are made unnecessary by Pomerium:

• nginx.ingress.kubernetes.io/proxy-buffer-size: 16k is not necessary because Envoy (the engine inside Pomerium) defaults to 64 KB for maximum request headers to prevent Header too large errors, especially when handling large cookies or OIDC tokens.

• nginx.ingress.kubernetes.io/websocket-services is entirely unnecessary because Pomerium handles WebSockets automatically for all routes. Unlike NGINX, Pomerium treats all HTTP traffic as potentially upgradable to WebSockets.

• nginx.ingress.kubernetes.io/whitelist-source-range: 10.244.0.0/16 is unnecessary and generally unsupported by the Pomerium Ingress Controller. NGINX relies on the assumption that if a request comes from 10.244.0.0/16 (the internal pod network), it is "safe", while Pomerium requires that every request be authenticated regardless of its origin.

Cloudflare Tunnels

In addition to the above changes, for each Ingress behind a Cloudflare Tunnel, Edit the corresponding Connectors in https://one.dash.cloudflare.com/ (under Networks) to route traffic to port 443 to the LoadBalancer IP of Pomerium, instead of that of Nginx.

Changing the name is not necessary because there is no point in having multiple Ingress in the same namespace; traffic is only ever routed to the one LoadBalancer IP set as the target for the corresponding Connector above. If the name is changed to be consistent with other Pomerium Ingress (e.g. <service-name>-pomerium-ingress), delete the old one since it won't be used:

$ kubectl delete ingress ddns-updater-nginx
ingress.networking.k8s.io "ddns-updater-nginx" deleted

Update Kustomized Ingress

Home Assistant was deployed in several clusters (alfred and lexicon, later replaced by octavo) with very similar manifests by using kustomize, so the above changes may need to be applied in different files depending on the specific structure of the manifests.

For the current Home Assistant manifests, all the above changes need to be applied in the base/ingress.yaml file, so the same migration is applied to all Home Assistant instances, while each cluster's kustomization.yaml needs only to reflect the change in the name of those Ingress that have their ingressClassName changed from nginx to pomerium.

For now, all Home Assistant instances are accessed exclusively through Cloudflare Tunnels only, so they need only ingress.pomerium.io/allow_public_unauthenticated_access: true added to their annotations.

Kustomize per-service ACLs

Most of the Additional Settings above will be fixed for each application, with only sporadic updates, but the set of people to be added as authorized users is subject to change over time, so it would be convenient to have those centralized in a single file for all the applications.

This can be done by leveraging kustomize to patch the ingress.pomerium.io/policy annotation for every application from a single file, so that authorizing a new user to access a number of applications can be quickly done by updating only that one file.

The most reliable way to achieve a setup with a global policy (with 1 admin user who is authorized to access everything) and per-application overrides in Kustomize is to use a base resource for the global policy and a patch that targets each application to replace its policy to override the list of authorized users and/or API paths.

The follow shows, as extreme examples, the least and most complex of the many applications currently running in octavo, along with a global policy that authorizes one admin user access to all applications:

• audiobookshelf requires policy overrides for both API access and human users, as well as annotations for streaming and WebSockets.
• dashboard needs only annotations for HTTPS backends.
• ddns-updater needs none of that; in fact it needs not any access control because it is only accessible through a Cloudflare Tunnel.

audiobookshelf is the only one that needs a patch on its ingress.pomerium.io/policy annotation, the others could be taken out of this kustomize setup entirely, but it also seems convenient to have all Pomerium Ingress manifests in a single place and it makes them also easier to update should they need a patch later.

pomerium-ingress/kustomization.yaml

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

resources:
  - audiobookshelf.yaml
  - dashboard.yaml
  - ddns-updater.yaml

patches:
  # Global policy (targeting all Ingress)
  - target:
      kind: Ingress
    patch: |-
      apiVersion: networking.k8s.io/v1
      kind: Ingress
      metadata:
        name: all-ingresses # Kustomize uses the target selector, this name is a placeholder
        annotations:
          ingress.pomerium.io/policy: |
            - allow:
                or:
                  - email:
                      is: "admin-user@gmail.com"

  # Override for audiobookshelf (targeting only its Ingress)
  # This patch must come after the global policy, to override it.
  - target:
      kind: Ingress
      name: audiobookshelf-pomerium-ingress
    patch: |-
      - op: replace
        path: "/metadata/annotations/ingress.pomerium.io~1policy"
        value: |
          - allow:
              or:
                - http_path:
                    starts_with: "/api"
                - http_path:
                    starts_with: "/login"
                - http_path:
                    starts_with: "/status"
          - allow:
              or:
                - email:
                    is: "admin-user@gmail.com"
                - email:
                    is: "alice@gmail.com"
                - email:
                    is: "bob@gmail.com"

pomerium-ingress/audiobookshelf.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: audiobookshelf-pomerium-ingress
  namespace: audiobookshelf
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
    ingress.pomerium.io/allow_websockets: true
    ingress.pomerium.io/idle_timeout: 0s
    ingress.pomerium.io/pass_identity_headers: true
    ingress.pomerium.io/preserve_host_header: true
    ingress.pomerium.io/timeout: 0s
spec:
  ingressClassName: pomerium
  rules:
    - host: audiobookshelf.very-very-dark-gray.top
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: audiobookshelf-svc
                port:
                  number: 13388
  tls:
    - secretName: tls-secret
      hosts:
        - audiobookshelf.very-very-dark-gray.top

pomerium-ingress/dashboard.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: dashboard-pomerium-ingress
  namespace: kubernetes-dashboard
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
    ingress.pomerium.io/pass_identity_headers: true
    ingress.pomerium.io/secure_upstream: true
    ingress.pomerium.io/tls_skip_verify: true
spec:
  ingressClassName: pomerium
  rules:
    - host: kubernetes.very-very-dark-gray.top
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: kubernetes-dashboard-kong-proxy
                port:
                  number: 443
  tls:
    - secretName: tls-secret
      hosts:
        - kubernetes.very-very-dark-gray.top

pomerium-ingress/ddns-updater.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ddns-updater-pomerium-ingress
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
    ingress.pomerium.io/allow_public_unauthenticated_access: true
spec:
  ingressClassName: pomerium
  rules:
    - host: ddns-updater.very-very-dark-gray.top
      http:
        paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name: ddns-updater-svc
              port:
                name: "http"
  tls:
    - hosts:
        - ddns-updater.very-very-dark-gray.top
      secretName: tls-secret

Applying the above setup will create (or update) all the Pomerium Ingress at once:

$ kubectl apply -k pomerium-ingress
ingress.networking.k8s.io/audiobookshelf-pomerium-ingress created
ingress.networking.k8s.io/dashboard-pomerium-ingress created
ingress.networking.k8s.io/ddns-updater-pomerium-ingress created

By having both the global policy and the overrides in the patches list, Kustomize applies them sequentially, so that each application-specific patch overrides the global policy in the first patch. This is more reliable and easier to work with than commonAnnotations which is a "global transformer" and rather difficult to override because it applies to everything in the final build.

Final Traffic Migration

Once all services have a Pomerium Ingress and are reachable on their assigned FQDN on port 8443, move traffic on port 443 over to the new Pomerium Ingress:

1. Confirm the UniFi router and access points have their inform URL set to the LoadBalancer IP of the UniFi Network application, which will not change.
   • UniFi access points accessible through SSH can be easily checked: the IP address is in the cfg/mgmt file, under variablesmgmt.servers.1.url and mgmt_url.
2. Log into the UniFi Network application at port 8443 on its LoadBalancer IP (e.g. https://192.168.0.173:8443/)
3. Update port forwarding rules on the router to point port 443 to the LoadBalancer IP of Pomerium, and 8443 to Nginx, i.e. the opposite as the current setup.
4. Remove :8443 from the authenticate.url in pomerium-settings.yaml (and apply).

Clean-up retired Nginx Ingress

Once all the traffic has been migrated and there is no need for Nginx ingresses, they can be deleted with this script:

delete-nginx-ingress.sh

#!/bin/bash
# Find and delete Nginx Ingress

kubectl get ingress -A | awk 'NR > 1 {print $1, $2, $3}' | \
while IFS=$' ' read -r namespace name class; do
  if [[ "$class" != "nginx" ]]; then continue; fi
  echo -e "\nRemoving ${name} from ${namespace}: "
  kubectl get ingress "${name}" -n "${namespace}"
  kubectl delete ingress "${name}" -n "${namespace}"
done

Result from running delete-nginx-ingress.sh.

$ delete-nginx-ingress

Removing audiobookshelf-ingress from audiobookshelf:
NAME                     CLASS   HOSTS                     ADDRESS         PORTS     AGE
audiobookshelf-ingress   nginx   audiobookshelf.very-very-dark-gray.top   192.168.0.171   80, 443   239d
ingress.networking.k8s.io "audiobookshelf-ingress" deleted

Removing code-server-ingress from code-server:
NAME                  CLASS   HOSTS                            ADDRESS         PORTS     AGE
code-server-ingress   nginx   code.very-very-dark-gray.top   192.168.0.171   80, 443   237d
ingress.networking.k8s.io "code-server-ingress" deleted

Removing firefly-iii-ingress from firefly-iii:
NAME                  CLASS   HOSTS                           ADDRESS         PORTS     AGE
firefly-iii-ingress   nginx   firefly.very-very-dark-gray.top   192.168.0.171   80, 443   237d
ingress.networking.k8s.io "firefly-iii-ingress" deleted

Removing komga-ingress from komga:
NAME            CLASS   HOSTS                  ADDRESS         PORTS     AGE
komga-ingress   nginx   komga.very-very-dark-gray.top   192.168.0.171   80, 443   239d
ingress.networking.k8s.io "komga-ingress" deleted

Removing jellyfin-ingress from media-center:
NAME               CLASS   HOSTS                          ADDRESS         PORTS     AGE
jellyfin-ingress   nginx   jellyfin.very-very-dark-gray.top   192.168.0.171   80, 443   238d
ingress.networking.k8s.io "jellyfin-ingress" deleted

Removing grafana-ingress from monitoring:
NAME              CLASS   HOSTS                   ADDRESS         PORTS     AGE
grafana-ingress   nginx   grafana.very-very-dark-gray.top   192.168.0.171   80, 443   240d
ingress.networking.k8s.io "grafana-ingress" deleted

Removing influxdb-ingress from monitoring:
NAME               CLASS   HOSTS                         ADDRESS         PORTS     AGE
influxdb-ingress   nginx   influxdb.very-very-dark-gray.top   192.168.0.171   80, 443   240d
ingress.networking.k8s.io "influxdb-ingress" deleted

Removing navidrome-ingress from navidrome:
NAME                CLASS   HOSTS                              ADDRESS         PORTS     AGE
navidrome-ingress   nginx   navidrome.very-very-dark-gray.top   192.168.0.171   80, 443   239d
ingress.networking.k8s.io "navidrome-ingress" deleted

Removing ryot-ingress from ryot:
NAME           CLASS   HOSTS                          ADDRESS         PORTS     AGE
ryot-ingress   nginx   ryot.very-very-dark-gray.top   192.168.0.171   80, 443   187d
ingress.networking.k8s.io "ryot-ingress" deleted

Removing steam-headless-ingress from steam-headless:
NAME                     CLASS   HOSTS                          ADDRESS         PORTS     AGE
steam-headless-ingress   nginx   steam.very-very-dark-gray.top   192.168.0.171   80, 443   149d
ingress.networking.k8s.io "steam-headless-ingress" deleted

Removing unifi-ingress from unifi:
NAME            CLASS   HOSTS                       ADDRESS         PORTS     AGE
unifi-ingress   nginx   unifi.very-very-dark-gray.top   192.168.0.171   80, 443   236d
ingress.networking.k8s.io "unifi-ingress" deleted

Tailscale

The Tailscale Kubernetes operator does not depend on the NGINX Ingress Controller.

Creating an Ingress with ingressClassName: tailscale, the operator provisions its own dedicated Tailscale proxy pods. Traffic from the tailnet goes directly to these Tailscale proxy pods, which then route it to the backend services. It does not pass through an NGINX ingress unless manually configured a "funnel" to do so. The Tailscale operator handles its own TLS certificate management (via Let's Encrypt and MagicDNS), independent of NGINX or cert-manager.

Custom domains with Kubernetes Gateway API and Tailscale may be desirable in the future, but it requires Envoy Gateway (Helm) and ExternalDNS to be installed first, plus a few more requirement that seem less straight-forward. To be revisited.

Migrate Let's Encrypt solvers

Another use of the Ingress class nginx is made by the Let's Encrypt HTTP-01 solvers to obtain and renew HTTPS certificates.

Activating HTTP-01 solvers at this point will still use Ingress-NGINX, because cert-manager was originally setup to use its ingress class nginx:

cert-manager-issuer.yaml

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-prod
spec:
  acme:
    server: https://acme-v02.api.letsencrypt.org/directory
    privateKeySecretRef:
      name: letsencrypt-prod
    solvers:
      - http01:
          ingress:
            class: nginx

If Ingress-NGINX is uninstalled at this point, new HTTP-01 solvers will fail, because they'll attempt to create a temporary Ingress with the class: nginx annotation, which no longer has an active controller to fulfill it.

In other environments it may be possible to transition certificate renewals to Pomerium, but Pomerium running in Kubernetes is not able to route requests to port 80 to the HTTP-01 solvers, it can only redirect to port 443 instead.

Switch to DNS-01 solvers

The better alternative is to switch cert-manager to DNS-01 solvers, which do not require external requests to reach internal services, so it can be used to obtain certificates even for internal-only services that are not externally reachable.

While CloudFlare DNS are supported by a native cert-manager driver, Porkbun is supported for DNS-01 challenges only via webhook solvers, so one must install an external webhook to bridge the Porkbun API with cert-manager. One such option is Porkbun Webhook for cert-manager; install this via Helm into the cert-manager namespace:

$ helm repo add cert-manager-webhook-porkbun \
  https://talinx.github.io/cert-manager-webhook-porkbun
"cert-manager-webhook-porkbun" has been added to your repositories

$ helm install cert-manager-webhook-porkbun \
  cert-manager-webhook-porkbun/cert-manager-webhook-porkbun \
  -n cert-manager \
  --set groupName=uu.am
NAME: cert-manager-webhook-porkbun
LAST DEPLOYED: Fri Jan 16 23:30:55 2026
NAMESPACE: cert-manager
STATUS: deployed
REVISION: 1
NOTES:
Porkbun cert-manager Webhook
Create an issuer and a certificate to issue a certificate for a domain.

$ helm get values cert-manager-webhook-porkbun -n cert-manager
USER-SUPPLIED VALUES:
groupName: uu.am

Create a ClusterRole and ClusterRoleBinding to allow the cert-manager controller to access the Porkbun webhook's API:

cert-manager-issuer-rbac.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: cert-manager-webhook-porkbun:domain-solver
rules:
  - apiGroups:
      - uu.am          # must match webhook's groupName
    resources:
      - porkbun        # must match webhook's solverName
    verbs:
      - create
      - get
      - list
      - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: cert-manager-webhook-porkbun:domain-solver
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cert-manager-webhook-porkbun:domain-solver
subjects:
  - kind: ServiceAccount
    name: cert-manager
    namespace: cert-manager

$ kubectl apply -f cert-manager-issuer-rbac.yaml
Warning: resource clusterroles/cert-manager-webhook-porkbun:domain-solver is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
clusterrole.rbac.authorization.k8s.io/cert-manager-webhook-porkbun:domain-solver configured
Warning: resource clusterrolebindings/cert-manager-webhook-porkbun:domain-solver is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-webhook-porkbun:domain-solver configured

While HTTP-01 solvers work independently of domain name, DNS-01 solvers are specific to each domain name if they are managed by different DNS providers. In this case, one domain is managed by Porkbun while another is managed by Cloudflare.

For CloudFlare, to allow cert-manager to perform DNS-01 challenges, create a scoped API token in the Cloudflare Dashboard:

1. Navigate to My Profile (top right corner) and select API Tokens.
2. Click Create Token.
3. Select the Edit zone DNS template.
4. Configure the following Permissions:
   • Zone > DNS > Edit
   • Zone > Zone > Read
5. Under Zone Resources, select Include and choose the specific zones this token should manage (e.g., very-very-dark-gray.top).
6. Click Continue to summary, then Create Token.
7. Copy the token immediately; it will only be displayed once.

Create also a porkbun API key, or re-use the one already created for ddns-updater, and store all the above in two Kubernetes secrets within the cert-manager namespace:

cert-manager-issuer-dns-secrets.yaml

apiVersion: v1
stringData:
  PORKBUN_API_KEY: PORKBUN_API_KEY
  PORKBUN_SECRET_API_KEY: PORKBUN_SECRET_API_KEY
kind: Secret
metadata:
  name: porkbun-secret
  namespace: cert-manager
type: Opaque
---
apiVersion: v1
stringData:
  CLOUDFLARE_API_TOKEN: CLOUDFLARE_API_TOKEN
kind: Secret
metadata:
  name: cloudflare-secret
  namespace: cert-manager
type: Opaque

$ kubectl apply -f cert-manager-issuer-dns-secrets.yaml
secret/porkbun-secret created
secret/cloudflare-secret created

Update ClusterIssuer to use the native CloudFlare and the Porkbun webhook solvers; these replaces the http01 section completely (thus bypassing Pomerium redirects). The ClusterIssuer configuration needs two separate dns01 solvers, one for each DNS provider:

cert-manager-issuer-dns-secrets.yaml

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-prod
spec:
  acme:
    server: https://acme-v02.api.letsencrypt.org/directory
    email: root@uu.am
    privateKeySecretRef:
      name: letsencrypt-prod
    solvers:
      - selector:
          dnsZones:
            - uu.am
        dns01:
          webhook:
            groupName: uu.am
            solverName: porkbun
            config:
              apiKey:
                key: PORKBUN_API_KEY
                name: porkbun-secret
              secretApiKey:
                key: PORKBUN_SECRET_API_KEY
                name: porkbun-secret
      - selector:
          dnsZones:
            - very-very-dark-gray.top
        dns01:
          cloudflare:
            apiTokenSecretRef:
              name: cloudflare-secret
              key: CLOUDFLARE_API_TOKEN

$ kubectl apply -f cert-manager-issuer.yaml
clusterissuer.cert-manager.io/letsencrypt-prod configured

To test the new DNS solvers, add an Ingress under each domain for a simple service (e.g. ddns-updater) to trigger the creation of a certificate under each one:

pomerium/pomerium-ingress/ddns-updater.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ddns-updater-pomerium-ingress
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
spec:
  ingressClassName: pomerium
  rules:
    - host: ddns-updater.uu.am
      http:
        paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name: ddns-updater-svc
              port:
                name: "http"
    - host: ddns-updater.very-very-dark-gray.top
      http:
        paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name: ddns-updater-svc
              port:
                name: "http"
  tls:
    - hosts:
        - ddns-updater.uu.am
      secretName: tls-secret-uu-am
    - hosts:
        - ddns-updater.very-very-dark-gray.top
      secretName: tls-secret-cloudflare

A few minutes after applying these to Pomerium, both certificates should be READY:

$ kubectl get certificate
NAME                    READY   SECRET                  AGE
tls-secret-cloudflare   True    tls-secret-cloudflare   14m
tls-secret-uu-am        True    tls-secret-uu-am        14m

Uninstall Ingress-NGINX

After all the above migrations and consideration, the time finally comes to remove Ingress-NGINX entirely:

$ helm uninstall ingress-nginx -n ingress-nginx
release "ingress-nginx" uninstalled

$ kubectl get all -n ingress-nginx
NAME                                           READY   STATUS        RESTARTS       AGE
pod/ingress-nginx-controller-b49d9c7b9-w26hb   1/1     Terminating   20 (17h ago)   258d

After a minute or so, there should be nothing left in the ingress-nginx namespace, and the ingress-nginx-admission should be no longer found as one of the active validatingwebhookconfiguration:

$ kubectl get all -n ingress-nginx
No resources found in ingress-nginx namespace.

$ kubectl get validatingwebhookconfigurations
NAME                                                  WEBHOOKS   AGE
cert-manager-webhook                                  1          258d
inteldeviceplugins-validating-webhook-configuration   7          255d
metallb-webhook-configuration                         6          258d
prom-kube-prometheus-stack-admission                  2          19d

There are actually a few resources left in the namespace:

$ kubectl get \
  -n ingress-nginx \
  $(kubectl api-resources --namespaced=true --verbs=list -o name | tr '\n' ',' | sed 's/,$//')
NAME                         DATA   AGE
configmap/kube-root-ca.crt   1      258d

NAME                             TYPE     DATA   AGE
secret/ingress-nginx-admission   Opaque   3      258d

NAME                     SECRETS   AGE
serviceaccount/default   0         258d

NAME                                             HOLDER                                     AGE
lease.coordination.k8s.io/ingress-nginx-leader   ingress-nginx-controller-b49d9c7b9-w26hb   258d

These are all safe to remove:

• configmap/kube-root-ca.crt is a standard Kubernetes resource automatically injected into every namespace. it contains the public certificate for the cluster's Certificate Authority (CA) so pods can verify the API server.
• secret/ingress-nginx-admission is a certificate used by the Validating Admission Webhook. It secured the communication that allowed the API server to ask NGINX "Is this new Ingress rule valid?" before saving it. Since the webhook configuration itself is gone, this certificate is orphaned and useless.
• serviceaccount/default is the default identity for pods in this namespace.
• lease.coordination.k8s.io/ingress-nginx-leader is a lock used by NGINX-ingress for "leader election". It ensures that when running multiple replicas of the ingress controller, only one acts as the "leader" to handle tasks like updating status fields on Ingress objects. It is a small, lightweight object that has no purpose without the NGINX pods. Helm often fails to delete these because they are created dynamically by the application at runtime rather than being part of the manifest.

Since all these resources are either orphaned (lease, secret) or boilerplate (configmap, serviceaccount), the cleanest and most efficient action is to delete the entire namespace:

$ kubectl delete namespace ingress-nginx
namespace "ingress-nginx" deleted

Appendix: updating Pomerium

To update Pomerium, check the official documentation to Install Pomerium for the URL it recommends to deploy from, e.g.

$ kubectl apply -k github.com/pomerium/ingress-controller/config/default\?ref=v0.32.0

Go back to the local copy of the pomerium/ingress-controller repository, pull updates and check that branch out:

$ git status
HEAD detached at v0.31.3
nothing to commit, working tree clean

$ git pull
remote: Enumerating objects: 70, done.
remote: Counting objects: 100% (24/24), done.
remote: Compressing objects: 100% (11/11), done.
remote: Total 70 (delta 14), reused 13 (delta 13), pack-reused 46 (from 1)
Unpacking objects: 100% (70/70), 151.32 KiB | 968.00 KiB/s, done.
From https://github.com/pomerium/ingress-controller
 * [new branch]      0-32-0                -> origin/0-32-0
 * [new branch]      cagocs/release-script -> origin/cagocs/release-script
   a93102d..338ba7f  main                  -> origin/main
 * [new tag]         v0.32.0               -> v0.32.0
You are not currently on a branch.
Please specify which branch you want to merge with.
See git-pull(1) for details.

    git pull <remote> <branch>

$ git checkout v0.32.0
Previous HEAD position was 14de0a0 prepare for v0.31.3 release (#1286)
HEAD is now at d9e3e06 Customize ingress controller v0.32.0

Now go back to the pomerium-overlay directory created to deploy Pebble storage and apply it again; check first with kubectl kustomize that the new image will be pulled:

$ kubectl kustomize pomerium-overlay | grep 'image:'
# Warning: 'commonLabels' is deprecated. Please use 'labels' instead. Run 'kustomize edit fix' to update your Kustomization automatically.
        image: pomerium/ingress-controller:v0.32.0
        image: pomerium/ingress-controller:main

After applying the change, Pomerium will be running the new version:

$ kubectl apply -k pomerium-overlay
# Warning: 'commonLabels' is deprecated. Please use 'labels' instead. Run 'kustomize edit fix' to update your Kustomization automatically.
namespace/pomerium unchanged
customresourcedefinition.apiextensions.k8s.io/policyfilters.gateway.pomerium.io unchanged
customresourcedefinition.apiextensions.k8s.io/pomerium.ingress.pomerium.io configured
serviceaccount/pomerium-controller unchanged
serviceaccount/pomerium-gen-secrets unchanged
clusterrole.rbac.authorization.k8s.io/pomerium-controller unchanged
clusterrole.rbac.authorization.k8s.io/pomerium-gen-secrets unchanged
clusterrolebinding.rbac.authorization.k8s.io/pomerium-controller unchanged
clusterrolebinding.rbac.authorization.k8s.io/pomerium-gen-secrets unchanged
service/pomerium-metrics unchanged
service/pomerium-proxy unchanged
persistentvolume/pomerium-pv-data unchanged
persistentvolumeclaim/pomerium-pvc-data unchanged
deployment.apps/pomerium configured
job.batch/pomerium-gen-secrets unchanged
ingressclass.networking.k8s.io/pomerium unchanged

$ kubectl -n pomerium describe pod | grep 'Image:'
    Image:         pomerium/ingress-controller:v0.32.0

Appendix: alfred migration

Same setup can be applied to alfred, which has all services behind either Tailscale or CloudFlare, with the following changes.

Alfred Pomerium CRD

While octavo was moved to a different domain, configured with ddns-updater to route external traffic directly through the router to Pomerium, alfred is behind a router that does not allow routing external traffic via port forwarding. This means, while Pomerium in octavo has authenticate.url pointing to that other domain, alfred needs Pomerium CRD to have authenticate.url pointing to the domain that is setup with CloudFlare.

$ kubectl apply -f pomerium-settings-alfred.yaml
pomerium.ingress.pomerium.io/global configured

Alfred Certifiate for the auth endpoint

Similarly, a dedicated certificate for the authenticate.very-very-dark-gray.top domain must be created, with the domain setup behind CloudFlare:

$ kubectl apply -f auth-certificate-alfred.yaml
certificate.cert-manager.io/pomerium-auth-cert created

Alfred CloudFlare hostnames

Because alfred is only reachable through the CloudFlare tunnel, additional hostnames have to be added in CloudFlare to make the authenticate.very-very-dark-gray.top route

• HTTP (port 80) requests to /.well-known to the cm-acme-http-solver service port, typically http://localhost:32080
• HTTP (port 80) requests to the IP LoadBalancer IP address given to the pomerium-proxy service.

$ kubectl get svc -n pomerium
NAME                        TYPE           CLUSTER-IP       EXTERNAL-IP     PORT(S)                                    AGE
cm-acme-http-solver-t6zdh   NodePort       10.101.209.98    <none>          8089:32080/TCP                             13m
pomerium-metrics            ClusterIP      10.104.197.212   <none>          9090/TCP                                   25m
pomerium-proxy              LoadBalancer   10.105.126.132   192.168.0.154   443:31936/TCP,443:31936/UDP,80:31514/TCP   25m

Without the route to port 80, the pomerium-auth-tls certificate won't become READY.

$ kubectl get certificate -n pomerium
NAME                 READY   SECRET              AGE
pomerium-auth-cert   False   pomerium-auth-tls   7m25s

Once the setup is ready in CloudFlare, it may take some time for alfred to pick up the new DNS records.

Alfred Identity Provider (IdP)

Again, alfred needs its own credentials for Google to authenticate @gmail.com users; create an OAuth 2.0 Client ID for Web Server Applications, obtain the client ID and secret from and store them in google-idp-secret-alfred.yaml:

$ kubectl apply -f google-idp-secret-alfred.yaml
secret/idp-secret created

Alfred test with Verify

At this point Pomerium should be ready to test with Verify, but first additional CloudFlare hostnames must be setup to route requests to the verify. subdomain on ports 80 and 443. Once those are ready, and the new certificate is READY too, applying the same verify-service.yaml manifest get the application ready at https://verify.very-very-dark-gray.top.

Alfred Additional Settings

Additional Settings can be copied directly for those services running in alfred based on their counterparts in octavo, simply copying the pomerium-ingress to Kustomize per-service ACLs as a new directory (e.g. alfred-ingress); removing the files for services not running, updating the FQDN for the services running in alfred behind CloudFlare tunnels, and applying the directory:

$ kubectl apply -k alfred-ingress
ingress.networking.k8s.io/audiobookshelf-pomerium-ingress created
ingress.networking.k8s.io/home-assistant-pomerium-ingress created
ingress.networking.k8s.io/dashboard-pomerium-ingress created
ingress.networking.k8s.io/grafana-pomerium-ingress created

$ kubectl get ingress -A | grep pomerium
audiobookshelf         audiobookshelf-pomerium-ingress          pomerium         arkham-library.very-very-dark-gray.top          192.168.0.154                               80, 443   62s
home-assistant         home-assistant-pomerium-ingress          pomerium         home-assistant-alfred.very-very-dark-gray.top   192.168.0.154                               80, 443   22s
kubernetes-dashboard   dashboard-pomerium-ingress               pomerium         kubernetes-alfred.very-very-dark-gray.top       192.168.0.154                               80, 443   62s
monitoring             grafana-pomerium-ingress                 pomerium         bat-signal.very-very-dark-gray.top              192.168.0.154                               80, 443   62s

At this point the hostnames in CloudFlare can be updated to route requests to the LoadBalancer IP of the Pomerium service and that should complete the migration.

Alfred Let's Encrypt solvers

Alfred cert-manager also must switch to DNS-01 solvers before uninstalling Ingress-NGINX. Since the setup is exactly the same as in Octavo, the same manifests can be applied without any changes.

$ helm repo add cert-manager-webhook-porkbun \
  https://talinx.github.io/cert-manager-webhook-porkbun
"cert-manager-webhook-porkbun" has been added to your repositories

$ helm install cert-manager-webhook-porkbun \
  cert-manager-webhook-porkbun/cert-manager-webhook-porkbun \
  -n cert-manager \
  --set groupName=uu.am
NAME: cert-manager-webhook-porkbun
LAST DEPLOYED: Sat Jan 17 21:27:45 2026
NAMESPACE: cert-manager
STATUS: deployed
REVISION: 1
NOTES:
Porkbun cert-manager Webhook
Create an issuer and a certificate to issue a certificate for a domain.

$ kubectl apply -f cert-manager-issuer-dns-secrets.yaml
secret/porkbun-secret created
secret/cloudflare-secret created

$ kubectl apply -f cert-manager-issuer-rbac.yaml
Warning: resource clusterroles/cert-manager-webhook-porkbun:domain-solver is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
clusterrole.rbac.authorization.k8s.io/cert-manager-webhook-porkbun:domain-solver configured
Warning: resource clusterrolebindings/cert-manager-webhook-porkbun:domain-solver is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-webhook-porkbun:domain-solver configured

$ kubectl apply -f cert-manager-issuer.yaml
Warning: resource clusterissuers/letsencrypt-prod is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
clusterissuer.cert-manager.io/letsencrypt-prod configured

Alfred clean-up

Ingress-NGINX was installed in alfred using the nginx-baremetal.yaml manifest from kubernetes/ingress-nginx so the recommended method to uninstall it is to delete all those resources, since a few of them will not be deleted when deleting the ingress-nginx namespace:

$ kubectl delete -f nginx-baremetal.yaml
namespace "ingress-nginx" deleted
serviceaccount "ingress-nginx" deleted
serviceaccount "ingress-nginx-admission" deleted
role.rbac.authorization.k8s.io "ingress-nginx" deleted
role.rbac.authorization.k8s.io "ingress-nginx-admission" deleted
clusterrole.rbac.authorization.k8s.io "ingress-nginx" deleted
clusterrole.rbac.authorization.k8s.io "ingress-nginx-admission" deleted
rolebinding.rbac.authorization.k8s.io "ingress-nginx" deleted
rolebinding.rbac.authorization.k8s.io "ingress-nginx-admission" deleted
clusterrolebinding.rbac.authorization.k8s.io "ingress-nginx" deleted
clusterrolebinding.rbac.authorization.k8s.io "ingress-nginx-admission" deleted
configmap "ingress-nginx-controller" deleted
service "ingress-nginx-controller" deleted
service "ingress-nginx-controller-admission" deleted
deployment.apps "ingress-nginx-controller" deleted
job.batch "ingress-nginx-admission-create" deleted
job.batch "ingress-nginx-admission-patch" deleted
ingressclass.networking.k8s.io "nginx" deleted
validatingwebhookconfiguration.admissionregistration.k8s.io "ingress-nginx-admission" deleted

This takes a few minutes, after which the following test should find nothing left:

$ kubectl get \
  -n ingress-nginx \
  $(kubectl api-resources --namespaced=true --verbs=list -o name | tr '\n' ',' | sed 's/,$//')
No resources found in ingress-nginx namespace.

Finally, the ingress-nginx namespace can be deleted:

$ kubectl delete namespace ingress-nginx
namespace "ingress-nginx" deleted

Appendix: streaming support

Cloudflare Tunnels does not support or allow audio streaming on its Free plan, as it prohibits using its CDN (which Tunnels use by default) to serve a "disproportionate percentage" of audio files or other large media unless you are using a dedicated paid service like Cloudflare Stream or R2. Neither of those are actually suitable for self-hosted web-based audio streaming applications like Audiobookshelf or Navidrone; the closest match would be to offload storage of media files to Cloudflare R2 and then point those applications to that off-site storage. Not a great setup, specially since billing is based on the storage capacity rqeuired for the entire catalog, while only a portion of it is typically needed for listening.

Discarding VPN-based solutions and Cloudflare-like tunnels, other solutions that offer improved security over exposing applications directly on the HTTPS port on a public IP address via Ingress-NGINX, could be one of the following Identity-Aware Proxies (IAP) to move from Passive Security (opening a port and hoping SSL/TLS is enough) to Active Zero-Trust Security, where access is denied until identity is verified at the network edge; users must first authenticate against a specialized "gatekeeper" service.

• Pomerium: A high-performance, Layer 7 reverse proxy that requires authentication (via Google, GitHub, or OIDC) before a request ever reaches your Audiobookshelf server. It treats your local app as if it were behind a corporate Zero-Trust wall.
• Authentik: A feature-rich identity provider that can act as a frontend for almost any app. It allows you to enforce Multi-Factor Authentication (MFA) and specific device posture checks before granting access to your audio library.
• Authelia: A lightweight alternative to Authentik that integrates directly with existing reverse proxies like Nginx or Traefik to provide a unified login portal with 2FA.

Pomerium Ingress Controller was chosen because it can entirely replace Ingress-NGINX.
