Self-hosted Photo library with Immich

Immich is a self-hosted photo and video management solution that should make it easy to browse, search and organize photos and videos with ease, without sacrificing privacy. This could be a better solution than the less flexible cloud-based services for a family with multiple photographers and very diverse degrees of organizational discipline.

Deployment

Immich requires a Postgres database with VectorChord, which can be more easily managed via the CloudNativePG operator.

CloudNativePG operator

To support creation of a Postgres cluster, install the CloudNativePG Operator using CloudNativePG Helm Charts with the values below to enable CRDs and Prometheous monitoring:

cnpg-values.yaml

# Automatically install and upgrade the operator CRDs along with the chart.
# This ensures easy updates for future Immich schema adjustments.
crds:
  create: true

monitoring:
  podMonitorEnabled: true

resources:
  limits:
    cpu: "1"
    memory: 512Mi
  requests:
    cpu: 100m
    memory: 128Mi

$ helm repo add cnpg https://cloudnative-pg.github.io/charts
"cnpg" has been added to your repositories

$ helm repo update
Hang tight while we grab the latest from your chart repositories...
...
...Successfully got an update from the "cnpg" chart repository
...
Update Complete. ⎈Happy Helming!⎈

$ helm upgrade --install \
  cnpg cnpg/cloudnative-pg \
  --namespace cnpg-system \
  --create-namespace \
  -f cnpg-values.yaml
Release "cnpg" does not exist. Installing it now.
NAME: cnpg
LAST DEPLOYED: Mon Jun  8 17:31:00 2026
NAMESPACE: cnpg-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
CloudNativePG operator should be installed in namespace "cnpg-system".
You can now create a PostgreSQL cluster with 3 nodes as follows:

cat <<EOF | kubectl apply -f -
# Example of PostgreSQL cluster
apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
  name: cluster-example

spec:
  instances: 3
  storage:
    size: 1Gi
EOF

kubectl get -A cluster

$ kubectl get all -n
cnpg-systemNAME                                       READY   STATUS    RESTARTS   AGE
pod/cnpg-cloudnative-pg-6767d4cccf-sj46n   1/1     Running   0          12s

NAME                           TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)   AGE
service/cnpg-webhook-service   ClusterIP   10.100.97.45   <none>        443/TCP   12s

NAME                                  READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/cnpg-cloudnative-pg   1/1     1            1           12s

NAME                                             DESIRED   CURRENT   READY   AGE
replicaset.apps/cnpg-cloudnative-pg-6767d4cccf   1         1         1       12s

Immich Database

With the operator managed by Helm, create a Postgres cluster by applying the following specialized cluster manifest. This specifically pulls the AI image bundled with VectorChord (cloudnative-vectorchord), which is required by Immich, maps the state onto the Longhorn NVMe class with 2 replicas, and loads the required vector libraries straight into database memory at boot:

immich-db.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: immich
---
apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
  name: immich-postgres
  namespace: immich
spec:
  instances: 2
  imageName: ghcr.io/tensorchord/cloudnative-vectorchord:16-0.3.0

  # Native array listing placed directly under postgresql to preload the binaries
  postgresql:
    shared_preload_libraries:
      - "vchord.so"
    parameters:
      shared_buffers: "512MB"
      work_mem: "32MB"
      maintenance_work_mem: "128MB"
      max_connections: "100"

  storage:
    size: 20Gi
    storageClass: longhorn-nvme

  # Bootstraps the system and injects the schema extensions at birth
  bootstrap:
    initdb:
      database: immich
      owner: immich_admin
      secret:
        name: immich-db-credentials
      # Executes the required SQL to activate the engine natively on initialization.
      postInitSQL:
        - "ALTER ROLE immich_admin WITH SUPERUSER;"
        - "CREATE EXTENSION IF NOT EXISTS vchord CASCADE;"
      postInitApplicationSQL:
        - "ALTER ROLE immich_admin WITH SUPERUSER;"
---
apiVersion: v1
kind: Secret
metadata:
  name: immich-db-credentials
  namespace: immich
type: Opaque
stringData:
  username: immich_admin
  password: ******************************************
Need to make immich_admin WITH SUPERUSER or Immich crashes.

During the startup sequence, the Immich database connection driver attempts to drop the extension (DROP EXTENSION IF EXISTS vchord CASCADE;) to handle its internal table tracking, and then issue a raw CREATE EXTENSION command. Because CloudNativePG intentionally connects the application container using a standard, unprivileged role (immich_admin) rather than a dangerous SUPERUSER role, PostgreSQL blocks the action and returns 42501: permission denied error.

Why use specifically version 16-0.3.0?

The tag 16-0.3.0 explicitly stands for PostgreSQL Major Version 16 coupled with VectorChord Version 0.3.0.

When deploying Immich, selecting the PostgreSQL major version is not about chasing the highest integer (like PG 17 or 18); it is about matching what the current Immich codebase is tested against and ships with natively in its standard deployment pipelines.

  • Immich's Core Engine Target: Immich heavily binds its core SQL optimizations, backend query compilers, and backup tools to specific PostgreSQL releases. Using PG 17 or 18 when the current stable layer of Immich targets PG 16 can lead to database startup syntax errors, missing migration variables, or fatal runtime mismatches.
  • Major Upgrades in CNPG: In CloudNativePG, upgrading the major database engine version (e.g., from 16 to 17) requires a formal, semi-automated PostgreSQL Upgrade Job (pg_upgrade). You cannot simply change the tag in a production cluster from 16-x to 17-x; doing so will corrupt the transaction write-ahead logs (WAL) and block the pod initialization sequence completely.
  • How to Pick the True Latest Stable Release: To upgrade safely or target the exact latest release matching the ecosystem, use the official TensorChord Image Registry to check tag patterns. The version string tag logic uses this format: [PostgreSQL-Major-Version]-[VectorChord-Version].

Apply this database cluster map to the environment:

$ kubectl apply -f immich-db.yaml
namespace/immich created
cluster.postgresql.cnpg.io/immich-postgres created
secret/immich-db-credentials created

$ kubectl get all -n immich
NAME                                 READY   STATUS     RESTARTS   AGE
pod/immich-postgres-1-initdb-9p5k9   0/1     Init:0/1   0          14s

NAME                         TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
service/immich-postgres-r    ClusterIP   10.108.153.64    <none>        5432/TCP   15s
service/immich-postgres-ro   ClusterIP   10.101.128.165   <none>        5432/TCP   15s
service/immich-postgres-rw   ClusterIP   10.100.22.151    <none>        5432/TCP   15s

NAME                                 STATUS    COMPLETIONS   DURATION   AGE
job.batch/immich-postgres-1-initdb   Running   0/1           14s        14s

Track the native setup of database instances using:

$ kubectl get cluster -n immich immich-postgres -w
NAME              AGE   INSTANCES   READY   STATUS               PRIMARY
immich-postgres   4s    1                   Setting up primary
immich-postgres   22s   1                   Setting up primary
immich-postgres   22s   1                   Setting up primary
immich-postgres   22s   1                   Waiting for the instances to become active
immich-postgres   30s   1                   Waiting for the instances to become active   immich-postgres-1
immich-postgres   39s   1           1       Waiting for the instances to become active   immich-postgres-1
immich-postgres   39s   1           1       Waiting for the instances to become active   immich-postgres-1
immich-postgres   39s   1           1       Creating a new replica                       immich-postgres-1
immich-postgres   39s   2           1       Creating a new replica                       immich-postgres-1
immich-postgres   66s   2           1       Waiting for the instances to become active   immich-postgres-1
immich-postgres   86s   2           2       Waiting for the instances to become active   immich-postgres-1
immich-postgres   86s   2           2       Cluster in healthy state                     immich-postgres-1
immich-postgres   86s   2           2       Cluster in healthy state                     immich-postgres-1

Once the cluster switches to Cluster in healthy state, database foundation is complete.

With the Helm-managed CloudNativePG operator and database clusters fully primed for high-efficiency vector queries, the system is now ready to deploy the Immich application.

Immich App

The following manifest deploys the modern Immich stack, including:

  • Immich Server handling web routing, internal logic, and Pomerium ingress
  • Immich Machine Learning powering facial recognition, object detection, and VectorChord embedding tasks, and
  • an isolated Redis instance for job queue synchronization.

immich-app.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: immich-redis
  namespace: immich
spec:
  replicas: 1
  selector:
    matchLabels:
      app: immich-redis
  template:
    metadata:
      labels:
        app: immich-redis
    spec:
      containers:
        - name: redis
          image: redis:6.2-alpine
          resources:
            limits:
              cpu: 500m
              memory: 256Mi
            requests:
              cpu: 100m
              memory: 64Mi
---
apiVersion: v1
kind: Service
metadata:
  name: immich-redis-service
  namespace: immich
spec:
  selector:
    app: immich-redis
  ports:
    - protocol: TCP
      port: 6379
      targetPort: 6379
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: immich-machine-learning
  namespace: immich
spec:
  replicas: 1
  selector:
    matchLabels:
      app: immich-machine-learning
  template:
    metadata:
      labels:
        app: immich-machine-learning
    spec:
      containers:
        - name: machine-learning
          image: ghcr.io/immich-app/immich-machine-learning:release
          env:
            - name: TRANSFORMERS_CACHE
              value: /cache
          volumeMounts:
            - name: ml-cache
              mountPath: /cache
          resources:
            limits:
              cpu: "2"
              memory: 2Gi
            requests:
              cpu: 500m
              memory: 512Mi
      volumes:
        - name: ml-cache
          emptyDir: {}
---
apiVersion: v1
kind: Service
metadata:
  name: immich-machine-learning-service
  namespace: immich
spec:
  selector:
    app: immich-machine-learning
  ports:
    - protocol: TCP
      port: 3003
      targetPort: 3003
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: ponder-fotos-pv
  namespace: immich
spec:
  storageClassName: manual
  capacity:
    storage: 2500Gi
  accessModes:
    - ReadOnlyMany
  csi:
    driver: nfs.csi.k8s.io
    volumeHandle: luggage-ponder-fotos-nfs-octavo
    volumeAttributes:
      server: luggage
      share: /volume1/NetBackup
      subDir: public/ponder/Fotos
  mountOptions:
    - nfsvers=4.1
    - hard
  persistentVolumeReclaimPolicy: Retain
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: ponder-fotos-pvc
  namespace: immich
spec:
  storageClassName: manual
  accessModes:
    - ReadOnlyMany
  resources:
    requests:
      storage: 2500Gi
  volumeName: ponder-fotos-pv
  volumeMode: Filesystem
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: immich-server
  namespace: immich
spec:
  replicas: 1
  selector:
    matchLabels:
      app: immich-server
  template:
    metadata:
      labels:
        app: immich-server
    spec:
      containers:
        - name: server
          image: ghcr.io/immich-app/immich-server:release
          env:
            - name: NODE_ENV
              value: production
            - name: DB_USERNAME
              valueFrom:
                secretKeyRef:
                  name: immich-db-credentials
                  key: username
            - name: DB_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: immich-db-credentials
                  key: password
            - name: DB_HOSTNAME
              value: immich-postgres-rw.immich.svc.cluster.local
            - name: DB_DATABASE_NAME
              value: immich
            - name: REDIS_HOSTNAME
              value: immich-redis-service.immich.svc.cluster.local
            - name: IMMICH_MACHINE_LEARNING_URL
              value: http://immich-machine-learning-service:3003
          ports:
            - containerPort: 2283
              name: http
          volumeMounts:
            - name: immich-upload-storage
              mountPath: /usr/src/app/upload
            - name: nfs-nas-photos
              mountPath: /mnt/nas/photos
              readOnly: true
          resources:
            limits:
              cpu: "2"
              memory: 2Gi
            requests:
              cpu: 500m
              memory: 512Mi
      volumes:
        - name: immich-upload-storage
          persistentVolumeClaim:
            claimName: immich-upload-pvc
        - name: nfs-nas-photos
          persistentVolumeClaim:
            claimName: ponder-fotos-pvc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: immich-upload-pvc
  namespace: immich
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: longhorn-nvme
  resources:
    requests:
      storage: 100Gi
---
apiVersion: v1
kind: Service
metadata:
  name: immich-server-service
  namespace: immich
spec:
  selector:
    app: immich-server
  ports:
    - protocol: TCP
      port: 80
      targetPort: 2283

Instead of pointing to a static IP or generic service, this deployment uses immich-postgres-rw.immich.svc.cluster.local. This is a dynamic, high-availability service maintained by the CloudNativePG operator. It always automatically maps write traffic straight to the active primary node.

The NFS volume specification enforces a strict read-only lock (readOnly: true). This ensures that no matter what tasks Immich runs (such as generating metadata, calculating embeddings, or compiling AI face points), it cannot alter, modify, or delete a single file on the NAS volume.

$ kubectl apply -f immich-app.yaml
deployment.apps/immich-redis created
service/immich-redis-service created
deployment.apps/immich-machine-learning created
service/immich-machine-learning-service created
persistentvolume/ponder-fotos-pv created
persistentvolumeclaim/ponder-fotos-pvc created
deployment.apps/immich-server created
persistentvolumeclaim/immich-upload-pvc created
service/immich-server-service created

$ kubectl -n immich get all
NAME                                           READY   STATUS    RESTARTS   AGE
pod/immich-machine-learning-5557f5ff5c-5pxhr   1/1     Running   0          56s
pod/immich-postgres-1                          1/1     Running   0          4m39s
pod/immich-postgres-2                          1/1     Running   0          3m55s
pod/immich-redis-f6fc5d779-gnnkp               1/1     Running   0          56s
pod/immich-server-7999ddf7f4-4sqjt             1/1     Running   0          56s

NAME                                      TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
service/immich-machine-learning-service   ClusterIP   10.103.107.241   <none>        3003/TCP   56s
service/immich-postgres-r                 ClusterIP   10.96.79.68      <none>        5432/TCP   5m1s
service/immich-postgres-ro                ClusterIP   10.102.55.30     <none>        5432/TCP   5m1s
service/immich-postgres-rw                ClusterIP   10.97.132.130    <none>        5432/TCP   5m1s
service/immich-redis-service              ClusterIP   10.97.1.237      <none>        6379/TCP   56s
service/immich-server-service             ClusterIP   10.100.161.54    <none>        80/TCP     56s

NAME                                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/immich-machine-learning   1/1     1            1           56s
deployment.apps/immich-redis              1/1     1            1           56s
deployment.apps/immich-server             1/1     1            1           56s

NAME                                                 DESIRED   CURRENT   READY   AGE
replicaset.apps/immich-machine-learning-5557f5ff5c   1         1         1       56s
replicaset.apps/immich-redis-f6fc5d779               1         1         1       56s
replicaset.apps/immich-server-7999ddf7f4             1         1         1       56s

Once the Immich app is running, it produces lots of details in its logs:

$ kubectl logs -n immich -f deployment/immich-server -c server -f
$ kubectl logs -n immich -f deployment/immich-server -c server -f
Initializing Immich v2.7.5
Detected CPU Cores: 2
(node:7) ExperimentalWarning: WASI is an experimental feature and might change at any time
(Use `node --trace-warnings ...` to show where the warning was created)
Starting api worker
Starting microservices worker
(node:7) ExperimentalWarning: WASI is an experimental feature and might change at any time
(Use `node --trace-warnings ...` to show where the warning was created)
[Nest] 7  - 06/08/2026, 4:50:48 PM     LOG [Microservices:WebsocketRepository] Initialized websocket server
(node:24) ExperimentalWarning: WASI is an experimental feature and might change at any time
(Use `node --trace-warnings ...` to show where the warning was created)
[Nest] 7  - 06/08/2026, 4:50:48 PM     LOG [Microservices:DatabaseRepository] Creating VectorChord extension
[Nest] 24  - 06/08/2026, 4:50:48 PM     LOG [Api:WebsocketRepository] Initialized websocket server
[Nest] 7  - 06/08/2026, 4:50:48 PM     LOG [Microservices:DatabaseRepository] Reindexing clip_index (This may take a while, do not restart)
[Nest] 7  - 06/08/2026, 4:50:48 PM     LOG [Microservices:DatabaseRepository] Reindexing face_index (This may take a while, do not restart)
[Nest] 7  - 06/08/2026, 4:50:48 PM    WARN [Microservices:DatabaseRepository] Table smart_search does not exist, skipping reindexing. This is only normal if this is a new Immich instance.
[Nest] 7  - 06/08/2026, 4:50:48 PM    WARN [Microservices:DatabaseRepository] Table face_search does not exist, skipping reindexing. This is only normal if this is a new Immich instance.
[Nest] 7  - 06/08/2026, 4:50:48 PM     LOG [Microservices:DatabaseRepository] Running migrations
[Nest] 7  - 06/08/2026, 4:50:49 PM     LOG [Microservices:Migrations] Converting database file paths from relative to absolute (source=upload/*, target=/usr/src/app/upload/*)
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:DatabaseRepository] Migration "1744910873969-InitialMigration" succeeded
...
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:DatabaseRepository] Finished running migrations
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:DatabaseService] Checking for schema drift
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:DatabaseService] No schema drift detected
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:StorageService] Verifying system mount folder checks, current state: {"mountChecks":{}}
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:StorageService] Writing initial mount file for the encoded-video folder
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:StorageService] Writing initial mount file for the library folder
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:StorageService] Writing initial mount file for the upload folder
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:StorageService] Writing initial mount file for the profile folder
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:StorageService] Writing initial mount file for the thumbs folder
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:StorageService] Writing initial mount file for the backups folder
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:StorageService] Successfully enabled system mount folders checks
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:StorageService] Successfully verified system mount folder checks
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:DatabaseRepository] targetLists=1, current=1 for clip_index of 0 rows
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:DatabaseRepository] targetLists=1, current=1 for face_index of 0 rows
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:DatabaseRepository] Running migrations
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:MetadataService] Bootstrapping metadata service
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:MetadataService] Initializing metadata service
[Nest] 7  - 06/08/2026, 4:50:50 PM     LOG [Microservices:MapRepository] Initializing metadata repository
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:DatabaseRepository] Finished running migrations
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:DatabaseService] Checking for schema drift
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:DatabaseService] No schema drift detected
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:StorageService] Verifying system mount folder checks, current state: {"mountChecks":{"thumbs":true,"upload":true,"backups":true,"library":true,"profile":true,"encoded-video":true}}
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:StorageService] Successfully verified system mount folder checks
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:PluginService] Upserted plugin: immich-core (ID: 5e20a9f4-2b6f-406c-b325-56379fee4751, version: 2.0.1)
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:PluginService] Upserted plugin filter: filterFileName (ID: 887ca7ad-159f-4770-a09d-8aecffc44930)
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:PluginService] Upserted plugin filter: filterFileType (ID: abf628cc-e3b6-433b-9e9a-4c87134be2f4)
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:PluginService] Upserted plugin filter: filterPerson (ID: 5d933528-9f14-4647-b356-2b7b19f2d035)
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:PluginService] Upserted plugin action: actionArchive (ID: ac280138-c96e-4b7e-9073-f9869637c4c4)
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:PluginService] Upserted plugin action: actionFavorite (ID: e1448a93-effb-4097-a620-d27578b1dd83)
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:PluginService] Upserted plugin action: actionAddToAlbum (ID: 371da63c-c1fc-4e15-b993-ea2e290620be)
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:PluginService] Successfully processed core plugin: immich-core (version 2.0.1)
[Nest] 24  - 06/08/2026, 4:50:50 PM     LOG [Api:PluginService] Successfully loaded plugin: immich-core
[Nest] 24  - 06/08/2026, 4:50:51 PM     LOG [Api:ServerService] Feature Flags: {
  "smartSearch": true,
  "facialRecognition": true,
  "duplicateDetection": true,
  "map": true,
  "reverseGeocoding": true,
  "importFaces": false,
  "sidecar": true,
  "search": true,
  "trash": true,
  "oauth": false,
  "oauthAutoLaunch": false,
  "ocr": true,
  "passwordLogin": true,
  "configFile": false,
  "email": false
}
[Nest] 24  - 06/08/2026, 4:50:51 PM     LOG [Api:SystemConfigService] LogLevel=log (set via system config)
[Nest] 7  - 06/08/2026, 4:50:51 PM     LOG [Microservices:MapRepository] Starting geodata import
[Nest] 24  - 06/08/2026, 4:50:51 PM     LOG [Api:NestFactory] Starting Nest application...
...
[Nest] 24  - 06/08/2026, 4:50:51 PM     LOG [Api:NestApplication] Nest application successfully started
[Nest] 24  - 06/08/2026, 4:50:51 PM     LOG [Api:Bootstrap] Immich Server is listening on http://[::1]:2283 [v2.7.5] [production]
[Nest] 24  - 06/08/2026, 4:50:51 PM     LOG [Api:MachineLearningRepository] Machine learning server became healthy (http://immich-machine-learning-service:3003).
[Nest] 7  - 06/08/2026, 4:50:52 PM     LOG [Microservices:MapRepository] 10000 geodata records imported
...
[Nest] 7  - 06/08/2026, 4:50:58 PM     LOG [Microservices:MapRepository] 210000 geodata records imported
[Nest] 7  - 06/08/2026, 4:50:58 PM     LOG [Microservices:MapRepository] Successfully imported 224210 geodata records in 7.43s (30165 records/second)
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:MapRepository] Geodata import completed
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:MetadataService] Initialized local reverse geocoder
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:PluginService] Plugin immich-core is up to date (version 2.0.1). Skipping
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:PluginService] Successfully processed core plugin: immich-core (version 2.0.1)
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:PluginService] Successfully loaded plugin: immich-core
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:ServerService] Feature Flags: {
  "smartSearch": true,
  "facialRecognition": true,
  "duplicateDetection": true,
  "map": true,
  "reverseGeocoding": true,
  "importFaces": false,
  "sidecar": true,
  "search": true,
  "trash": true,
  "oauth": false,
  "oauthAutoLaunch": false,
  "ocr": true,
  "passwordLogin": true,
  "configFile": false,
  "email": false
}
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:SystemConfigService] LogLevel=log (set via system config)
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:MachineLearningRepository] Machine learning server became healthy (http://immich-machine-learning-service:3003).
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:NestFactory] Starting Nest application...
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:InstanceLoader] BullModule dependencies initialized
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:InstanceLoader] ClsModule dependencies initialized
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:InstanceLoader] ClsCommonModule dependencies initialized
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:InstanceLoader] KyselyModule$1 dependencies initialized
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:InstanceLoader] OpenTelemetryModule dependencies initialized
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:InstanceLoader] KyselyCoreModule$1 dependencies initialized
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:InstanceLoader] DiscoveryModule dependencies initialized
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:InstanceLoader] OpenTelemetryCoreModule dependencies initialized
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:InstanceLoader] ClsRootModule dependencies initialized
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:InstanceLoader] BullModule dependencies initialized
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:InstanceLoader] BullModule dependencies initialized
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:InstanceLoader] MicroservicesModule dependencies initialized
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:NestApplication] Nest application successfully started
[Nest] 7  - 06/08/2026, 4:51:01 PM     LOG [Microservices:Bootstrap] Immich Microservices is running [v2.7.5] [production]

Pomerium Ingress

Add the following file to the Pomerium Kustomize per-service ACLs setup to make the Immich app accessible at https://immich.uu.am

pomerium/pomerium-ingress/immich.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: immich-pomerium-ingress
  namespace: immich
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
    ingress.pomerium.io/allow_websockets: true
    ingress.pomerium.io/idle_timeout: 0s
    ingress.pomerium.io/pass_identity_headers: true
    ingress.pomerium.io/preserve_host_header: true
    ingress.pomerium.io/timeout: 0s
spec:
  ingressClassName: pomerium
  rules:
    - host: immich.uu.am
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: immich-server-service
                port:
                  number: 80
  tls:
    - secretName: tls-secret
      hosts:
        - immich.uu.am

$ kubectl apply -k pomerium/pomerium-ingress
...
ingress.networking.k8s.io/immich-pomerium-ingress created
...

$ kubectl -n immich get certificate  -w
NAME         READY   SECRET       AGE
tls-secret   False   tls-secret   5s
tls-secret   False   tls-secret   79s

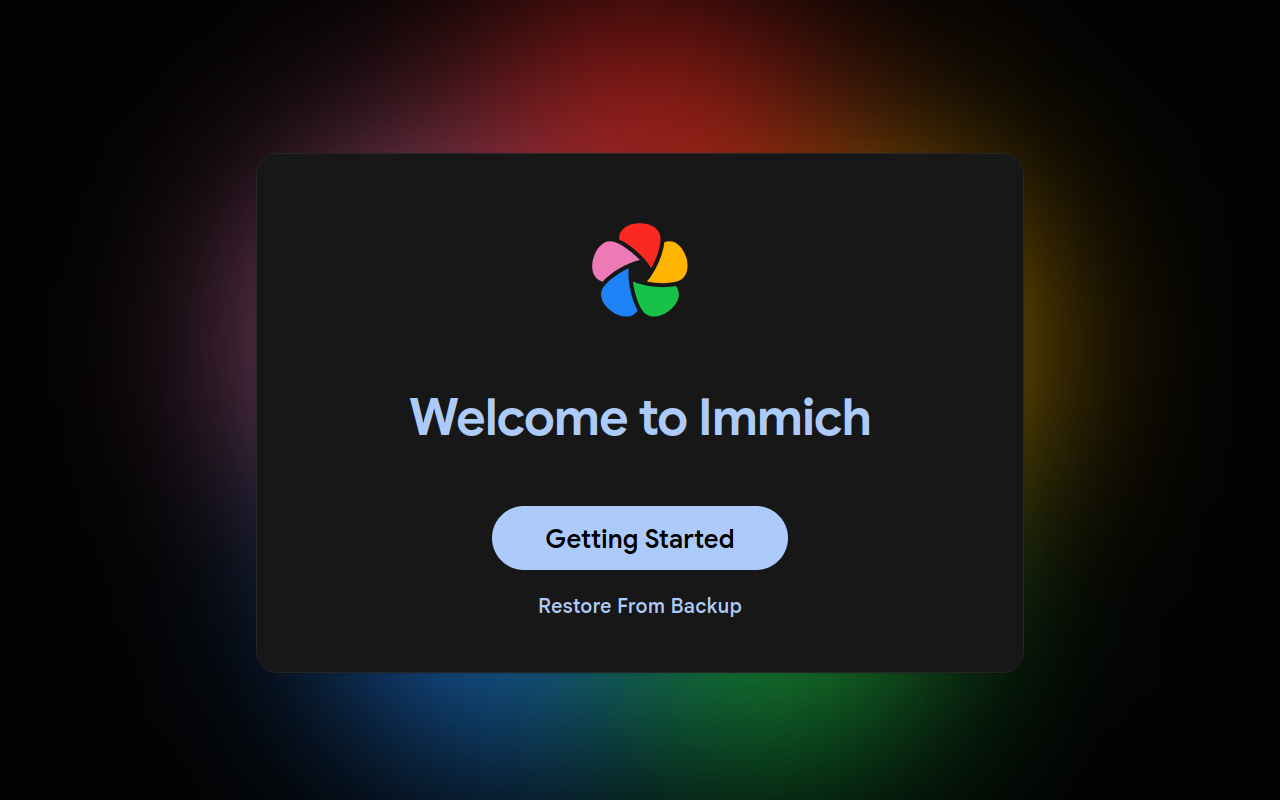

Once the new certificate is ready, accessing the Immich app at http://immich.uu.am should show the welcome page to setup the admin user:

"Welcome to Immich dialog"

API and Mobile apps

To enable access to the API endpoints, which are required for the mobile apps and the script to rescan libraries on demand, add the following path-based allow rules:

pomerium/pomerium-ingress/kustomization.yaml

  - target:
      kind: Ingress
      name: immich-pomerium-ingress
    patch: |-
      - op: replace
        path: "/metadata/annotations/ingress.pomerium.io~1policy"
        value: |
          - allow:
              or:
                - http_path:
                    starts_with: "/.well-known/immich"
                - http_path:
                    starts_with: "/api"
          - allow:
              or:
                - email:
                    is: "...@gmail.com"

Configuration

Once the frontend is running, the first user to register will be the admin user. This admin user will be able to add other users to the application, although this can be made unnecessary if users already have a GMail account, by setting up OAuth authentication.

Authenticaton

OAuth Authentication is relatively easy to setup in Immich and the documentation even includes a handy Google Example, which is much easier than setting up Immich to use Pomerium as the OIDC provider. Pomerium still block unauthorized web traffic at the infrastructure perimeter, but the actual identity mapping is handled cleanly through a direct relationship between Immich and Google.

First, create a new, dedicated OAuth Client ID in the Google Cloud Console:

  1. Open the Google Cloud Console and select (or create) the relevant project.
  2. Navigate to APIs & Services > Credentials.
  3. Click Create Credentials and select OAuth client ID.
  4. Set the Application type to Web application and name it (e.g. Immich-App).

  5. Configure the specific redirection URLs required by Immich:

    • https://immich.uu.am/auth/login
    • https://immich.uu.am/user-settings
    • https://immich.uu.am/api/oauth/mobile-redirect

  6. Click Create and copy the Client ID and Client Secret.

Note

app.immich:///oauth-callback is not a supported URL.

Then setup Login with OAuth in Immich:

  1. Click on the user badge on the top-right corner of the screen.
  2. Click on Administration (the wrench icon) under the user badge.
  3. Open the Authentication Settings section and its the OAuth subsection.
  4. Enable Login with OAuth and fill in the following fields exactly as follows:
    • Issuer URL: https://accounts.google.com
    • Client ID: Paste the Client ID from Step 1
    • Client Secret: Paste the Client Secret from Step 1
    • Scroll down past fields that are populated automatically.
  5. Set the Behavior Strictness Rules:
    • Auto Register: enable this so that authorized users (gated by Pomerium) get an account created automatically the first time the log in.
    • Auto Launch: enable this to achieve a seamless workflow, so that users are logged in directly without having to click on any button.
    • Mobile redirect URI override: enable this because Google OAuth does not support the app.immich:///oauth-callback URL format.
    • Mobile redirect URI: https://immich.uu.am/api/oauth/mobile-redirect
  6. Click Save Settings.

Because Pomerium is already authenticating users via Google before they can reach Immich, they will experience a completely transparent, zero-click login: Immich with Auto Launch enabled immediately redirects the browser to Google OAuth to confirm identity, but the user is already logged into Google in that browser session, so Google instantly responds with a signed web token containing their @gmail.com address, skipping any password prompts, and Immich will automatically create a new account on their first visit.

Fallback authentication

In a pinch, adding ?autoLaunch=false to the end of the login URL will explicitly tell the Immich frontend engine to disable the Auto Launch of the OAuth flow. It will stop the Google redirection loop entirely and present you with the original login screen. From there, the administrator user can log in with the password created during the initial setup.

API key

To use scripts that rely on the Immich API, e.g. to trigger library rescan on demand and to create folder-based albums, create an API key from the Immich Web UI, under Account Settings > API Keys, with the following permissions:

  • album (all)
  • albumAsset (all)
  • albumUser (all)
  • asset.read
  • asset.view
  • folder.read
  • library.update
  • user.read

External Library

Immich handles pre-existing photo structures using its native External Libraries feature. Using this, a curated photo collection can be loaded directly from external storage, such as the NAS volume mounted over NFS included in the above deployment.

The External Libraries UI is found in the Administration menu, accessed through the user badge icon on the top-right corner of the screen. Using the Create Library button on the top-right corner (under the user badge), the first and critical step is to choose the owner for the library. This cannot be changed later.

Once the library is created, Folders are added by specifying their path in the Immich pod filesystem, e.g. under /mnt/nas/photos based on the above deployment. For an initial test, a single subdirectory can be added instead of the entire volume. This can also be a good way to gradually add parts of the external library in stages, while at the same time leaving out subdirectories that are not intended to be imported.

To avoid indexing certain files in subdirectories further down the tree, patterns can be added to the list of Exclusion Patterns next to the list of Folders. To avoid importing unprocessed raw files, these being stored in raw subdirectories throughout the library, add the pattern **/raw/**.

The **/ prefix instructs Immich's file traversal loop to intercept the search anywhere in the folder architecture. If it hits a nested directory like /mnt/nas/photos/2024/Trip/raw/xt5_1234.raf, the wildcard instantly matches and drops the file. This allow allows root-level paths, but those can be excluded by adding only the specific root-level directories to be scanned.

Note

To avoid indexing files inside of multiple directories named after a pattern (not with the same name), the pattern must be enclosed between **/ and /**; e.g. to avoid indexing files under diretories named pano-xx where xx are numbers, use **/pano-*/**.

A more complete list of exclusion patterns
**/._*
**/_a/**
**/banners/**
**/CD/**
**/chus/**
**/.comments/**
**/.dtrash/**
**/@eaDir/**
**/icons/**
**/import_vid/**
**/insta/**
**/Insta-*/**
**/nope/**
**online_auf**
**Online Resolution**
**/oof/**
**/orig/**
**/pano-*/**
**/panos/**
**/parts/**
**/raw/**
**/#recycle/**
**/slides/**
**/#snapshot/**
**/.stfolder/**
**/.stversions/**
**/test/**
**/thumbnails/**
**/TODO/**
**/trash/**

Once all the desired Folders and Exclusion Patterns have been added, click on Save to store the changes and then Scan to start the scanning process. When scanning the library, Immich will catalog the directory tree and read file metadata headers. Once the files are indexed, Immich's background job queue manager will automatically send files to the immich-machine-learning sidecar. This generates visual thumbnails, extracts faces, and calculates VectorChord machine-learning embeddings for semantic search. This deep AI scanning process runs asynchronously in the background and can take several hours to fully complete depending on the library size. In the meantime, the web and mobile applications remain completely fast and usable.

The initial test with 1,555 photos in the Events subdirectory (2.9 GB) took about 90 minutes, with CPU usage hard-capped at 2 CPU cores, most of the time used by machine learning:

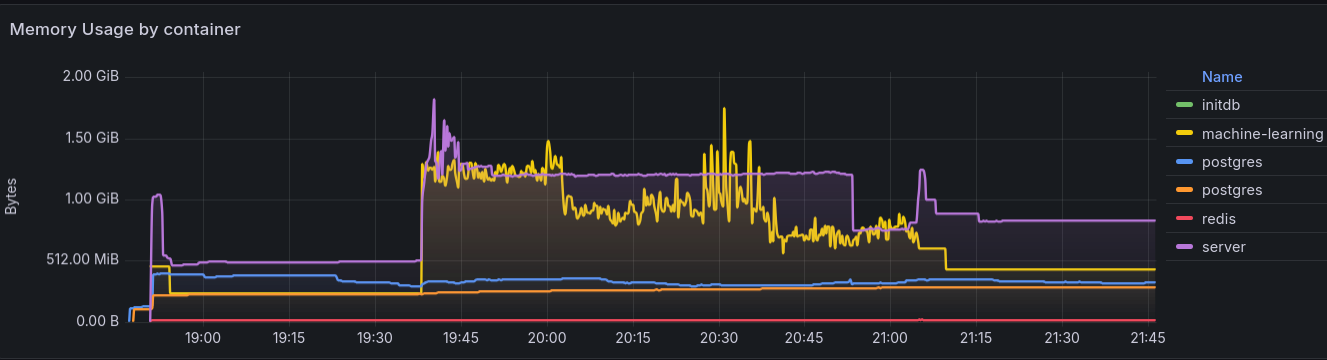

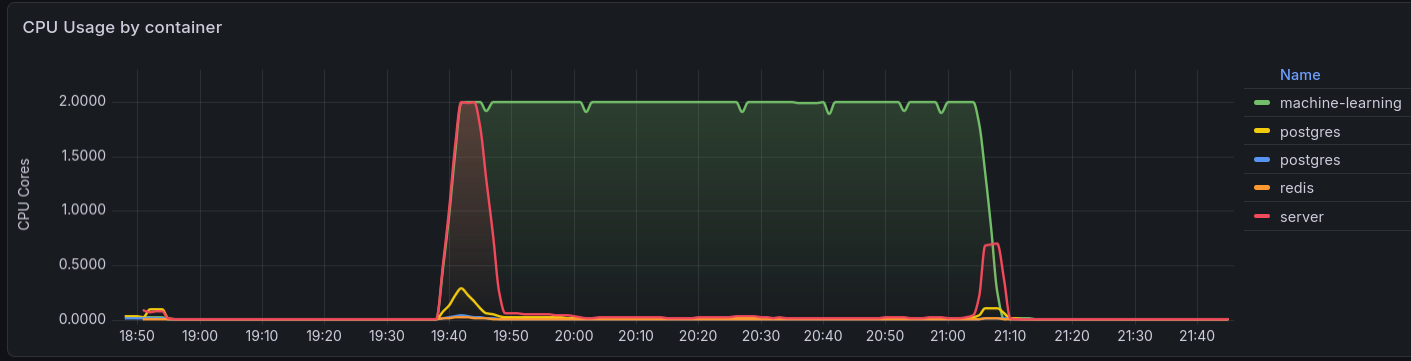

"Immich CPU load scanning external library" "Immich memory use scanning external library"

Given the relatively small impact of dedicating 2 CPU cores in a system with 12 cores, it may be reasonable to increse CPU allowance to 4 cores, maybe even 6, when the time comes to import larger parts of the library.

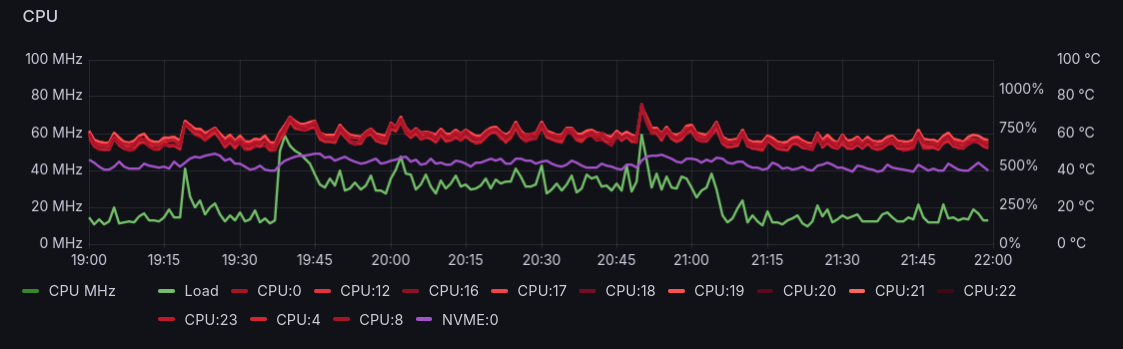

"Immich CPU load scanning external library"

The main Photos section (timeline) already showed the photos as soon as the files and metadata were scanned, which took only about 10 minutes, and scrolling through the timeline was fast.

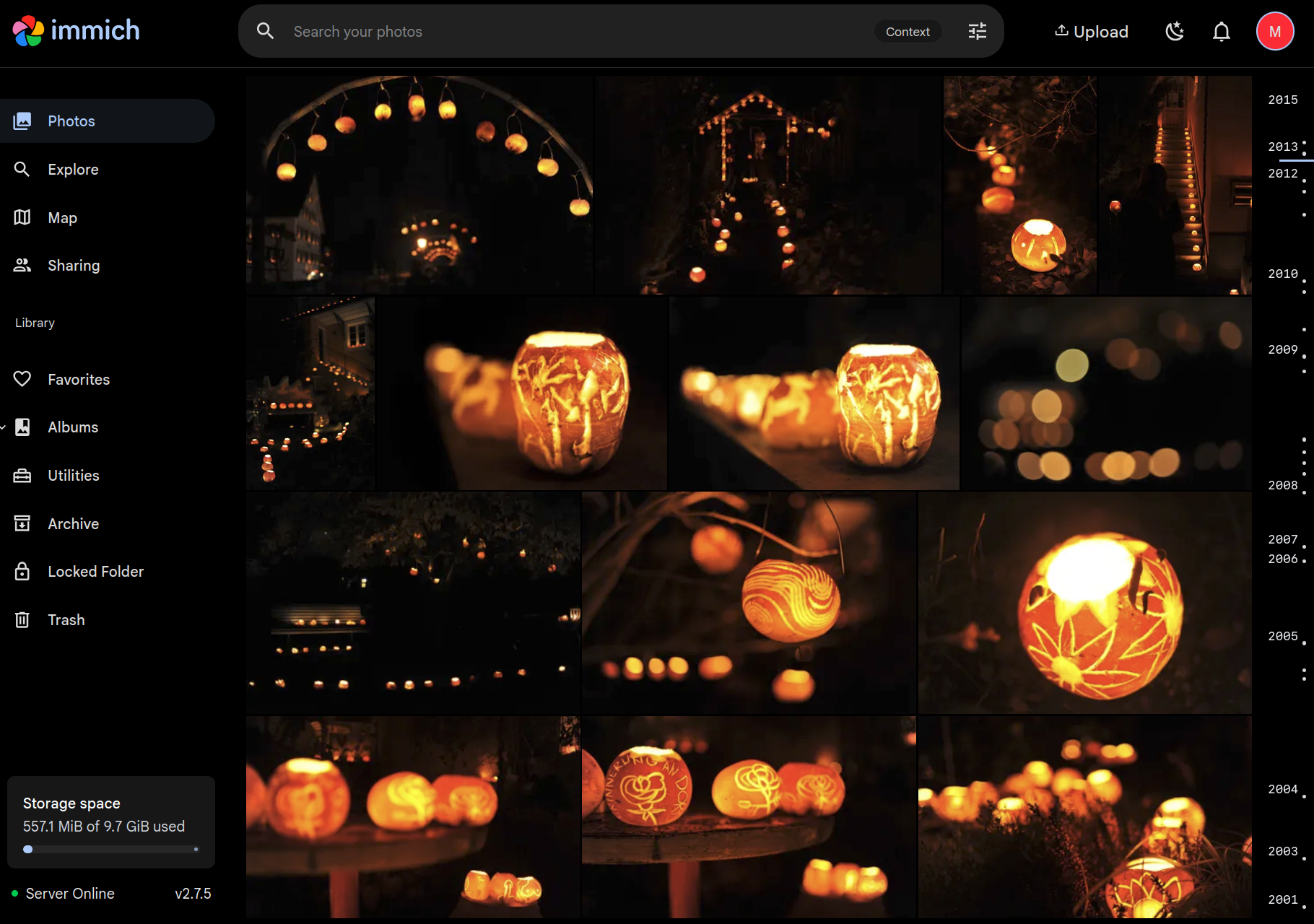

"Immich main Photos timeline"

For the subsequent parts of the library, resource limits were increased for both the web server and machine-learning pipeline to 4 CPU cores and 4 GB of memory. Indexing the last part, with 22,600 photos in the People subdirectory took 2-3 hours for the main scan and a total of 9 hours including the machine learning process.

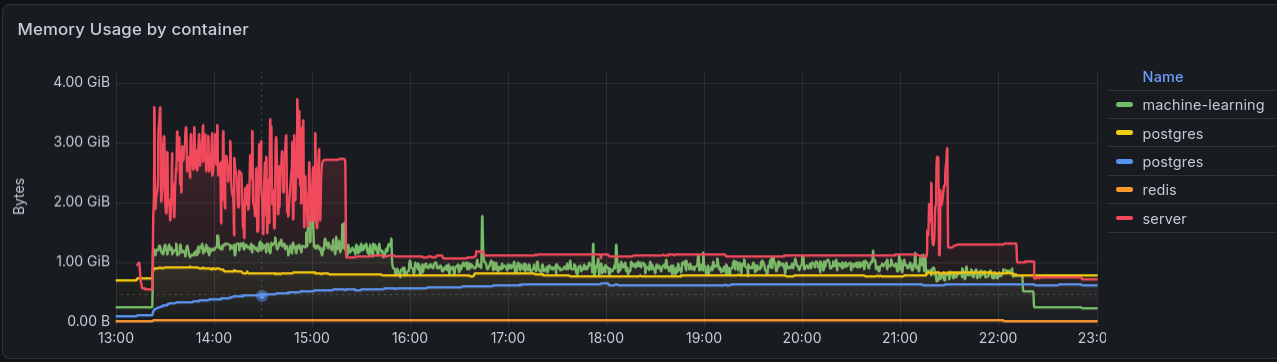

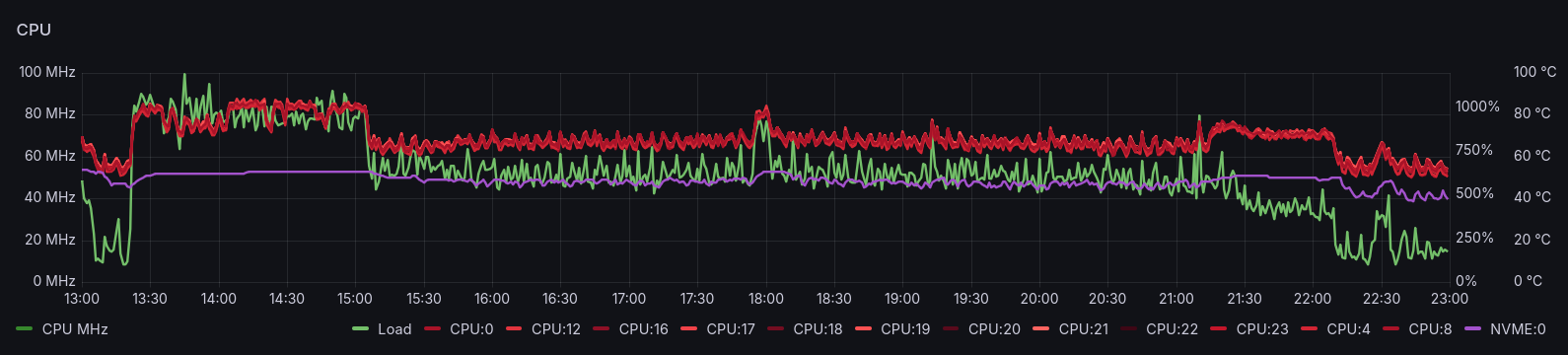

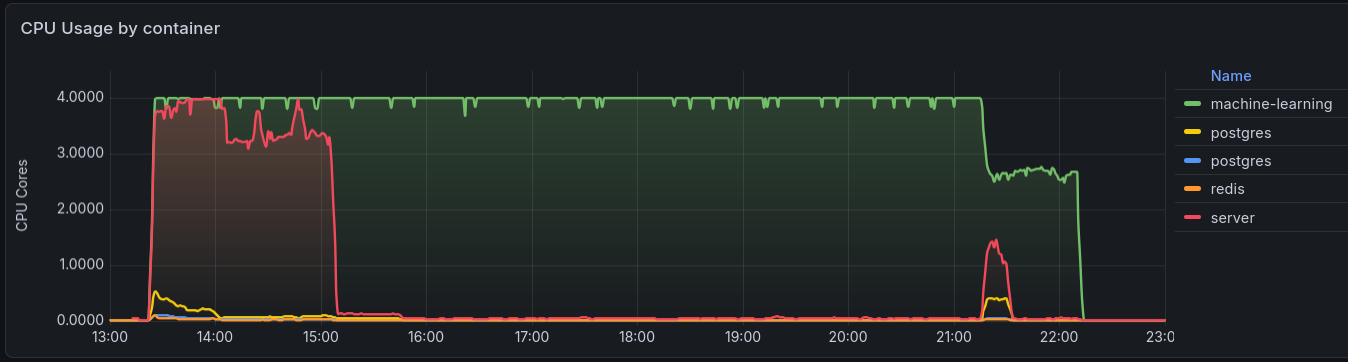

"Immich CPU load scanning external library" "Immich memory use scanning external library" "Immich CPU load scanning external library"

The initial internal storage of 10 GB had to be explaned to 100 GB to make room for all the thumbnails and metadata.

Library rescan on-demand

External libraries are not scanned periodically and there is no facility to "watch" for changes in the file system (which would not work with NFS volumes anyway), but there is a very simple way to trigger a library rescan by sending a single API request. Running this script after updating or adding files to the NAS volume will have changes reflected in Immich, typically within seconds:

#!/bin/bash
API_KEY=XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
IMMICH_URL="https://immich.uu.am/api"

for lid in 6c753389-b35e-4728-ac61-633c8889aff8; do
  curl -X POST "$IMMICH_URL/libraries/$lid/scan" \
    -H "Content-Type: application/json" \
    -H "x-api-key: $API_KEY"
done

Create an API key with the required permissions for this. The album id 6c753389-b35e-4728-ac61-633c8889aff8 can be taken from the Immich server URL when viewing the album's settings.

Additional navigation features

For a highly curated photo collection, it is useful to enable navigation features that are disabled by default:

  • Folder View provides an additional view besides the timeline that is similar to a file explorer, to navigate through the folders and files in the library. This feature is handy for a highly curated external library with a well organized directory structure.
  • Tags provides another view to navigate through the hierarchical tree of tags, read the XMP TagsList field and IPTC Keywords fields.

Partner Sharing

Partner Sharing lets users share their entirely libraries, including geographical data (or not). On the receiving end, each user can choose to include a partner's photos in their timeline (or not).

Folder-based albums

Immich Folder Album Creator can be integrated to automatically create albums from specific directories. This is particularly useful when combined with the .albumprops File Format to precisely define which files in which directories are included in each album created this way, as well as how the photos show up and who has access to them.

Create an API key with the required permissions and add it as a secret:

$ kubectl -n immich \
  create secret generic immich-api-key-secret \
  --from-literal=api-key="XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX"

To integrate the immich-folder-album-creator docker image, add an additional container to the Immich server pod, so that it shares the same network and volumes as the Immich server, and run it periodically to check for new and updated files.

immich-app.yaml

225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
        - name: immich-folder-album-creator
          image: salvoxia/immich-folder-album-creator:latest
          command: ["/bin/sh", "-c"]
          args:
            - |
              echo "Starting conditional .albumprops cron loop..."

              run_sync() {
                echo "Searching for folders containing .albumprops files..."

                # Clear positional parameters to build our filter flag list safely
                set --

                # 1. Locate every .albumprops file on the read-only share.
                #    Using a while-read block preserves spaces and special characters.
                find /mnt/nas/photos -type f -name ".albumprops" | while read -r prop_file; do
                  if [ -f "$prop_file" ]; then
                    ABS_DIR=$(dirname "$prop_file")

                    # 2. Extract the relative path path starting from the root mount point.
                    #    Example: /mnt/nas/photos/Events/Spain/Gran.Canaria/FiCIT.2002
                    #    Becomes: Events/Spain/Gran.Canaria/FiCIT.2002/**
                    REL_DIR=$(echo "$ABS_DIR" | sed 's|^/mnt/nas/photos/||')

                    # 3. Append them as separate tokens into the shell execution array
                    set -- "$@" "-f" "${REL_DIR}/**"
                  fi

                  # Store the built parameter flags into a temporary environment file
                  # to cleanly pass the array data outside of the while subshell scope
                  printf '%s\n' "$@" > /tmp/filter_args.txt
                done

                if [ -s /tmp/filter_args.txt ]; then
                  echo "Executing single fast batch sync..."
                  SECRET_KEY=$(cat /secrets/api-key)

                  # Reconstruct the positional array elements cleanly
                  set --
                  while read -r arg; do
                    set -- "$@" "$arg"
                  done < /tmp/filter_args.txt
                  rm -f /tmp/filter_args.txt

                  # 4. Invoke the python engine as a single master batch run.
                  #    -A forces the script to re-evaluate photos already in albums,
                  #    allowing it to read modified .albumprops files and push missing shares.
                  #    --album-levels -1 automatically extracts the leaf folder name.
                  python3 /script/immich_auto_album.py \
                    -u \
                    --read-album-properties \
                    --update-album-props-mode 2 \
                    --album-levels -1 \
                    --find-assets-in-albums \
                    "$@" \
                    "/mnt/nas/photos" \
                    "http://localhost:2283/api" \
                    "$SECRET_KEY"
                else
                  echo "No .albumprops configurations found. Skipping sync."
                  rm -f /tmp/filter_args.txt
                fi
              }

              run_sync

              while true; do
                sleep 300
                run_sync
              done
          volumeMounts:
            - name: nfs-nas-photos
              mountPath: /mnt/nas/photos
              readOnly: true
            - name: immich-api-key-volume
              mountPath: /secrets
              readOnly: true
      volumes:
        - name: immich-api-key-volume
          secret:
            secretName: immich-api-key-secret

Because the files in the NFS volume are updated by different NFS client than the server, it is not possible to use inotifywait to watch the NFS volume for updates, so the script runs in a loop instead. To trigger a manual run, delete the pod to start a new one.

$ kubectl -n immich delete pod -l app=immich-server

Limitations

The above script works around certain limitations of the immich-folder-album-creator and yet some limitations proved impossibe to work around. The most notorious of these is that when new albums are created, and every time the script runs again subsequently, the album may not be shared with any of the invited users. The issue appears to "stick" to each affected album. Even deleting the albums, so that the script would create it anew, did not help.

Conclusions

Immich performs and feels superior to Google Photos in many aspects, while keeping its familiar UI and extending it in what feels like a natural way. A few features are missing (e.g. adding labels in albums to group photos) and sharing is still quite rough. Work has been started in Immich 3.0 to address the latter, but this may take quite some time to materialize into usable features.

In the meantime, Immich offers a far superior, faster and more reliable way to find out what details are missing or incorrect in photos metadata (EXIF, IPTC, etc.). Photos without DateTimeOriginal show up on the date the file was created, Photos with malformed Model (camera) or LensID tag will show up with an incorrect or broken value and, most useful, Immich makes that value a direct link to find all the photos affected by the same issue. And the best part is that fixing the issues in the original files (in the NAS volume) will lead to Immich updating the assets the next time the library is scanned.
